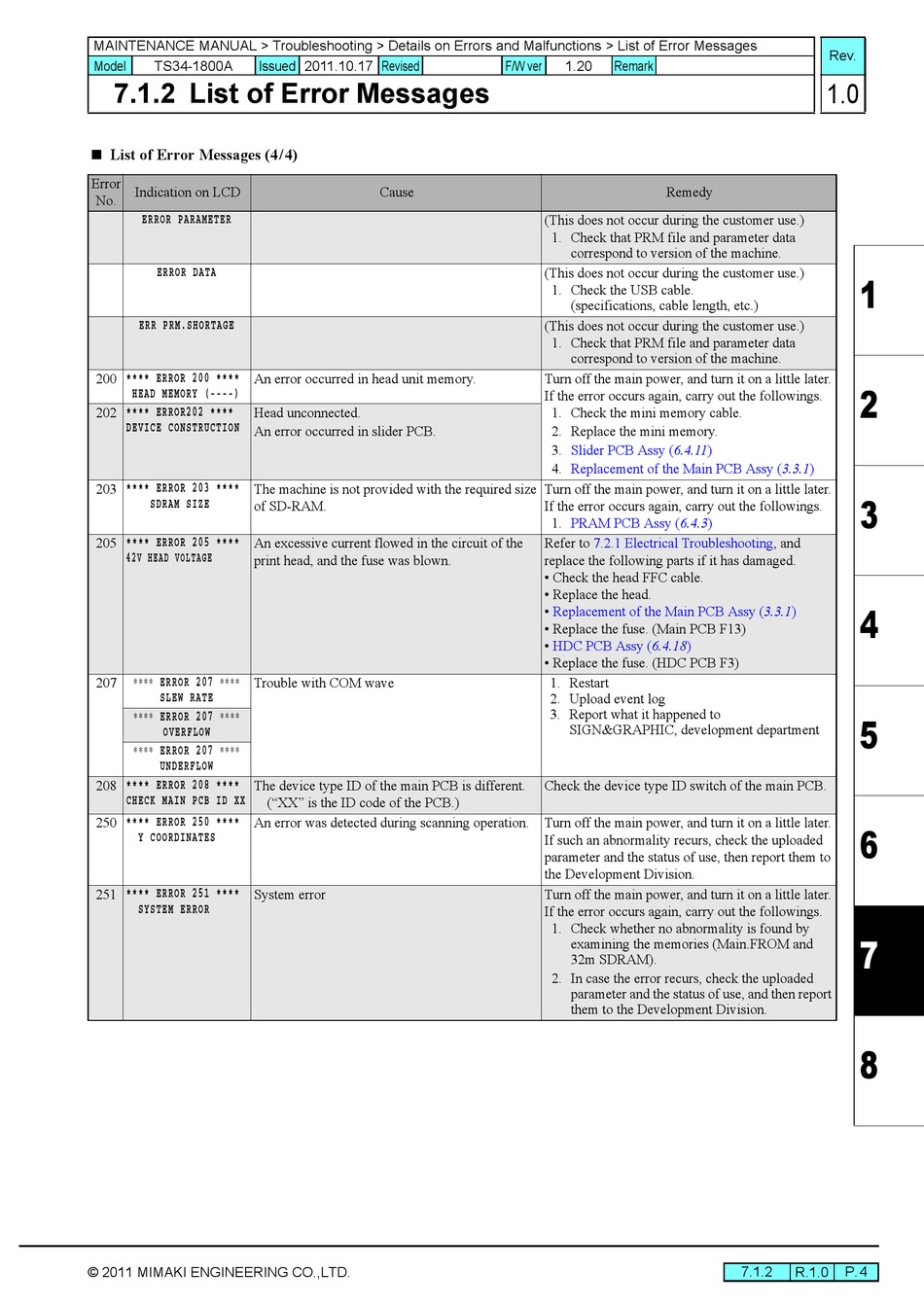

MIMAKI TS34-1800A Maintenance Manual page 230

MAINTENANCE MANUAL > Troubleshooting > Details on Errors and Malfunctions > List of Error Messages
Model TS34-1800A Issued 2011.10.17 Revised
7.1.2 List of Error Messages
 List of Error Messages (4/4)
Error
Indication on LCD
No.
ERROR PARAMETER
ERROR DATA
ERR PRM.SHORTAGE
200 **** ERROR 200 **** An error occurred in head unit memory.
HEAD MEMORY (----)
202 **** ERROR202 **** Head unconnected.
DEVICE CONSTRUCTION
An error occurred in slider PCB.
203 **** ERROR 203 **** The machine is not provided with the required size
of SD-RAM.
SDRAM SIZE
205 **** ERROR 205 **** An excessive current flowed in the circuit of the
42V HEAD VOLTAGE print head, and the fuse was blown.
∗∗∗∗ ERROR 207 ∗∗∗∗
207 Trouble with COM wave
SLEW RATE
∗∗∗∗ ERROR 207 ∗∗∗∗
OVERFLOW
∗∗∗∗ ERROR 207 ∗∗∗∗
UNDERFLOW
208 **** ERROR 208 **** The device type ID of the main PCB is different.
CHECK MAIN PCB ID XX
250 **** ERROR 250 **** An error was detected during scanning operation.
Y COORDINATES
251 **** ERROR 251 **** System error
SYSTEM ERROR
© 2011 MIMAKI ENGINEERING CO.,LTD.
Cause
("XX" is the ID code of the PCB.)
F/W ver 1.20 Remark
Remedy
(This does not occur during the customer use.)
1. Check that PRM file and parameter data
correspond to version of the machine.
(This does not occur during the customer use.)
1. Check the USB cable.
(specifications, cable length, etc.)
(This does not occur during the customer use.)
1. Check that PRM file and parameter data
correspond to version of the machine.
Turn off the main power, and turn it on a little later.
If the error occurs again, carry out the followings.
1. Check the mini memory cable.
2. Replace the mini memory.
3. Slider PCB Assy (6.4.11)
4. Replacement of the Main PCB Assy (3.3.1)
Turn off the main power, and turn it on a little later.
If the error occurs again, carry out the followings.
1. PRAM PCB Assy (6.4.3)
Refer to 7.2.1 Electrical
replace the following parts if it has damaged.
• Check the head FFC cable.
• Replace the head.
• Replacement of the Main PCB Assy (3.3.1)
• Replace the fuse. (Main PCB F13)
• HDC PCB Assy (6.4.18)
• Replace the fuse. (HDC PCB F3)
1. Restart
2. Upload event log
3. Report what it happened to
SIGN&GRAPHIC, development department
Check the device type ID switch of the main PCB.
Turn off the main power, and turn it on a little later.
If such an abnormality recurs, check the uploaded
parameter and the status of use, then report them to
the Development Division.
Turn off the main power, and turn it on a little later.
If the error occurs again, carry out the followings.
1. Check whether no abnormality is found by
examining the memories (Main.FROM and
32m SDRAM).
2. In case the error recurs, check the uploaded
parameter and the status of use, and then report
them to the Development Division.
Rev.
1.0
Troubleshooting, and
7.1.2 P.4
R.1.0
