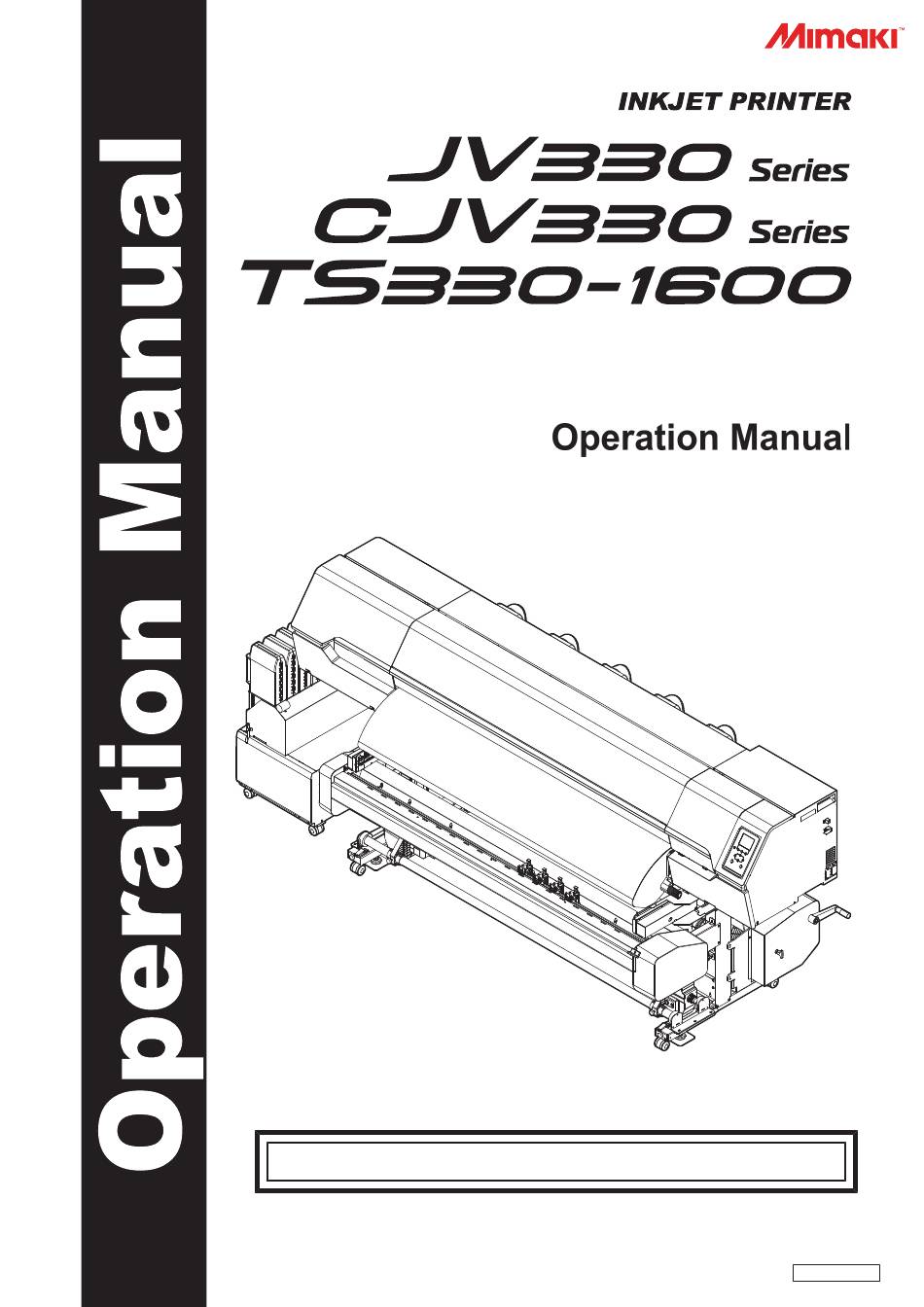

Page 1 You can also download the latest manual from official website. MIMAKI ENGINEERING CO., LTD. https://mimaki.com/ D203599-11 Original instructions...
Page 2: Table Of Contents
1.3 Connecting a PC to the Product .......... 37 Using a LAN Cable ................ 37 Using a USB Cable................ 38 1.4 System Configuration ............. 39 Installing the Mimaki Driver.............. 40 Installing RIP Software ............... 40 Obtaining Color Profiles.............. 40 Setting Up RIP Software.............. 41 1.5 Ink Replacement Method............
Page 3 2.3 Adjusting the Pinch Roller Positions (CJV)...... 54 1,600 mm size .................. 55 1,300 mm size .................. 56 2.4 Loading the Media .............. 57 Media .................... 57 Take-up unit.................. 58 Feed unit (JV/CJV) ................ 61 Loading the Roll Media ............... 62 Loading the Leaf Media (CJV) ............
Page 4 4.2 Creating Register Marks ............ 108 Register Marks.................. 108 Register Mark Size ................ 109 Spacing Between Register Marks............. 109 Reading Range of Register Marks............ 110 No-Plotting Areas Around Register Marks........ 112 Combined Operations of Printing and Cutting ........ 112 4.3 Setting Mark Detection Conditions ........ 113 4.4 Detecting the Position of the Register Mark Origin....
Page 5 7.2 Maintenance Items and Timing.......... 159 Items Required for Maintenance............ 159 7.3 Maintenance Methods ............ 160 Ink Maintenance ................ 160 Cap Rubber Cleaning ............... 160 Carriage Underside Cleaning ............ 161 Cloth Wiper Area Cleaning ............... 162 NCU Cleaning................... 163 Automatic Correction Sensor (DAS) Cleaning........ 164 Ink Discharge Channel Cleaning ............
Page 6 Chapter 9 Appendix 9.1 Specifications................ 220 9.2 Specifications (Cutting)............ 224 9.3 Specifications (XY Slitter) ............. 225 9.4 Relay Box ................ 226 9.5 LICENSE Library .............. 227...
Page 7: Introduction
Adobe, the Adobe logo, Acrobat, Illustrator, Photoshop, and PostScript are the trademarks or registered trademarks of Adobe Incorporated in the United States and other countries. RasterLink is the trademark or registered trademark of MIMAKI ENGINEERING CO., LTD. in Japan and in other countries.
Page 8 Use of this product in residential areas may cause harmful interference. If so, the user is responsible for rectifying such interference. • Use only the cables recommended by Mimaki Engineering when connecting to this product. Use of other cables may cause the product to exceed the restrictions stipulated by FCC regulations.
Page 9: To Ensure Safe Use
To ensure safe use To ensure safe use Symbols In this manual, the symbols indicate and explain precautions. Make sure you fully understand the meaning of each symbol and use the machine safely and correctly. Explanation Warning Indicates a potential hazard that may result in death or serious injury if handled improperly or if instructions are disregarded.
Page 10: Usage Precautions
To ensure safe use Usage Precautions l In the event of abnormal conditions • In the event of abnormal conditions such as smoke or unusual odor, turn off the main power immediately and unplug the power cable. Continuing to use the product under these conditions may result in failure, electric shock, or fire.
Page 11 To ensure safe use l Power supply precautions • Use the power cable provided. Otherwise there is a risk of failure, electric shock, or fire. Do not use the power cable with other electronic devices. • Always grasp the plug when unplugging the power cable. Pulling on the power cable itself may damage the cable and result in failure, electric shock, or fire.
Page 12 To ensure safe use l Caution regarding moving parts • Keep parts of the body such as the face and hands away from moving parts. Also keep clothing (e.g., loose clothing and accessories) that may impede work away from the machine. Failure to do so may result in injury.
Page 13 To ensure safe use l Disposing of the product • Please contact your local retailer or service agent. • When disposing of the product yourself, contact an industrial waste disposal operator or dispose of the product in accordance with local laws and regulations.
Page 14: Ink Or Any Other Liquid Used With The Machine
• Be sure to read the safety data sheet (SDS) before use. https://mimaki.com/supply/sds/ • Pay close attention to ventilation and be sure to wear safety glasses, gloves, and a mask when handling ink, maintenance liquid, waste ink, or other solutions used with this machine. Leaking ink may adhere to the skin or get into the eyes or mouth.
Page 15: Ink Specifications
(such as amines or modified amine alcohol) are present in significant quantities. Storage in such places increases the risk of failure or printing defects (e.g., nozzle clogging, deflection). Ink Specifications Item JV330 Series, CJV330 Series TS330-1600 Type Special solvent ink (MIMAKI product) Sublimation transfer ink (MIMAKI product)
Page 16 Ink or any Other Liquid Used with the Machine • May: Replace with new ink or use up as quickly as possible. Printing is possible. • June: Replace with new ink or use up as quickly as possible. Printing is possible. •...
Page 17: Installation Precautions
Installation Precautions Installation Precautions • Do not install this machine in environments where flammable substances are present (e.g., gasoline, flammable spray, alcohol, thinner, lacquer, or powder). This machine is not explosion- proof. The product poses a risk of explosion. • Do not install this machine in locations where open flames are present. The ink may ignite. •...
Page 18: Installation Space
Installation Precautions Installation Space Provide the following space around the machine to allow safe and proper replacement of ink and media: Item JV330-130 CJV330-130 JV330-160 CJV330-160 TS330-1600 At least 3,920 mm (2,920 mm) At least 4,170 mm (3,170 mm) Width At least 2,820 mm Depth At least 4,050 mm (2,050 mm...
Page 19: Safety Interlocks
Safety Interlocks Safety Interlocks This machine is equipped with interlocks to ensure safety during use. Printing will abort if you open the covers while printing is underway. If so, you will need to resend the RIP data. • Safety interlock locations...
Page 20: Warning Label
Warning Label Warning Label Make sure you fully understand the details indicated on the various warning labels. If any of the warning labels becomes dirty and illegible or peel off, contact your local dealer or our service office to request new warning labels.
Page 21 Warning Label Order code Label Details M910931 Beware of opening and closing parts. Injury may result if hands become trapped. M907833 Indicates dangerous moving parts. M903239 Indicates hot parts. • JV / CJV: Pre-heater, Post- heater • TS: Post-heater M903330 Wear safety glasses and gloves while working.
Page 22 Warning Label Order code Label Details M905935 Avoid touching the pinch roller lever. • CJV only...
Page 23: Chapter 1 Before Use
Using a USB Cable ........3 8 Ink supply unit ..........27 System Configuration ........3 9 Carriage ............. 27 Installing the Mimaki Driver ......4 0 Capping station .......... 27 Installing RIP Software......... 4 0 Pinch Rollers and Grit Rollers ....28 Obtaining Color Profiles .......
Page 24: Part Names And Functions
Chapter 1 Before Use 1.1 Part Names and Functions Front Name Outline Platen Print area. "Platen"(P. 29) The platen on the JV and CJV is fitted with a heater to prevent ink bleeding. Adjust the temperature setting to suit the type of media used. "Setting the Heater Temperature"(P.
Page 25 Chapter 1 Before Use Name Outline 11 Edge guides In some cases, roll media may shift sideways and start to curl inwards. Using the edge guides prevents the roll media from becoming offset. * TS only "Using the Edge Guides (TS)"(P. 59) 12 Post-heater Allows ink to dry after printing.
Page 26: Rear And Right Side View
Chapter 1 Before Use Rear and Right Side View Name Outline Clamp lever (rear) Linked to the clamp lever at the front. Media sensor Detects whether media is present. "Media sensor"(P. 29) Blowing fan Blows air to dry ink after printing. Preheater Preheats the media before printing to suppress rapid temperature change.
Page 27: Ink Supply Unit
Chapter 1 Before Use Ink supply unit Name Outline Ink Eco-case Sets a Ink pack in the Ink eco-case. "Replacing Ink"(P. 44) Ink lever Push down the lever to remove the Ink eco-case. Ink IC chip slot The ink IC chip provided with the Ink pack is inserted here 46.
Page 28: Pinch Rollers And Grit Rollers
Chapter 1 Before Use The NCU (Nozzle Check Unit) automatically checks whether the nozzle is clogged. Setting various functions enables automatic print head cleaning or printing using other nozzles. Nozzle check menu "Registering nozzle recovery"(P. 144) Pinch Rollers and Grit Rollers The pinch rollers and grit rollers are used to grip and feed the media.
Page 29: Platen
Chapter 1 Before Use Platen The platen features a large number of holes used to secure the media under vacuum pressure. This also features a cutting slot for cutting the media. [JV/TS] [CJV] Cutting slot Cutting slot Media sensor The media sensor detects the presence/absence of media. The sensor must be covered by the media to detect the media width.
Page 30 Chapter 1 Before Use • Do not turn off the main power supply. Turning off the main power supply will disable the automatic maintenance function (including nozzle clogging prevention function and ink discharge channel cleaning function). This will increase the risk of print defects (e.g., nozzle clogging, deflection).
Page 31: Operating Panel
Chapter 1 Before Use Operating panel This is used to control the product and make/change settings. xxxx TEST PRINT MENU REMOTE CLEANING Name Outline Display "Display"(P. 32) [SEL] key Selects the function for the corresponding [FUNCTION] key. [FUNCTION] key Used for test printing, head cleaning, and editing settings "[FUNCTION] key"(P.
Page 32 Chapter 1 Before Use Display MENU mode <setting type number> SETUP 1 Connected cable type Head height 1620mm Detected media width PRINT POST Heater temperature (actual temperature/ 35°/40° 40°/40° setting) Ink status Orange: Heating to the set temperature Green: Reaches the set temperature TEST PRINT MENU REMOTE...
Page 33 Chapter 1 Before Use [FUNCTION] key This section describes the functions and roles assigned to the [FUNCTION] key. Icon Outline Displays the various menu screens. "Settings"(P. 139) Displays maintenance functions such as test printing and cleaning. Used to switch from LOCAL mode to REMOTE mode. Displays adjustment functions such as feed adjustment and drop position adjustment.
Page 34: Connecting The Power Cable
Chapter 1 Before Use 1.2 Connecting the Power Cable Check to confirm that the main power supply is turned off. Insert the cable band to the machine. Plug the power cable into the inlet of the machine. Secure the power cable to the cable band. •...
Page 35: Turning Off The Power
Chapter 1 Before Use Press the [END/POWER] key to turn on power. • The firmware version appears on the display, and the initial operation is executed. The machine will then enter the Media Select mode, and is ready for use. Turn on the power for the connected PC.
Page 36 Chapter 1 Before Use • Do not turn off the main power supply. Turning off the main power supply will disable the automatic maintenance function (including nozzle clogging prevention function and ink discharge channel cleaning function). This will increase the risk of print defects (e.g., nozzle clogging, deflection).
Page 37: Connecting A Pc To The Product
Chapter 1 Before Use 1.3 Connecting a PC to the Product Using a LAN Cable Connect a PC to this product using a LAN cable. Insert a LAN cable until it engages with a click. • Do not unplug the cable while data is being transferred. l Network Connection Precautions Make sure the network is set up as follows: Printing is not possible if the network is not set up correctly.
Page 38: Using A Usb Cable
Chapter 1 Before Use Color Status Outline Link down (not connected) Using a USB Cable Connect a PC to this product using a USB interface cable. • Do not unplug the cable while data is being transferred. • Use RIP software that supports the USB interface. •...
Page 39: System Configuration
Chapter 1 Before Use 1.4 System Configuration Use RIP software to request to print data created using applications like Illustrator or Photoshop. [Ethernet connection] RIP-PC Receiving Print Data Generating RIP Data [Local network] Preparing RIP Data Print request...
Page 40: Installing The Mimaki Driver
The explanation here applies to MIMAKI RIP software (RasterLink). • If using TxLink, refer to the TxLink operating manual. Launch "Profile Update". (1) From the Start menu, select [Mimaki RasterLink7] > [Profile Update]. (2) Click [Next]. Select the 330 series being used.
Page 41: Setting Up Rip Software
Profile Manager. https://japan.mimaki.com/download/inkjet.html [330 series] > [Profile] Setting Up RIP Software The explanation here applies to MIMAKI RIP software (RasterLink). • If using TxLink, refer to the TxLink operating manual. Launch RasterLink. • The [Printer Management] screen appears.
Page 42 • Available Printers: Select 330 series connected. • Printer: Enter a name as required. (3) Click [OK]. • A confirmation screen appears. (4) Click [Yes]. • Printer registration starts. • For more information, refer to the RasterLink installation guide. https://mimaki.com/download/ software.html...
Page 43: Ink Replacement Method
Chapter 1 Before Use 1.5 Ink Replacement Method When Ink Near End is Displayed Ink levels are low. We recommend replacing with new ink as soon as possible. Printing is still possible, but cleaning and continuous printing are not possible. Note that ink may run out during printing. To check which color ink needs to be replaced, press the [ENTER] key on the LOCAL mode screen.
Page 44: Replacing Ink
Chapter 1 Before Use Replacing Ink • The ink pack is filled with slightly more ink than the indicated value. A small amount of ink remains when the indicated amount of ink has been consumed and Ink End is displayed. The ink in the ink pack cannot be used up completely.
Page 45 Chapter 1 Before Use Wipe off any ink adhering to the ink eco-case opening. • Check to confirm no foreign matter such as dust or paper towel matter is adhered to the opening. If foreign matter is present, this may block the ink path and lead to leakage. •...
Page 46 Chapter 1 Before Use Shake the ink eco-case slowly from left to right at least 20 times. • Shake the bottle slowly from left to right to ensure that the ink moves inside, holding the ink pack opening with a paper towel. Repeat the procedure.
Page 47 Chapter 1 Before Use The order of the ink eco-cases to be set varies depending on the ink set you are currently using. Check the ink slot numbers, then insert the correct color ink eco-cases. Ink set Ink layout JV/CJV 4-color 6-color, W 8-color...
Page 48 Chapter 1 Before Use Insert a new ink IC chip into the slot on the ink supply unit. • Insert the ink IC chip with the metal side facing up. Inserting it in the wrong way may cause failure of the machine or damage the ink IC chip. •...
Page 49: Chapter 2 Printing
Chapter 2 Printing This chapter Describes printing procedures and setting methods. Print Process ...........50 Test Printing ............. 7 6 Changing the Layout Direction for Test Adjust print head height........53 Printing ............7 6 Adjusting the Pinch Roller Positions (CJV) ..54 Printing Defects..........
Page 50: Print Process
Chapter 2 Printing 2.1 Print Process Turn on the power. "Turning On the Power"(P. 34) Connect a RIP PC to the machine. "Using a USB Cable"(P. 38) "Using a LAN Cable"(P. 37) Setting Up RIP Software "Installing RIP Software"(P. 40) (required first time only) "Obtaining Color Profiles"(P.
Page 51 Chapter 2 Printing Loading the Media This machine can be used with roll media and leaf media. "Loading the Media"(P. 57) Take-up unit Core (CJV only) Adjust the number and pressure of pinch rollers to use. Set an appropriate pressure for the set media. "Setting the Pressure and Number of Pinch Rollers to Use (CJV)"(P.
Page 52 Chapter 2 Printing Adjust the drop position for bi-directional printing. "Correcting the Drop Position"(P. 81) Media feed direction In this case, the drop position correction value will be "+4.0". Preparing RIP Data "Preparing RIP Data"(P. 83) Printing RIP Data "Printing"(P. 85) Cutting the Media "Cutting the Media"(P.
Page 53: Adjust Print Head Height
Chapter 2 Printing 2.2 Adjust print head height. Adjust the height of the print head according to the thickness of the media you are using. Range Gap between print head and platen JV/CJV 2.0 mm (default setting) 3.0 mm (default setting) Middle 2.5 mm 3.5 mm...
Page 54: Adjusting The Pinch Roller Positions (Cjv)
Chapter 2 Printing 2.3 Adjusting the Pinch Roller Positions (CJV) Adjust the pinch roller positions to suit the width of the media being used. • This procedure is not necessary for JV/TS. • Always use at least two pinch rollers. Choose the grit rollers capable of holding down the media at equal intervals.
Page 55: Mm Size
Chapter 2 Printing 1,600 mm size Set the right edge of the media so that it falls within this range. Choose the GR based on media width. GR11 GR10 1577 ~ 1620mm 1446 ~ 1514mm 1212 ~ 1272mm 1032 ~ 1092mm 732 ~ 792mm 576 ~ 644mm 364 ~ 424mm...
Page 56 Chapter 2 Printing 1,300 mm size Set the right edge of the media so that it falls within this range. Choose the GR based on media width. GR10 1328 ~ 1371mm 1212 ~ 1272mm 1032 ~ 1092mm 732 ~ 792mm 576 ~ 644mm 362 ~ 422mm 241 ~ 301mm...
Page 57: Loading The Media
Media l Media handling precautions • Use Mimaki-approved media to ensure consistent high-quality printing. • Assign at least two people to load roll media. Otherwise there is a risk of back injury due to the weight of the media.
Page 58: Take-Up Unit
Chapter 2 Printing Take-up unit Use the switch on the take-up unit to change the media take-up direction. ON/OFF button Direction selector switch Name Outline Direction selector To take up media with printed surface on the inside switch Down To take up media with printed surface on the outside ON/OFF button Press the button to start/stop the take-up unit.
Page 59 Chapter 2 Printing • Do not use the torque adjustment handle. Overtightening with the torque adjustment handle may damage the take-up unit. l Decrease tension (counterclockwise). Decrease tension when using lightweight media. Use the "torque adjustment handle" provided. Using the Edge Guides (TS) Adjust the edge guide position to suit the roll media diameter.
Page 60 Chapter 2 Printing Rotate the edge guides to remove them.
Page 61: Feed Unit (Jv/Cjv)
Chapter 2 Printing Feed unit (JV/CJV) JV/CJV can hold three rolls. The media used can be switched by rotating the selection handle. Unlocking pin Locked Unlocked Selection handle Name Outline Unlocking pin • Pulling out the unlocking pin unlocks and allows the selection handle to be rotated.
Page 62: Loading The Roll Media
Chapter 2 Printing Loading the Roll Media Raise the clamp lever.
Page 63 Chapter 2 Printing Move the rear left roll holder to the roll setting position. • Unscrew the roll holder retaining screw before moving. • JV/CJV can hold three rolls. "Feed unit (JV/CJV)"(P. 61) • JV: The roll holder set position label is placed on the roll guide of the feed unit. Use it as a reference to set the roll holder.
Page 64 Chapter 2 Printing Insert the core of the roll media on to the rear left roll holder. • Push in until the core moves no farther. [JV / CJV] [TS] Insert the rear right roll holder into the core. • Unscrew the roll holder retaining screw before moving. [JV / CJV] [TS] Tighten the retaining screw on the rear right roll holder.
Page 65 Chapter 2 Printing • Adjust the rear roll holder position so that the media does not cover the right-hand slit line on the platen. Movement at an angle may result in damage to the print head. Slit line Media holder Media •...
Page 66 Chapter 2 Printing Lower the clamp lever. Select the media to be used. Media selection ● PVC 1300 mm ○ Tarpaulin 1600 mm ○ Unregistered ○ Unregistered ○ Unregistered • To use unregistered media, select [Unregistered] to register the media. "Registering the Media"(P.
Page 67 Chapter 2 Printing Load an empty core on the take-up unit. Take-up unit Core Press to feed the media until it reaches the core on the take-up unit. • Do not put media through the XY slitter. Secure the middle of the media to the core with adhesive tape. •...
Page 68 Chapter 2 Printing • Move the take-up unit to the left or right when it is not in use. Print quality may be affected if the front edge of the media hits the take-up unit. Secure the media in the media holder. Media holder •...
Page 69: Loading The Leaf Media (Cjv)
Chapter 2 Printing Loading the Leaf Media (CJV) • The roll holder is not used with leaf media. • Leaf media cannot be used on JV/ TS. On the LOCAL mode screen, select [MENU] > [Media Setting], then press the [ENTER] key. •...
Page 70 Chapter 2 Printing Adjust the position of the front media edge. • Set the media so that at least 40 mm of the media lies on the after cover. If not, the media width may not be detected. Media Lower the clamp lever to confirm that the spacing from the pinch roller is uniform. •...
Page 71 Chapter 2 Printing Detect the media width. • No change: Only the right side of the media is detected. • Media width re-detection: The media width is detected. Media Width 1300 mm No change Media width re-detection • If the setting for [Media Setting] > [Media Information] > [Media Width] is "MANUAL", set the media width manually.
Page 72: Registering The Media
Chapter 2 Printing Registering the Media When the clamp lever is lowered with media being loaded, the Select Use Media screen is displayed. Registration is required to use media that is not registered on the machine. Select [Unregistered]. Media selection ●...
Page 73 Chapter 2 Printing Select whether or not to register the set information. Media Registration do you optimize setting? • You can change the settings later. "Media Setting Menu"(P. 140)
Page 74: Setting The Pressure And Number Of Pinch Rollers To Use (Cjv)
Chapter 2 Printing 2.5 Setting the Pressure and Number of Pinch Rollers to Use (CJV) Set the pressure and number used to hold media based on the tool and media being used. Incorrect pinch roller pressure settings may result in media skew or leave pinch roller marks on the media. •...
Page 75: Setting The Heater Temperature
Adjust the temperature setting to suit the type of media used. The temperature can be altered while printing is in progress, but this may cause color variations to occur. • The temperature setting in the RIP software takes precedence. If you are using the Mimaki RIP software (RasterLink), the recommended values are stored in the color profile.
Page 76: Test Printing
Chapter 2 Printing 2.7 Test Printing Print a test pattern to confirm that the ink prints correctly. Perform head cleaning if you observe any print defects (e.g., nozzle clogging, deflection). "Head Cleaning"(P. 78) Head 1 Head 1 Head 2 Head 2 Check beforehand •...
Page 77: Printing Defects
Chapter 2 Printing Printing Defects Typical examples of print defects (e.g., nozzle clogging, deflection) are as shown below. In order to prevent printing in such a state, check whether the ink has been properly ejected regularly before printing. Deflection Nozzle clogging Ink drips Mist Mixed air...
Page 78: Head Cleaning
Chapter 2 Printing 2.8 Head Cleaning The following head cleaning methods are available. Choose the method based on test results. Item Details Soft If the print shows a bent line (deflection) Normal If the print shows a missing line (nozzle clogging) Hard If soft cleaning and normal cleaning fail to resolve print defects (e.g., nozzle clogging, deflection)
Page 79: Feed Correction
Chapter 2 Printing 2.9 Feed Correction Changing the media may affect the feed amount due to various factors, including the weight and thickness of the media and whether the take-up unit is used. Correct the drop position to suit the type of media used. Image defects (e.g., dark or light streaks) will result if the feed is not properly corrected.
Page 80 Chapter 2 Printing • Once adjustment is complete, the medium will be fed to the print origin. Sagging may occur in the rear roll medium. Rewind roll media by hand to eliminate any sagging. Correcting the Media Feed During Printing You can also correct the media feed amount in REMOTE mode or while printing.
Page 81: Correcting The Drop Position
Chapter 2 Printing 2.10 Correcting the Drop Position Changing the media and print head height and temperature changes around the print head will also alter the drop positions. Correct the drop position to suit the type of media used. Image defects (e.g., overlaid lines or blurred images) will result if the drop position is not properly corrected.
Page 82 Chapter 2 Printing • If the lines do not coincide when the correction value is within the range -40 to 40, the print head height may have been improperly adjusted. Adjust the print head height. "Adjust print head height."(P. 53) Enter the correction value in the same way for pattern 2 and subsequent patterns.
Page 83: Preparing Rip Data
Chapter 2 Printing 2.11 Preparing RIP Data The explanation here applies to MIMAKI RIP software (RasterLink). • If using TxLink, refer to the TxLink operating manual. • Prepare suitable image data for printing. Launch RasterLink. • Click the icon on the PC desktop.
Page 84 (General Print): Specifies settings like enlargement/reduction and rotation. (Quality): Selects a color profile for the media and ink set loaded in this machine. • For more information, refer to the RasterLink reference guide. https://mimaki.com/ download/software.html Print image data. •...
Page 85: Printing
Chapter 2 Printing 2.12 Printing Check beforehand • Was the print head adjusted? "Adjust print head height."(P. 53) • (CJV only) Were the pinch roller positions adjusted? "Adjusting the Pinch Roller Positions (CJV)"(P. 54) • Is media loaded? "Loading the Media"(P. 57) •...
Page 86: Stopping Printing (Data Clear)
Chapter 2 Printing • When the message "Attention20A Driver Version" appears, install the latest Mimaki driver available from: https://mimaki.com/download/inkjet.html Start printing. • Printing starts once RIP data is received. Resolution Number of passes Scan direction (Uni: unidirectional, Bi: bidirectional) Scan speed (Std: standard, Hi: high speed)
Page 87: Cutting The Media
Chapter 2 Printing 2.13 Cutting the Media On the LOCAL mode screen, press • The Origin Setup screen appears. Press to feed the media to the position required for cutting. Select [CUT]. Select a cutting method. • [Horizontal Cut]: The media edge is cut straight. •...
Page 88 Chapter 2 Printing...
Page 89 Chapter 3 Cutting This chapter Describes cutting procedures and setting methods (CJV only). Cutting Process ..........90 Test Cutting ............ 1 01 Installing Cutting Tools ........92 Cutting the Cutting Data ......... 1 02 Using the Cutter ......... 92 Changing the Origin ........1 02 Using a Pen..........
Page 90: Chapter 3 Cutting
Chapter 3 Cutting 3.1 Cutting Process Turn on the power. "Turning On the Power"(P. 34) Connect this machine to the PC on which the cutting software is installed. "Using a USB Cable"(P. 38) "Using a LAN Cable"(P. 37) Adjust the pinch roller positions. Adjust the pinch roller positions to suit the width of the set media.
Page 91 Chapter 3 Cutting Cutting the Cutting Data "Cutting the Cutting Data"(P. 102) Cutting the Media "Cutting the Media"(P. 87)
Page 92: Installing Cutting Tools
Chapter 3 Cutting 3.2 Installing Cutting Tools This machine can be used with the following tools: • Cutter (for cutting media) Used to cut the printed image on media or to cut characters with the cutting sheet "Using the Cutter"(P. 92) •...
Page 93 Chapter 3 Cutting • If the base paper is thicker than the label film: (label film thickness + base paper thickness)/2 Label film Cutting blade Cut amount protrusion length Base paper • If the base paper is thinner than the label film: As far as to cut into label film Label film Cutting blade Cut amount...
Page 94 Chapter 3 Cutting Select [Tool Change], then press the [ENTER] key. Open the maintenance cover on the left side. • The cutter unit can be moved manually. Move the carriage slowly to a position allowing easy access while working. Turn the knob screw and loosen the holder presser. Holder presser Knob screw Insert the cutter holder into the tool holder.
Page 95 Chapter 3 Cutting Using the Included Cutter Holder (SPA-0001) Loosen the lock nut of the cutter holder and extract the adjusting knob. • Turn in the direction indicated by the arrow in the picture. Lock nut Adjusting knob Insert the cutter into the adjusting knob. •...
Page 96: Using A Pen
Chapter 3 Cutting Fix the lock nut by turning in the direction indicated by the arrow in the picture. Using a Pen Installing a Refill Cartridge for a Ballpoint Pen in the Pen Holder The image quality can vary depending on the type of refill cartridge. Recommended: SXR-5 (Mitsubishi Pencil Co., Ltd.) Remove the cap from the pen holder.
Page 97 Chapter 3 Cutting Fix the cap by turning in the direction indicated by the arrow in the picture. Installing a Ballpoint Pen in the Pen Adapter Use a ballpoint pen with a diameter of 8 to 9 mm. The ballpoint pen type may affect image quality. Recommended: K105-GA (Pentel Co., Ltd.) •...
Page 98 Chapter 3 Cutting Fix the pen nib by turning the knob screw in the direction indicated by the arrow in the picture. • Be careful to avoid overtightening the knob screw. Disregarding this precaution may damage or break the ballpoint pen. Knob screw Remove the cap.
Page 99 Chapter 3 Cutting Turn the knob screw and loosen the holder presser. Holder presser Knob screw Insert the pen holder or pen adapter into the tool holder. • Push the brim of the pen holder or pen adapter against the holder presser. Brim Secure the pen holder or pen adapter.
Page 100: Setting The Cutting Conditions
Chapter 3 Cutting 3.3 Setting the Cutting Conditions You can set the cutting speed and pressure to match the type of media and tools in use. On the LOCAL mode screen, select [TOOL]. LOCAL width:1340mm TOOL TEST CUT Set the conditions. •...
Page 101: Test Cutting
Chapter 3 Cutting 3.4 Test Cutting Execute test cutting to confirm that the tool conditions are set appropriately. Increase pressure as the cutter blade grows dull with wear. This is only a temporary measure. We recommend replacing the cutter blade to maintain cutting quality. On the LOCAL mode screen, select [TEST CUT].
Page 102: Cutting The Cutting Data
Chapter 3 Cutting 3.5 Cutting the Cutting Data Check beforehand • Was the head gap adjusted? "Adjust print head height."(P. 53) • Were the pinch roller positions adjusted? "Adjusting the Pinch Roller Positions (CJV)"(P. 54) • Is media loaded? "Loading the Media"(P. 57) •...
Page 103: Stopping Cutting (Data Clear)
Chapter 3 Cutting Pausing Cutting Press [LOCAL] while cutting is in progress. • Cutting is paused. • If data is being sent from a PC, data transmission is paused at the PC. Press [REMOTE]. • Cutting resumes. • No other functions can be executed while printing is paused. Stopping Cutting (Data Clear) On the LOCAL mode screen, select [DATA CLEAR].
Page 104 Chapter 3 Cutting...
Page 105 Chapter 4 Cutting Data with Register Marks This chapter Describes the register mark creation conditions and basic information (CJV only). Process for Cutting Data with Register Marks Setting Mark Detection Conditions ....1 13 ..............106 Detecting the Position of the Register Mark Creating Register Marks........108 Origin..............
Page 106: Chapter 4 Cutting Data With Register Marks
Chapter 4 Cutting Data with Register Marks 4.1 Process for Cutting Data with Register Marks Create data with register marks. "Creating Register Marks"(P. 108) This machine can detect the following three types of register marks: Mark shape Type 1 Type 2 Zero margin register mark Print printing data with register marks.
Page 107 Chapter 4 Cutting Data with Register Marks Cut the data. "Cutting the Cutting Data"(P. 102) Cutting the Media "Cutting the Media"(P. 87)
Page 108: Creating Register Marks
Chapter 4 Cutting Data with Register Marks 4.2 Creating Register Marks Printing image data with "register marks" can increase cutting accuracy and quality. There are some limitations to register marks. Read the following thoroughly before creating register marks. Trimming register marks cannot be used with this machine. Register Marks The following three types of register marks can be used with this machine: Mark shape...
Page 109: Register Mark Size
Chapter 4 Cutting Data with Register Marks Register Mark Size The recommended register mark size (A) is within the range of A4 size (210 mm × 297 mm) to A3 size (297 mm × 420 mm). If the dimensions exceed A3, the machine may fail to detect register marks due to media feeding problems (e.g., media meandering).
Page 110: Reading Range Of Register Marks
This machine can detect register marks in the range shown below. If the margin is small, the edge of the media may be incorrectly identified as a register mark. When copying data with MIMAKI RIP software (RasterLink), leave a space of at least 210 mm from the rear edge of the media.
Page 111 This machine can detect register marks in the range shown below. If the margin is small, the edge of the media may be incorrectly identified as a register mark. When copying data with MIMAKI RIP software (RasterLink), leave a space of at least 210 mm from the rear edge of the media.
Page 112: Plotting Areas Around Register Marks
: Plotting area Combined Operations of Printing and Cutting When printing and cutting with MIMAKI RIP software (RasterLink, FineCut), please note the following: 1. The mark size and mark shape settings configured in the machine will be disregarded. The software settings will be applied.
Page 113: Setting Mark Detection Conditions
Chapter 4 Cutting Data with Register Marks 4.3 Setting Mark Detection Conditions Set the conditions of the printed register marks. On the LOCAL mode screen, select [MENU] > [Cutting], then press the [ENTER] key. • The Cutting menu is displayed. Select [Mark Detect], then press the [ENTER] key.
Page 114: Detecting The Position Of The Register Mark Origin
Chapter 4 Cutting Data with Register Marks 4.4 Detecting the Position of the Register Mark Origin On the LOCAL mode screen, select [TEST CUT]. LOCAL width:1340mm TOOL TEST CUT Select [Mark Detection], then press the [ENTER] key. • The machine switches to MARK DETECT mode. •...
Page 115: Id Cut Process
Chapter 4 Cutting Data with Register Marks 4.5 ID Cut Process Create data with ID Cut. • For more information, refer to the ID Cut Guide. https://mimaki.com/download/software.html Print printing data with ID Cut. "Print Process"(P. 50) Prepare for cutting. "Cutting Process"(P. 90) (Steps 4 to 8) Register the information for the printed register marks.
Page 116 Chapter 4 Cutting Data with Register Marks...
Page 117 Chapter 5 Using the XY Slitter This chapter Describes the procedures for cutting with the XY slitter and RIP setting methods (JV/CJV only). Slitting Process..........118 Mounting the X Cutter ........1 30 Slitting Simultaneously With Printing..118 Placing the Media Chute ........ 1 34 Clamp lever of the XY slitter.....
Page 118: Chapter 5 Using The Xy Slitter
Chapter 5 Using the XY Slitter 5.1 Slitting Process Slitting Simultaneously With Printing Enable the XY slitter. On the LOCAL mode screen, select [MENU] > [Function Setting] > [Finisher] > [XY Slitter]. Loading the Media Put the media through the XY slitter. "Loading the Media"(P.
Page 119: Clamp Lever Of The Xy Slitter
Chapter 5 Using the XY Slitter Clamp lever of the XY slitter • Keep in mind that the lever works in the opposite way to the lever on the printer. l Raise the clamp lever The media is secured (clamped). l Lower the clamp lever The media is released (unclamped).
Page 120: Cutter
Chapter 5 Using the XY Slitter X cutter l Method for securing the X cutter Raise the X cutter lever to secure the cutter. l Method for mounting the X cutter Insert the X cutter groove into the L-shaped slide rail. l Unused X cutter •...
Page 121: Media Chute
Chapter 5 Using the XY Slitter Media chute This is the box for containing the media cut by the XY slitter. Not using the media chute may prevent consistent discharge, resulting in media jamming and affecting the cut quality. • There is a risk of media sheets sticking together if the media is folded in half or if the surfaces of media sheets are left in contact with each other.
Page 122: Loading The Media
Chapter 5 Using the XY Slitter 5.2 Loading the Media • Adjust the head height before loading media. Moving the carriage after the media has been loaded may result in the print head coming into contact with the media and being damaged. •...
Page 123 Chapter 5 Using the XY Slitter Check how far the media was pulled out. • Pull the front edge of the media gently at several points to confirm that the media was pulled out by the same amount. Lower the clamp lever. •...
Page 124 Chapter 5 Using the XY Slitter Lower the clamp lever of the XY slitter. • The XY carriage can be moved by hand when the XY slitter clamp lever is lowered. Move the clamps of the XY slitter. • Position the clamps on both edges and the center of the media. •...
Page 125 Chapter 5 Using the XY Slitter • The feed length is displayed on the display. Insert the media between the pinch rollers and the grid rollers of the XY slitter. TENSION BAR Clamp Pull the tension bar to the front. •...
Page 126 Chapter 5 Using the XY Slitter Turn the take-up unit switch to OFF. • "Take-up unit"(P. 58) • The torque limiter should ideally be set to "Mid". "Adjusting the Torque Limiter"(P. 58) Press to feed the media. • Decrease the media tension slightly. Turn the take-up unit switch to ON.
Page 127: Printing Guide (Slit) Line
Chapter 5 Using the XY Slitter 5.3 Printing Guide (Slit) Line The explanation here applies to MIMAKI RIP software (RasterLink). • The slitting size is 210 mm or more in the Y (scan) direction and 297 mm or more in the X (feed) direction.
Page 128 Chapter 5 Using the XY Slitter Select the image data imported. • The image data is added in the tab for 330 series selected in "Printer Name". Click (General Print) to check the settings and alter as necessary. • Specify settings like scaling and rotation. Enter the number of prints for [Copy] on the Image Edit tab.
Page 129 Chapter 5 Using the XY Slitter Click [Print X-Cutter Reference line]. • Guide (slit) line printing starts. • Do not print any other data after printing the guide (slit) line until the X cutter has been mounted. Otherwise, the X cutter cannot be mounted.
Page 130: Mounting The X Cutter
Chapter 5 Using the XY Slitter 5.4 Mounting the X Cutter • Do not touch the X cutter when the clamp lever of the XY slitter is raised. Otherwise, you may get injured by the moving XY carriage. Press the [ENTER] key. •...
Page 131 Chapter 5 Using the XY Slitter • Always use the clamps on both edges of the media. • Position the clamps so that the clamp centerlines align with the marks (square holes). The media cannot be transported correctly if the clamp centerlines are not aligned with the marks (square holes).
Page 132 Chapter 5 Using the XY Slitter Raise the clamp lever of the XY slitter. • Hold the media. Up the clamp lever of XY Slitter • Note that the carriage moves when the clamp lever is raised. Press the [ENTER] key. •...
Page 133 Chapter 5 Using the XY Slitter • Data cannot be printed in succession if it has different slit positions in the scan direction or different slit widths. To print data with different slit positions or different widths, replace the core and repeat the process from the beginning ( "Loading the Media"(P.
Page 134: Placing The Media Chute
Chapter 5 Using the XY Slitter 5.5 Placing the Media Chute Place the media chute under the XY slitter. Push the media chute front forward. • Remove the screws at the front of both sides. Be careful not to lose the screws.
Page 135: Printing Rip Data
Starting Printing Send the RIP data from the PC. • "Preparing RIP Data"(P. 83) • When the message "Attention20A Driver Version" appears, install the latest Mimaki driver available from: https://mimaki.com/download/inkjet.html Start printing. • Printing starts once RIP data is received.
Page 136 Chapter 5 Using the XY Slitter Press [REMOTE]. • Printing resumes. • No other functions can be used when printing is paused.
Page 137: Troubleshooting
Chapter 5 Using the XY Slitter 5.7 Troubleshooting If a media jam occurs in the XY slitter Lower the clamp lever of the XY slitter. • The XY carriage can be moved by hand when the XY slitter clamp lever is lowered. Move the XY carriage away from the media.
Page 138: If The Y Slit Position Is Offset
Chapter 5 Using the XY Slitter If the Y slit position is offset If the Y slit position is offset on the slitted media, adjust the Y slit position by entering a correction value. On the LOCAL mode screen, select [MENU] > [Function Setting] > [XY Slitter] > [Slit Position Adjustment].
Page 139 Chapter 6 Settings This chapter This chapter describes the methods for replacing maintenance parts. Media Setting Menu ........140 Environment Setting Menu ......1 49 Maintenance menu ........142 Machine Status Menu........1 50 Registering nozzle recovery..... 144 Cutting Menu ..........1 51 Nozzle check..........
Page 140: Chapter 6 Settings
Check the pattern and enter correction values. Value) 40.0 MAPS4 MAPS: Mimaki Advanced Pass System • This function disperses the boundaries between passes to make feed streaks between passes less visible. • Altering MAPS may alter the color. This function may be less effective with certain types of images.
Page 141 Chapter 6 Settings Item Setting Details Smoothing 0 to 100 % Increasing smoothing makes streaks less visible. Make Level (Color) separate settings for color and spot color (white). Smoothing Level (Spot) Media Information Enter the media information. Media Type Select the media type to be used. The available media types vary depending on the model.
Page 142: Maintenance Menu
Chapter 6 Settings 6.2 Maintenance menu This menu is used for maintenance actions. It also lets the user perform nozzle recovery if nozzle clogging persists even after cleaning and nozzle washing. l Menu List Item Details Setting Station Maint. This moves the carriage to allow station and print head maintenance.
Page 143 Chapter 6 Settings Item Details Setting File 1 to 30 to Performs nozzle clogging detection after the preset number of files 1,000 files has been printed and before the next print starts. Continuation Stop/ Select whether to stop or continue printing if "Nozzle clogging" is Print Continue detected.
Page 144: Registering Nozzle Recovery
Chapter 6 Settings Item Details Setting Cleaning Check ON/OFF Sets whether nozzle checking is performed after head cleaning is completed. Interval Wiping OFF / 3 to Wiping starts when the set print time is exceeded. 255 min Refresh Weak/ Select the refresh (flushing) time during printing. Standard/ Strong Waste Ink Tank...
Page 145: Nozzle Check
Chapter 6 Settings Select the "head number and nozzle row" for nozzle recovery, then press the [ENTER] key. SELECT ENTRY NOZZLE > Head1-A Head1-B > Head number Nozzle row number Head1-C > Head1-D > Head1-E > << >> Enter the "nozzle number" for nozzle recovery, then press the [ENTER] key. •...
Page 146: Function Setting Menu
Sets the time for ink to dry. Scan Host/0.0 to 9.9 Sets the stop time of the carriage after each scan. • The MIMAKI RIP software (RasterLink) indicates this as "Pause Time per Scan". Print End Host/0 to 120 Sets the stop time after printing. The next data is printed once...
Page 147 Chapter 6 Settings Item Details Setting • The Mimaki RIP software (RasterLink) does not allow the user to specify Print End. If the machine is set to "Host", the time will be "0 min". Power Setting Sets the times to turn the power on and off automatically.
Page 148 Chapter 6 Settings Item Details Setting Space Feed Mode Intermittent/ Alters the feed method for blank space included in the image Continuous data. • Intermittent: Uses intermittent feeding based on the timing of a fraction of the pass. • Continuous: Feeds forward by skipping blank parts. View Feed ON/OFF Sets whether or not to feed the media forward to view the print...
Page 149: Environment Setting Menu
DHCP takes priority if DHCP is set to "ON". Remote Control Mimaki Remote Access (MRA) is required to use the remote control function. MRA is a remote access tool installed on a computer or smartphone that allows viewing of product information and panel operation from a remote location away from the 330 series (within the same network segment).
Page 150: Machine Status Menu
Chapter 6 Settings 6.5 Machine Status Menu This is used to check machine information. l Menu List Item Details Usage Roll Wiper Displays the remaining amount of cloth wiper. Remain • To reset the remaining amount of cloth wiper, press the [FUNC2] key while the amount is displayed.
Page 151: Cutting Menu
Chapter 6 Settings 6.6 Cutting Menu You can set various settings related to cutting functions. l Menu List Item Details Setting Mark Detect Enter the conditions of the printed register marks. Detect ON/OFF Set this to ON to cut cutting data with register marks. Form Type 1/Type Select three types of register mark shapes.
Page 152 Chapter 6 Settings Item Details Setting Feed direction Automatic registration mark detection path Start position X offset Scan direction End position of the immediately previous data Scan Dir. DEFAULT/0 Sets the scan direction for automatic register mark detection. cm to •...
Page 153 Chapter 6 Settings Item Details Setting Mark Cut OFF/ON Sets whether or not to add marks for use as guides when pasting together division-cut media. Up Speed Set the movement speed of the media and carriage while the tool is Up Speed X AUTO/5 to 30 Sets the media feed speed.
Page 154: Copying The Last Data
• The machine cuts the specified number of sheets of the divided cut data without separating the data. • When using the MIMAKI cutting software "FineCut", deselect the "Sheet Feed Origin Renuwal" checkbox. (This is unselected by default.) Selecting the checkbox results in overlap cutting.
Page 155 Chapter 6 Settings Over Cut: OFF Over Cut: 0.1 to 1.0 mm l Corner Cut When the Over Cut setting value is entered, Corner Cut is displayed. The machine performs over cutting at corners other than the start and end point. Corner Cut: OFF Corner Cut: ON...
Page 156 Chapter 6 Settings...
Page 157: Chapter 7 Maintenance
Chapter 7 Maintenance This chapter The machine should be cleaned periodically depending on the usage frequency to maintain accuracy and ensure long-term use. Read the maintenance precautions thoroughly before maintaining this product. Maintenance Precautions ......158 Consumable Item Replacement ..... 1 74 Cloth Wiper Replacement ......
Page 158: Maintenance Precautions
Chapter 7 Maintenance 7.1 Maintenance Precautions • This machine includes parts that must be replaced periodically. We therefore recommend taking out a maintenance contract. Clean this machine and replace consumable items to prevent quality defects and accidents. • Clean periodically. Debris and dust will accumulate on electrical components when this machine is used for extended periods.
Page 159: Maintenance Items And Timing
171) Items Required for Maintenance To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website. https://mimaki.com/supply/inkjet.html • Avoid storing this product in locations accessible to children.
Page 160: Maintenance Methods
Chapter 7 Maintenance 7.3 Maintenance Methods Ink Maintenance If ink constituents are sedimented, the ink density may become uneven. We recommend shaking the ink every three days to ensure consistent printing. l Shake the ink. Shake the Ink eco-case slowly at least 10 times. •...
Page 161: Carriage Underside Cleaning
Chapter 7 Maintenance Clean the cap rubber. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. Make sure none remains. Cap rubber Check to confirm that the cap slider is not tilted once cleaning is complete. •...
Page 162: Cloth Wiper Area Cleaning
Chapter 7 Maintenance Open the maintenance cover on the left side. Clean around the print head. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. Make sure none remains. Clean the print head sides (dark red area) using a cleaning stick.
Page 163: Ncu Cleaning
Chapter 7 Maintenance Select [Station Maint.] > [Carriage Out] > [Move To Platen Right End], then press the [ENTER] key. • The carriage moves over the platen. Open the maintenance cover on the right side. Clean the wiper unit cover. •...
Page 164: Automatic Correction Sensor (Das) Cleaning
Chapter 7 Maintenance Clean the NCU. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid. Make sure none remains. • Insert the cleaning stick as far as the line shown in the illustration. Once cleaning is complete, close the cover, then press the [ENTER] key.
Page 165: Ink Discharge Channel Cleaning
Chapter 7 Maintenance Clean the DAS sensor. • Wipe clean using cotton swabs or a soft cloth. • For heavy soiling, wipe using a soft cloth soaked in dilute detergent and thoroughly wrung out. Once cleaning is complete, close the cover, then press the [ENTER] key. Ink Discharge Channel Cleaning Clean the ink discharge channel regularly to prevent clogging of the ink discharge channel below the cap.
Page 166: Media Sensor Cleaning
Chapter 7 Maintenance Media Sensor Cleaning Media sensors are located on the rear cover and carriage underside. The media cannot be detected correctly if dust or debris accumulates on the sensors. Remove any debris using cotton swabs or a soft cloth. Rear of product Carriage underside l Cleaning the carriage underside sensor...
Page 167 Chapter 7 Maintenance Select [Station Maint.] > [Carriage Out] > [Move To Platen Right End], then press the [ENTER] key. • The carriage moves over the platen. Open the front cover. • The carriage can be moved by hand. Move the carriage slowly to a position allowing easy access while working.
Page 168: Media Holder Cleaning
Chapter 7 Maintenance Media Holder Cleaning Continuing to use the dirty platen will prevent proper feeding of the media. It will also cause dried ink and attached dust to rub against the head nozzle surface and lead to print defects (e.g., nozzle clogging, deflection).
Page 169: Platen Cleaning
Chapter 7 Maintenance Clean the jam sensor detecting plate. • Clean the jam sensor detecting plate underside at the left and right sides of the carriage. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid.
Page 170: Cover (Exterior) Cleaning
Chapter 7 Maintenance Cover (Exterior) Cleaning • Do not allow liquids to get inside the product. Otherwise there is a risk of failure, electric shock, or fire. • For heavy soiling, wipe using a soft cloth soaked in dilute detergent and thoroughly wrung out. Blowing Fan Filter Cleaning Wash the blowing fan filter in water if it is dirty.
Page 171: When This Printer Is Left Unused For A Long Time
Chapter 7 Maintenance Remove the filter. Blowing fan filter Wash the filter. • Dry the filter after washing. Attach the dry filter together with the fan filter cover. • Push in the fan filter cover until the tab clicks. When this printer is left unused for a long time Clean as follows if the product is not used for one week or longer: Check beforehand Is [Ink Near End] or [Ink End] displayed?
Page 172 Chapter 7 Maintenance Once cleaning is complete, close the cover, then press the [ENTER] key. • The cap is filled with maintenance liquid. • Close the cover. The cap cannot be filled with maintenance liquid while the cover is open. This is also true if the maintenance liquid cartridge is empty.
Page 173 Chapter 7 Maintenance • Do not turn off the main power supply. Turning off the main power supply will disable the automatic maintenance function (including nozzle clogging prevention function and ink discharge channel cleaning function). This will increase the risk of print defects (e.g., nozzle clogging, deflection).
Page 174: Consumable Item Replacement
To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website. https://mimaki.com/supply/inkjet.html • Avoid storing this product in locations accessible to children. • When disposing of the product, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations.
Page 175 Chapter 7 Maintenance Remove the wiper from the spindle. • When disposing of the product, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations. Clean the wiper unit underside. • Wipe off any ink and dust adhering using a cleaning stick moistened with maintenance liquid. Wipe off the maintenance liquid.
Page 176: Cap Replacement
Chapter 7 Maintenance Mount a new cloth wiper. Close the cloth wiper cover. Close the maintenance cover, then press the [ENTER] key. • The remaining amount of cloth wiper is reset. Cap Replacement If print defects (e.g., nozzle clogging, deflection) remain unresolved even after cleaning, replace with a new cap.
Page 177: Replace Absorbent Material Around Carriage
Chapter 7 Maintenance Apply maintenance liquid. • Use a syringe to apply two or three drops of maintenance liquid to the hole at the front. Mount a new cap. • Position with the slot at the front and push in until it clicks. Once replacement is complete, close the cover, then press the [ENTER] key.
Page 178 Chapter 7 Maintenance Remove the cap absorber with a whole plate. • Push up the two tabs at the front to remove the cap absorber. Plate (resin) Cap absorber • Avoid ink dripping when removing the cap absorber. Clean the cap base. Mount a new cap absorber (plate included).
Page 179 Chapter 7 Maintenance Wipe off maintenance liquid around the slider block. Mount a new maintenance liquid absorber. • Insert the maintenance liquid absorption into the protrusion firmly. Check for floating or warped absorber. Once replacement is complete, close the cover, then press the [ENTER] key. If the plate is made of metal Replace only the cap absorber.
Page 180: Exhaust Fan Filter Replacement
Chapter 7 Maintenance Mount a new cap absorber. • Insert the claws of the plate into the slit in the cap absorber. Slit Slit Claw Claw • Make sure that the cap absorber does not come off. Remove the maintenance liquid absorbent. Wipe off maintenance liquid around the slider block.
Page 181: Blowing Fan Filter Replacement
Chapter 7 Maintenance Remove the exhaust fan box. • Push the tabs at the front to remove the exhaust fan box. • Replace the very dirty exhaust fan box with new one. Mount a new exhaust fan filter in the exhaust fan box. •...
Page 182: Pinch Roller Replacement
Chapter 7 Maintenance Remove the fan filter cover. • Push the fan filter cover claw outward, and pull the cover to the front. Fan filter cover Claw Remove the filter. Blowing fan filter Mount a new filter and the fan filter cover. •...
Page 183: Media Holder Replacement
Chapter 7 Maintenance Raise the clamp lever. Remove the O-ring retaining the pinch rollers. [JV/TS] [CJV] O-ring O-ring • The pinch rollers are small. Be careful to avoid dropping them into the product interior. Remove the pinch rollers or the pinch roller spindle. [JV/TS] [CJV] Pinch roller spindle...
Page 184 Chapter 7 Maintenance Open the maintenance cover on the left side. Remove the side screw, and detach the media holder stopper. Remove the media holder. Remove the sliders from the media holder. • Be careful to avoid misplacing the sliders.
Page 185: Media Cutter Replacement
Chapter 7 Maintenance Mount the sliders on to the new media holder. • Engage the holes in the sliders on to the lugs on the media holder. Mount the new media holder on to the platen. Secure the media holder stopper with the screw. Close the maintenance covers.
Page 186: Xy Slitter Y Cutter Replacement (Jv/Cjv)
Chapter 7 Maintenance Select [Station Maint.] > [Carriage Out] > [Move To Platen Right End], then press the [ENTER] key. • The carriage moves over the platen. Open the front cover. • The carriage can be moved by hand. Move the carriage slowly to a position allowing easy access while working.
Page 187: Xy Slitter X Cutter Replacement (Jv/Cjv)
Chapter 7 Maintenance Replace the media cutter. (1) Unscrew the cutter screw. (2) Remove the cutter. (3) Mount a new cutter. (4) Tighten the screw to clamp the cutter. • When disposing of the product, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations.
Page 188 Chapter 7 Maintenance Turn the screw and remove the cutter. • When disposing of the product, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations. Insert a new X cutter with the blade up until it stops. •...
Page 189 Chapter 7 Maintenance Check to confirm that the protrusion amount of the blade is 4 mm. 4 mm 4 mm • If not, adjustment is required. (1) Turn the white knob screw to adjust the protrusion of the blade. • Turn the screw clockwise to protrude the blade. •...
Page 190: Media Edge Guide Film Replacement (Ts)
Chapter 7 Maintenance Media Edge Guide Film Replacement (TS) Replace the media edge guide film if it is creased or worn. Turn the knob screw and open the edge guide cover. Rotate the edge guides to remove them. Remove the media edge guide film from the media edge guide. •...
Page 191: Ink Supply Unit Ink Absorber Replacement
Chapter 7 Maintenance Position the edge guides on the roll guides. (1) Insert an edge guide between the roll guides. (2) Rotate the edge guides to mount them on the roll guides. (3) Secure the edge guides with the knob screw. Ink supply unit ink absorber replacement We recommend regularly replacing the ink absorber every time when replacing the Ink pack to prevent dirt on the pedestal of the ink supply unit.
Page 192: Waste Ink Tank Replacement
Chapter 7 Maintenance Remove the ink absorber, and replace with a new one. Set an eco-case on the base. Waste Ink Tank Replacement Ink used during head cleaning and other processes is collected in the waste ink tank at the lower right of the product.
Page 193 Chapter 7 Maintenance Check the waste ink levels in the waste ink tank. • If you note any discrepancies from actual levels, proceed to the next step. • If there is no discrepancy, replace (dispose of) the waste ink tank referring to "Replacing the Waste Ink Tank"(P.
Page 194 Chapter 7 Maintenance Hold the handle on the waste ink tank and slide out. Attach the cap to the removed waste ink tank, and use tape to prevent leakage of waste ink. • When disposing of the product, contact an industrial waste disposal operator or dispose of the product in accordance with the local laws and regulations.
Page 195: About The Media Cutter (Cjv)
To order replacement consumable items, contact your local dealer or our service office. For more information on consumable items, refer to our website. https://mimaki.com/supply/inkjet.html • Avoid touching the cutter blade. Failure to do so may result in injury. • Do not shake or swing the cutter holder. Doing so may cause the blade to come off.
Page 196 Chapter 7 Maintenance Attach double-sided tape in the platen slot. • Peel off the base paper from the double-sided tape. Attach the pen line on the double-sided tape. • Make sure the pen line lies flat. Close the front cover.
Page 197 Chapter 8 Troubleshooting This chapter Describes details such as corrective action when a fault is suspected and what action to take in response to messages appearing on the display. Troubleshooting..........198 The ink has leaked out....... 2 01 The power does not turn on..... 198 Cutting Related (CJV) ........
Page 198: Chapter 8 Troubleshooting
Are you using a LAN cable approved Check the LAN cable type. "Using a LAN Cable"(P. 37) by Mimaki? Is the status lamp on the operating An error has occurred. Check the message on the display. panel illuminated or flashing red? "Operating panel"(P.
Page 199: Image Defects Occur
Attach the tape, taking care not to block the vacuum hole. For more information, refer to the description on transporting media on the platen. https://mimaki.com/download/inkjet.html Image defects occur. Symptom Corrective action White streaks, blurriness, and dark Remove any paper scraps or other debris adhering to areas over which the head passes (e.g., media holders).
Page 200: The Heater Temperature Does Not Rise To The Specified Value
Chapter 8 Troubleshooting Select [Station Maint.] > [Nozzle Wash], then press the [ENTER] key. • The carriage moves over the platen. Open the maintenance cover on the right side. Clean the wiper and bracket. • Wiper Cleaning Press the [ENTER] key once cleaning is complete. •...
Page 201: The Ink Has Leaked Out
"Investigating the Cause of Cutting Failures"(P. 203) The print and cut positions are Use the MIMAKI RIP software (RasterLink) to print a correction pattern. misaligned. Check the correction pattern and input correction values manually. "Adjusting to Correct Misalignment Between Printing and Cutting"(P. 204) The print and cut positions are Print the correction pattern to perform automatic correction.
Page 202 Chapter 8 Troubleshooting Mark shape Type 1 Type 2 LED pointer position 1 mm or more 1 mm or more LED pointer position Register the information corresponding to the printed register mark conditions. • "Setting Mark Detection Conditions"(P. 113) • The set register mark conditions are also stored in [Cutting] > [Mark Detect]. The settings are retained even when the power is turned off.
Page 203 Chapter 8 Troubleshooting On the LOCAL mode screen, select [MENU] > [Cutting], then press the [ENTER] key. • The Cutting menu is displayed. Select [Maintenance] > [Marks Sensor] > [Pointer Offset], then press the [ENTER] key. • A 10 mm cross pattern is drawn. •...
Page 204 Adjusting to Correct Misalignment Between Printing and Cutting In the procedure described below, MIMAKI RIP software (RasterLink) is used to print a correction pattern. When printing and cutting, correction is required for each resolution in the scan (Y) direction. (The corrected value is saved for each resolution.) Print a pattern for each resolution, then input the correction value.
Page 205 Chapter 8 Troubleshooting • Without register marks (1) Click [OK] to print a correction pattern. (2) On the REMOTE mode screen, select [Adjust]. (3) Select [PC Origin Offset], then press the [ENTER] key. • A correction pattern is cut. Detach the cut part of the pattern and check the adjustment values.
Page 206 Chapter 8 Troubleshooting • With register marks (1) Select [Add register mark]. (2) Click [OK] to print a correction pattern. (3) On the REMOTE mode screen, select [Adjust]. (4) Select [TP Offset], then press the [ENTER] key. • The register marks are detected, and a correction pattern is cut. Detach the cut part of the pattern and check the adjustment values.
Page 207: Problems Causing Messages To Appear
Chapter 8 Troubleshooting 8.2 Problems Causing Messages to Appear If a problem arises, the buzzer sounds and a message appears on the display. You can also check the local guidance. "Displaying Machine Information (Local Guidance)"(P. 33) Take the appropriate action in accordance with the content of the message. If a message reappears even after taking the prescribed action, contact your local dealer or our service office.
Page 208: Ink Error
Chapter 8 Troubleshooting Message Cause Corrective action Wiper Move Failure • The wiper is not operating • Turn off the power on the machine and correctly. turn it on after a while. "Turning Off the Power"(P. 35) Replace Wasteinktank • The waste ink tank count Automatic maintenance is not possible exceeded the preset while the covers are open.
Page 209: Error Message
Chapter 8 Troubleshooting Message Cause Corrective action Insert the ink IC chip. "Replacing Non Ink IC • No ink IC chip was Ink"(P. 44) detected. Check to confirm the ink IC chip was inserted correctly. "Mounting the ink"(P. 46) Turn off the power on the machine and turn it on after a while.
Page 210 Chapter 8 Troubleshooting Error Message Cause Corrective action number PRAM DATA • A problem was detected with the main PCB. PRAM ADDR POWER OFF HDC FIFO OVER • A problem was detected with the print head control HDC FIFO UNDER PCB.
Page 211 RIP software. parameters that do not allow printing. Driver Version • Printing is not possible • Install the latest Mimaki driver because the Mimaki driver available from: version is old. https://mimaki.com/download/ inkjet.html PCB MAIN ET •...
Page 212 Chapter 8 Troubleshooting Error Message Cause Corrective action number Take-up Roll Sns Err • A problem was detected Check to confirm the [Function Setting] > [Take-up Unit] setting is "ON". with the take-up unit sensor spindle. Check to confirm the media is loaded correctly.
Page 213 Chapter 8 Troubleshooting Error Message Cause Corrective action number Media Jam • The media jam sensor Remove the media in contact with the carriage and reload with fresh media. was triggered. "Loading the Media"(P. 57) Open the front cover and check for anything that may obstruct carriage movement.
Page 214 Chapter 8 Troubleshooting Error Message Cause Corrective action number • The XY slitter clamp lever was left up (clamped) with [MENU] > [Function Setting] > [Finisher] set other than to [XY Slitter]. XYSlitter • The XY slitter clamp lever • Use with the XY slitter clamp lever Clamp OFF was left down raised (clamped).
Page 215 Chapter 8 Troubleshooting Error Message Cause Corrective action number Ink Color • The ink color registered • Insert an ink IC chip for the correct on the IC chip is different ink color. "Mounting the from the ink color filled. ink"(P.
Page 216 Chapter 8 Troubleshooting Error Message Cause Corrective action number FW/SIO bit • A communication error was detected between the boards. FW/STP-MTR** • A problem was detected with the main PCB. FW/SIO read • A communication error was detected between the boards.
Page 217 Chapter 8 Troubleshooting Error Message Cause Corrective action number HDCE* PCB V3R3 Command • Received a code other Clear the data and resend. than a COMMAND code. Check the USB/Ether cable connection. "Connecting a PC to the Parameter • Received parameter Product"(P.
Page 218: System Halt
Chapter 8 Troubleshooting Error Message Cause Corrective action number COM VOLT[12] • A problem was detected • Turn off the power on the machine with the HDCE PCB and turn it on after a while. voltage. "Turning Off the Power"(P. 35) SYSTEM HALT •...
Page 219 Chapter 9 Appendix This chapter This chapter explains the specifications of this machine. Specifications ..........220 Relay Box ............2 26 Specifications (Cutting) .........224 LICENSE Library ..........2 27 Specifications (XY Slitter) ......225...
Page 220: Chapter 9 Appendix
Chapter 9 Appendix 9.1 Specifications Item JV330 Series CJV330 Series TS330-1600 Print Type On-demand piezo head head Specificatio Two staggered heads with 400 nozzles × 8 rows each Resolution Y: 600 dpi, 800 dpi, 1,200 dpi Y: 300 dpi, 600 dpi...
Page 221 Chapter 9 Appendix Item JV330 Series CJV330 Series TS330-1600 Core 2 inches or 3 inches internal diameter Printing Exterior/interior Exterior face Roll end Taped or loosely affixed to core Print Left/right 15 mm (default), minimum: Left/right 5 mm margin Top end...
Page 222 Chapter 9 Appendix Item JV330 Series CJV330 Series TS330-1600 Noise During Not more than 45 dB (FAST-A, 1 m on all sides) levels standby Continuous Not more than 59 dB (FAST-A, 1 m on all sides) operation Non- Not more than 65dB (FAST-A, 1 m on all sides)
Page 223 Chapter 9 Appendix Item JV330 Series CJV330 Series TS330-1600 160 size: 368 kg (460 kg) 160 size: 373 kg (468 kg) *1. Setup menu margins set to the minimum (5 mm) on either side. *2. External diameter and weight after winding media.
Page 224 Chapter 9 Appendix 9.2 Specifications (Cutting) Item Details 300 mm/s (420 mm/s at 45°) Maximum speed Maximum acceleration 0.5 G Cut pressure 10 to 450 gf Cutter response count 10 times/second Usable tools Eccentric cutter, ballpoint pen (commercially sold) Usable media Label paper (paper base), PVC sheet (not more than 0.25 mm thick, including lamination), fluorescent sheet...
Page 225: Specifications (Xy Slitter)
Chapter 9 Appendix 9.3 Specifications (XY Slitter) Item Details X slit Within ±2 mm/2 m or ±5 mm/30 m Cutting accuracy Y slit Within ±2 mm Cutter blade durability 4000 m or more 5500 m or more Media Type Label paper (paper base), PVC sheet, window film Thickness Max.
Page 226: Relay Box
Chapter 9 Appendix 9.4 Relay Box • A fire may occur if another manufacturer's external drying heater is used. Be sure to connect to the machine using either the compact relay box or relay box 2 specified as options. • The 330 series allows only one relay box (OPT-J0370 or OPT-J0407) to be connected. •...
Page 227: License Library
Chapter 9 Appendix 9.5 LICENSE Library Mimaki printer Firmware Copyright @2020 MIMAKI ENGINEERING CO.,LTD. All rights reserved. This product contain open source software listed in the tables below. Component License StarterWare for ARM® based TI Sitara Processors BSD-TI The following license terms and conditions shall apply to the open source software listed in the table above: BSD-TI Copyright (C) 2010 Texas Instruments Incorporated - http://www.ti.com/...
Page 228 Chapter 9 Appendix...
Page 229 Index Index AC inlet ................................ 26 Adj-prs Offset ............................ 153, 203 Adjust Waste Ink Volume .......................... 193 Air PG ................................ 144 Auto Cleaning ............................... 143 Auto Maint.............................. 143 Auto Media Cut............................. 154 Auto Nozzle Recovery .......................... 143 Auto Power-off.............................. 147 Auto Power-on.............................. 147 Auto Remote .............................. 148 Auto-correction .......................... 140, 164, 208 Automatic correction function ........................
Page 230 Index DAS .............................. 140, 159, 164 Detect Area .............................. 151 Detect End Key Start ............................ 151 DISCLAIMERS .............................. 7 FCC regulations ............................... 7 Interference .............................. 7 Display.............................. 31, 32 Display language ............................ 149 Disway Wash.......................... 142, 143, 165 Drop.PosCorrect......................... 33, 52, 81, 140 Drying Time .............................. 146 Drying/Exhaust Fan ............................ 147 Dummy Cut.............................. 153 Edge guides .............................. 25 [END/POWER] key..........................
Page 231 Index Height adjustment lever.......................... 53 ID Cut Guide............................ 111, 115 ID Cut .............................. 111, 115 Information menu ............................ 150 Ink discharge channel .......................... 159, 165 Ink Eco-case.............................. 27 Ink End ................................ 43 Ink error ................................ 32 Ink IC chip .............................. 48 Ink IC chip slot .............................. 27 Ink leak check tube............................ 27 Ink lever ................................ 27 Ink Near End .............................. 43 Ink status ................................ 32...
Page 232 Media holder............................ 159, 168 Media Remain .............................. 141 Media sensor .......................... 26, 29, 159, 166 MENU mode .............................. 32 Mimaki driver .............................. 40 Mimaki Remote Access .......................... 149 Move To Maint. Space .......................... 142 Move To Platen Right End ........................... 142 MRA................................ 149 NCU.............................. 28, 159, 163 Network ................................ 149...
Page 233 Index Preheater................................ 26 Print Area .............................. 150 Print Length .............................. 150 Print origin .............................. 85 Printing Check .............................. 142 RasterLink ............ 40, 41, 42, 83, 84, 110, 111, 112, 127, 135, 146, 147, 201, 204 Receive buffer ...................... 86, 103, 152, 154, 201, 217 Reference guide ........................ 84, 127, 135, 204 Register mark ....................... 106, 108, 109, 112, 151 Remaining ink.............................. 32 Remote Control ............................ 149...
Page 234 Index Time Set ............................... 149 Tool Change ............................. 94, 98, 152 Top Blower .............................. 147 Torque limiter .............................. 58 Unlocking pin .............................. 61 Up Speed .............................. 153 Usage ................................ 150 USB interface cable............................ 38 USB port ................................. 26 Use PR Number Query .......................... 147 Use Time .............................. 150 Vacuum Fan ............................ 141, 153 Version ................................. 150 View Feed .............................. 148 Warning Label .............................. 20...
Page 235 Operation manual May, 2022 MIMAKI ENGINEERING CO.,LTD. 2182-3 Shigeno-otsu, Tomi-shi, Nagano 389-0512 JAPAN D203599-11-20052022...
