108/109 itself. Typically, routers have a special entry for the Default
Route. It should be configured as follows.
Destination IP
Address
Network Mask
Gateway IP Address
Metric
Other Routers on the Local LAN
Other routers on the local LAN must use the WL-108/109's Local Router as
the Default Route. The entries will be the same as the WL-108/109's local
router, with the exception of the Gateway IP Address.
• For a router with a direct connection to the WL-108/109's local Router,
the Gateway IP Address is the address of the WL-108/109's local
router.
• For routers which must forward packets to another router before
reaching the WL-108/109's local router, the Gateway IP Address is the
address of the intermediate router.

Static Routing - Example

For the WL-108/109's Routing Table

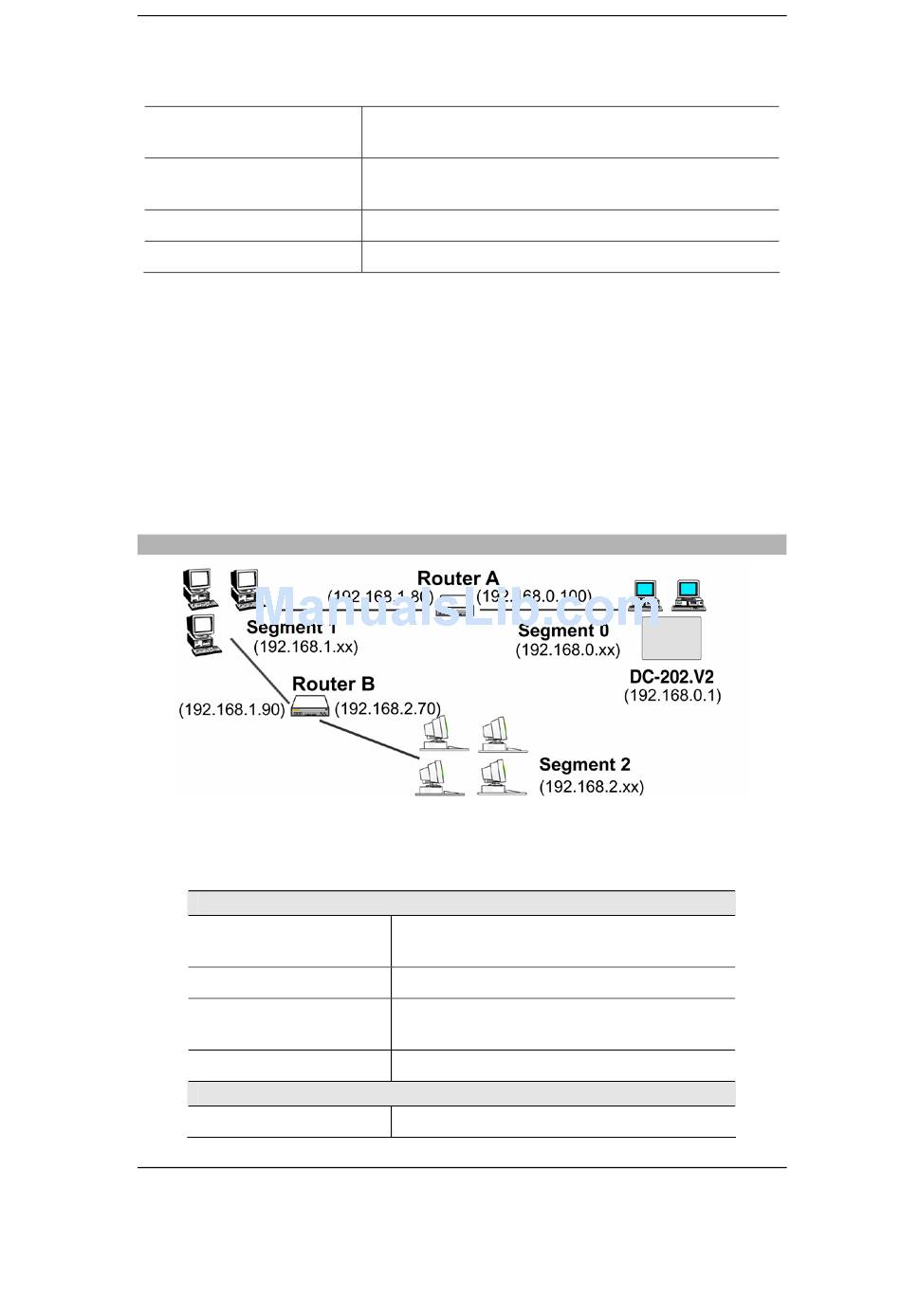

For the LAN shown above, with 2 routers and 3 LAN segments, the WL-
108/109 requires 2 entries as follows.
Entry 1 (Segment 1)
Destination IP
Address
Network Mask
Gateway IP Address
Metric
Entry 2 (Segment 2)
Destination IP
WL-108 Wireless Network Modem/router 11M
Normally 0.0.0.0, but check your router
documentation.
Normally 0.0.0.0, but check your router
documentation.
The IP Address of the WL-108/109.
1
192.168.1.0
255.255.255.0 (Standard Class C)
192.168.0.100 (WL-108/109's local
Router)
2
192.168.2.0
66
