1. Introduction
1.1 Minimum Requirements
Microsoft Windows 2000 / XP / Vista 32bit.
•
Pentium-class processor (200MHz CPU or above)
•
32MB RAM or above
•
Minimum 10 MB Hard Disk Drive Space
•
Free USB port
•
1.2 Package Content

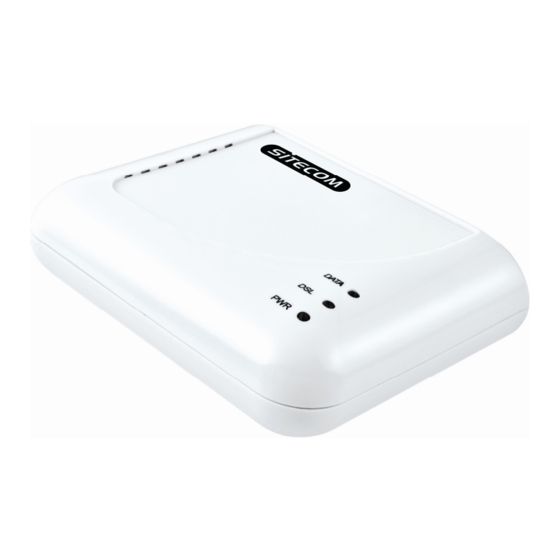

USB ADSL modem
•
Installation Software CD-Rom
•
USB Cable
•
RJ-11 Cable
•
1.3 Features
Compliant with Universal Serial Bus Specification Revision 1.1
•
USB bus-powered; an external power supply is not required
•
Supports two device drivers: Microsoft NDIS 4.0 WAN Miniport or NDIS 4.0
•
LAN Miniport.
Compatible with T1.413 i2, G.DMT, and G.lite compliant CO DSLAM equipment.
•
Software upgradeable.
•
Includes monitoring programs for configuring the adapter and checking the
•
status of the connection.
Provides an RJ-11 connector for connection to the telephone line.
•
Supports DSL downsteam data rates up to 9 Mbps (150 times faster than
•
standard 56K modems)
Supports DSL upstream data rates up to 1024 kbps.
•
Support for PPP over Ethernet (PPPoE)
•
Advertisement
Related Manuals for Sitecom DC-206
Summary of Contents for Sitecom DC-206
- Page 1 1. Introduction 1.1 Minimum Requirements Microsoft Windows 2000 / XP / Vista 32bit. • Pentium-class processor (200MHz CPU or above) • 32MB RAM or above • Minimum 10 MB Hard Disk Drive Space • Free USB port • 1.2 Package Content USB ADSL modem •...
- Page 2 2. Using the USB ADSL Modem 2.1 Basic function description USB port Connects the device to the pc RJ11 port Connects the device to the phone-line Green LED Flash - Data Transfer / Receive DATA LED Green LED Off - No Data Transfer / Receive Green LED Flash –...
-
Page 3: Hardware And Software Installation
2.2 Hardware and Software installation Hardware Installation Connect the USB-cable to the USB-Modem. Please connect the ADSL line to the RJ11 jack of the USB ADSL modem and the other end to the wall-outlet. Do not connect the USB-Modem to your computer yet, wait until the software asks you to. -
Page 4: Software Installation
Software Installation Place the CDROM in the CDROM player. The Setup Menu will automatically start. If the Menu doesn’t start automatically, go to My computer/CDROM player, open the CDMenu folder, and start the CDMenu.exe file. Please select “Install Driver”. In Windows Vista you will see the following message; Choose “Allow”... - Page 5 The setup wizard will now start. Please select the correct connection- method and then click “Next”. The driver of the DC-206 will be installed.
- Page 6 Please connect your USB ADSL modem to your PC when the setup asks you too. You might see one of the following messages depending on using Windows XP or Vista; Click “ Continue Anyway” in Windows XP and “Install this driver anyway” in Windows Vista When the installation has finished, you have to configure the modem.
- Page 7 To configure the modem; Click “Start” -> All Programs -> Sitecom DSL Modem, Configure. Please enter the correct VPI and VCI values and select the correct Modulation. These can be found in the Addendum. Please select “Reboot” to complete the Configuration settings.
- Page 8 If you see the following message in Windows Vista; please select; “This program installed correctly”...
- Page 9 If you selected WAN PPPoE or PPPoA please follow step 1a If you selected LAN please follow step 1b After the PC has been rebooted a PPP dial-up connection is available on your desktop called: PPP Dial-up Connection. Double-click it and enter your User name and Password (See your ISP. subscription papers for this information or contact your ISP.) and click on “Dial”...
- Page 10 After the PC has restarted click START -> Control Panel -> Network and Internet Connections. Then click the “Network Connections” icon. Please right click the Sitecom USB ADSL LAN Modem icon, and click “Properties”. Please select the “Internet Protocol (TCP/IP)” and click “Properties”...
- Page 11 Select “Use the following IP address”. Enter the IP address, Subnet mask and Default gateway provided by your ISP. For the DNS setting, please select; “Use the following DNS server addresses” and enter the Preferred and Alternate DNS server information provided by your ISP.
-
Page 12: Windows Vista
After the PC has restarted click START -> Control Panel -> Network and Internet -> Network and Sharing Center. Under the Tasks selection, please click “Manage network connections”. Please right click the Sitecom USB ADSL LAN Modem icon and click “Properties”. - Page 13 Please select “Internet Protocol Version 4 (TCP/IPv4)” and click “Properties” Select “Use the following IP address” and then the IP address, Subnet mask and Default gateway provided by your ISP. For the DNS setting, please select “Use the following DNS server addresses” and enter the Preferred and Alternate DNS server information provided by your ISP.
- Page 14 Addendum ISP list Alice 35 PPPoA NULL 35 PPPoA NULL Aruba 35 PPPoA NULL Libero 75 PPPoA NULL McLink 35 RFC2684 Routed IP LLC Smart ADSL Telecom (Indirizzo IP Fisso) 35 PPPoA NULL Tele2 35 PPPoA NULL TIN.IT 35 PPPoA NULL Tiscali 35 PPPoA NULL VIRGILIO...
