11.4.

PWM Port JP6

 There is pull-down resistor of 10K connected to GND inside DAEnetIP4 for
every JP6 input pin;
The PWM port is not protected and it is connected directly to the CPU!
Over-current will damage the CPU!
In order to be used, the PWM port should be connected to additional logic
like MOSFET-s or other drivers to ensure proper controlling power for the
load.

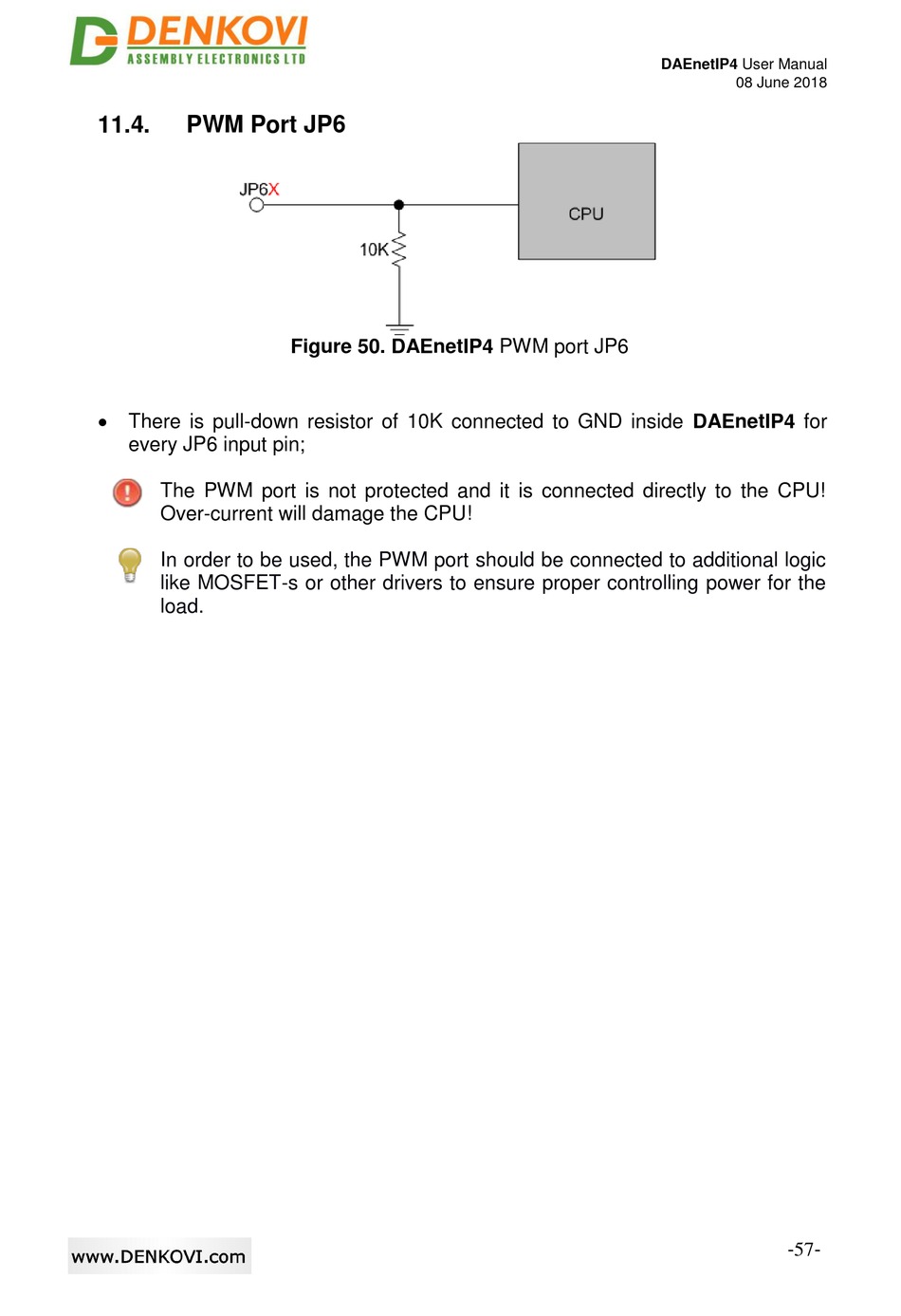

Figure 50. DAEnetIP4 PWM port JP6
