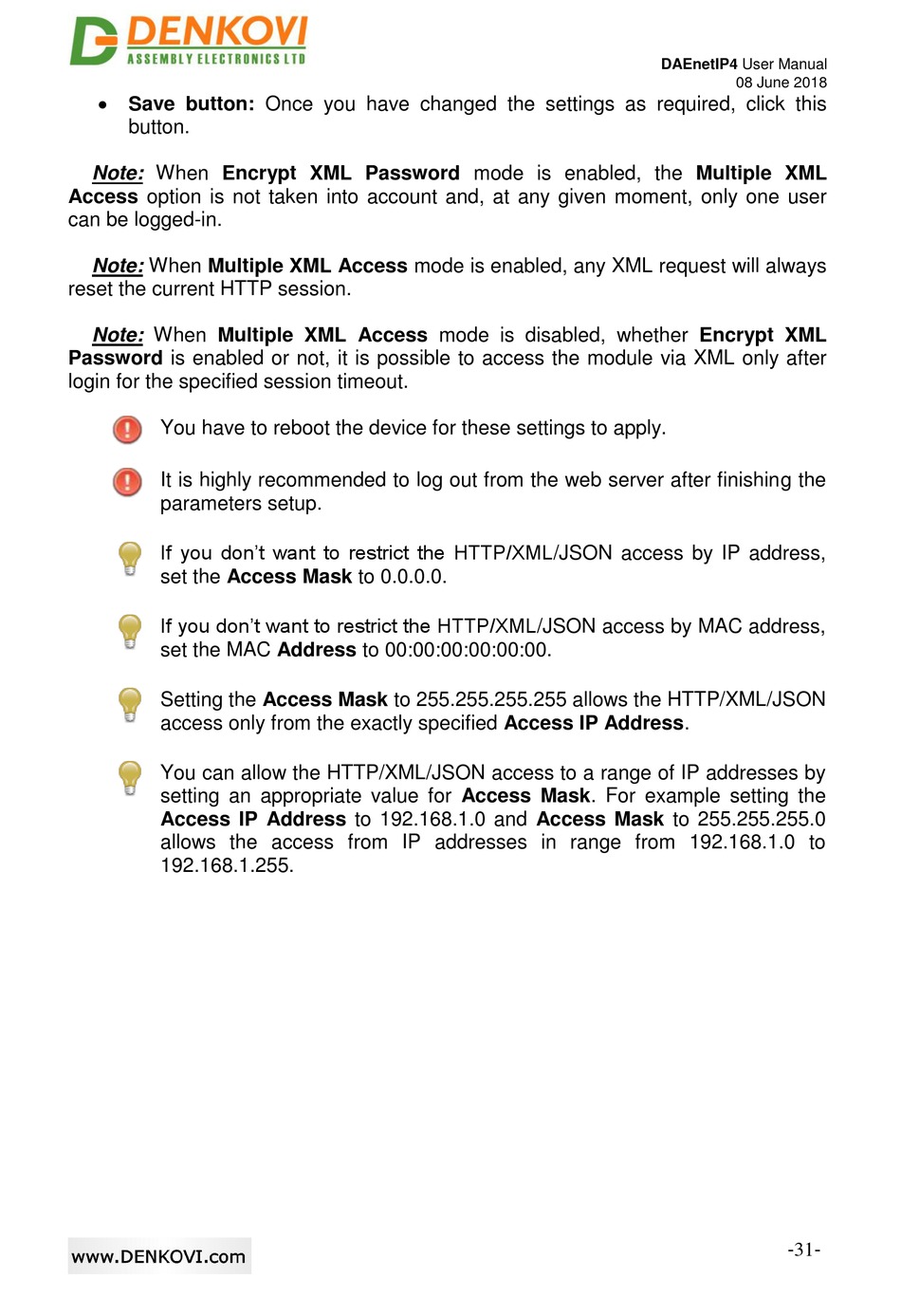

Denkovi DAEnetIP4 User Manual page 31

 Save button: Once you have changed the settings as required, click this
button.
Note: When Encrypt XML Password mode is enabled, the Multiple XML
Access option is not taken into account and, at any given moment, only one user
can be logged-in.
Note: When Multiple XML Access mode is enabled, any XML request will always
reset the current HTTP session.
Note: When Multiple XML Access mode is disabled, whether Encrypt XML
Password is enabled or not, it is possible to access the module via XML only after
login for the specified session timeout.
You have to reboot the device for these settings to apply.
It is highly recommended to log out from the web server after finishing the
parameters setup.
If you don't want to restrict the HTTP/XML/JSON access by IP address,
set the Access Mask to 0.0.0.0.
If you don't want to restrict the HTTP/XML/JSON access by MAC address,
set the MAC Address to 00:00:00:00:00:00.
Setting the Access Mask to 255.255.255.255 allows the HTTP/XML/JSON
access only from the exactly specified Access IP Address.
You can allow the HTTP/XML/JSON access to a range of IP addresses by
setting an appropriate value for Access Mask. For example setting the
Access IP Address to 192.168.1.0 and Access Mask to 255.255.255.0
allows the access from IP addresses in range from 192.168.1.0 to
192.168.1.255.
