o Toggle(DI=0) - a falling edge (1 -> 0) of the Digital Input toggles the Relay
state between On and Off;
o Toggle(DI=1) - a rising edge (0 -> 1) of the Digital Input toggles the Relay
state between On and Off;
o Normal(DI=0) - a falling edge (1 -> 0) of the Digital Input switches the
Relay Off;
o Normal(DI=1) - a rising edge (0 -> 1) of the Digital Input switches the Relay
On;
o Inverse(DI=0) - a falling edge (1 -> 0) of the Digital Input switches the
Relay On;
o Inverse(DI=1) - a rising edge (0 -> 1) of the Digital Input switches the Relay
Off.
 AI+ No - the number of the Analog Input (1 to 8) which is "attached" to this
output. If AI- No is set to zero, this is the single-ended input, otherwise – the
(+) lead of the differential input.
 AI- No – if set to non-zero (1 to 8), this is the (-) lead of the differential input;
If AI+ No is non-zero and AI- No is zero, the output is controlled by the AI+
No measured value
If both AI+ No and AI- No are non-zero, the output is controlled by the
difference of AI+ No and AI- No measured values.
If AI+ No is zero, the output is not controlled by the Analog Input (in this case
the AI- No is not relevant).
 AI Treshold 1: The first level for controlling the output (from -9999 up to
9999);
 AI Treshold 2: The second level for controlling the output (from -9999 up to
9999);
.

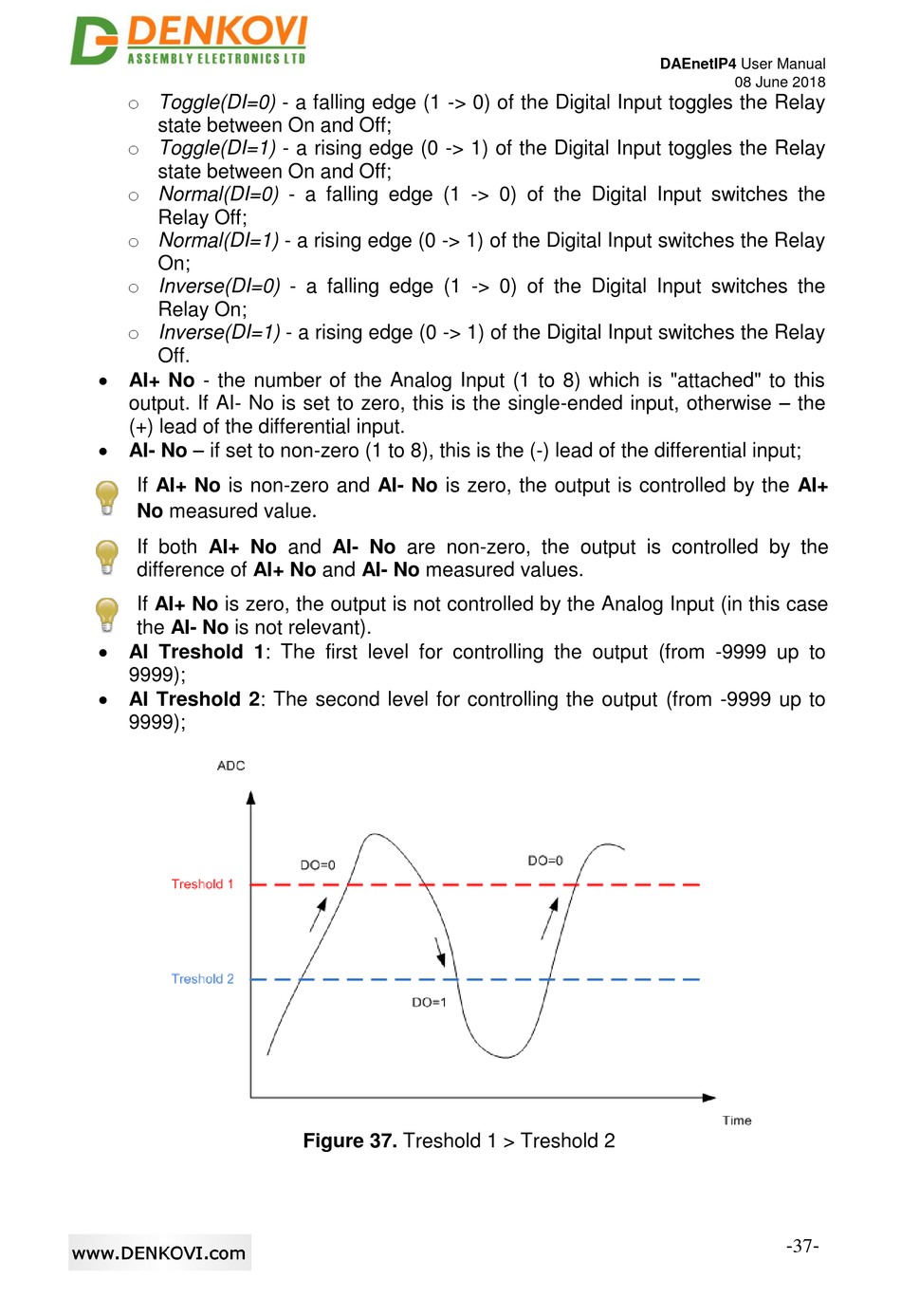

Figure 37. Treshold 1 > Treshold 2
DAEnetIP4 User Manual
08 June 2018
-37-
