 Disable Week Schedule: Enables/Disables globally the week schedule
control for this output. This means the output may be in the schedule, but if
this flag is enabled, then it won't be activated by the schedule;
 Pulse, ms (x100): Determines if the output works in pulse mode and if so
what is the duration of the single pulse (in milliseconds x 100 - for example
value of 10 means 1 second). This parameter can accept values between 0
and 65535. If it is 0, then the pulse mode is disabled. If it is between 1 and
65535, then the pulse mode for this output is activated and it will be hold in
high level for the specified time by this parameter. During this time, the output
can be set in low via Analog Input, digital input, week schedule, SNMP, web
browser control, HTTP/XML. The "pulse" mode is active only if the parameter
Working Mode is set with value "Multiple". This means that:
o If the output is set to high level via browser manually, SNMP or HTTP/XML
it will be in high level for the determined time by this parameter and then
set back to low level;
o If the output is controlled by Analog Input and it is in "Multiple" mode, then
it will be hold to high level for time specified by this parameter and then will
be set to low;
o If the output is controlled by a Digital Input, then when the input becomes in
high level, the output will be set to high level for time, specified by this
parameter and then will be set to low;
o If the output is controlled by weekly schedule, then when the output
becomes in high level, it will be set to high level for time, specified by this
parameter and then will be set to low;
o If the output is controlled via SNMP, web browser, HTTP/XML, then when
the output becomes in high level, it will be set to high level for time,
specified by this parameter and then will be set to low;

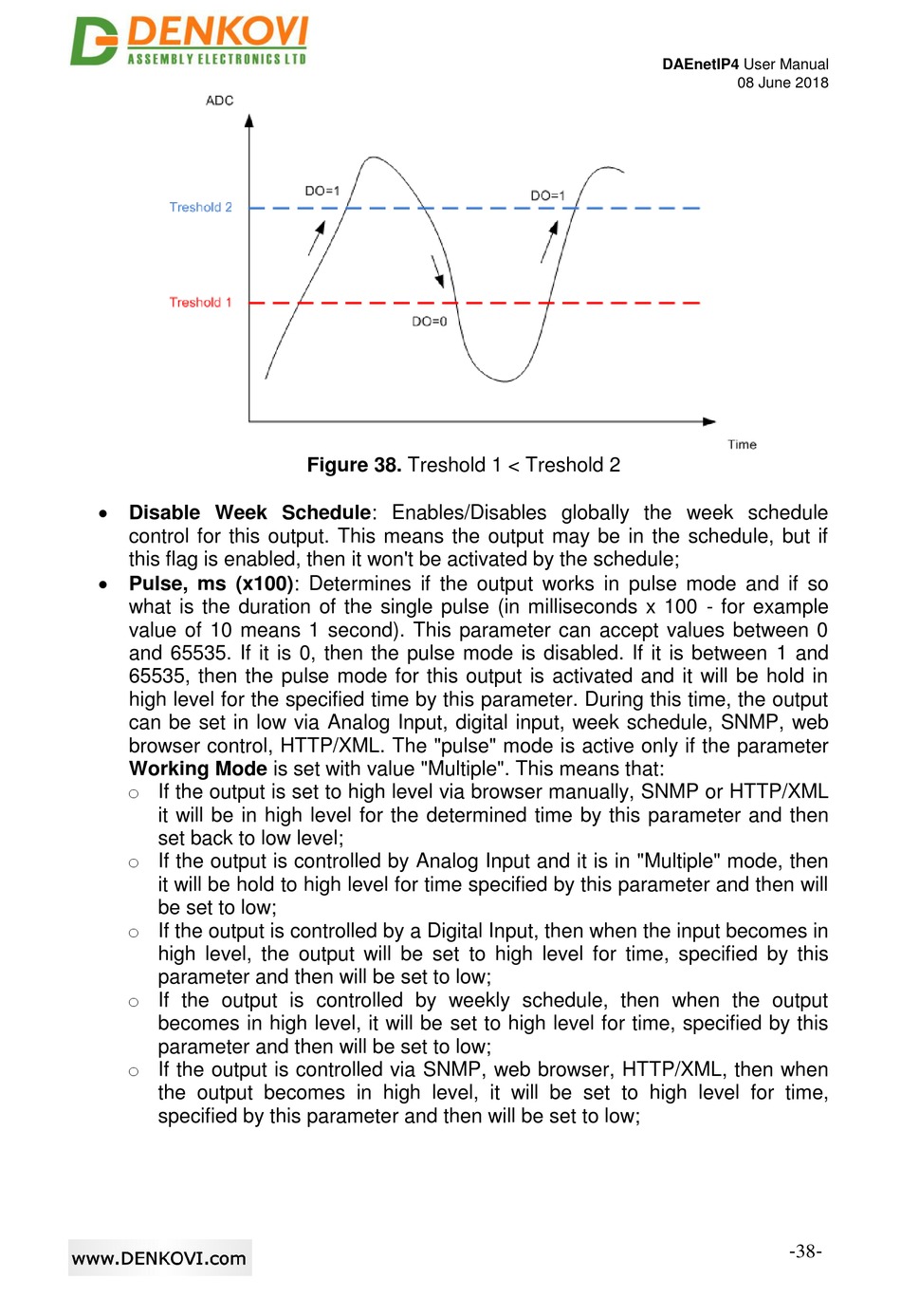

Figure 38. Treshold 1 < Treshold 2
