7.14. Week Schedule

This page configures the Week Schedule table for switching Digital Outputs in
High (ON) or Low (OFF) at specific times. You can add up to 30 time items to the list.
The top table of this page allows you to define a new item, while the bottom table
shows the already defined list:
 Outputs: Select a group of relays that should be switched;
 State: Defines the state (ON/OFF) for the selected group of outputs;
 Hour: Time the group of outputs will be switched at;
 WeekDays: Select the days the defined switching should take place;
 Start Date (dd/mm/yyyy): The start date for the Week Schedule table.
Once you have defined a new item, click " Add ". This item will be added as a new
row in a Week Schedule table.
This feature allows you to turn on/off specific outputs upon certain date
and time or weekday without the need of LAN connection between the
computer and the module.
To delete an item, select it in Existing Items table and click on "Delete
Selected" button.
To set a new start date, click on "Update Start Date" button.
The module has back-up supply source for the RTC in order to keep the
current date/time for several days during power off.

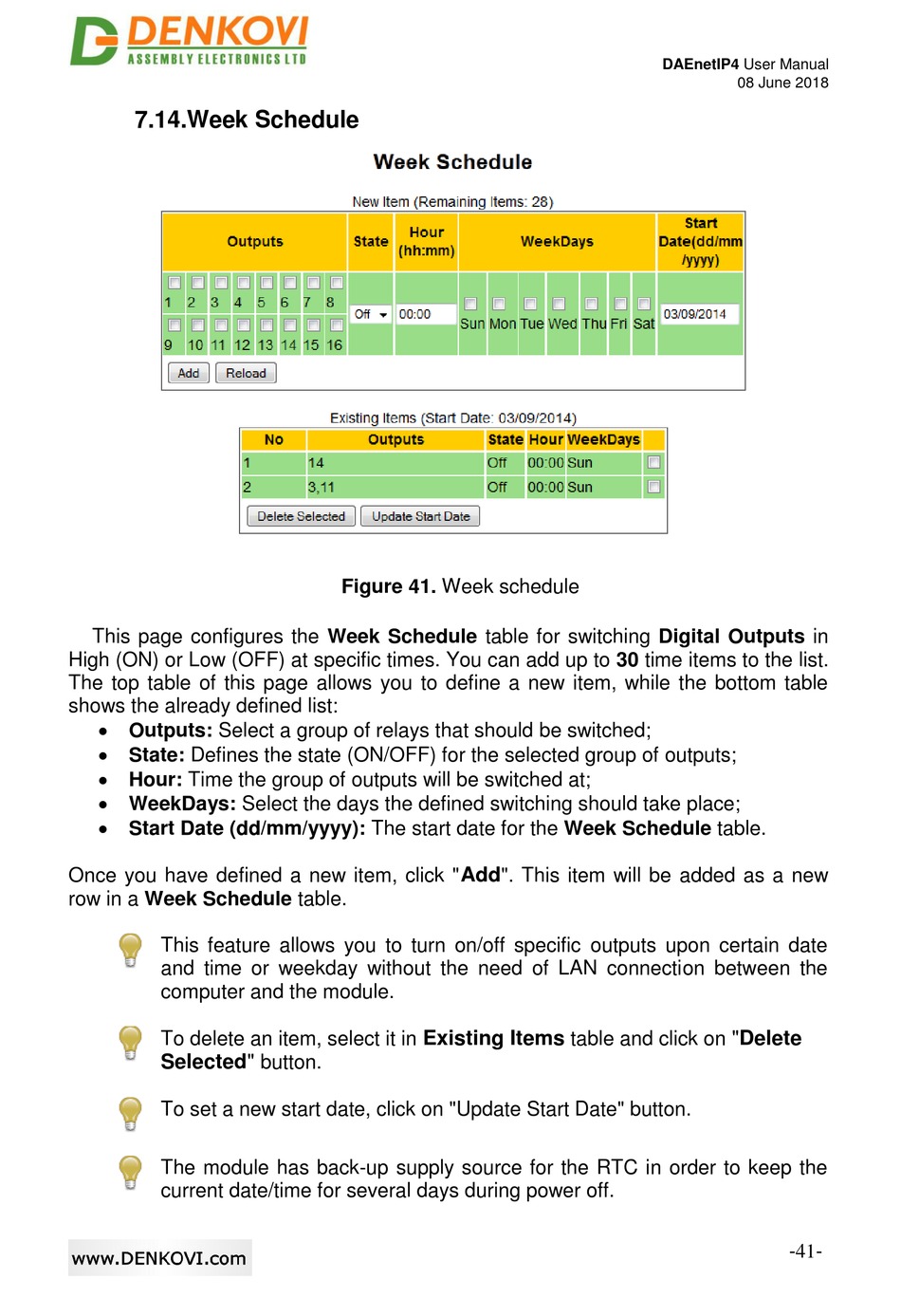

Figure 41. Week schedule
