4. Connectors and ports (interfaces)

4.1.

DAEnetIP4 ports

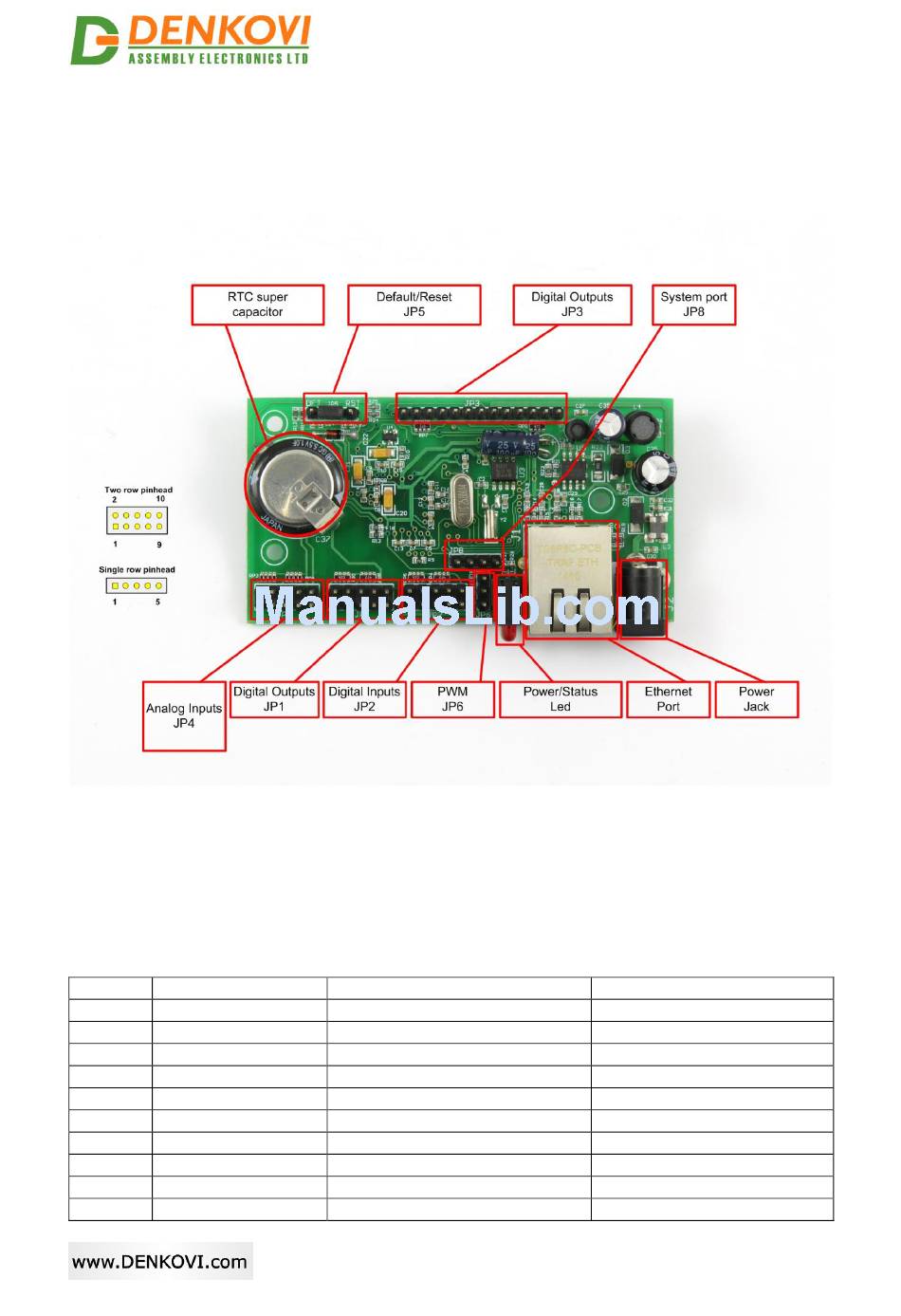

Bellow is shown a picture with the device connectors, ports and led indicators.
4.2.

DAEnetIP4 ports, led-s and jacks description

The first pin of every I/O port is marked with square footprint and all the rest pins
are with circle footprints.
Pin N Bit
1 0
2 1
3 2
4 3
5 4
6 5
7 6
8 7
9 -
10 -
Figure 8. Device overview
Function
General Purpose Output #1
General Purpose Output #2
General Purpose Output #3
General Purpose Output #4
General Purpose Output #5
General Purpose Output #6
General Purpose Output #7
General Purpose Output #8
GND
3V3
DAEnetIP4 User Manual
Table 2. Digital Outputs port JP1
Direction
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
-
-
08 June 2018
-12-
