7.11.
Digital Outputs
Description: Output identification string (max 7 chars);
This description will appear in XML/JSON files, as well as in the Monitoring &
Control page.
Working Mode: Determines how to work the Digital Output:
o Regulator - in this mode the Output can be controlled only by Analog Input.
This mode is designed for cases where the input event depends on the
output reaction (like thermo regulator for example). In this mode the
parameters "DI No" and "Pulse" are not taken in mind. Also in this mode it
is not possible to control the output via SNMP, Web browser or HTTP/XML
protocol.
o Multiple - in this mode the output can be controlled by Analog Inputs,
Digital Inputs, week schedule or manual control (via browser, SNMP,
HTTP/XML). This mode is designed for cases where the input event does
not depend on the output reaction (for example controlling lamp depending
on the sunlight);
DI No: The number of the Digital Input which is "attached" to this output. It can
be "-" if there is no Digital Input attached or any number between 1 and 8. If
there is a selected input here and the working mode is "Multiple", then the
output will be in high level when the input is in high level and will be in low
level when the input is in low level;
DI Mode – one of eight level/edge control modes can be selected:
o Normal - the Relay state is On when the Digital Input state is 1 (On) and
Off when the Digital Input state is 0 (Off);
o Inverse - the Relay state is On when the Digital Input state is 0 (Off) and
Off when the Digital Input state is 1 (On);

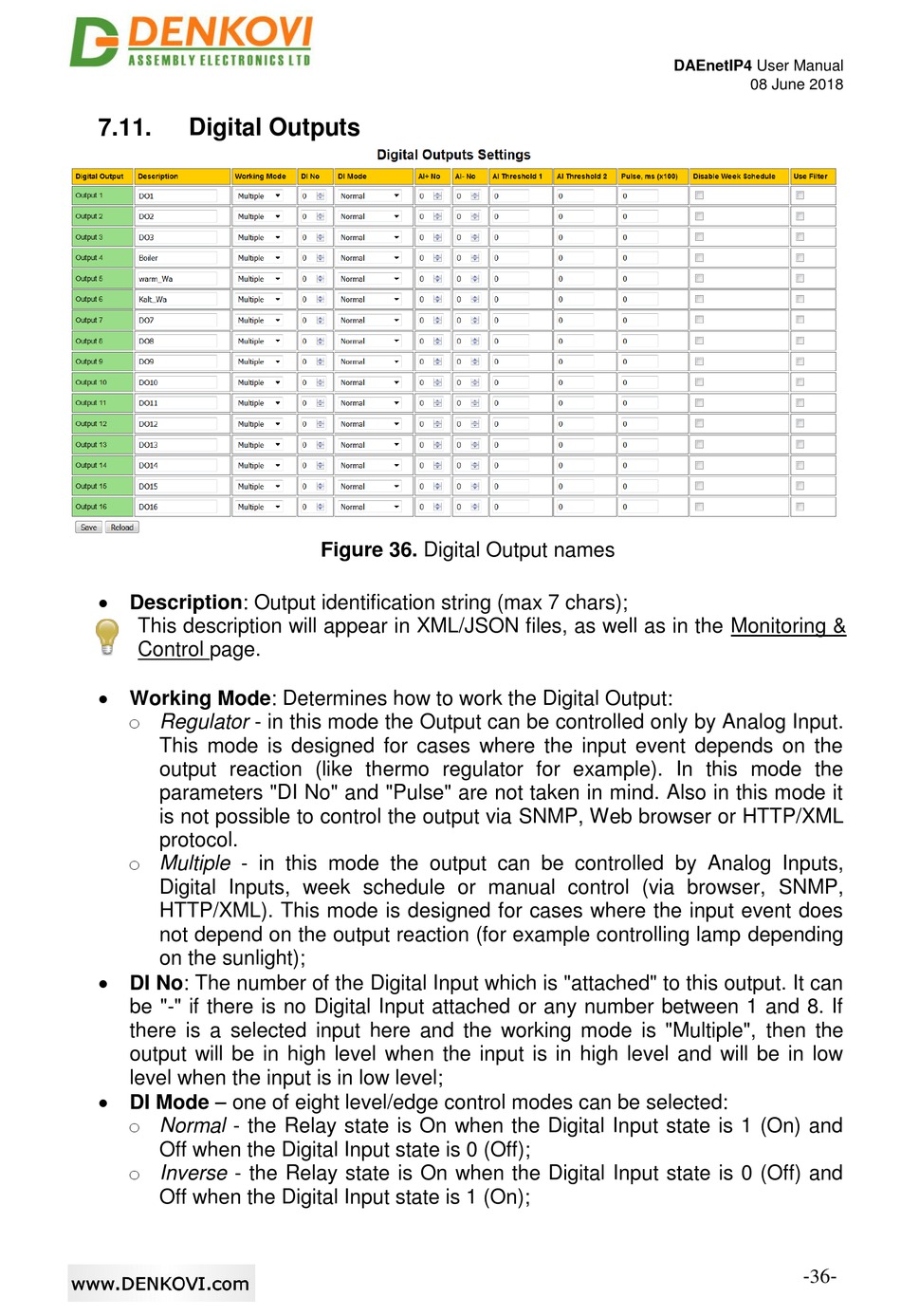

Figure 36. Digital Output names
DAEnetIP4 User Manual
08 June 2018
-36-
