6.2.

Steps for loading default settings

When necessary, the factory (default settings) may be applied so the DAEnetIP4
parameters will be returned back as those in point 6.1 from the current document.
Default
position
When DAEnetIP4 is shipped from the factory, the jumper is placed on JP5 pins 2
and 3.
1. Turn off the power supply of the device;
2. Move the jumper to the DFT position (between pin 1 and 2);
3. Turn on the power supply of the device;
4. Wait until the status led become ON (approximately 10 sec);
5. Remove the jumper from the DFT position;
6. Turn off the power supply of the device;
7. Move back the jumper to the middle position (between pin 2 and 3);
8. The module is configured with default settings.
6.3.

Restart the module

The controller may be restarted via one of the ways described bellow:
 Unplug the power supply, wait 10 seconds and plug it again;
 Move the jumper to RST position (Figure...), wait 10 seconds and then get it
back to it's old position. This option is most suitable when the controller is
embedded in larger system and the JP5 jumper must be extended with
buttons or switches.

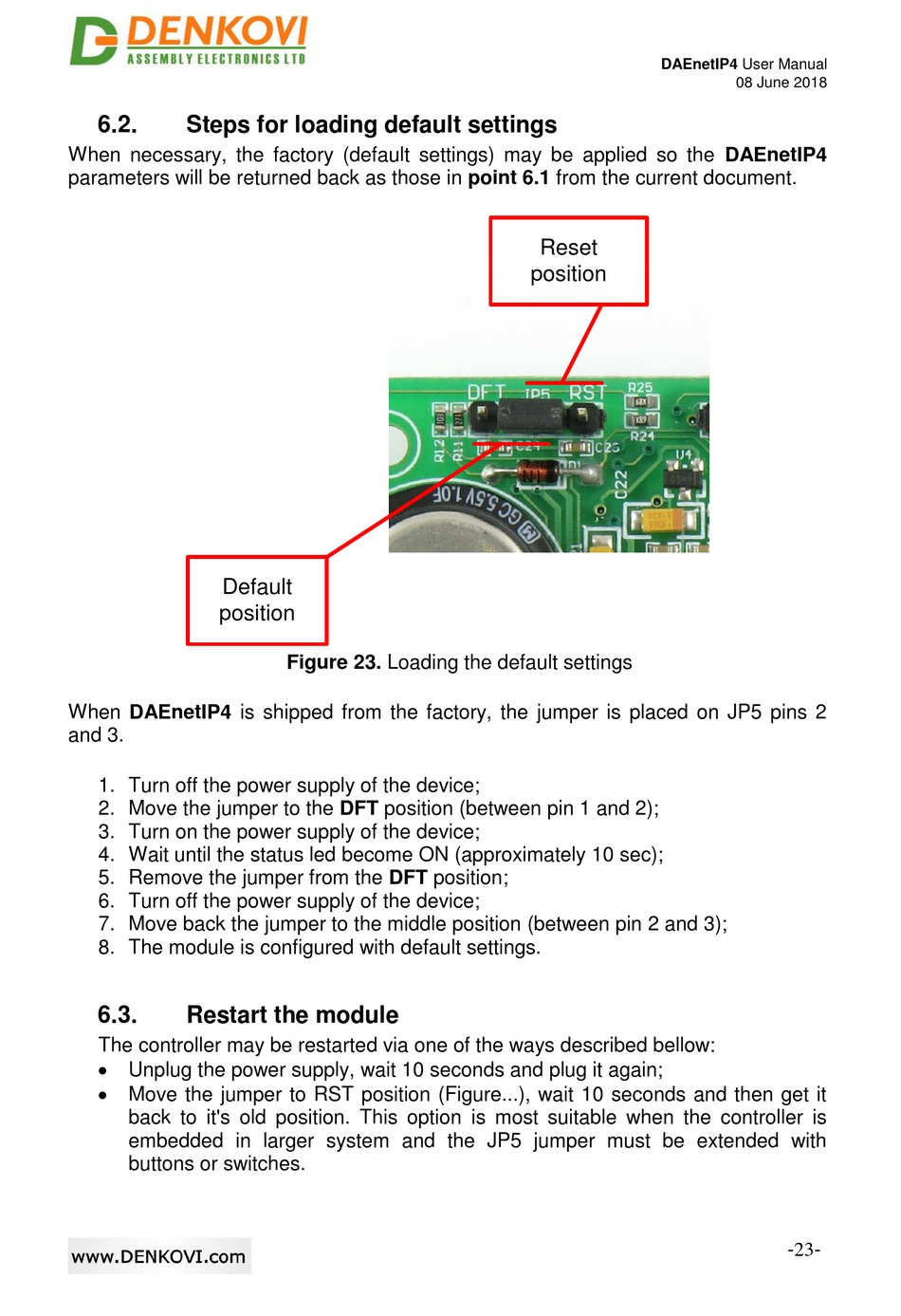

Figure 23. Loading the default settings
DAEnetIP4 User Manual
Reset
position
