Analog Inputs

 Description: Analog Input identification string (max 7 chars);
 Min - the value used for scaling where the analog input is with value 0
(minimum value: -9999.9, maximum value: 9999.9);
 Max - the value used for scaling where the analog input is with value 1024
(minimum value: -9999.9, maximum value: 9999.9);
 Label - the units for the scaled value for example: m,A,KG,V...(max 4 chars);
 Low Threshold - the low threshold limit for this input (from -9999 up to 9999);
 High Threshold - the high threshold limit for this input (from -9999 up to
9999);
 SNMP Trap: Determines if the Analog Input will set traps or not;
The scaled value for the analog inputs is calculated in the following way:

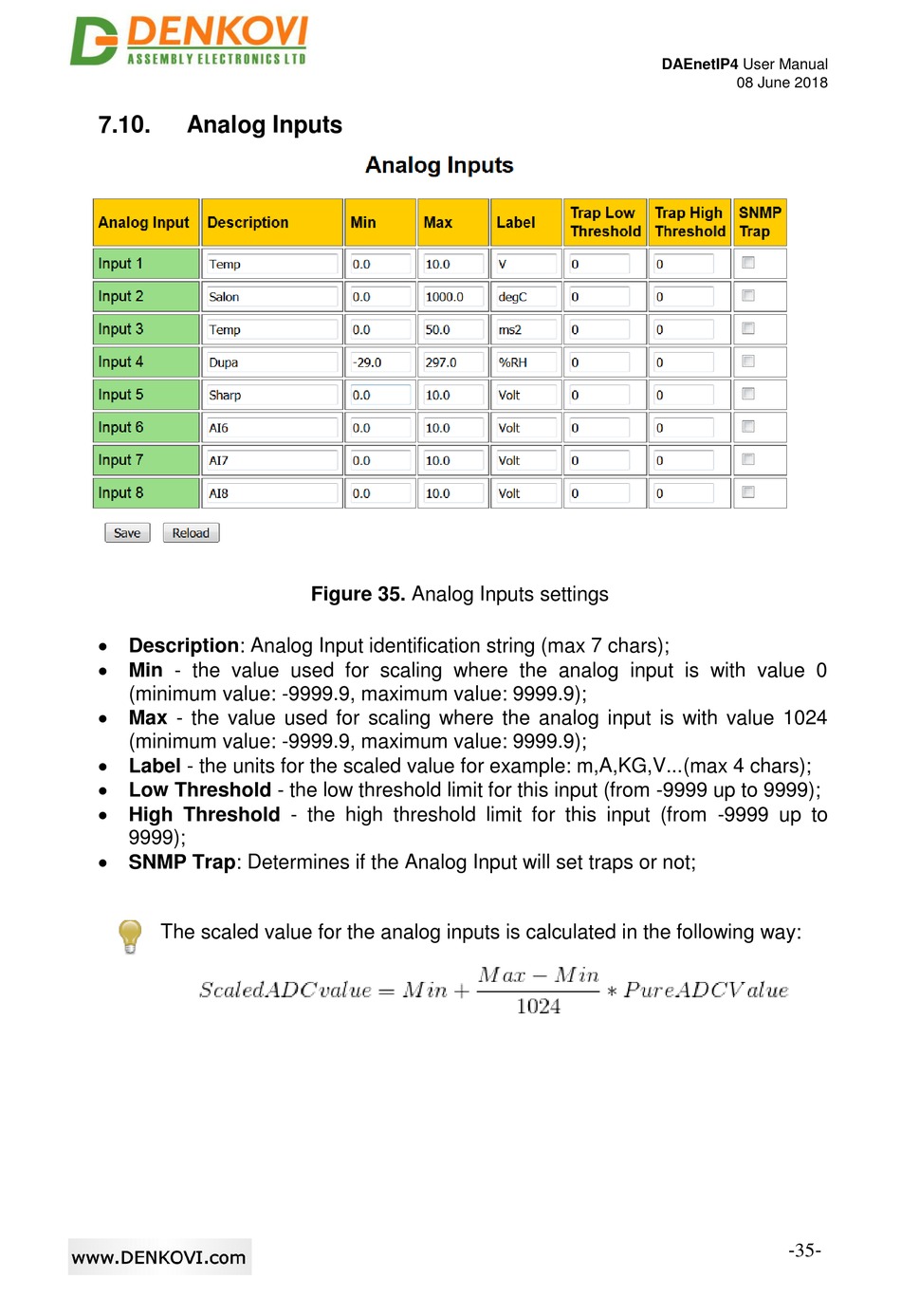

Figure 35. Analog Inputs settings
