Installing in the
4-Slot Chassis
Use the following procedure to install the flash memory drive in the
NETBuilder II 4-Slot chassis, both single-wide and dual-wide versions.
To identiify your chassis, use
Table 1-3 4-Slot Chassis Assembly Part Numbers
Chassis Assembly Part Number
Single-wide 4-Slot 20-0151-xxx
Dual-wide 4-Slot 20-0250-xxx, 20-0406-xxx, or 20-0457-xxx
See "Identifying Your System"
dual-wide NETBuilder II chassis.
You will need a #2 Phillips screwdriver. A pair of pliers is recommended.
To Install the flash memory drive, follow these steps:
1 Turn off the system and unplug the power cord from the outlet and the chassis.
2 If your system is mounted in a rack, remove it from the rack.
Use a #2 Phillips screwdriver to unscrew the three screws that secure each
rack-mount bracket.

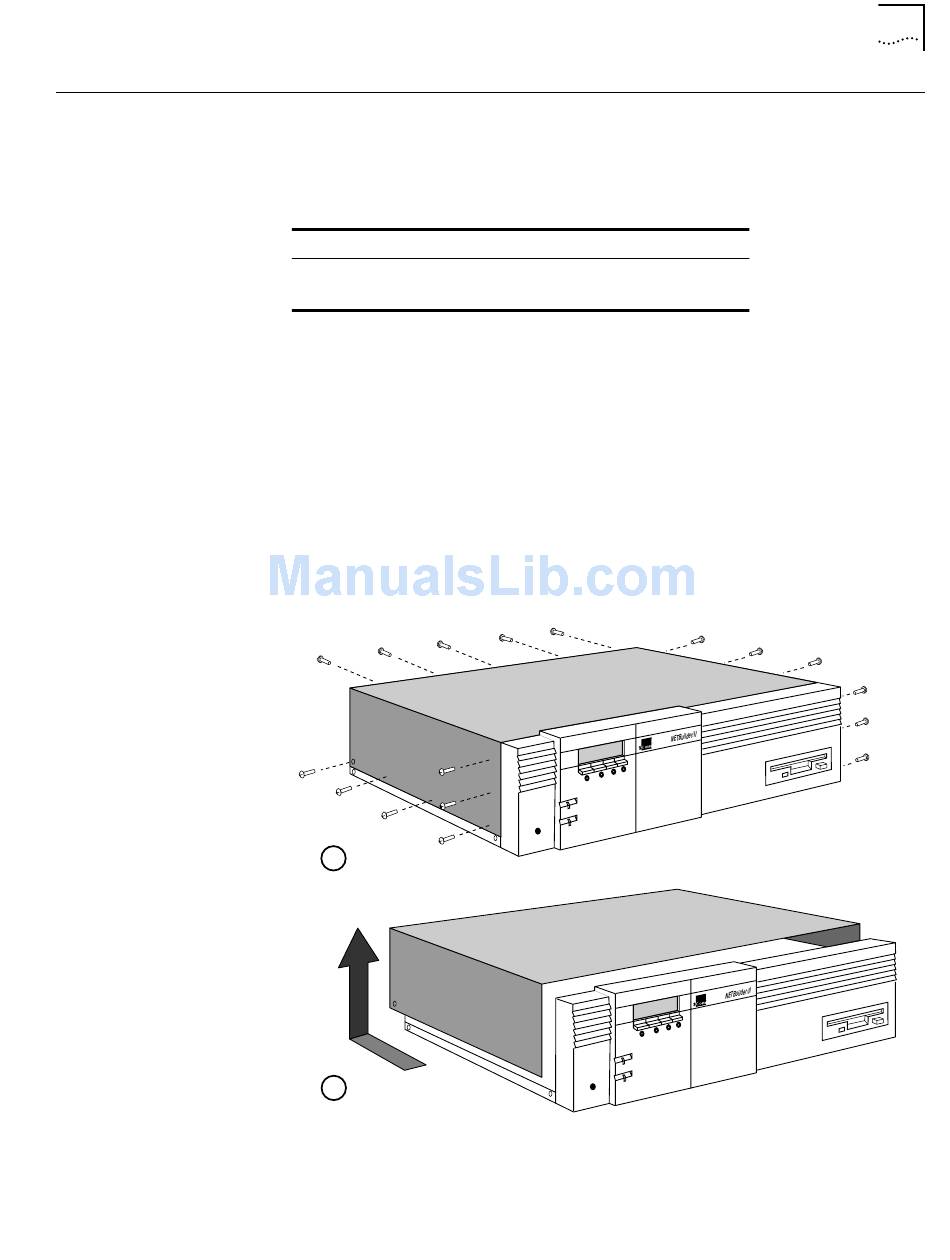

3 Remove the cover from the chassis.
a
Remove up to 17 screws.
Your chassis may have fewer
than 17 screws.
b
Slide cover back and up.

Installing in the 4-Slot Chassis

Table 1-3.
for more information on single-wide and
1-5
