8 Attach the ribbon cable to the backplane and the power cable to the power
supply cable.

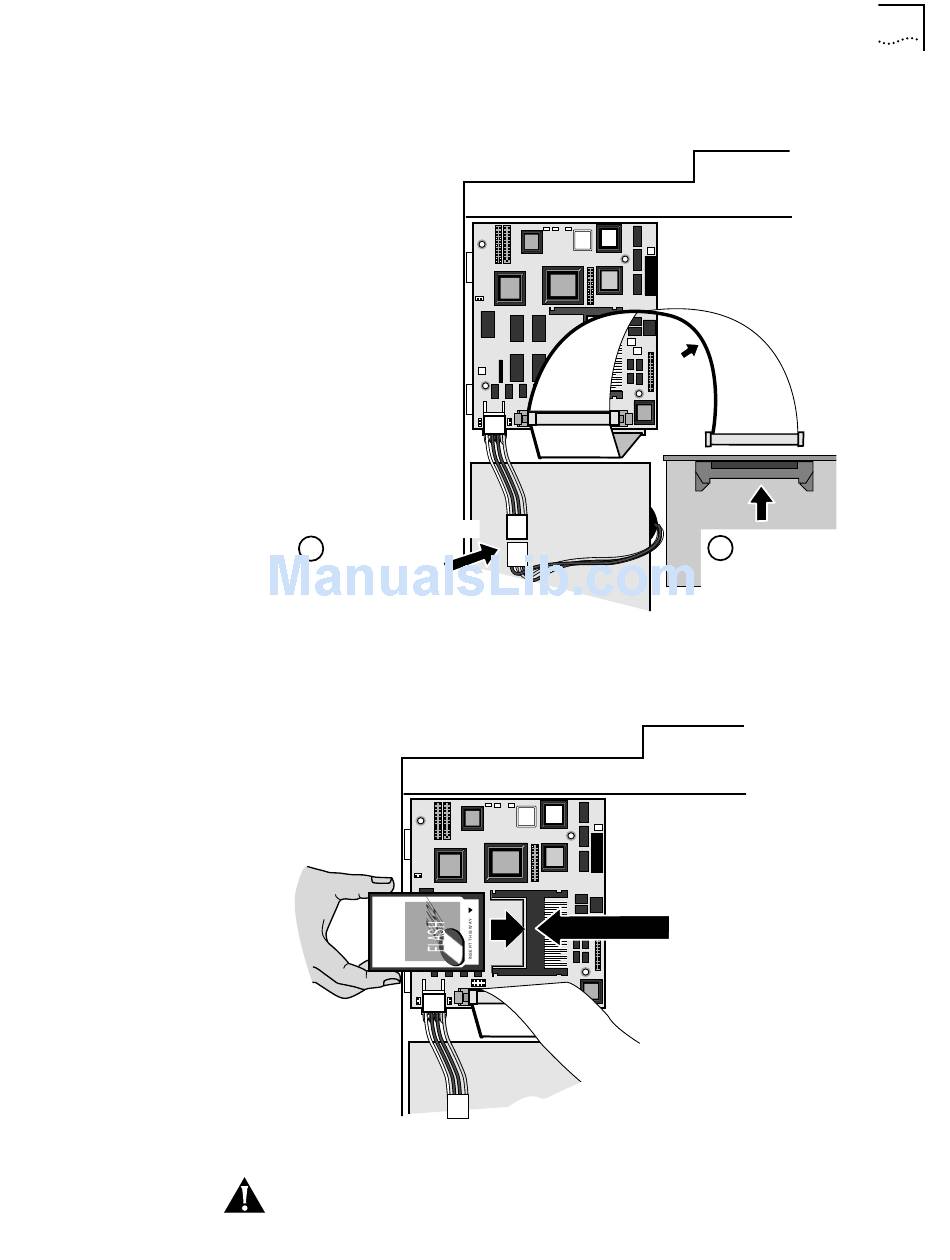

Connector F
a
Attach connector F
of power cable to
power supply cable.
9 Insert the flash memory card (purchased separately) into the flash memory drive.
The flash memory card is keyed so that it can only be installed with the
company name facing up.
10 Plug the power cord into the chassis.
CAUTION: Verify that the power switch is in the off (O) position.
Front panel
Power supply
Front panel
Installing in the 4-Slot Chassis
Red
line
Connector C
Backplane
b
Attach connector C of
ribbon cable to 34-pin
connector on backplane.
Install flash memory
card into the TOP slot
of 68-pin connector on
flash memory drive until
it snaps into place.
