3Com NETBuilder II Installation Manual page 26

Flash memory drive
Hide thumbs Also See for NETBuilder II:
Table of Contents

Advertisement

1-22
C
1: I
F
M
D
HAPTER
NSTALLING THE
LASH
EMORY
RIVE

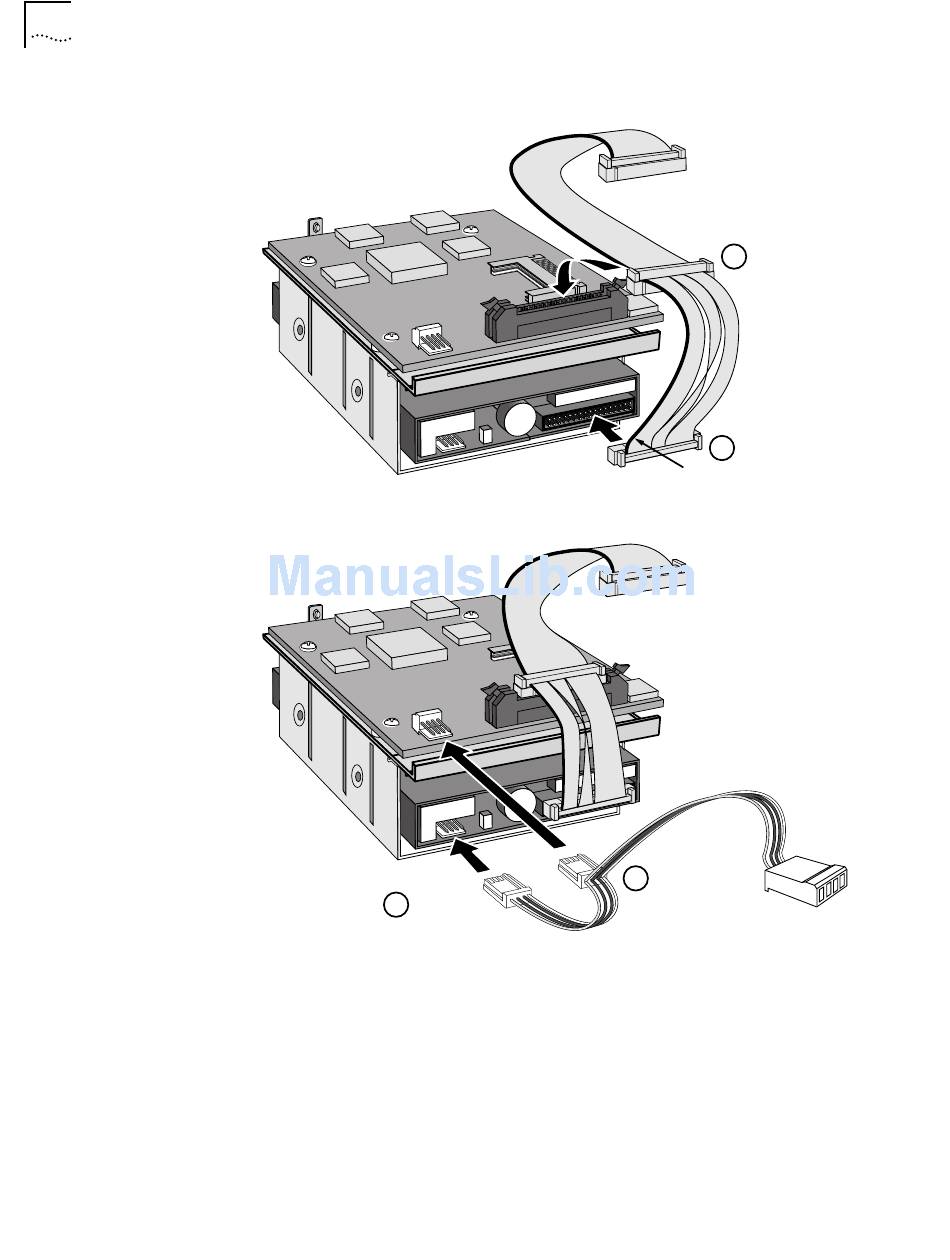

9 Connect the ribbon cable to the floppy disk drive and the flash memory drive.
b
Connector B
a
Connector A
Red line
10 Connect the power cable to the floppy disk drive and the flash memory drive.
b
Connector E
a
Connector D
Connector F
