1-6
C
1: I
HAPTER
NSTALLING THE
F
M
D
LASH
EMORY
RIVE

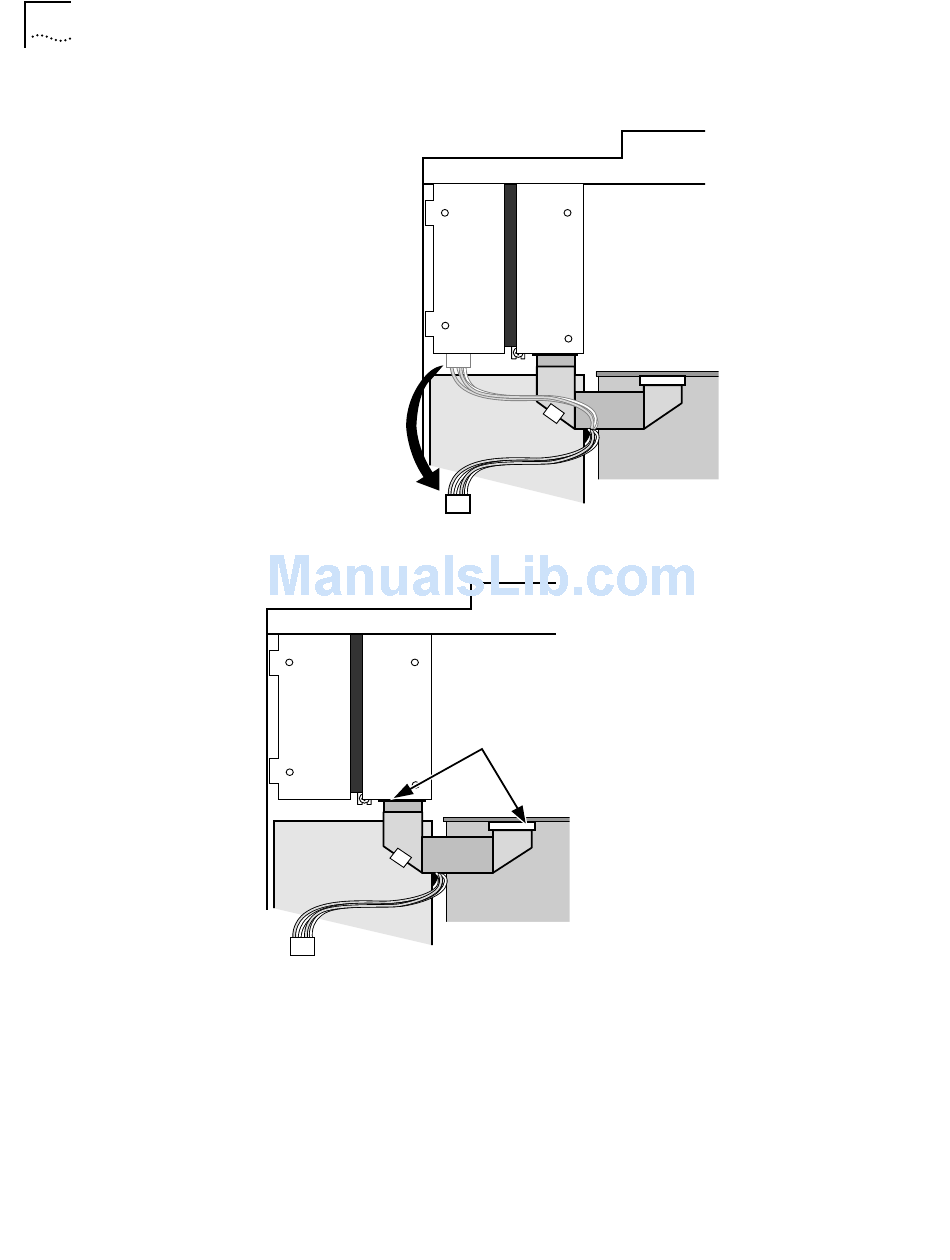

4 Disconnect the floppy disk drive's power cable.
Remove power cable
from disk drive and
fold out of the way
over power supply.
5 Disconnect and discard the floppy disk drive's ribbon cable.
Front panel
Disk
drive
Power supply
Front panel
Disk
drive
Power supply
Remove ribbon cable
from disk drive and
backplane connectors.
Backplane
