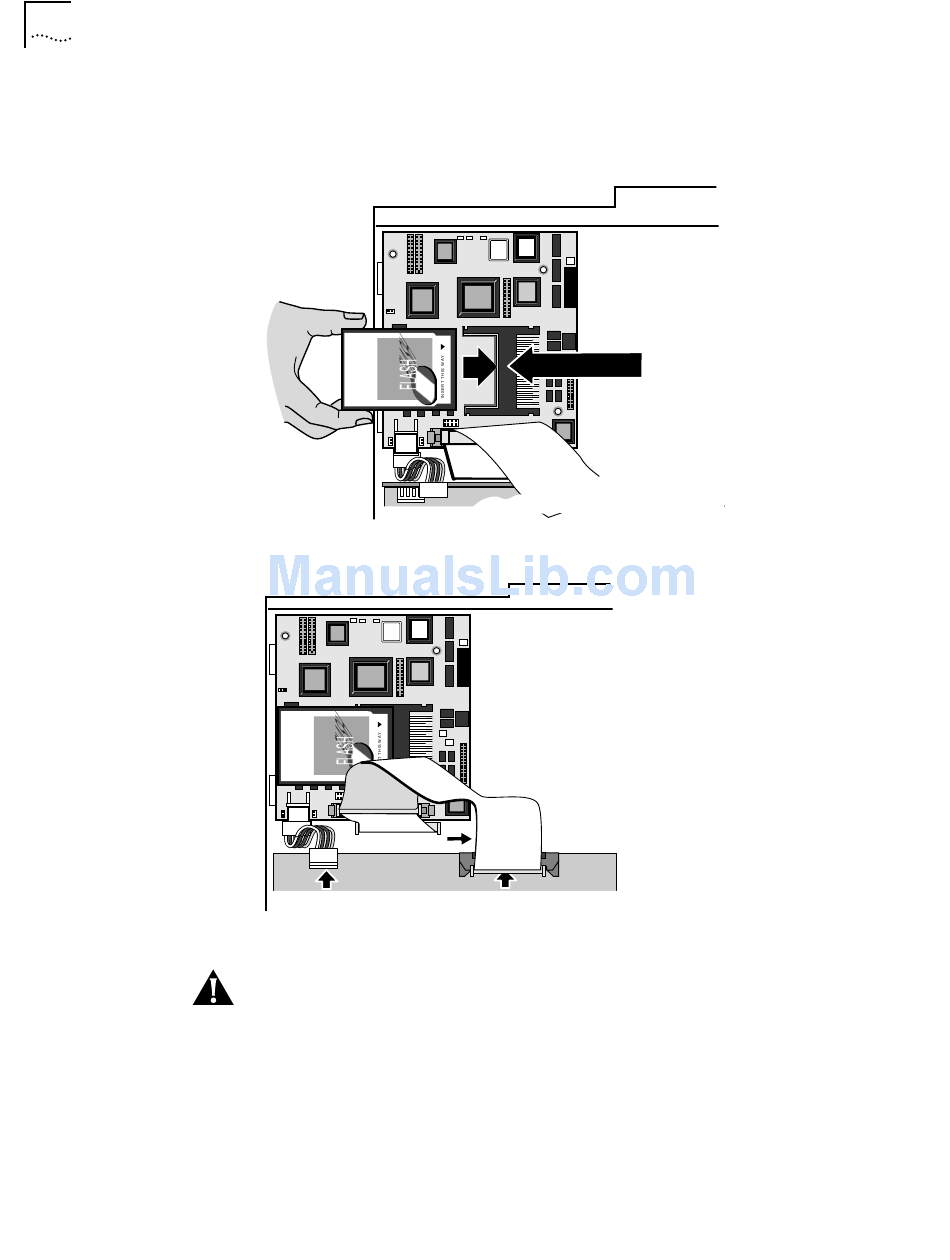

10 Insert the flash memory card (purchased separately).
The flash memory card is keyed so that it can only be installed with the
company name facing up.
11 Connect the ribbon cable and the power cable to the backplane.
Front panel
Red line
Attach ribbon cable and power cable
to connectors on backplane.
12 Plug the power cord into the chassis.
CAUTION: Verify that the power switch is in the off (O) position.
13 Plug the power cord into the outlet, then turn on the system.
Front panel
Backplane
Install flash memory
card into the TOP slot
of 68-pin connector on
flash memory drive.
