Standoff detail:
Flash card fits on narrow end of standoff.
Insert wide end of standoff in sheet
metal bracket.
NOTE: pinch wide end of standoff with a
pliers to make installaion easier.
a
Install standoffs on
floppy drive bracket.
There may be a steel standoff in
this location. If so use one nylon
screw to hold the board in place.
6 Disconnect and discard the ribbon cable and the power cable.
a
Remove power cable
from disk drive and
backplane connectors.

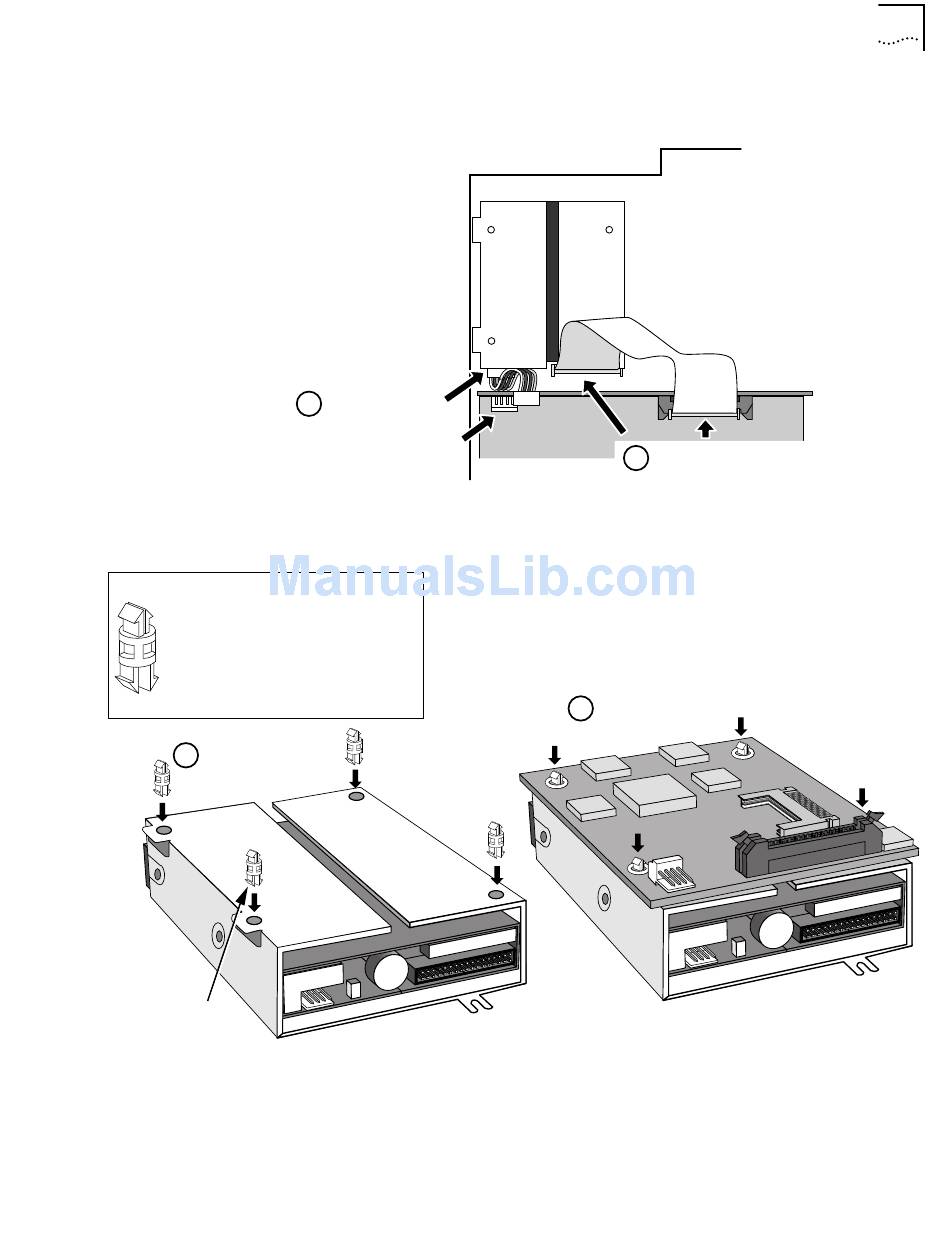

7 Install the flash memory drive on the floppy disk drive bracket.
Installing in the Dual-Wide 8-Slot Chassis
Top view of chassis and disk drive
Front panel
Disk
drive
b
Remove ribbon cable
from disk drive and
backplane connectors.
b Install flash memory drive
onto standoffs.
1-13
Backplane
