3Com NETBuilder II Installation Manual page 12

Flash memory drive
Hide thumbs Also See for NETBuilder II:
Table of Contents

Advertisement

1-8
C
1: I
F
M
D
HAPTER
NSTALLING THE
LASH
EMORY
RIVE

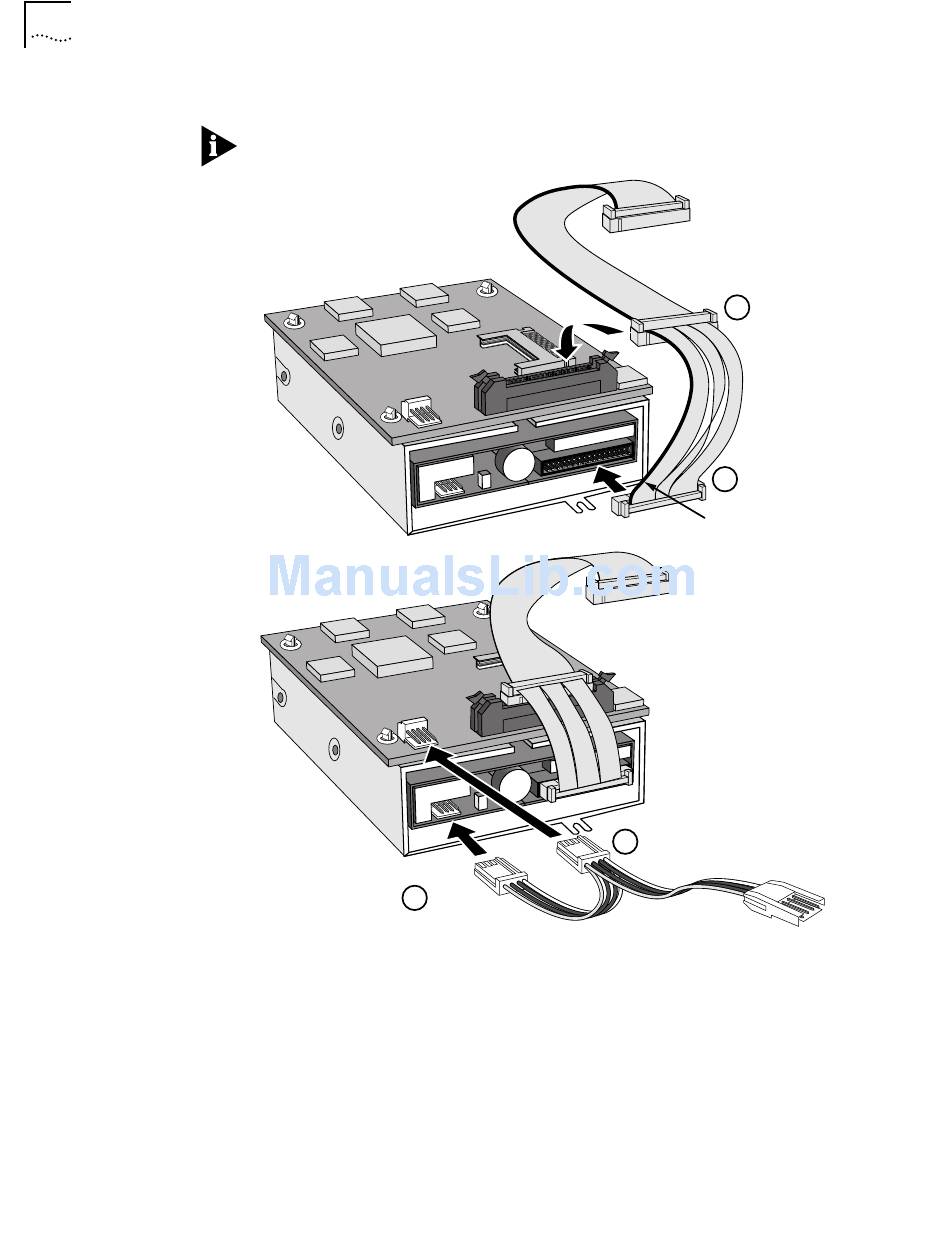

7 Attach ribbon and power cables to the floppy disk drive and flash memory
drive.
Be careful not to bend the connector pins.
Connector C
b
Connector B
a
Connector A
Red line
d
Connector E
c
Connector D
Connector F
