- Page 1 CP-294 HD to HDMI 1080p Scaler Box Operation Manual CP-294...
- Page 2 TABLE OF CONTENTS 1. Introduction................2. Main Features................3. Package Contents..............4.Operation Controls and Functions.......... 2 4.1 Front Panel................4.2 Rear Panel................4.3 OSD Operation..............5. Reset Functionality..............6. Specifications................6.1 General Specification............6.2 Support Resolution..............7. Connection and Installation.............
- Page 3 1.Introduction This Scaler Box is designed to upscale digital video signal from HD input source to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p/WUXGA. Besides HD upscaling, the scaler box also converts digital/analog audio signal to digital/analog format, then output to HDMI combining with the video, TOSLink (Optical fiber), and phone jack (L/R audio) simultaneously.

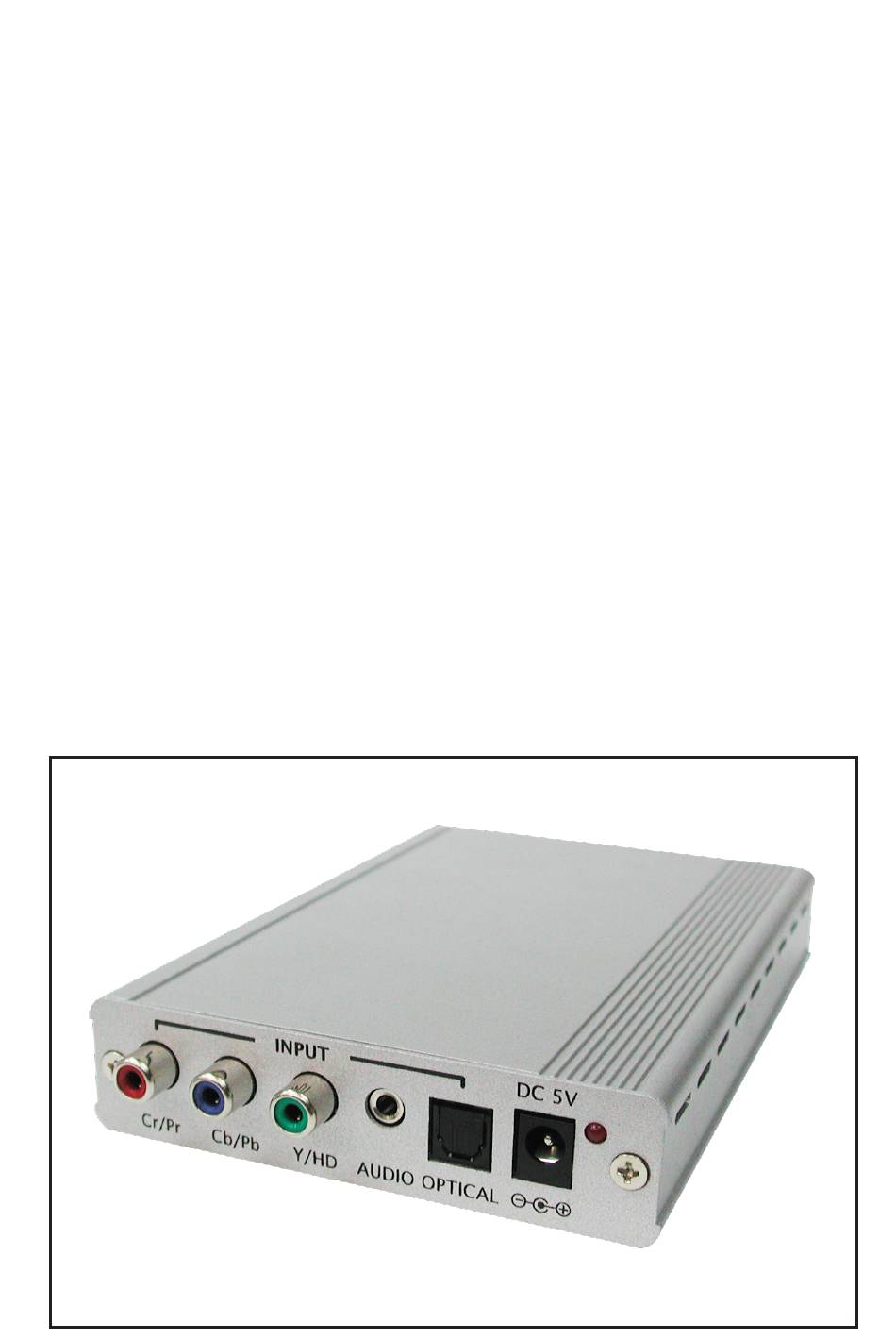

- Page 4 4. Operation Controls and Functions 4.1 Front Panel INPUT DC 5V Cr/Pr Cb/Pb Y/HD AUDIO OPTICAL Cr/Pr, Cb/Pb, Y/HD Input: Connect the Cr/Pr, Cb/Pb, Y/HD input ports to your source equipment such like DVD player. Audio Input: Connect the PC in 3.5mm phone jack input port to the analog audio output port of your source equipment.
- Page 5 4.2 Rear Panel OUTPUT MENU HDMI OPTICAL AUDIO HDMI Output: Connect the HDMI output port to the HDMI input port of your display such like HDTV. TOSLink (optical fiber) Output: Connect the optical output port to the digital audio input port of your amplifier. Audio Output: Connect the PC3.5mm phone jack output port to the analog audio input port of your equipment.
- Page 6 4.3 OSD Operation Tier Option 2 Tier Option Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level FINETUNE - SHARPNESS 0 ~ 100 of Sharpness Level - EXIT...
- Page 7 6. Specifications 6.1. General Specification Input ports 1 x Component (Cr/Pr, Cb/Pb, Y/HD), 1 x 3.5mm Phone Jack,1 x TOSLink (optical fiber) Output ports 1 x HDMI, 1 x 3.5mm Phone Jack, 1 x TOSLink (optical fiber) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 154(D) x 100(W) x 25(H) Weight(g)
- Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20080306 MPM-CP294...
