CP-255ID
Multi-Format to DVI Scaler
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-255ID and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CP-255ID

Summary of Contents for CYP CP-255ID

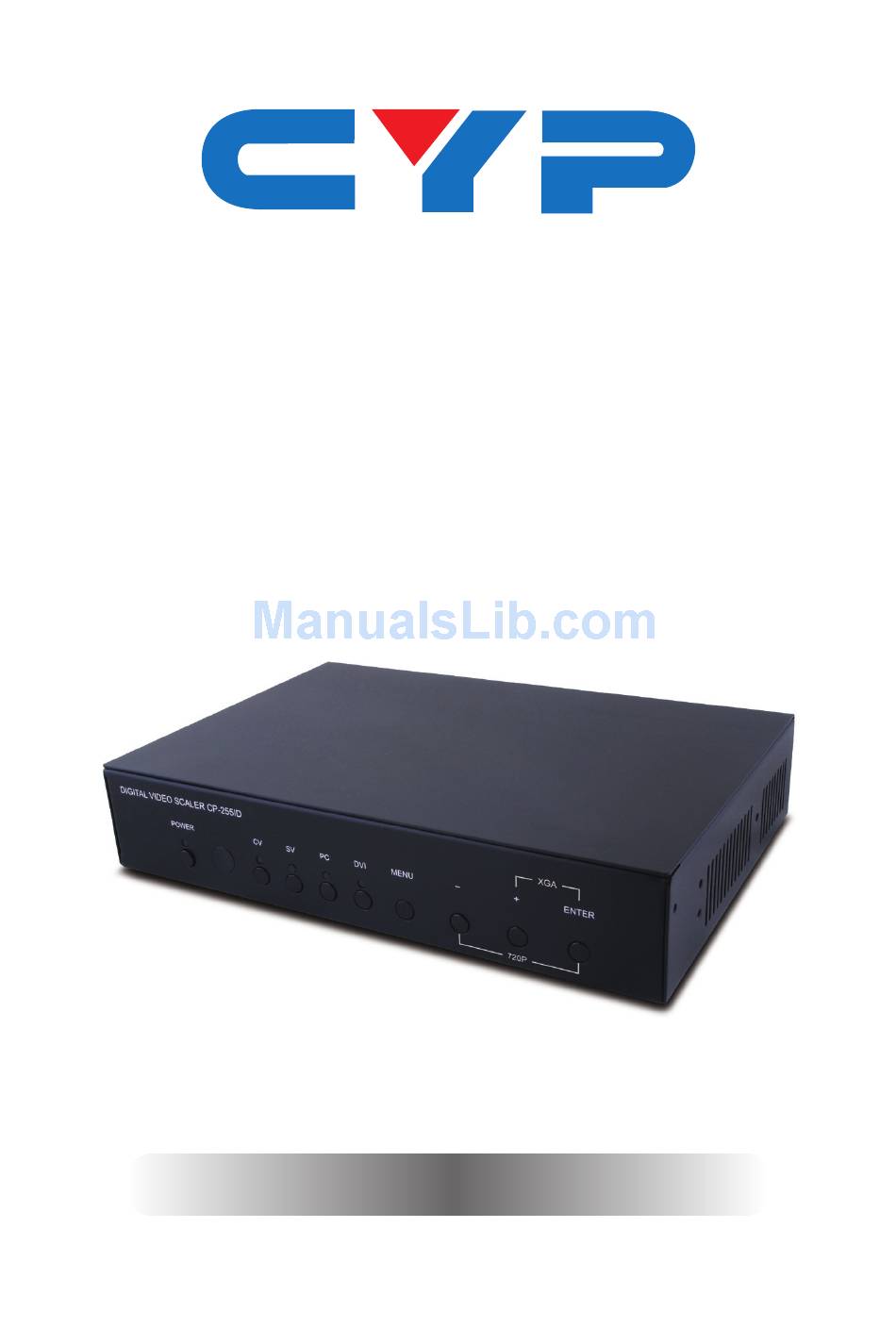

  • Page 1 CP-255ID Multi-Format to DVI Scaler Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5 CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel .........2 6.2 Rear Panel .........3 6.3 Remote Control .........4 6.4 RS-232 Pin Assignment ......5 6.5 RS-232 Commands......6 6.6 OSD Menu ..........9...

  • Page 6: Introduction

    1. INTRODUCTION This Multi-Format to DVI Scaler is capable of scaling and source- switching from Composite Video, S-Video, PC (VGA) and DVI input signals to a DVI output. A corresponding analog stereo audio input can be switched and sent to the stereo audio output with the video source selection.

  • Page 7: Operation Controls And Functions

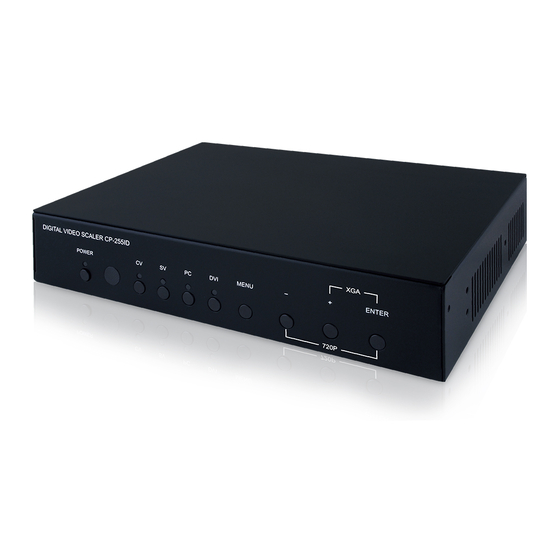

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DIGITAL VIDEO SCALER CP-255ID 720P POWER and LED Press this button to switch the device ON or to put the device into STANDBY mode. When the device is connected to an active power supply, the LED will illuminate and the device will switch ON automatically.

  • Page 8: Rear Panel

    6.2 Rear Panel SERVICE DC 5V RS232 DVI OUT SERVICE Reserved for manufacturer use only. RS-232 Connect to a PC or RS-232 control system to control the device with RS232 commands (see Sections 6.5). DVI OUT Connect to a DVI display (TV/monitor) for PC signal output or to an HDMI display with an HDMI to DVI adaptor.

  • Page 9: Remote Control

    6.3 Remote Control POWER POWER Press this button to switch the device ON or to put the device into STANDBY mode. CV/SV/PC/DVI Press to directly select the required EXIT MENU input. EXIT Press this button to exit the menu or AUTO RESET ADJUST...

  • Page 10: Rs-232 Pin Assignment

    6.4 RS-232 Pin Assignment MULTI-FORMAT TO REMOTE CONTROL DVI SCALER Assignment Assignment ► ◄ Baud Rate: 9600bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...

  • Page 11: Rs-232 Commands

    6.5 RS-232 Commands COMMAND DESCRIPTION S SOURCE 1~4 1=DVI 3=S-VIDEO 2=VIDEO 4=PC R SOURCE Reports the numerical equivalent for SOURCE setting (as above) S OUTPUT 0~25 0=Native 12=1600×1200 1=640×480 13=1920×1080 2=800×600 16=1920×1200 3=1024×768 17=480p 4=1280×768 18=720p@60 5=1360×768 19=1080p@60 6=1280×720 20=1080i@60 7=1280×800 22=576p 8=1280×1024...
  • Page 12 COMMAND DESCRIPTION S BRIGHTNESS 0~60 Setups the numerical equivalent for BRIGHTNESS setting (as left) R BRIGHTNESS Reports the numerical equivalent for BRIGHTNESS setting S HUE 0~60 Steups the numerical equivalent for HUE setting (as left) R HUE Reports the numerical equivalent for HUE setting S SATURATION 0~60 Setups the numerical equivalent for...
  • Page 13 COMMAND DESCRIPTION S RESET 1 Setups the numerical equivalent for RESET setting (as left) S POWER 0/1 0=OFF 1=ON R POWER Reports the numeric equivalent for POWER setting (as above) Note: RS-232 commands will be not executed unless followed with a carriage return and LF. Commands are case-insensitive.

  • Page 14: Osd Menu

    6.6 OSD Menu MAIN MENU SUBMENU 3RD MENU 4TH MENU DISPLAY OUTPUT Native 640×480 60 800×600 60 1024×768 60 1360×768 60 1280×720 60 1280×800 60 1280×1024 60 1440×900 60 1400×1050 60 1680×1050 60 1600×1200 60 1920×1080 60 1920×1200 60 720×480P 60 1280×720P 60* 1920×1080I 60 1920×1080P 60...
  • Page 15 MAIN MENU SUBMENU 3RD MENU 4TH MENU DISPLAY SIZE OVER SCAN (For VIDEO input) FULL* BEST FIT PAN SCAN LETTER BOX SIZE UNDER 2 (For VIDEO input) UNDER 1 MODE INFO INFO* AUTO SETUP (For PC input) H_POSITION 0~60 (30) V_POSITION 0~60 (30) PHASE...
  • Page 16 MAIN MENU SUBMENU 3RD MENU 4TH MENU COLOR COLOR 0~1023 (512) 0~1023 (512) 0~1023 (512) R OFFSET 0~1023 (512) G OFFSET 0~1023 (512) B OFFSET 0~1023 (512) CONTRAST 0~60 (30) BRIGHTNESS 0~60 (30) 0~60 (30) (For VIDEO input) SATURATION 0~60 (30) (For VIDEO input) SHARPNESS 0~30 (0)
  • Page 17 MAIN MENU SUBMENU 3RD MENU 4TH MENU SETUP FACTORY RESET KEY LOCK OFF* POWER SAVE OFF* INFORMATION INPUT OUTPUT REVISION Note: • Items with Asterisk (*) are the Factory default settings. • Items in brackets are the default values for those settings...

  • Page 18: Input Resolution Support

    6.7 Input Resolution Support INPUT RESOLUTION DVI/HDMI CV/SV NTSC   640×480@60/72/75 Hz (VGA)   800×600@56/60/72/75 Hz (SVGA)   1024×768@60/70/75 Hz (XGA)   152×864 @75 Hz (XGA+ )   1280×720@60 Hz   1280×768@60 Hz  ...

  • Page 19: Output Resolution Support

    6.8 Output Resolution Support OUTPUT RESOLUTION DVI/HDMI Native  640×480@60 Hz  800×600@60 Hz  1024×768@60 Hz  1360×768@60 Hz  1280×720@60 Hz  1280×800@60 Hz  1280×1024@60 Hz  1440×900@60 Hz  1400×1050@60 Hz  1680×1050@60 Hz  1600×1200@60 Hz ...

  • Page 20: Connection Diagram

    7. CONNECTION DIAGRAM RS-232 Equipped PC or Laptop DVD Player Analog Stereo Input RS-232 Composite S-Video Video Analog Stereo Output Input Input SERVICE DC 5V RS232 DVI OUT Power AV Receiver Supply Output VGA & Analog Stereo DVI Input Input TV or Monitor PC or PC or...

  • Page 21: Specifications

    8. SPECIFICATIONS Video Bandwidth 165 MHz Input Ports 1×DVI, 1×VGA, 1×S-Video, 1×Composite Video, 1×Analog Stereo (L/R), 1×3.5mm Mini-jack, 1×RS-232, 1×USB (Service Only) Output Ports 1×DVI, 1×3.5mm Mini-jack Input Resolution Up to 1080p & WUXGA (RB) Support Output Resolution Up to 1080p & WUXGA (RB) Support Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/...

  • Page 22: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM COMP Component Video Composite Video Digital Visual Interface HDMI High-Definition Multimedia Interface Infrared Noise Reduction NTSC National Television System Committee On-screen Display (Menu) Phase Alternating Line Red Green Blue Serial Digital Interface S-Video Universal Serial Bus UXGA Ultra Extended Graphics Array Video Graphics Array...
  • Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
