- Page 1 CV/SV/PC/HD/HDMI 1080p Scaler Box Operation Manual CP-255I...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..................2. Features ....................3. Package Contents ................4. Operation Controls and Functions ............ 4.1 Front Panel..................4.2 Rear Panel..................4.3 OSD Operation................4.4 Remote Control................5. Specifications ..................5.1 General Specification..............5.2 Support Resolution................ 6. -
Page 3: Introduction
HDMI combining with the video, or Coaxial S/PDIF separately. Cypress CP-255I has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality. -
Page 4: Operation Controls And Functions

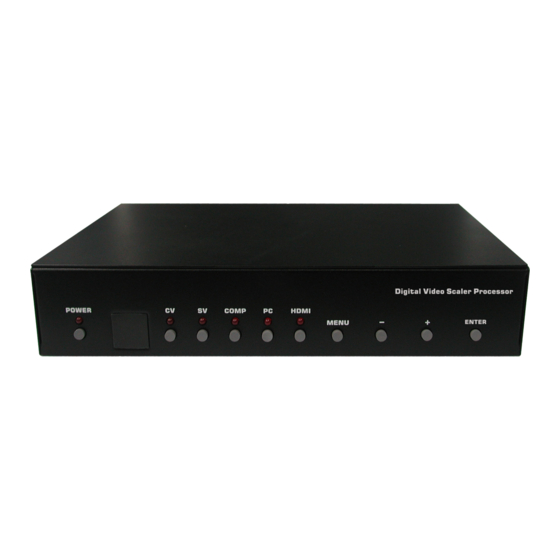

4. Operation Controls and Functions 4.1. Front Panel Digital Video Scaler Processor POWER COMP HDMI MENU ENTER 1. POWER Button and LED Indicator: Press the button to turn ON/OFF the power of the unit. The LED will illuminate when the power is turned on. 2. - Page 5 1. HDMI OUT and CO-AX OUT: Connect the HDMI OUT port to the HDMI input port of your display such as HDTV. Connect the CO-AX OUT port to the Coaxial (S/PDIF) input port of your amplifier for separate digital audio output. 2.
-
Page 6: Osd Operation
4.3. OSD Operation Tier Option Tier Option Adjustment VIDEO - PICTURE MODE USER / STANDARD / VIVID / MOVIE - CONTRAST 0 ~ 100 of Contrast Level - BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level - SHARPNESS... -
Page 7: Remote Control
4.4. Remote Control 1. POWER: Press the button once to power on the CP-255I. Press again to enter standby mode. 2. INPUT: Press the button repeatedly to toggle through various input sources. 3. HD Input: Press the button to directly select component input. -
Page 8: Specifications
5. Specifications 5.1. General Specification * Frequency bandwidth: 1.65Gbps (single link) * Input Ports: Composite x 1 / L/R x 1 S-Video x 1 / L/R x 1 Component (3 RCA) x 1 / L/R x 1 PC D-Sub (15-pin) x 1 / 3.5mm Phone Jack x 1 HDMI x 1 / 3.5mm Phone Jack x 1 (for DVI) Coaxial (S/PDIF) x 1 * Output Ports:... -
Page 9: Connection And Installation
6. Connection and Installation HDMI Composite S-Video Component PC-in Cable... - Page 12 YPbPr/YCbCr/PC/ CSC-220 1080i DVI-D DVI-D CS-720PHD SCART HDMI 720p (fixed) CV-720PHD Video/S-Video HDMI 720p (fixed) CP-254 1080i YPbPr/HDTV CP-253 1080i RGB/PC YPbPr/HDTV CP-252 1080i RGB/PC YPbPr/HDTV YPbPr/HDTV CP-251F 1080i RGB/PC RGB/PC CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20070817 MPM-CP-255I...
