Summary of Contents for CYP CP-255I

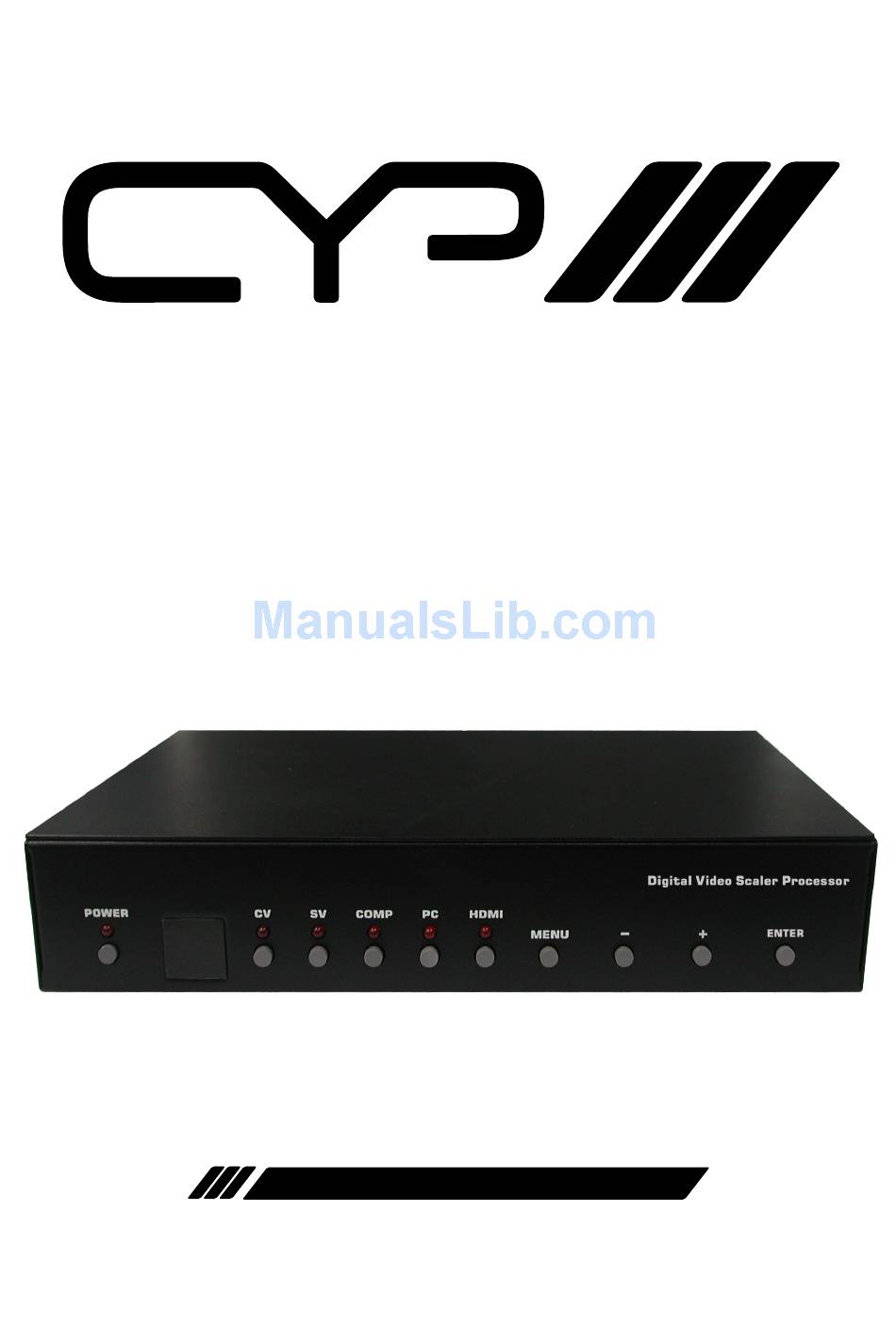

- Page 1 CP-255I Analogue to HDMI Scaler / Converter OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 OSD Operation .........11 6.4. Remote Control ........12 7. -
Page 6: Introduction
HDMI combined with the video signal or separately via the discrete Coaxial S/PDIF output. Cypress CP-255I has a comprehensive on-screen display (OSD) menu that allows the user to select a variety of output resolutions and adjust them for the best picture quality. -
Page 7: Features
5. FEATURES HDMI, HDCP 1.1 and DVI 1.0 compliant. Scales any PC (VGA~WUXGA) or HD (480i~1080p) resolutions to from another PC/HD resolutions. Automatically detects the correct settings of the connected display and outputs the corresponding resolution and refresh rate, when the NATIVE output is selected. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel Digital Video Scaler Processor POWER COMP HDMI MENU ENTER POWER Button and LED Indicator Press the button power the unit on or off. When the power is turned on, the LED will illuminate. IR remote control sensor Input Selection Buttons and LED Indicators Press the required button (CV/SV/COMP/PC/HDMI) to select... -
Page 9: Rear Panel
6.2 Rear Panel CO-AX OUT AUX IN RS-232 PC IN CO-AX DC 5V PC IN HDMI OUT HDMI IN Cr/Pr Cb/Pb HDMI OUT and CO-AX OUT Connect the HDMI OUT port to the HDMI input port of your display such as HDTV or monitor. Connect the CO-AX OUT port to the Coaxial (S/PDIF) input port of your amplifier for separate digital audio output. - Page 10 CO-AX Input The CO-AX port provides the digital audio input support, and can be assigned to any of the video inputs (CV/SV/COMP/PC/HDMI). Once connected, it can be assigned in the OSD Menu under Audio Source Selection by selecting between Coaxial (S/PDIF) or other audio source (see section 4.3 OSD Operation for reference).
-
Page 11: Osd Operation
6.3 OSD Operation MENU MENU LEVEL ADJUSTMENT LEVEL VIDEO - PICTURE MODE USER / STANDARD / VIVID / MOVIE - CONTRAST 0~100 of Contrast Level - BRIGHTNESS 0~100 of Brightness Level - HUE 0~100 of Hue Level - SATURATION 0~100 of Saturation Level - SHARPNESS 0~100 of Sharpness Level - SCALE... -
Page 12: Remote Control
6.4. Remote Control 1. POWER: Press the button once to power on the unit. Press again to enter standby mode. 2. INPUT: Press the button repeatedly to toggle through various input sources. 3. HD INPUT: Press the button to directly select component input. -
Page 13: Rs-232 Remote Control Protocol
7. RS-232 REMOTE CONTROL PROTOCOL 7.1 Pins definition of modem cable The connection between the unit and remote controller with RS-232 modem cable*. UNIT REMOTE CONTROLLER DEFINITION DEFINITION RS-232 transmission format: Baud Rate: 19200 bps Data Bit: 8-bits Parity: None Stop Bit: 1-bit... -
Page 14: Set Command
7.2 Set Command: COMMAND CODE RESPONSE DESCRIPTION S POWER 0 > POWER OFF POWER OFF S POWER 1 > POWER ON POWER ON S SOURCE 0 > SOURCE CV CV INPUT S SOURCE 1 > SOURCE SV SV INPUT S SOURCE 2 >... - Page 15 COMMAND CODE RESPONSE DESCRIPTION S SHARPNESS 0~100 > SHARPNESS 0~100 SHARPNESS 0~100 ADJUST [DEFAULT:32] S NR 0~3 > NR OFF~HIGH 0:OFF; 1:LOW; 2:MIDDLE; 3:HIGH, NR CONTROL S PCHPOSITION 0~100 > PCHPOSITION 0~100 H POSITION 0~100 ADJUST S PCVPOSITION 0~100 > PCVPOSITION 0~100 V POSITION 0~100 ADJUST S PCCLOCK 0~100 >...
-
Page 16: Status Command
7.3 Status Command COMMAND CODE RESPONSE DESCRIPTION R POWER > POWER ON SHOW POWER STATUS R SOURCE > SOURCE CV~HDMI SHOW SOURCE STATUS R OUTPUT > OUTPUT NATIVE~WUXGA SHOW OUTPUT STATUS R SIZE > SIZE FULL~PANSCAN SHOW SIZE STATUS R PICTUREMODE >... -
Page 17: Connection Diagram
8. CONNECTION DIAGRAM Composite video and stereo audio from DVD player CO-AX OUT AUX IN RS-232 PC IN CO-AX DC 5V PC IN VGA video and HDMI OUT HDMI IN Cr/Pr Cb/Pb stereo audio (via 3.5 mm jack) from PC/Laptop S-Video and stereo audio from Blu-ray player Component and stereo audio from... -
Page 18: Specifications
9. SPECIFICATIONS 9.1. General Specification Frequency 1.65Gbps (single link) bandwidth Input Ports 1 × Composite/1 × Stereo Audio (L/R) 1 × S-Video/1 × Stereo Audio (L/R) 1 × Component (3 RCA)/1 × Stereo Audio (L/R)` 1 × PC D-Sub (15-pin)/1 × Stereo Audio (3.5mm Phone Jack) 1 ×... -
Page 19: Supported Resolutions
9.2. Supported Resolutions INPUT OUTPUT RESOLUTION RESOLUTION DVI/HDMI 480i/576i 480i/576i 480p/576p 480p/576p 720p@50/60Hz 720p@50/60Hz 1080i@25/30Hz 1080i@25/30Hz 1080p@50/60Hz 1080p@50/60Hz VGA@60/72/75/85Hz VGA@60/72/75/85Hz SVGA@56/60/72/75/85Hz SVGA@56/60/72/75/85Hz ... - Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.01...
