- Page 1 CP-295NN CV/SV to HDMI Scaler Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 OSD Menu .........5 7. -
Page 6: Introduction
1. INTRODUCTION The Composite Video/S-Video to HDMI Scaler is designed to upscale the video signal from an analog input source to a digital HDMI output in a wide-range of HDTV and PC resolutions up to 1080p/WUXGA. Additionally this unit can also convert a digital/analog audio signal and then simultaneously output to an HDMI, Optical and 3.5mm Mini- jack (L/R audio) connections. -
Page 7: Features
5. FEATURES • HDMI, HDCP and DVI compliant • Supports a wide range of video standards including NTSC, NTSC4, PAL, PAL-M, PAL-N and SECAM • Supports upscaling to resolutions of VGA to WUXGA (PC) or 480p to 1080p (HD) • Automatically detects the display settings of the connected display and outputs the correct resolution and refresh rate when the NATIVE output option is selected •... -
Page 8: Operation Controls And Functions

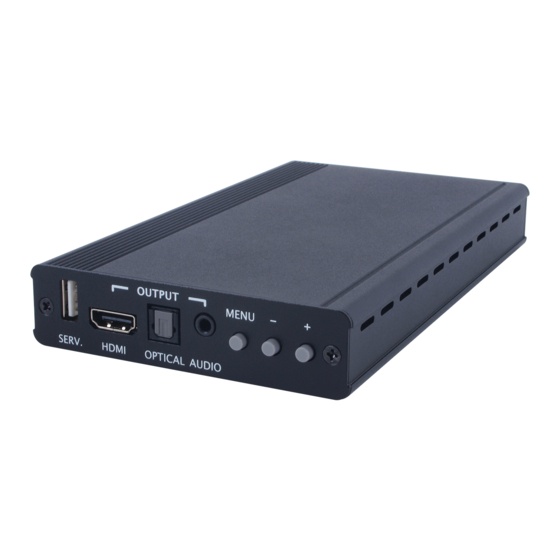

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel SERV.: Reserved for firmware update only. HDMI OUTPUT: Connect to an HDMI equipped display or AV receiver for output of the combined video and audio output. OPTICAL OUTPUT: Connect to an amplifier or active speakers with an optical cable for LPCM 2 channel digital audio output. -
Page 9: Rear Panel
6.2 Rear Panel CV/SV INPUT: Connect to an analog video source device such as a DVD/Video player with a composite or S-Video cable or DVD player with D-sub to RCA adaptor. L/R INPUT: Connect to the stereo analog audio output of the source device with a stereo audio cable for analog audio signal input. -
Page 10: Osd Menu
6.3 OSD Menu MAIN MENU 1ST LAYER 2ND LAYER PICTURE CONTRAST 0~100 (50) SETTING BRIGHTNESS 0~100 (50) EXIT FINETUNE 0~100 (50) SATURATION 0~100 (50) SHARPNESS 0~100 (50) OFF, LOW, MIDDLE, HIGH (OFF) EXIT COLOR 0~100 (50) SETTING GREEN 0~100 (50) BLUE 0~100 (50) EXIT... - Page 11 MAIN MENU 1ST LAYER 2ND LAYER AUDIO DELAY OFF, 40ms, 110ms, 150ms (OFF) SETTING (Analog Audio Only) INPUT ANALOG, OPTICAL (ANALOG) SOUND ON, MUTE (ON) EXIT OSD SETTING H-POSITION 0~100 (10) V-POSITION 0~100 (90) TIMER 0~100 (50) BACKGROUND 0~100 (50) DISPLAY INFO, ON, OFF (INFO) EXIT...
-
Page 12: Connection Diagram
7. CONNECTION DIAGRAM Non-HDMI DVD Player Digital Optical Audio Input Composite Video Input S-Video Input Analog Audio Input Power Supply HDMI Output Digital Optical Analog Audio Audio Output Output HDTV AV Receiver... -
Page 13: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 225 MHz/6.75 Gbps Input Ports 1×CV, 1×SV, 1×L/R, Optical (TOSLINK), 1×USB (Service only) Output Ports 1×HDMI, Optical (TOSLINK), 1×3.5mm Mini- jack HDMI Output Resolutions Up to 1080p & WUXGA@60 (RB) HDMI and Optical Audio Up to 48 kHz Sampling Rates Power Supply... -
Page 14: Audio Specifications
8.2 Audio Specifications INPUT LEVEL/ OUTPUT OUTPUT THD+N FREQUENCE CROSSTALK FREQ LEVEL RESPONSE Optical Analog 400m~600m <0.1% ±3 dBFS >60dB <-60dB 0dB/1kHz (Vrms) Optical 0dB~−1dB <0.15% ±3 dBFS >80dB <-70dB HDMI 0dB~−1dB <0.15% ±3 dBFS >80dB <-70dB 9. ACRONYMS ACRONYM COMPLETE TERM Composite Video HDMI... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CP295NN...
