C C h h a a n n n n e e l l T T a a b b s s
The Chans 1 to 24, Chans 25 to 48, Chans 49 to 72 and Chans 73 to 96 tabs allow the user to assign
small images (eyecons) and names to console channels. The system is supplied with a number of standard eyecons.
Others can be added by the user – see below.

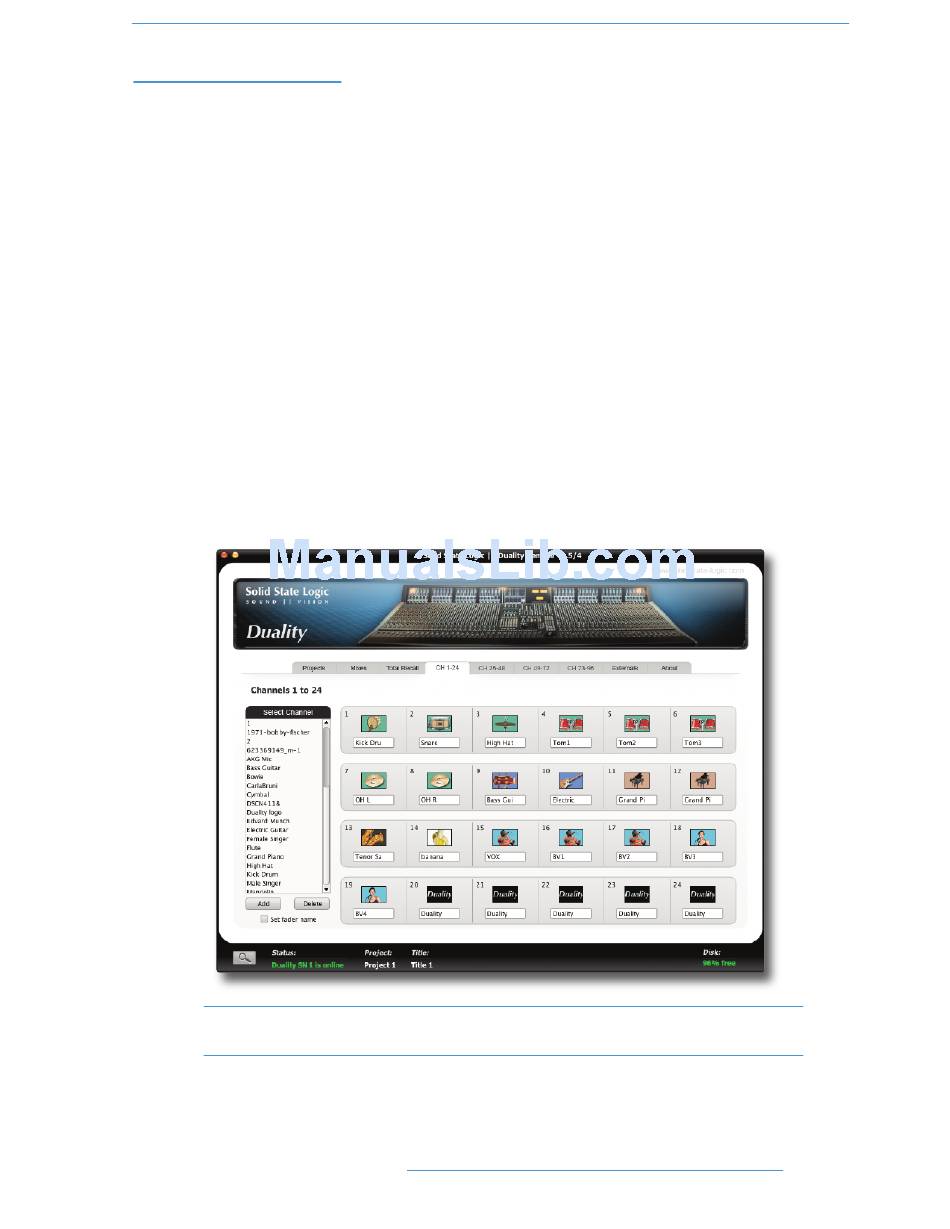

To insert a picture onto the channel's Eyeconix meter section, click on the required graphic in the left hand list and
drag it to the rectangle above the channel name. If you want to name the channel after the Eyeconix, check the Set
fader name box beneath the Eyeconix list before dragging the graphic to the channel.
To rename a channels TFT scribble strip display, simply click on the name (eg. 'Fader 1') and enter the required
name.
To add more images to the Eyeconix list, select the Add button at the bottom of the left hand list and select the
required graphic from the resulting pop-up. Supported file formats are: gif, jpeg, tiff, and png – the Eyeconix software
will automatically resize any picture brought into the remote interface.
All eyecons are stored in a dedicated folder on the removable flash card in the console. A copy of the eyecons used
in each Title is stored in the Eyeconix folder inside the Title folder. This ensures that Project archives will automatically
include all the eyecons used in that Project.
To delete a graphic from the list, highlight it and select Delete. Note that if you delete one of the system eyecons
it will be restored next time you restart your Duality SE.
Note that systems fitted with LCD scribble strips support a maximum of six characters. Longer names
will be intelligently shortened to this length.
