D D A A W W C C o o n n t t r r o o l l
CHANNEL is unchanged and assigns Duality SE's channel gain element or DAW channel to the D-pot according
to the state of the Console Focus button. The encoder switch is used to 'flip' parameters onto the faders as before,
but includes all processing parameters not just send levels.
The transport control buttons are designated as shown below:
Tallies are provided for all switches,
Keypad is not a direct MCU function but it will enable the numeric keypad 0....9 keys plus the '.', '-', ENTER and CLR
keys for data entry. When operated, it send the codes that correspond to M1 ON, EDIT ON, EDIT OFF, M1 OFF
and then enables the numeric keypad keys to send the MIDI codes that correspond to the 1 to 8 keys on the Sonar
overlay and the 4 TRACKS keys. ENTER mimics the main ENTER key, and CLR the CANCEL key. A second
operation of the KEYPAD button inhibits the numeric keypad from outputting MIDI codes, and should send an
EDIT ON, EDIT OFF command to cancel the mode.

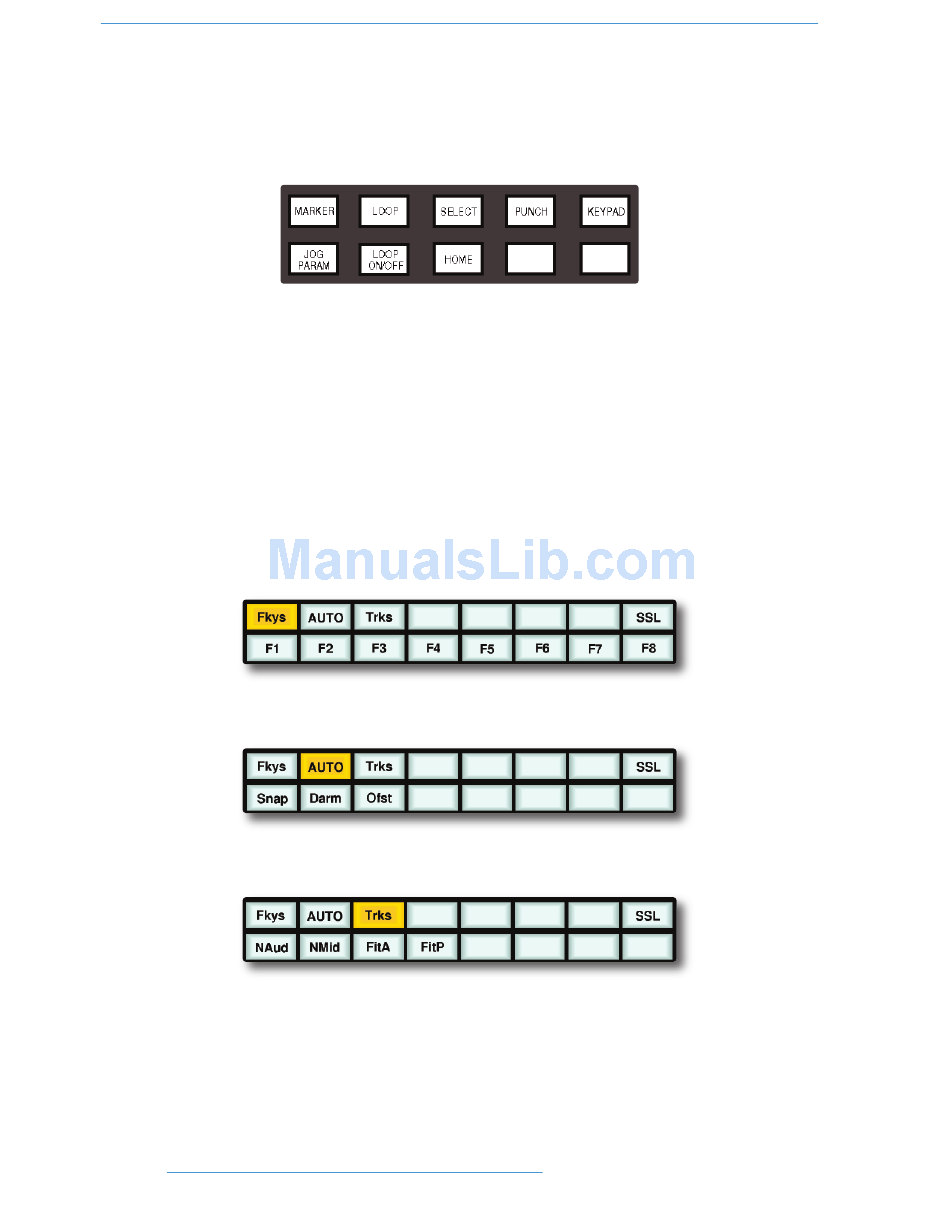

Duality SE's Sonar Control screen
The 8x8 menu button matrix is used to access three Sonar MCU function groups:
Fkys provides access to the eight functions keys. These are defined in Sonar and also output Edit commands in
conjunction with a Modifier key.
AUTO calls up three automation functions, Snapshot, Disarm and Offset. The main automation Read/Off key is
mapped to a dedicated front panel button.
Trks provides the four TRACKS functions on the bottom row of soft buttons.
