D D A A W W C C o o n n t t r r o o l l

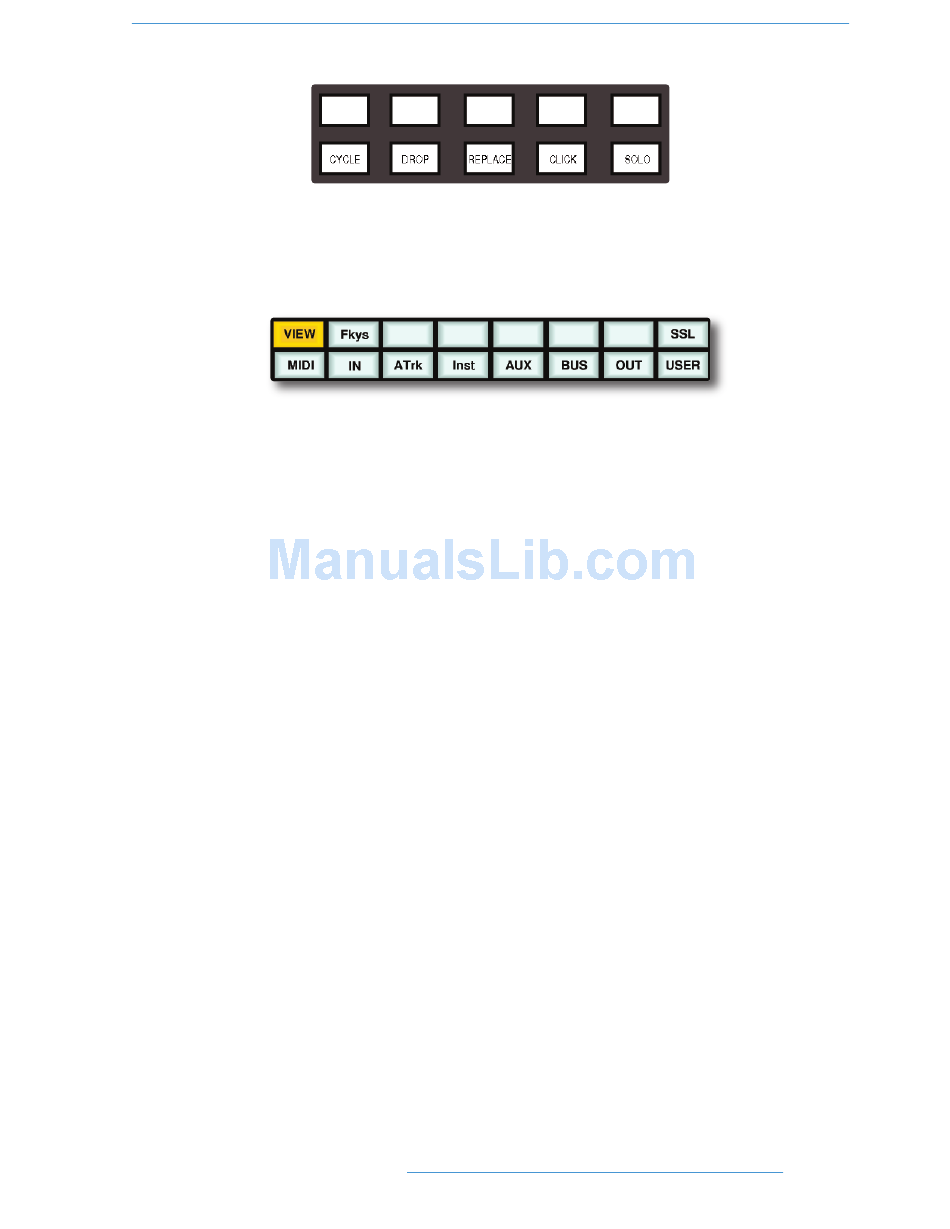

Transport Control Buttons
Only five of the ten transport control buttons are assigned. Full operational documentation on using Logic with
Mackie Control and Extender units can be found in the Logic Pro 7.2 Dedicated Control Surface Support (Manual)
which can be downloaded from the Apple website.
Duality SE's Logic Control Screen
VIEW is selected automatically by pressing the GLOBAL button; this accesses the eight global view select buttons;
VIEW may also be selected manually if required. There are no tallies for the selected View. VIEW is a Duality SE
function and not part of the MCU protocol.
Selecting Fkys provides access to the eight functions keys as used with the HUI interface. These are also
permanently mapped to the numeric keypad, which is not supported in the Mackie Control protocol.
A 'Rude Solo' tally is displayed in the on-screen status area. This corresponds to the front panel LED on a MCU.
D D u u a a l l i i t t y y S S E E O O p p e e r r a a t t o o r r ' ' s s M M a a n n u u a a l l 3 3 - - 4 4 9 9
