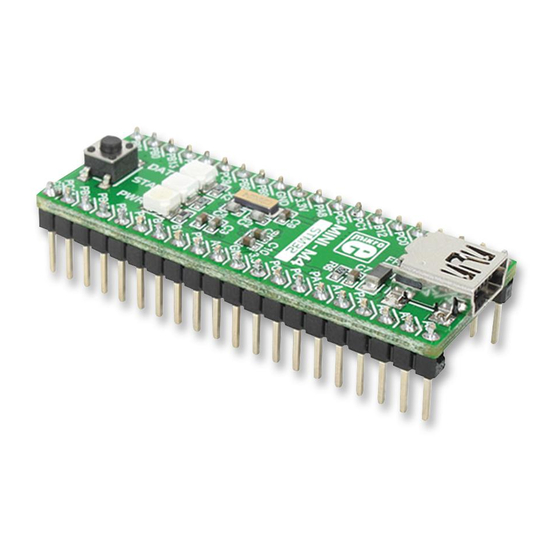

MINI-M4
development board for MSP432
The whole MSP432 development board fitted
in DIP40 form factor, containing powerful
MSP432P401R microcontroller.
MINI
ARM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI-M4 and is the answer not in the manual?

Questions and answers

Related Manuals for mikroElektronika MINI-M4

Summary of Contents for mikroElektronika MINI-M4

  • Page 1 MINI-M4 development board for MSP432 The whole MSP432 development board fitted in DIP40 form factor, containing powerful MSP432P401R microcontroller. MINI...
  • Page 2 TO OUR VALUED CUSTOMERS I want to express my thanks to you for being interested in our products and for having confidence in MikroElektronika. The primary aim of our company is to design and produce high quality electronic products and to constantly improve the performance thereof in order to better suit your needs.

  • Page 3: Table Of Contents

    Introduction to MINI-M4 for MSP432 Key features System specifications 1. Programming with mikroBootloader step 1 – Connecting MINI-M4 for MSP432 step 2 – Browsing for .HEX file step 3 – Selecting .HEX file step 4 – Uploading .HEX file step 5 – Finish upload 2.

  • Page 4: Introduction To Mini-M4 For Msp432

    USB connector If there is need for external programmers (mikroProg™ or ST-LINK V2) attach it to MINI-M4 for STM32 via pads marked with TCK/SWC, TMS/ DATA LED SWD, INT0, INT1.

  • Page 5: System Specifications

    System specifications power supply 3.3V via pads or 5V via USB power consumption depends on MCU state (max current into 3.3V pad is 300mA) board dimensions 50.8 x 17.78mm (2 x 0.7“) 04 05 weight ~6g (0.013 lbs) Page 5...

  • Page 6: Programming With Mikrobootloader

    Mini-M4 for MSP432 Bootloader v1.00.hex HEX File To start, connect the USB cable, or if already connected press the Reset button on your MINI-M4 board. Click the Software - Windows File folder Connect button within 5s to enter the bootloader mode, mikroBootloader USB UART otherwise existing microcontroller program will execute.

  • Page 7: Step 2 - Browsing For .Hex File

    step 2 – Browsing for .HEX file step 3 – Selecting .HEX file Figure 1-2: Browse for HEX Figure 1-3: Selecting HEX Click the ”Browse for HEX” button and from a Select .HEX file using open dialog window. pop-up window (Figure 1-3) choose the .HEX file Click Open.

  • Page 8: Step 4 - Uploading .Hex File

    step 4 – Uploading .HEX file Figure 1-4: Begin uploading Figure 1-5: Progress bar To start .HEX file bootloading click the You can monitor .HEX file uploading via progress bar Begin uploading button. Page 8...

  • Page 9: Step 5 - Finish Upload

    step 5 – Finish upload Figure 1-6: Restarting MCU Figure 1-7: mikroBootloader ready for next job Click OK after uploading is finished and wait for 5 seconds. Board will automatically reset and your new program will execute. Page 9...

  • Page 10: Schematic

    2. Schematic 12pF 48MHz 12pF RESET P1.7/SPI_MISO 0.10µF 0.10µF 0.10µF 0.10µF 10µF 10µF nMCLR SPI0-MISO P5.5/AN P1.6/SPI_MOSI SPI0-MOSI P5.4/AN P1.5/SPI_SCK MSP432P401RIRGC SPI0-SCK P5.3/AN P1.4/SPI_SS SPI0-SS P5.2/AN SWCLK/TCK TCK/SWC P5.1/AN SWDIO/TMS TMS/SWD P1.0 DVCC2 P3.4/SPI_SS P2.0/INT0 P1.1/FT_RST SPI1-SS INT0 P1.1 DVSS2 P5.0/AN P2.1/INT1 P1.2/UART_RX...

  • Page 11: Pinout

    3. Pinout Pin functions Pin functions SPI0-MISO P1.7 SPI0-MOSI P5.5 P1.6 SPI0 P5.4 P1.5 SPI0-SCK Analog I/O P5.3 P1.4 SPI0-SS P5.2 TCK/SWC TMS/SWD P5.1 INT0 SPI1-SS P3.4 P2.0 P5.0 P2.1 INT1 P4.7 3.3V 3.3V Power supply P3.1 INT2 3.3V Power supply 3.3V P6.7 I2C-SCL...

  • Page 12: Dimensions

    4. Dimensions 50.8 2000 50.8 2000 2.54 2.54 Legend mils Legend mils Page 12...
  • Page 13 Notes: Page 13...
  • Page 14 Notes: Page 14...
  • Page 15 No part of this manual, including product and software described herein, may be reproduced, stored in a retrieval system, translated or transmitted in any form or by any means, without the prior written permission of MikroElektronika. The manual PDF edition can be printed for private or local use, but not for distribution.
  • Page 16 MINI If you want to learn more about our products, please visit our website at www.mikroe.com If you are experiencing some problems with any of our products or just need additional information, please place your ticket at helpdesk.mikroe.com If you have any questions, comments or business proposals, do not hesitate to contact us at office@mikroe.com...
