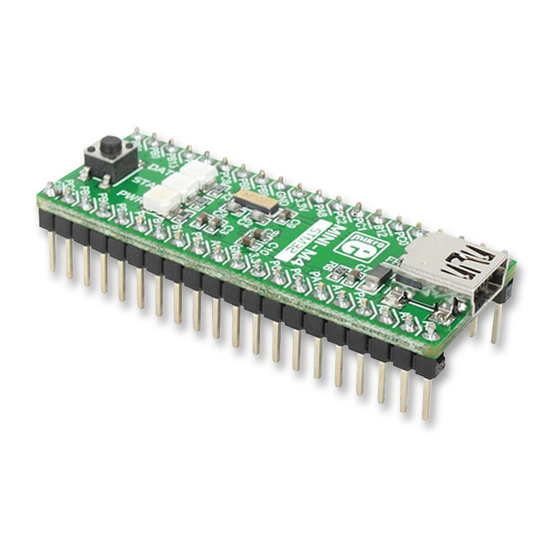

- Page 1 MINI-M4 ™ development board for KINETIS The whole KINETIS development board fitted in DIP40 form factor, containing the MK64FN1M0VDC12 microcontroller. MINI...
- Page 2 TO OUR VALUED CUSTOMERS I want to express my thanks to you for being interested in our products and for having confidence in Mikroelektronika. The primary aim of our company is to design and produce high quality electronic products and to constantly improve the performance thereof in order to better suit your needs.
-
Page 3: Table Of Contents
Introduction to MINI-M4 for KINETIS Key features System Specification 1. Programming with mikroBootloader step 1 – Connecting MINI-M4 for KINETIS step 2 – Browsing for .HEX file step 3 – Selecting .HEX file step 4 – Uploading .HEX file step 5 – Finish upload 2. -
Page 4: Introduction To Mini-M4 For Kinetis
The board is pre programmed with USB HID bootloader so it is not necessary to have external programmer. If there is need for external programmers (mikroProg™ or ST-LINK V2) attach it to MINI-M4 for STM32 via pads marked with TK Page 4... -
Page 5: Key Features
Key features Connection Pads USB MICRO connector DATA LED STAT LED POWER supply LED Reset button Power supply regulator Microcontroller MK64FN1M0VDC12 12 MHz Crystal oscillator 32.768kHz Crystal oscillator... -
Page 6: Programming With Mikrobootloader
MINI-M4 KINETIS USB HID To start, connect the USB cable, or if already connected Reset press the button on your MINI-M4 board. Click the ”Connect” button within 5s to enter the bootloader mode, otherwise existing microcontroller program will execute. Page 6... -
Page 7: Step 2 - Browsing For .Hex File
step 2 – Browsing for .HEX file step 3 – Selecting .HEX file KINETIS Figure 1-2: Browse for HEX Figure 1-3: Selecting HEX Click the ”Browse for HEX” button and from a Select .HEX file using open dialog window. pop-up window (Figure 1-3) choose the .HEX file Click the ”Open”... -
Page 8: Step 4 - Uploading .Hex File
step 4 – Uploading .HEX file KINETIS KINETIS Figure 1-4: Begin uploading Figure 1-5: Progress bar To start .HEX file bootloading click the You can monitor .HEX file uploading via progress bar ”Begin uploading” button. Page 8... -
Page 9: Step 5 - Finish Upload
step 5 – Finish upload Figure 1-6: Restarting MCU Figure 1-7: mikroBootloader ready for next job ”OK” Click the button after uploading is finished and wait for 5 seconds. Board will automatically reset and your new program will execute. Page 9... -
Page 10: Schematic
2. Schem atic RESET PTD3/SPI0_MISO nMCLR SPI0-MISO ADC1_SE16/ADC0_SE22 PTD2/SPI0_MOSI SPI0-MOSI ADC0_SE16/CMP1_IN2 PTD1/SPI0_SCK SPI0-SCK VREF_OUT/ADC1_SE18 PTD0/SPI0_CS SPI0-SS DAC0_OUT/ADC0_SE23 PTA0/TCK/SWC TCK/SWC DAC1_OUT/ADC1_SE23 PTA3/TMS/SWD TMS/SWD PTB10/SPI1_CS PTB13/INT0 SPI1-SS INT0 ADC0_DP0/ADC1_DP3 PTE2/INT1 INT1 ADC0_DM0/ADC1_DM3 PTE3/INT2 MK64FN1M0VDC12 INT2 PTA1/TDI PTA2/TDO PTA12/CAN0_TX PTB0/I2C0_SCL CAN-Tx I2C-SCL PTA13/CAN0_RX PTB1/I2C0_SDA CAN-Rx I2C-SDA... -
Page 11: Pinout
3. Pinout Pin functions Pin functions nM CLR SP I0-MISO SP I0 -MISO SP I0-MOSI SPI0-MOSI SPI0 SPI0-SCK SPI0-SCK SPI0-SS Analog I/O SPI0-SS TCK/SWC TCK/SWC TM S/SWD TMS/ SWD INT0 INT0 SPI1-CS SPI1-SS INT1 INT1 3.3V Power supply INT 2 INT2 3.3V Power supply CAN-T x... -
Page 12: Dimensions
4. Dimensions 50.8mm (2000 mils) 2.54mm (100 mils) Page 12... - Page 13 Notes: Page 13...
- Page 14 Notes: Page 14...
- Page 15 No part of this manual, including product and software described herein, may be reproduced, stored in a retrieval system, translated or transmitted in any form or by any means, without the prior written permission of MikroElektronika. The manual PDF edition can be printed for private or local use, but not for distribution.
- Page 16 If you are experiencing some problems with any of our products or just need additional information, please place your ticket at www.mikroe.com/esupport If you have any questions, comments or business proposals, MINI-M4 for STM32 ver. 1.00 do not hesitate to contact us at office@mikroe.com...
