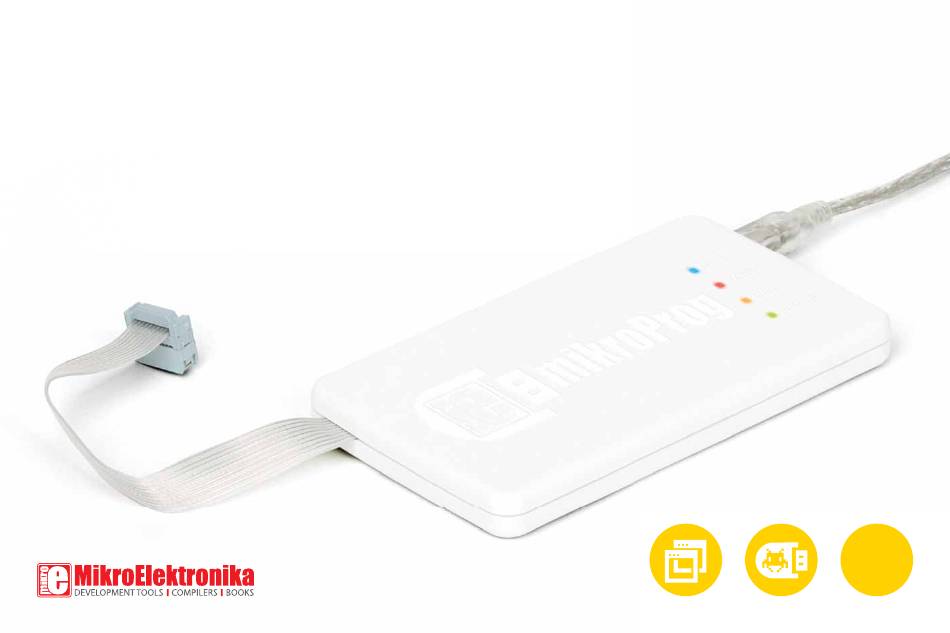

- Page 1 PSoC ® ™ mikroProg ™ is a fast USB programmer and debugger. Smart engineering allows mikroProg ™ to support all PSoC® 5LP microcontroller family. PSoC...
- Page 2 TO OUR VALUED CUSTOMERS I want to express my thanks to you for being interested in our products and for having confi dence in MikroElektronika. The primary aim of our company is to design and produce high quality electronic products and to constantly improve the performance thereof in order to better suit your needs.
-
Page 3: Table Of Contents
Table of Contents ™ Introduction to mikroProg step 3 – Installing the drivers Key Features step 4 – Finish installation 1. Installing Drivers and Programming Software 2. Connecting to the Target Device step 1 – Start installation 3. Connector Pinout step 2 –... -
Page 4: Introduction To Mikroprog
™ Introduction to mikroProg mikroProg ™ for PSoC ® is a fast programmer and hardware debugger. It’s a great tool for programming the Cypress® PSoC® 5LP microcontroller family. Outstanding performance, easy operation, elegant design and aff ordable price are its top features. -
Page 5: Key Features

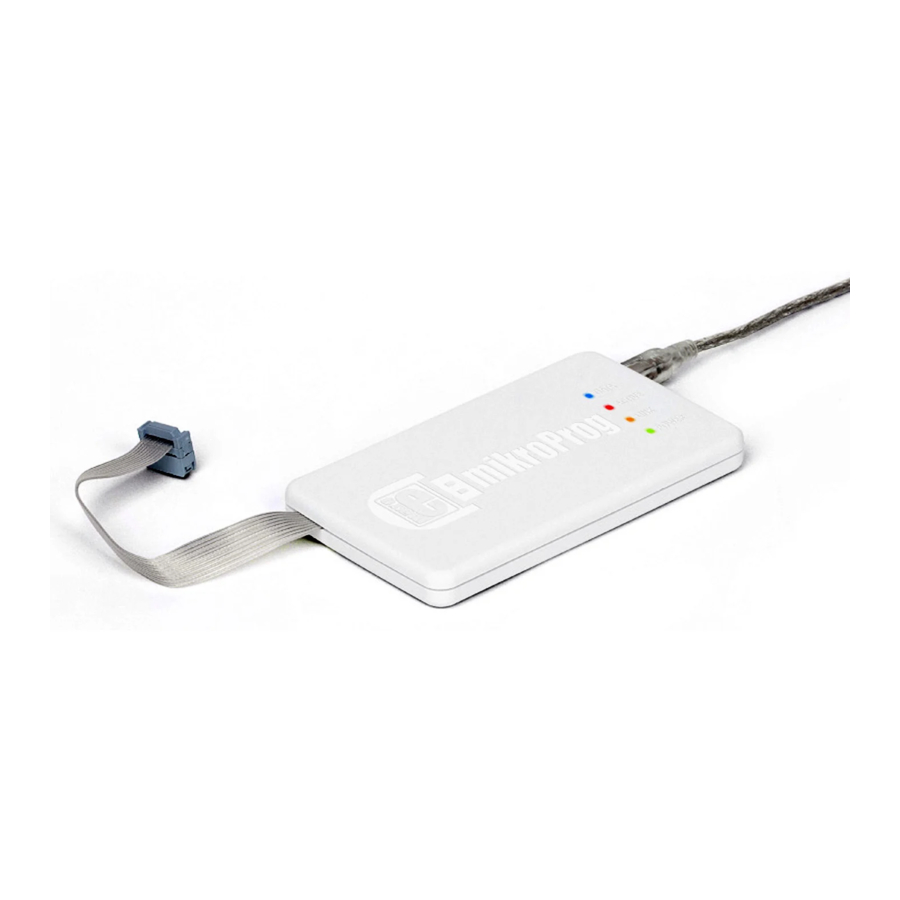

Key Features What you see Flat cable USB MINI-B connector DATA transfer indication LED ACTIVE indication LED LINK indication LED POWER indication LED Page 5 Page 5... -
Page 6: Installing Drivers And Programming Software
1. Installing Drivers and Programming Software Before you start working with mikroProg ™ for PSoC® ® ™ 5LP , you’ll need to download PSoC Programmer a programming application with the necessary drivers included. Download it from Cypress’ website (registration required): http://www.cypress.com/?rID=38050... -
Page 7: Step 1 - Start Installation
Software installation wizard Start Installation Setup Installation type Accept license agreement Installation in progress Finish installation Page 7... -
Page 8: Connecting To The Target Device
IDC10 JTAG connector, as shown in Figure 2-1. To ensure a proper connection, pay attention to the IDC10 connector pinout. Every pin has a diff erent purpose, and the IDC10 connector is marked with a small knob and incision between pins number 9 and 7, Figure 3-1. -
Page 9: Connector Pinout
3. Connector Pinout VCC-3.3V - MCU power supply - Ground - Ground - Ground - Ground SWDIO - SWD data I/O SWDCK - SWD clock Programming/ - Serial wire output debugging lines - Not connected XRES - System Reset Figure 3-1: Female connector pinout Page 9... -
Page 10: Connection Schematic Example
4. Connection Schematic Example VCC-3.3V VCCD VCC-3.3V VDDA 100nF GNDA GNDA P2[5] VDDIO0 P2[6] P0[3] VCC-3.3V VCCA VCCA P2[7] P0[2] P12[4] P0[1] P12[5] P0[0] P6[4] P4[1] 10uF J TAG/ S WD 100nF P6[5] P4[0] VCC-3.3V P6[6] P12[3] P6[7] P12[2] SWDIO GNDA GNDA VSSB... - Page 11 No part of this manual, including product and software described herein, may be reproduced, stored in a retrieval system, translated or transmitted in any form or by any means, without the prior written permission of MikroElektronika. The manual PDF edition can be printed for private or local use, but not for distribution.
- Page 12 If you are experiencing some problems with any of our products or just need additional information, please place your ticket at www.mikroe.com/support/ If you have any questions, comments or business proposals, mikroProg for PSoC 5LP Manual ver. 1.00 do not hesitate to contact us at offi ce@mikroe.com...
