6

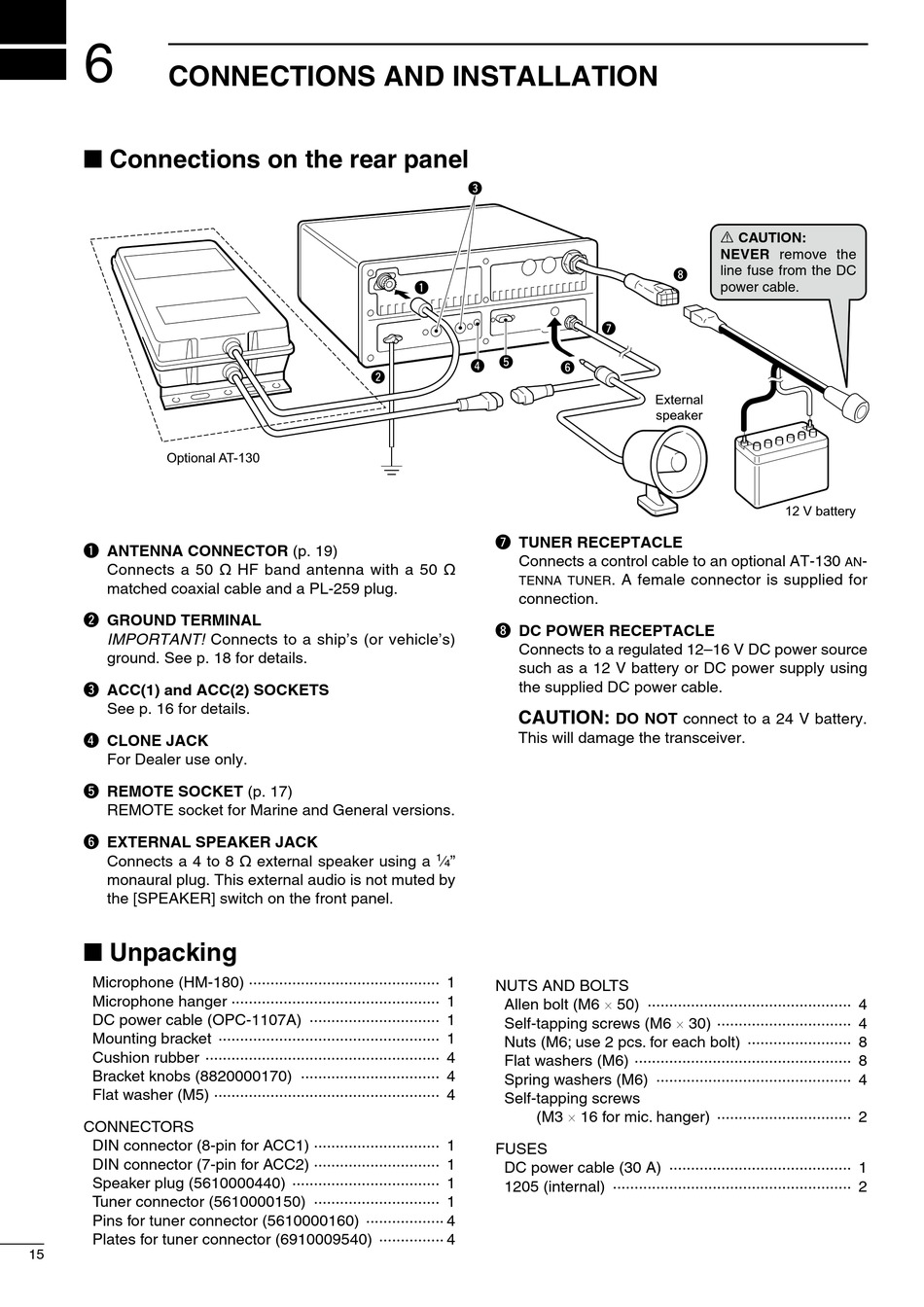

CONNECTIONS AND INSTALLATION

■ Connections on the rear panel

Optional AT-130
q ANTENNA CONNECTOR (p. 19)
Connects a 50 ø HF band antenna with a 50 ø
matched coaxial cable and a PL-259 plug.
w GROUND TERMINAL
IMPORTANT! Connects to a ship's (or vehicle's)
ground. See p. 18 for details.
e ACC(1) and ACC(2) SOCKETS
See p. 16 for details.
r CLONE JACK
For Dealer use only.
t REMOTE SOCKET (p. 17)
REMOTE socket for Marine and General versions.
y EXTERNAL SPEAKER JACK
Connects a 4 to 8 ø external speaker using a
monaural plug. This external audio is not muted by
the [SPEAKER] switch on the front panel.

■ Unpacking

Microphone (HM-180) ············································ 1
Microphone hanger ················································ 1
DC power cable (OPC-1107A) ······························ 1
Mounting bracket ··················································· 1
Cushion rubber ······················································ 4
Bracket knobs (8820000170) ································ 4
Flat washer (M5) ···················································· 4
CONNECTORS
DIN connector (8-pin for ACC1) ····························· 1
DIN connector (7-pin for ACC2) ····························· 1
Speaker plug (5610000440) ·································· 1
Tuner connector (5610000150) ····························· 1
Pins for tuner connector (5610000160) ·················· 4
Plates for tuner connector (6910009540) ··············· 4
15
e
q
r t
w
u TUNER RECEPTACLE
Connects a control cable to an optional AT-130
tenna tuner
connection.
i DC POWER RECEPTACLE
Connects to a regulated 12–16 V DC power source
such as a 12 V battery or DC power supply using
the supplied DC power cable.
C AUTION:
This will damage the transceiver.
1 ⁄ "
4
NUTS AND BOLTS
Allen bolt (M6 × 50) ··············································· 4
Self-tapping screws (M6 × 30) ······························· 4
Nuts (M6; use 2 pcs. for each bolt) ························ 8
Flat washers (M6) ·················································· 8
Spring washers (M6) ············································· 4
Self- tapping screws
(M3 × 16 for mic. hanger) ······························· 2
FUSES
DC power cable (30 A) ·········································· 1
1205 (internal) ······················································· 2
R CAUTION:
NEVER remove the
line fuse from the DC
i
power cable.
u
y
External
speaker
. A female connector is supplied for
DO NOT connect to a 24 V battery.
12 V battery
-
an
