5

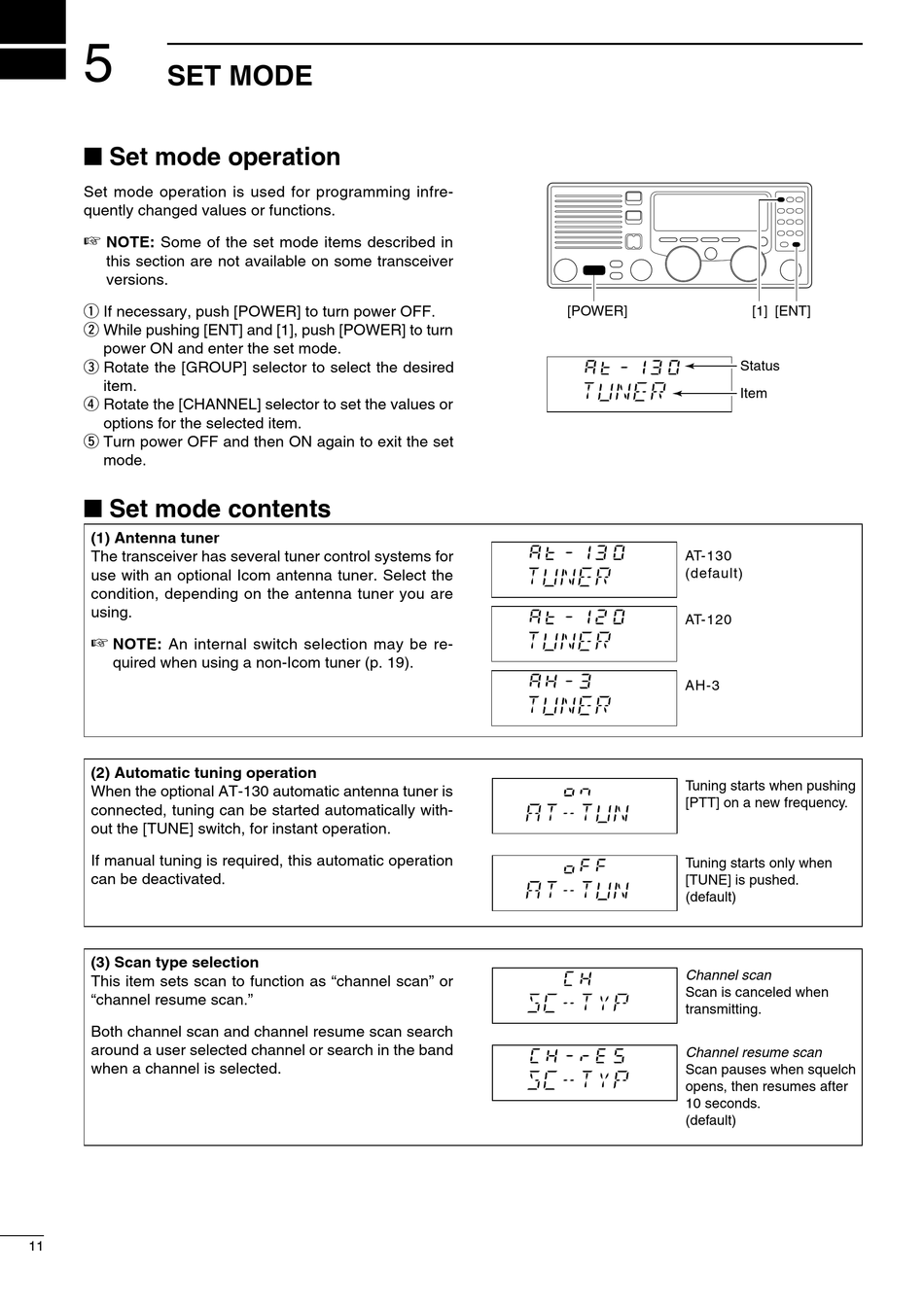

SET MODE

■ Set mode operation

Set mode operation is used for programming infre-
quently changed values or functions.
☞ N OTE: Some of the set mode items described in
this section are not available on some transceiver
versions.
q If necessary, push [POWER] to turn power OFF.
w While pushing [ENT] and [1], push [POWER] to turn
power ON and enter the set mode.
e Rotate the [GROUP] selector to select the desired
item.
r Rotate the [CHANNEL] selector to set the values or
options for the selected item.
t Turn power OFF and then ON again to exit the set
mode.

■ Set mode contents

(1) Antenna tuner
The transceiver has several tuner control systems for
use with an optional Icom antenna tuner. Select the
condition, depending on the antenna tuner you are
using.
☞ N OTE: An internal switch selection may be re-
quired when using a non-Icom tuner (p. 19).
(2) Automatic tuning operation
When the optional AT-130 automatic antenna tuner is
connected, tuning can be started automatically with-
out the [TUNE] switch, for instant operation.
If manual tuning is required, this automatic operation
can be deactivated.
(3) Scan type selection
This item sets scan to function as "channel scan" or
"channel resume scan."
Both channel scan and channel resume scan search
around a user selected channel or search in the band
when a channel is selected.
11
[POWER]
Status
Item
AT-130
(default)
AT-120
AH-3
Tuning starts when pushing
[PTT] on a new frequency.
Tuning starts only when
[TUNE] is pushed.
(default)
Channel scan
Scan is canceled when
transmitting.
Channel resume scan
Scan pauses when squelch
opens, then resumes after
10 seconds.
(default)
[1] [ENT]
