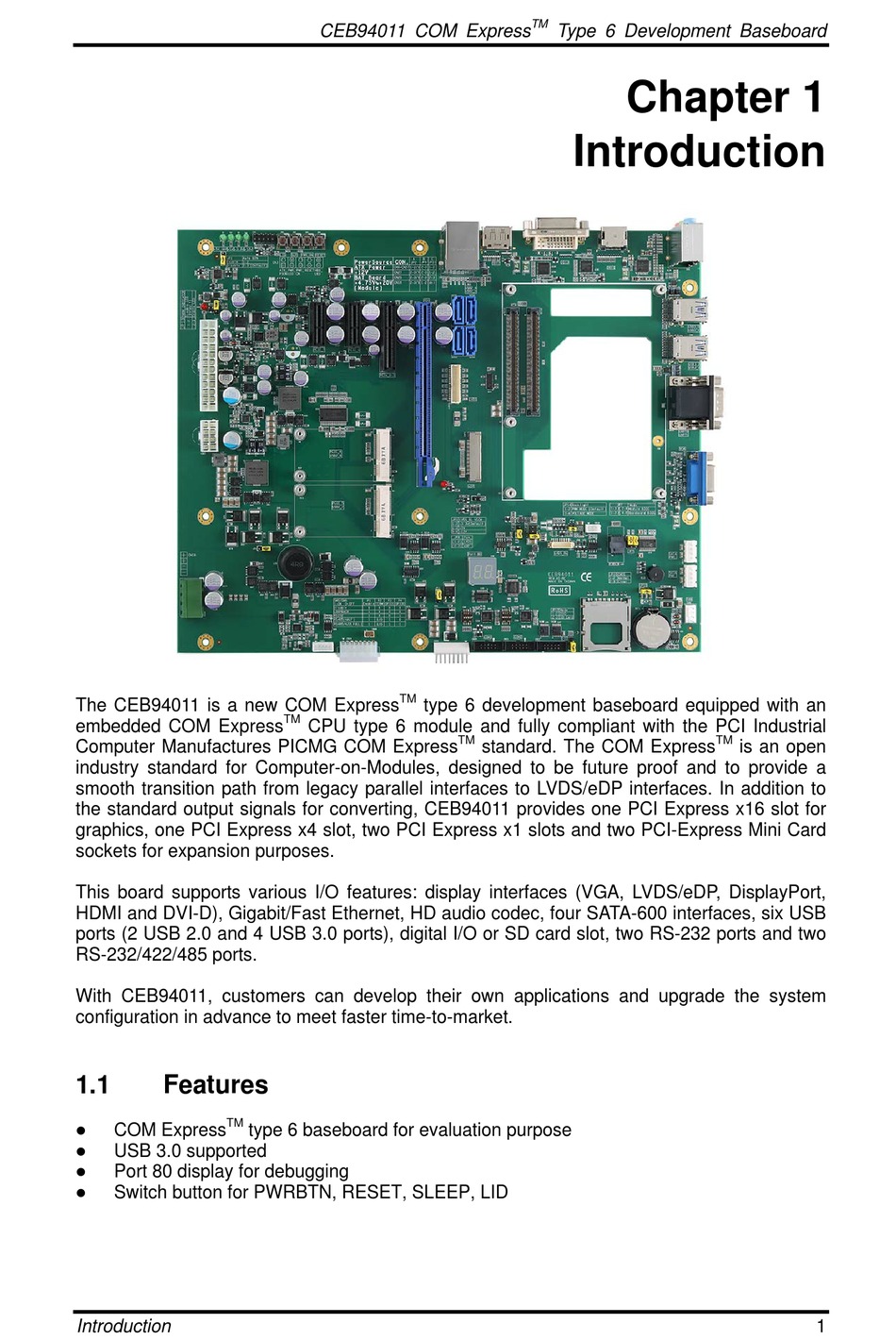

The CEB94011 is a new COM Express
embedded COM Express
Computer Manufactures PICMG COM Express
industry standard for Computer-on-Modules, designed to be future proof and to provide a
smooth transition path from legacy parallel interfaces to LVDS/eDP interfaces. In addition to
the standard output signals for converting, CEB94011 provides one PCI Express x16 slot for
graphics, one PCI Express x4 slot, two PCI Express x1 slots and two PCI-Express Mini Card
sockets for expansion purposes.
This board supports various I/O features: display interfaces (VGA, LVDS/eDP, DisplayPort,
HDMI and DVI-D), Gigabit/Fast Ethernet, HD audio codec, four SATA-600 interfaces, six USB
ports (2 USB 2.0 and 4 USB 3.0 ports), digital I/O or SD card slot, two RS-232 ports and two
RS-232/422/485 ports.
With CEB94011, customers can develop their own applications and upgrade the system
configuration in advance to meet faster time-to-market.
1.1

Features

TM
 COM Express
 USB 3.0 supported
 Port 80 display for debugging
 Switch button for PWRBTN, RESET, SLEEP, LID
Introduction
CEB94011 COM Express
TM
TM
CPU type 6 module and fully compliant with the PCI Industrial
type 6 baseboard for evaluation purpose
TM
Type 6 Development Baseboard
Introduction
type 6 development baseboard equipped with an
TM
standard. The COM Express
Chapter 1
TM
is an open
