CEB94011 COM Express
2.5.7

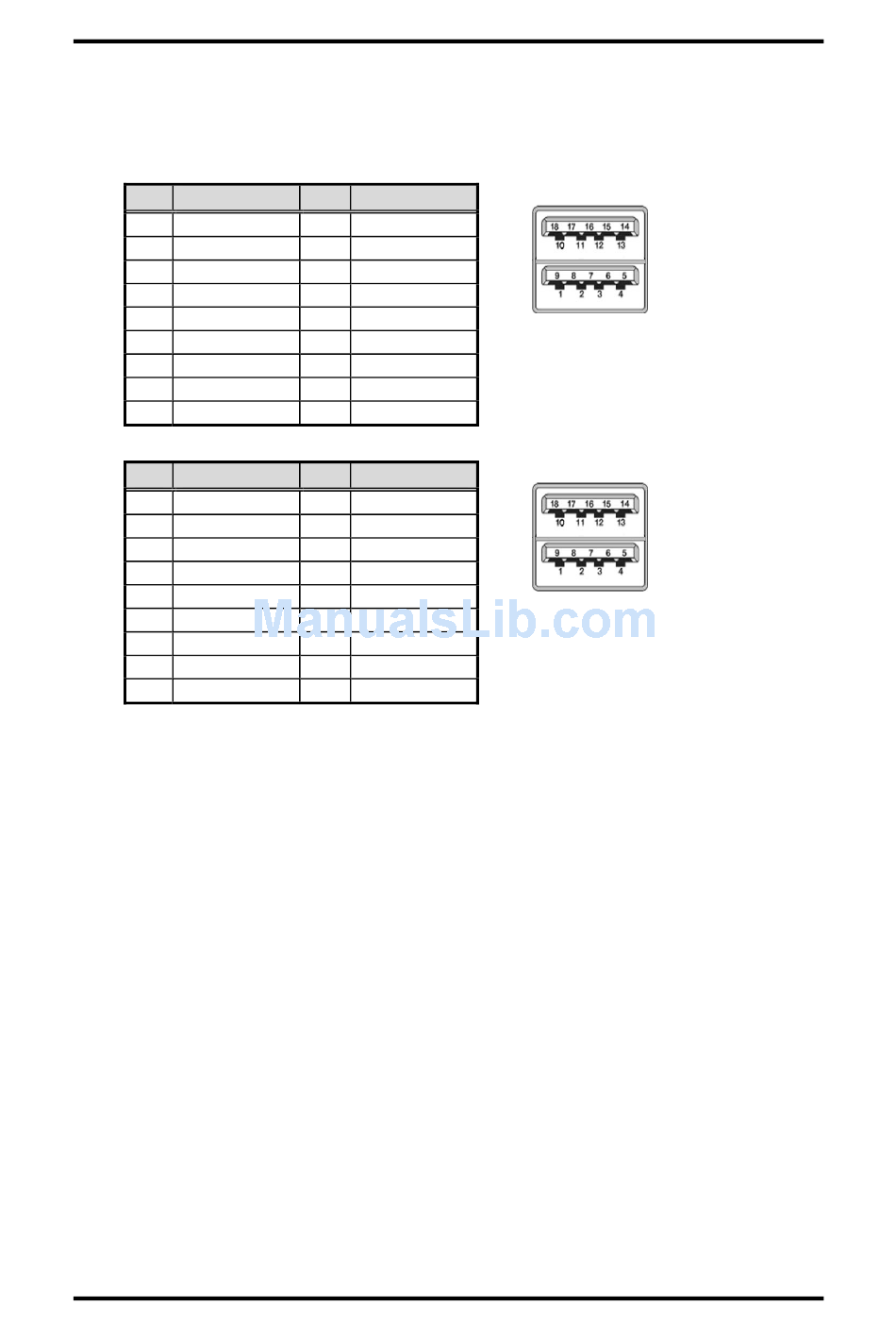

USB 3.0 Stacks (CN7 and CN8)

This Universal Serial Bus 3.0 (USB 3.0) connector on this board is for installing versatile
USB interface peripherals. It is an 18-pin standard USB connector which is also
compatible with USB 2.0 device.
Pin Signal
1 USB_PWR01
2 USB_Data0-
3 USB_Data0+
4 GND
5 SSRX0-
6 SSRX0+
7 GND Drain
8 SSTX0-
9 SSTX0+
Pin Signal
1 USB_PWR23
2 USB_Data2-
3 USB_Data2+
4 GND
5 SSRX2-
6 SSRX2+
7 GND Drain
8 SSTX2-
9 SSTX2+
18
TM
Type 6 Development Baseboard
Pin Signal
10 USB_PWR01
11 USB_Data1-
12 USB_Data1+
13 GND
14 SSRX1-
15 SSRX1+
16 GND Drain
17 SSTX1-
18 SSTX1+
Pin Signal
10 USB_PWR23
11 USB_Data3-
12 USB_Data3+
13 GND
14 SSRX3-
15 SSRX3+
16 GND Drain
17 SSTX3-
18 SSTX3+
CN7 (for USB 3.0 port 0 and 1)
CN8 (for USB 3.0 port 2 and 3)
Board and Pin Assignments
