AXIOMTEK CEM300 Quick Installation Manual

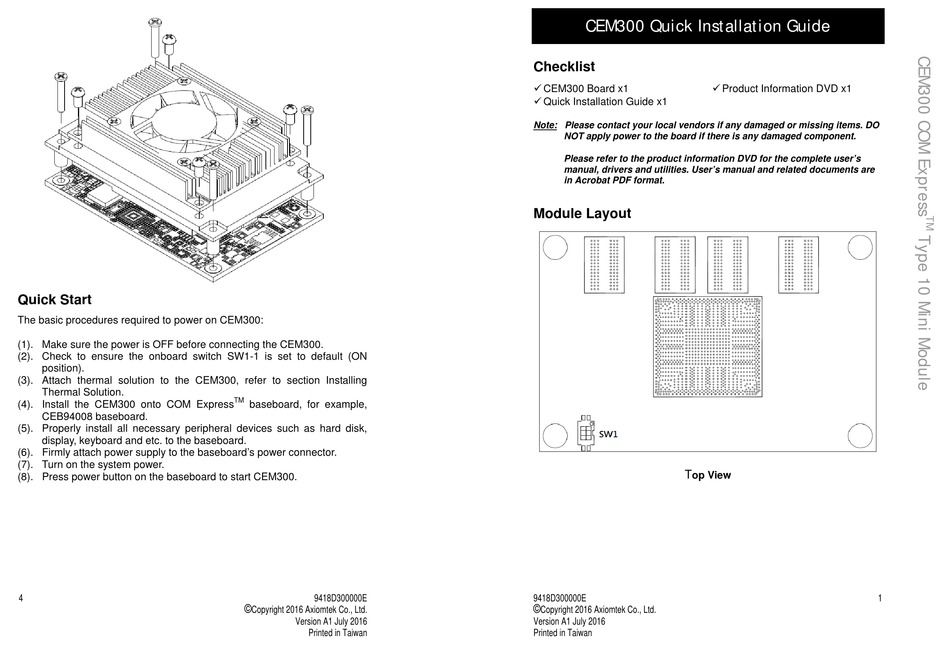

Quick Start
The basic procedures required to power on CEM300:
(1). Make sure the power is OFF before connecting the CEM300.
(2). Check to ensure the onboard switch SW1-1 is set to default (ON
position).
(3). Attach thermal solution to the CEM300, refer to section Installing
Thermal Solution.
(4). Install the CEM300 onto COM Express
CEB94008 baseboard.
(5). Properly install all necessary peripheral devices such as hard disk,
display, keyboard and etc. to the baseboard.
(6). Firmly attach power supply to the baseboard's power connector.
(7). Turn on the system power.
(8). Press power button on the baseboard to start CEM300.
4
TM
baseboard, for example,
9418D300000E
©
Copyright 2016 Axiomtek Co., Ltd.
Version A1 July 2016
Printed in Taiwan
CEM300 Quick Installation Guide
Checklist
 CEM300 Board x1  Product Information DVD x1
 Quick Installation Guide x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Please refer to the product information DVD for the complete user's
manual, drivers and utilities. User's manual and related documents are
in Acrobat PDF format.
Module Layout
T op View
9418D300000E
©
Copyright 2016 Axiomtek Co., Ltd.
Version A1 July 2016
Printed in Taiwan
1
