Control Panel Description

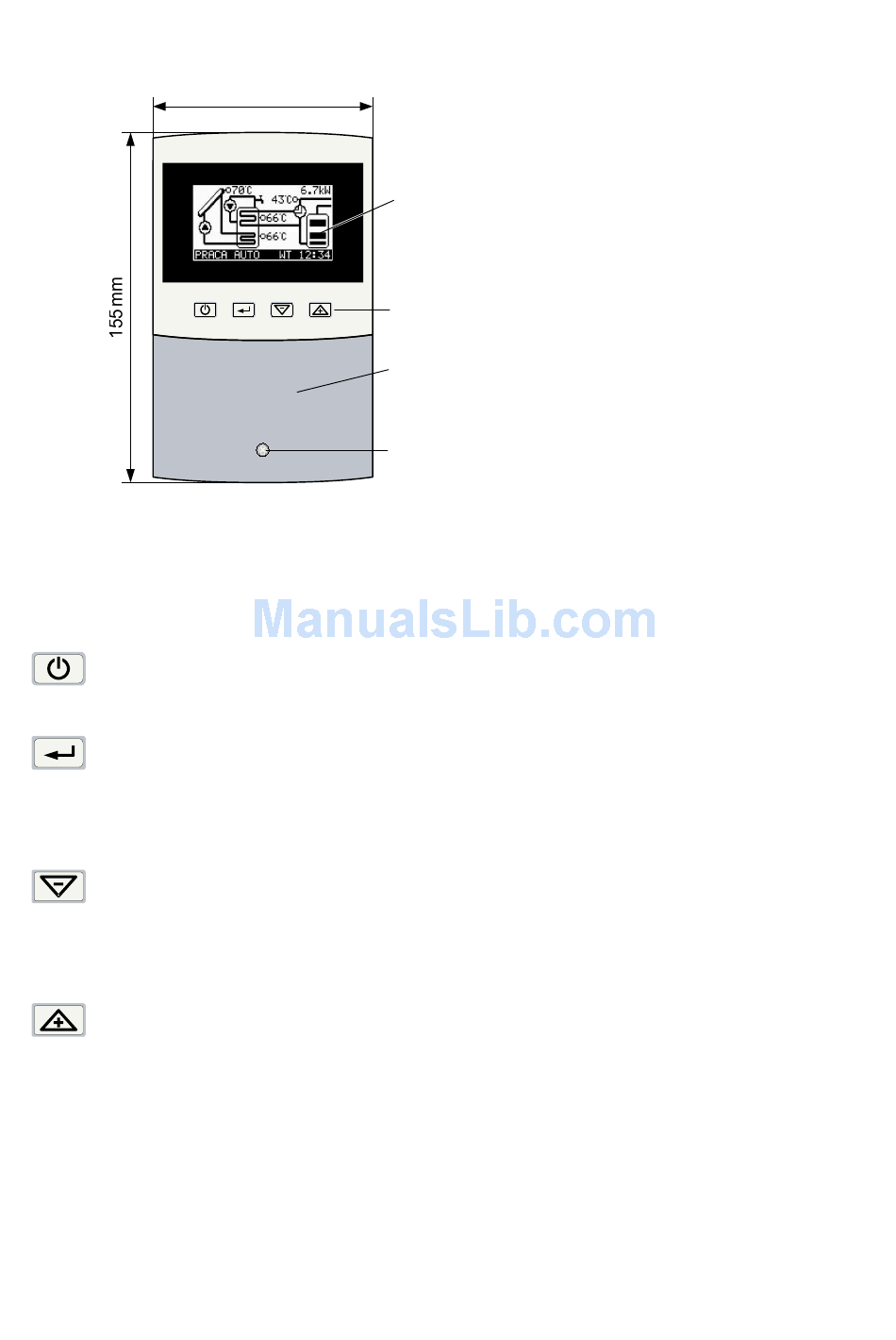

Fig. 1: Control panel button arrangement
Controller Operation
Function Buttons
ON/OFF button
It is used to move up one menu level or to move back to the information window
with the solar system diagram.
ENTER button
It is used to return to the main MENU from information windows.
It is used to go from the main MENU to a selected submenu.
When in a submenu it switches between the parameter list viewing mode and
parameter editing mode (changing parameter values).
Minus / down arrow button
When at the information window level, it is used to change the window
displayed. When in the MENU and a submenu, it is used to change a given
parameter.
When in the parameter editing mode, it is used it to reduce the edited value.
Plus / up arrow button
When at the information window level, it is used to change the window
displayed.
When in the MENU and a submenu, it is used to change a given parameter.
When in the parameter editing mode, it is used it to increase the edited value.
S C 951 model u7.x, Rev. 1
OLAR OMP
103mm
display
buttons
connector cover
cover holding screw
