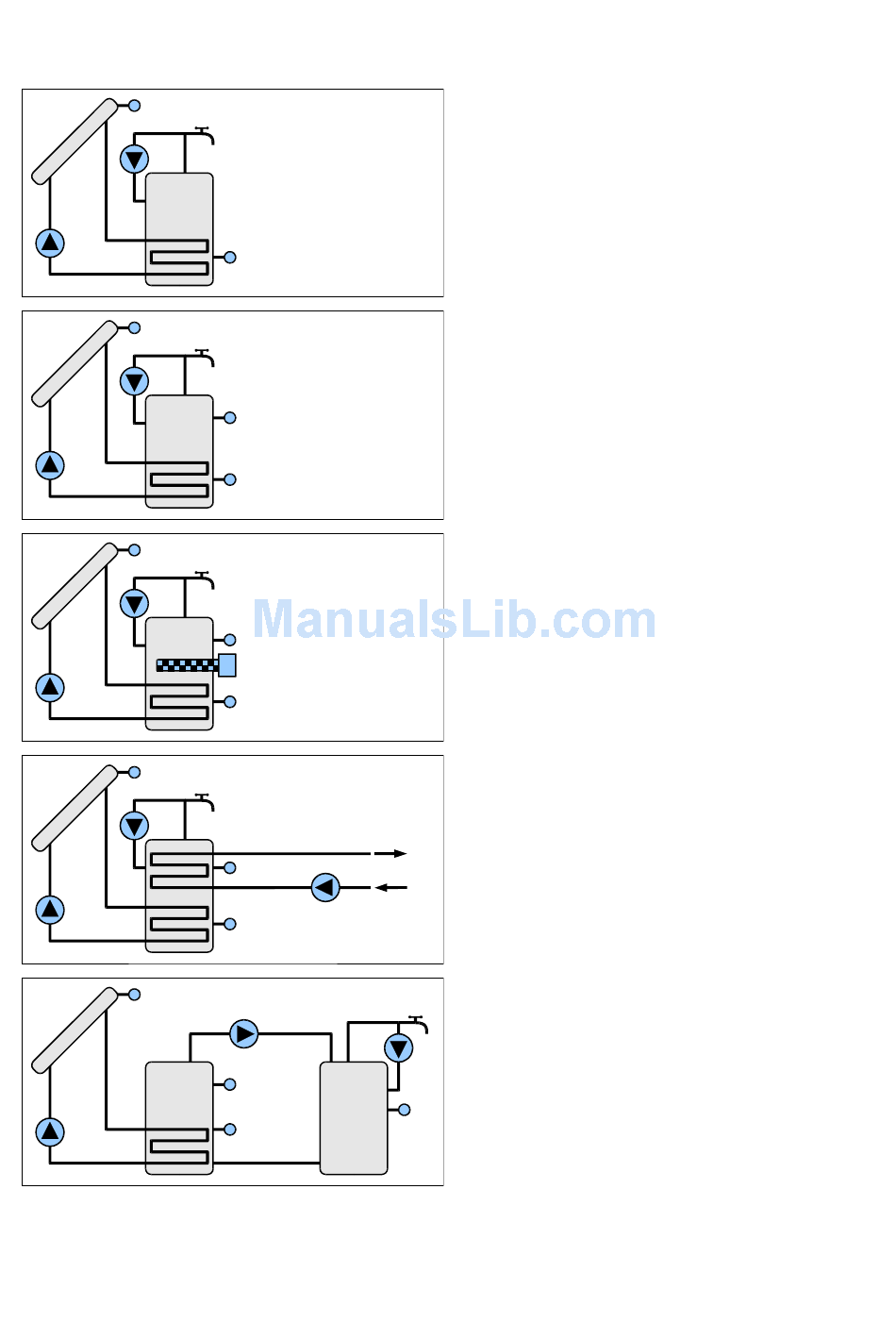

List of System Operation Variants
T1
P3
P1
T1
P3
P1
T1
P3
P1
T1
P3
P1
T1
P1
4
T2
T3
T2
T3
G
T2
T3
P2
T2
P2
P3
T3
T2
Variant no. 1
Tank loaded from the solar panel – system
with two sensors.
Circulation pump control.
Variant no. 2
Tank loaded from the solar panel – system
with three sensors.
Circulation pump control.
Variant no. 3
Tank loaded from the solar panel – system
with three sensors.
Circulation pump control.
Additional heating of the tank with a heating
coil.
Variant no. 4
Tank loaded from the solar panel – system
with three sensors.
Circulation pump control.
Excess tank heat discharge control.
Variant no. 5
Tank loaded from the solar panel – system
with three sensors.
Circulation pump control.
Heat transfer to another tank (based on
T4
temperature difference).
S
OLAR
C 951 model u7.x, Rev. 1
