Wiring Diagram
NOTE! Any electrical connections must be made by duly authorised and qualified persons
after power supply has been disconnected!
1 2 3 4
T1 T2 T3 T4
9 10 11 12
Uwaga! Podanie napięcia na zaciski
1-12 powoduje uszkodzenie regulatora

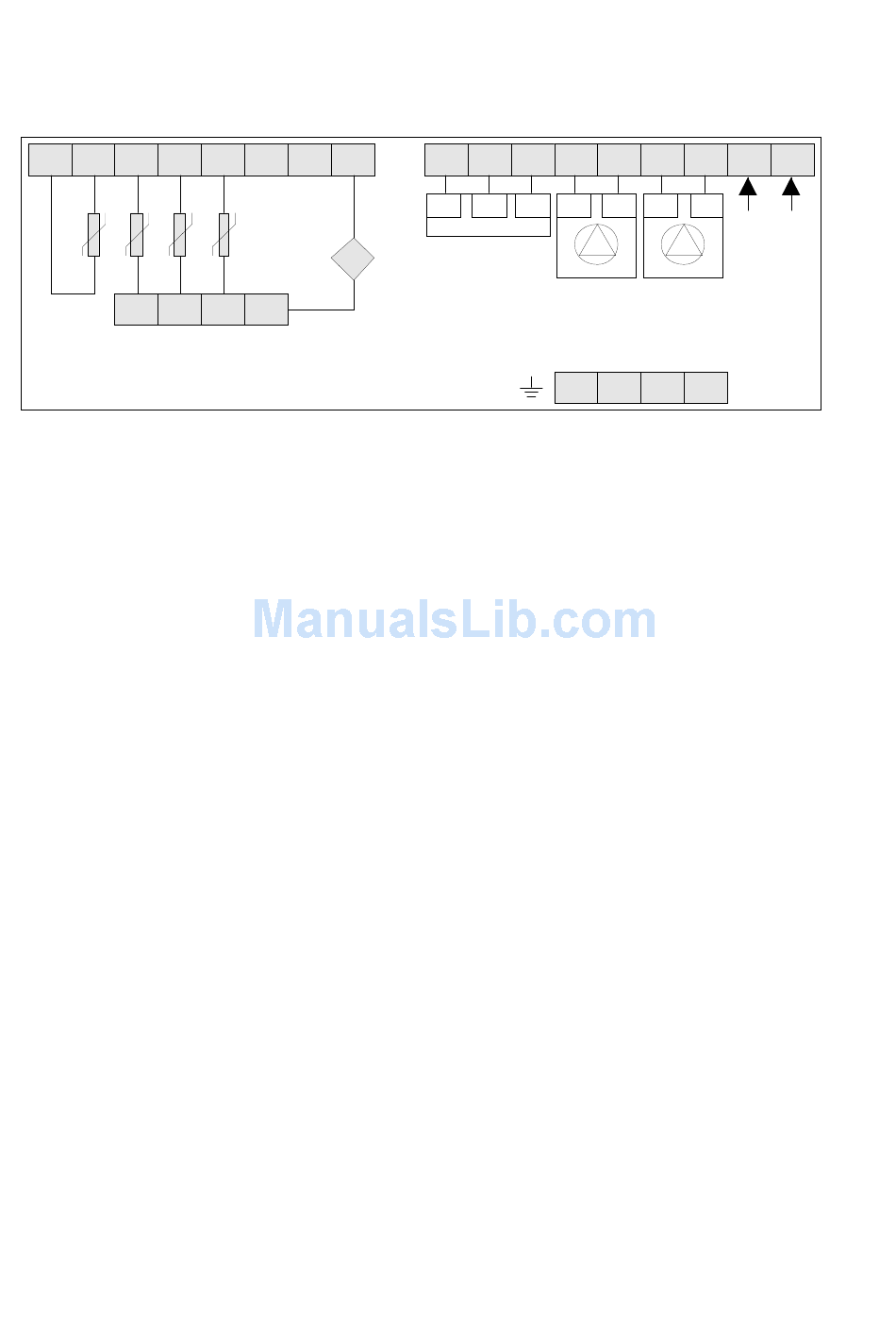

Fig. 4: Connection diagram
zawór – valve
grzałka – heating coil
pompa P1 – P1 pump
Uwaga! Podanie napięcia na zaciski 1-12 powoduje uszkodzenie regulatora – Note! Connecting power
supply to terminals 1-12 will damage the controller
Temperature sensors
Temperature sensors should be connected to the following (polarity not important):
1,2 T1 – solar panel sensor (type T1301)
3,9 T2 – bottom sensor of primary tank (type T1001)
4,10 T3 – top sensor of primary tank (type T1001)
5,11 T4 – additional sensor, in a system with precise heat measurement, sensor of
return from the coil pipe (type T1001)
Sensor cables must be routed separately from the power supply cables.
Flow meter
8,12 Flow meter, input for connecting the flow meter pulser.
Digital Interface RS-485
6 – line B
7 – line A
Contoller supply
21 – phase conductor L
20 – neutral conductor N
25 – ground conductor PE
Solar pump P1
19 – phase conductor L
18 – neutral conductor N
24 – ground conductor PE
36
5 6 7 8
B A
RS485
V
13 14 15 16 17 18 19 20 21
N L L N
P2
Zawór
PC
Grzałka
22 23 24 25
Circulation pump PC / P3
17 – phase conductor L
16 – neutral conductor N
23 – ground conductor PE
P2 pump/ heating coil
13 – phase conductor L
13 – neutral conductor N
22 – ground conductor PE
Diverter valve
13 – neutral conductor N
14 – phase conductor L (NO)
15 – phase conductor L (NC)
S C
OLAR
L N L
N L
230V~
P1
951 model u7.x, Rev. 1
