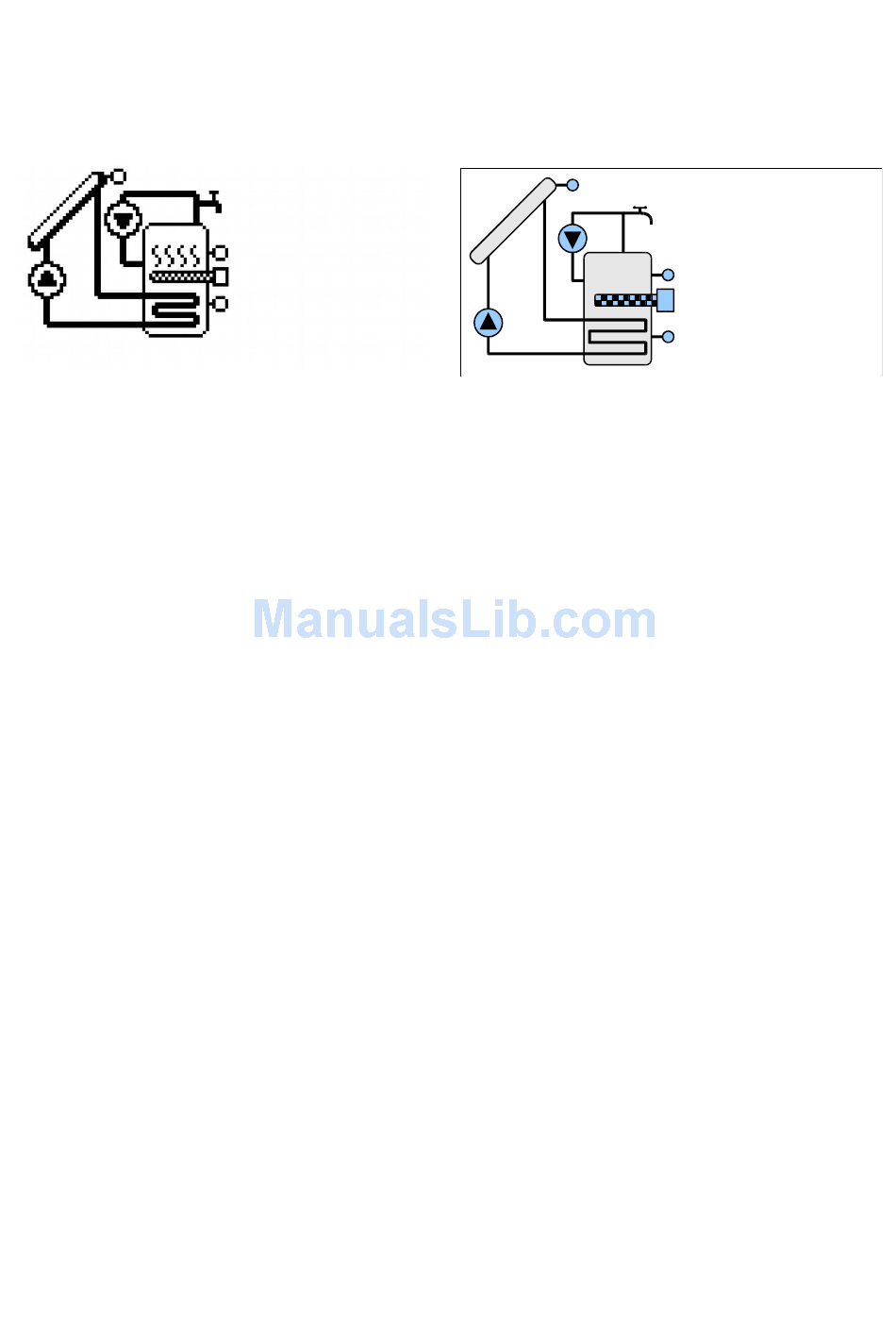

Variant no. 3
Tank loaded from the solar panel – system with three sensors.
•
Circulation pump control.
•
Additional heating of the tank with a heating coil.
•
Tank loading
The loading of the tank is described on page 20.
Heating coil operation
The coil can additionally heat the tank at the times set in parameter C.03 HEATING
COIL ON. Outside the set hours its operation is blocked.
The heating coil works until the temperature set in parameter B.05. HEATING COIL
SET TEMPERATURE is reached. Hysteresis is 2K.
Parameter B.06 COIL BLOCKED WHEN PANEL ACTIVE. makes it possible to block
the coil's operation when the solar pump is working.
The operation of the heating coil is blocked in holiday mode.
DHW circulation
DWW circulation is described on page 19.
S C 951 model u7.x, Rev. 1
OLAR OMP
T1
P3
P1
T3
G
T2
