Summary of Contents for Sirona Galileos

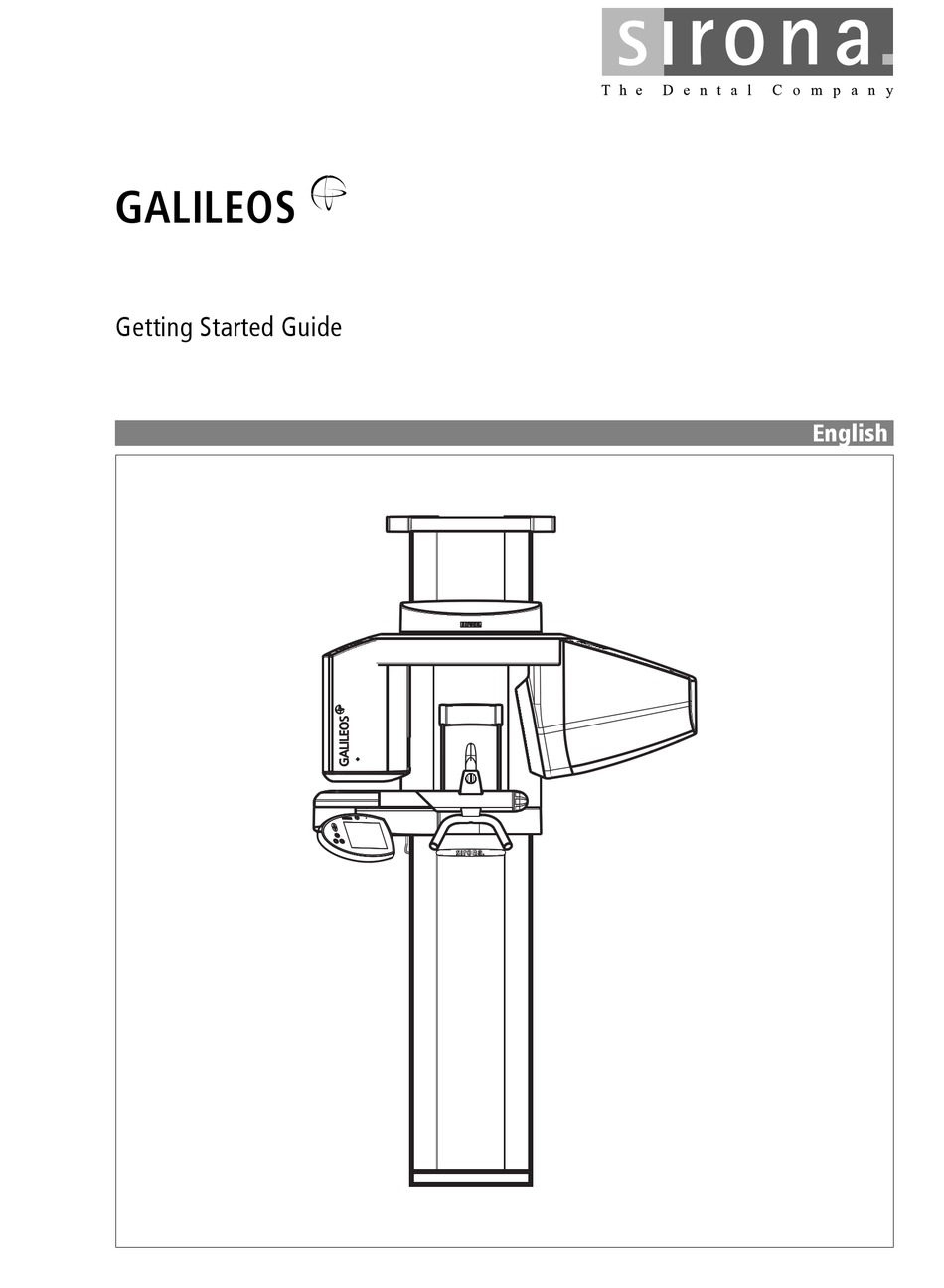

  • Page 1 d^ifiblp dÉííáåÖ=pí~êíÉÇ=dìáÇÉ båÖäáëÜ...

  • Page 2: Table Of Contents

    Contents Introduction ......................... Abbreviations ........................... Creating 3D X-Rays..................... Preparing the unit for exposure......................Taking a scan........................... Sirona Control Server / CBRecoServer ..............General ............................SCS Monitor............................. GALILEOS Reconstruction Monitor ....................10 SIDEXIS Manager..........................10 Sirona Control Admin ....................11 Starting via SIDEXIS Manager......................12 Sirona Control Admin Rescue......................

  • Page 3: Introduction

    Control Admin The procedure to be followed when problems occur during the transmission of image data from the GALILEOS X-ray unit to the visualization PC after a patient scan (rescue management). This manual does not provide descriptions of the GALAXIS software.

  • Page 4: Abbreviations

    1 Introduction Abbreviations The following abbreviations are used in this document: Rescue Retrieval of data which has not yet been transferred Reconstruction Reconstruct existing GALILEOS raw images SIDEXIS SIRONA Dental X-Ray Imaging System GALILEOS SIRONA 3D X-ray system Sirona Control Server...

  • Page 5: Creating 3D X-Rays

    This chapter describes the operating sequence for taking a patient scan. For more detailed descriptions on operating the GALILEOS X-ray unit, please refer to the instruction manual for this device. Operation of SIDEXIS software is described in detail in the "SIDEXIS User Manual".

  • Page 6: Preparing The Unit For Exposure

    2 Creating 3D X-Rays Preparing the unit for exposure Procedure 1. Start SIDEXIS. 2. Select the appropriate patient. NOTE If the last scan has not yet been confirmed, you must confirm it before proceeding: Press the R key. Press the R key again to move the unit to the start position.
  • Page 7 2 Creating 3D X-Rays To select the desired X-ray component, click on it and then press OK to confirm. NOTE The procedure for enabling X-ray acquisition units for single workstations is described in detail in the "SIDEXIS XG Installation Instructions". The software first checks the network connection to see whether the acquisition unit is communicating correctly before displaying the Exposure Readiness dialog.

  • Page 8: Taking A Scan

    SIDEXIS while it is saving the scan otherwise your data will be lost. Do not perform any other tasks on the PC while the scan is saving. In particular, you must not use Sirona Control Admin (SCA), print files or carry out any file or directory management tasks.

  • Page 9: Sirona Control Server / Cbrecoserver

    Reconstruction Server (CBRecoServer) The Reconstruction Server is used for reconstructing 3D volume data. Prerequisites In order to operate an GALILEOS X-ray unit, SCS and the Reconstruction Server must be installed on the Reconstruction Control Unit RCU).

  • Page 10: Galileos Reconstruction Monitor

    3 Sirona Control Server / CBRecoServer GALILEOS Reconstruction Monitor The Reconstruction Server can also be started and stopped separately using the GALILEOS Reconstruction Monitor, which only runs on the RCU. This is usually not necessary. NOTE The SCS log files are stored in the following location: Installation Directory\Sirona\GALILEOS \ Log.

  • Page 11: Sirona Control Admin

    4 Sirona Control Admin Sirona Control Admin Sirona Control Admin (SCA) is a specialized client for the Sirona Control Server (SCS) and is used to remotely control the following SCS services and components: SCS Information DataContainer management Rescue management License management 61 81 155 D 3437 D 3437.202.01.02.02 05.2007...

  • Page 12: Starting Via Sidexis Manager

    SCA can be started on any workstation using SIDEXIS Manager. You can start SCA in one of two modes: 1. In Rescue mode using Sirona Control Admin Rescue, see Section 4.2. 2. In License mode using Sirona Control Admin License, see Section 4.3.

  • Page 13: Sirona Control Admin Rescue

    4 Sirona Control Admin Sirona Control Admin Rescue In Rescue mode, SCA contains the following tabs: 1. Settings 2. DataContainer 3. GALILEOSDevices Settings tab In the Server Data area you can see the IP configurations and the description of the RCU which is currently selected.
  • Page 14 4 Sirona Control Admin Use the Restart button to restart the SCS including the Reconstruction Server on the selected RCU. When you restart the SCS, you may need to perform an update using the Update button. 61 81 155 D 3437...
  • Page 15 Cancel Closes the context menu. GALILEOS Devices tab This tab displays all of the GALILEOS X-ray devices which can be accessed using the selected RCU. (Under normal circumstances, one unit.) A description, IP address and IP port are displayed for each unit.
  • Page 16 4 Sirona Control Admin Right-click on a data container to open a context menu with the following options: Rescue Performs a unit rescue procedure including a follow-up reconstruction, see Section 5.2. Cancel Closes the context menu. 61 81 155 D 3437...

  • Page 17: Sirona Control Admin License

    RCU. If several dongles are attached to the selected RCU, all of the licenses available on all of the dongles are displayed. The licenses have a Sirona license ID, which is displayed in the Description. This tab also displays the number of licenses available and the number of licenses currently in use.
  • Page 18 4 Sirona Control Admin 61 81 155 D 3437 D 3437.202.01.02.02 05.2007...

  • Page 19: Rescue Management

    5 Rescue Management Rescue Management A rescue state occurs after creating a scan if it is not possible to transfer data to SIDEXIS. There are three types of rescue state: Rescue StateUnit The scan cannot be transferred (Section 5.2). Rescue StateReconstruction The reconstruction has not yet been carried out (Section 5.3, Case Rescue StateImport The data has yet to be transferred to sidexid (Section 5.3, Case B)

  • Page 20: Displaying A Rescue State

    Section 5.3, Case B. If the following message appears: "The unit is in rescue mode. Please retrieve the scan using Sirona Control Admin first.", you must follow the procedure described in Section 5.2. 61 81 155 D 3437...

  • Page 21: Rescue State Unit

    SIDEXIS: "The unit is in rescue mode. ATTENTION If you switch off GALILEOS X-ray unit while it is in rescue mode, the scan will be lost. Procedure 1. If necessary, check out any patients who are still registered in SIDEXIS.
  • Page 22 NOTE While this is taking place, do not perform any other tasks on the PC. In particular, you must not use Sirona Control Admin (SCA), print files or carry out any file or directory management tasks. When the scan has been imported to the RCU, you must reconstruct the data and transfer it to SIDEXIS, see Section 5.3.

  • Page 23: Rescue State Reconstruction And Import

    5a. This relates to the rescue state import. Right-click on the appropriate DataContainer and click on Read. Both cases In both cases the volume data is stored in SIDEXIS. Now close Sirona Control Admin and and evaluate the data as usual in SIDEXIS. NOTE While this is taking place, do not perform any other tasks on the PC.
  • Page 24 5 Rescue Management 61 81 155 D 3437 D 3437.202.01.02.02 05.2007...
  • Page 26 «=páêçå~=aÉåí~ä=póëíÉãë=dãÄe=OMMT i~åÖì~ÖÉW= mêáåíÉÇ=áå=dÉêã~åó a=PQPTKOMOKMNKMOK=MRKOMMT oÉîK=kçKW=NMU=SMT fãéêáã¨=Éå=^ääÉã~ÖåÉ páêçå~=aÉåí~ä=póëíÉãë=dãÄe få=íÜÉ=rp^W få=`~å~Ç~W SN=UN=NRR=a=PQPT c~Äêáâëíê~ëëÉ=PN páêçå~=aÉåí~ä=póëíÉãë=ii` páêçå~=`~å~Ç~ aJSQSOR=_ÉåëÜÉáã QUPR=páêçå~=aêáîÉI=pìáíÉ=NMM PORM=oáÇÖÉï~ó=aêáîÉ=J=råáí=R dÉêã~åó `Ü~êäçííÉI=k`=OUOTP jáëëáëë~ìÖ~I=låí~êáç=iRi=RvS ïïïKëáêçå~KÅçã `~å~Ç~...
