CODELOCKS CL600 Installation Instructions Manual page 9

Fire Kit Installation Instructions
Take time to be precise and finish the job quicker.
Installation holes must be drilled in exactly the correct positions and
precisely at right angles to the door surface. Lock components must
be vertically and horizontally accurate in relation to each other and
to the door.
WEDGE THE DOOR FIRMLY TO PREVENT MOVEMENT WHILST
DRILLING AND CHISELLING.
STEP 1
Lightly mark a height line on the edge and both faces of the door
and on the door jamb, to indicate the top of the lock when fitted.
Crease the template (fire) along the dotted lines and tape it to the
door with the top in line with the height line. Mark the holes to be
drilled. Mark the centre line of latch on to the door edge. Apply the
template to the other side of the door precisely against the height
line and the centre line of latch mark. Mark the holes to be drilled

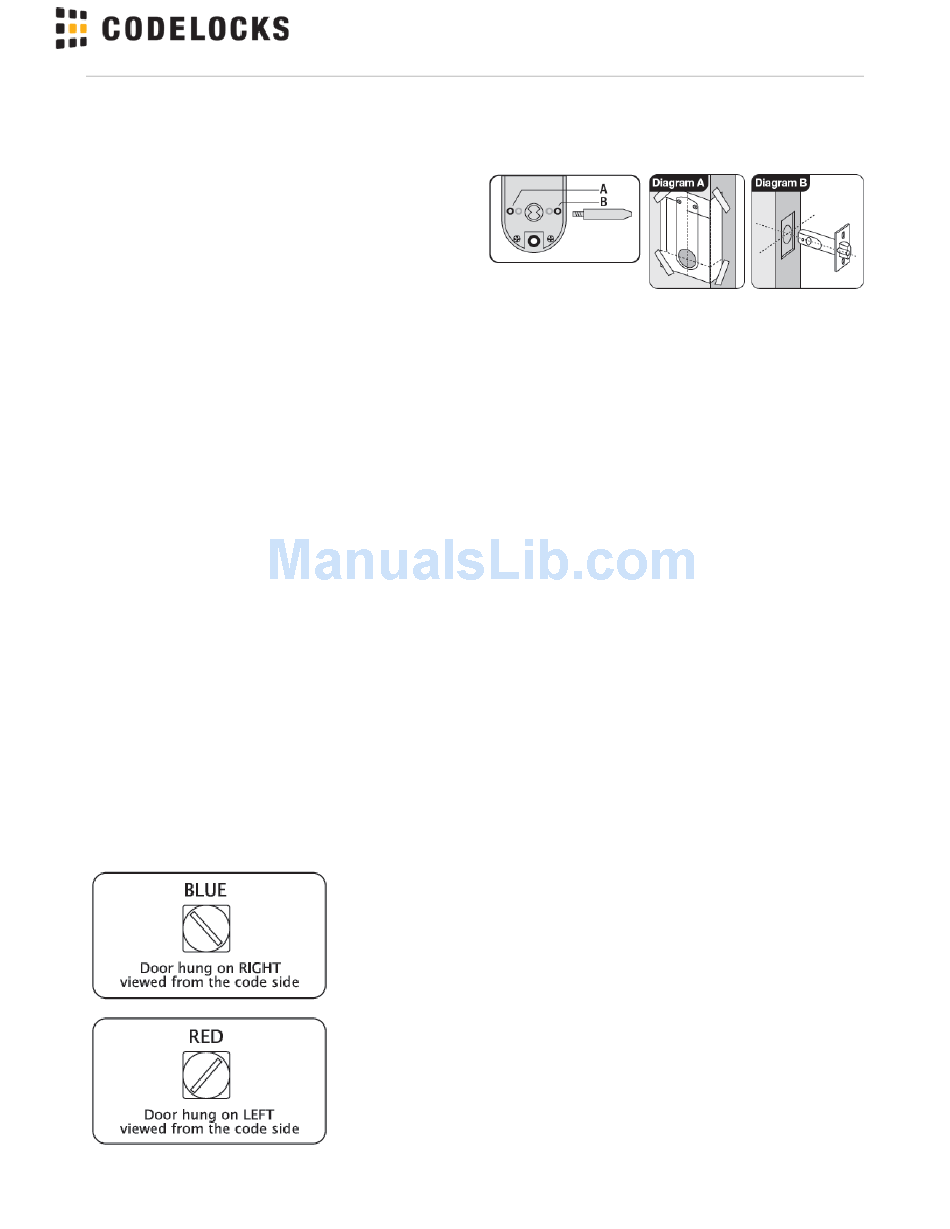

again. (See diagram A).
STEP 2
Keeping the drill level and straight, drill a 25mm (1") hole in the
centre of the door edge to accept the latch. Put the latch into the
hole and holding it square to the door edge, draw around the
faceplate. Remove the latch. Starting with the top and bottom cuts,
chisel a rebate to allow the latch faceplate to fit flush with the door
edge.
STEP 3
Keeping the drill level and straight, drill the holes in the door face.
Drill from both sides of the door to increase accuracy and to avoid
damage to the other side when a drill goes right through.
STEP 4
Insert the fire cup into the 54mm (2 / ") hole.
N.B. open side of the fire cup to face code side with small bolt
through hole at the bottom.
STEP 5
Reinsert the latch and fix the screws, with the bevel towards the
door frame. (See diagram B).
STEP 6
Fit the spindles to the latch according to the hand of your door. Fit
remaining spindle to inside - non code side. (see diagram below).
Install the spindle washers (item 3) over the flat blade of both
spindles. Use enough washers so they sit flush to the face of the
door without bind when the Codelock is installed.
1
8
Page 9
Find more online at www.codelockssupport.com
Step 7
Fit the latch support post to hole adjacent to
and adjacent to B for a right hand door.
Step 8
Screw the fixing posts (item 1 on page 13) into the front plate. Place
the outer cover plate to the door with the inner cover plate (item 4)
using the three fixing bolts (item 5).
Step 9
Fix the front plate to the door with the inner cover plate (item 4)
using the three fixing bolts (item 5). Fit the inside handle body to the
inner cover plate using the three short fixing bolts (item 6).
Step 10
Check that the lever handles are correctly fitted for the hand of door.
To change the hand of a lever handle, loosen the grub screw with
the small Allen key, reverse the lever handle and fully tighten the
grub screw.
Step 11
Before closing the door, enter the code and ensure that the latchbolt
will retract when the lever handle is depressed. Now check the
operation of the inside lever handle. If there is any binding of the
handles or latch then loosen the bolts and reposition the plates
slightly until the correct position is found, and then re-tighten the
bolts.
A for a left hand door,
