CODELOCKS CL600 Installation Instructions Manual page 4

IF YOUR LOCKCASE ONLY HAS HOLES ON EITHER SIDE OF
THE FOLLOWER (FIGURE 1 'B'), PROCEED AS FOLLOWS:
STEP 1
Hold the neoprene seal against the door, perfectly vertically, with the
rectangular hole centrally over the follower. Mark the top holes and
the holes on either side of the follower if not already drilled, using
adaptor plate as guide, then repeat the procedure on the other side
of the door. Mark an extra hole on the inside of the door in line with
the bottom fixing hole.
Remove the lock.
3
Drill the 4 x 10mm ( / ") holes from both sides for greater accuracy,
8
and to avoid splintering out of the door face. Check that the existing
3
spindle hole is at least 18mm ( / "). Drill the extra 12mm ( / ") hole
4
3
5mm ( / ") deep on the inside of the door to accept the fixing nut on
16
the adaptor plate.
Replace the lock.
STEP 2

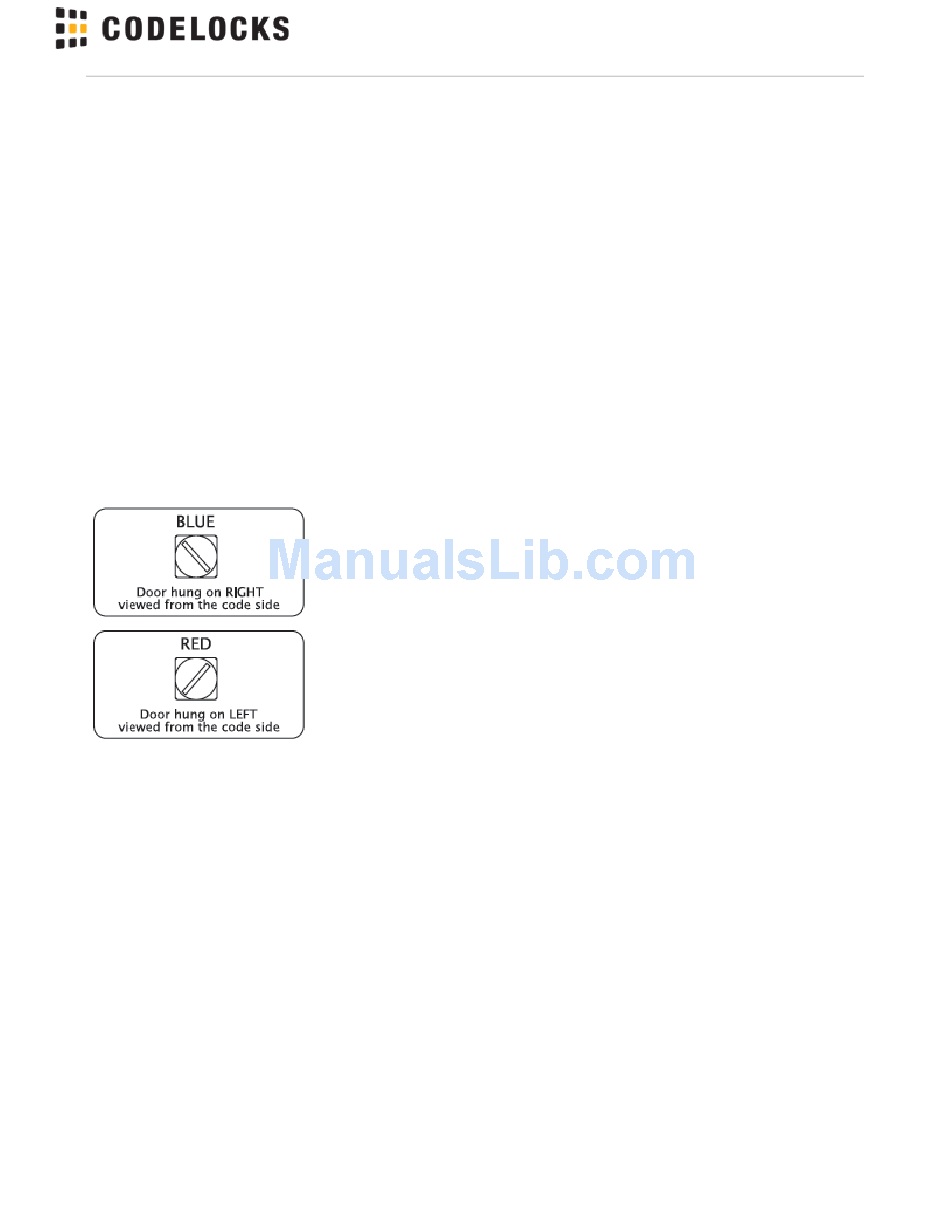

Take the BLUE or RED tipped spindle and fit to the code side
according to the hand of your door (see diagram).
Fit remaining spindle to inside - non code side.
STEP 3
Take the adaptor kit, item 13 on the contents page. Cut the two M5
countersunk head bolts to length to suit the door thickness; i.e. door
thickness plus a maximum of 10mm ( / ") (no more than 5mm ( / ")
should enter the front plate). Hold the front plate, with the three hole
neoprene seal, against the door over the protruding spindle. From
the other side of the door, fix the adaptor plate to the front plate
using the two M5 countersunk bolts. Before tightening up the fixings,
make sure that the spindle hole is centrally positioned over the
follower. Do not use excessive force.
1
2
3 3
8 16
Page 4
Find more online at www.codelockssupport.com
STEP 4
Cut two of the long socket head bolts to the required length for your
door. Approximate overall length should be door thickness plus
25mm (1"), to allow about 10mm ( / ") of threaded bolt to enter the
front plate. Place the neoprene gasket over the adaptor plate. Use
the screw with the 'T' shaped Allen key, to fix the back plate to the
front plate through the TOP holes. Using the 20mm ( / ") socket
head bolt fix the back plate through the BOTTOM hole to the
adaptor plate. Do not use excessive force.
STEP 5
Check that the lever handles are correctly fitted for the hand of door.
To change the hand of a lever handle, loosen the grub screw with
the small Allen key, reverse the lever handle and fully tighten the
grub screw.
STEP 6
Before closing the door, enter the code and check that the latchbolt
retracts when the lever handle is depressed. Now check the
operation of the inside lever handle. If there is any binding of the
handles or latch then loosen the top and bottom bolts and reposition
the plates slightly until the correct position is found, and then
re-tighten the bolts.
3
8
3
4
