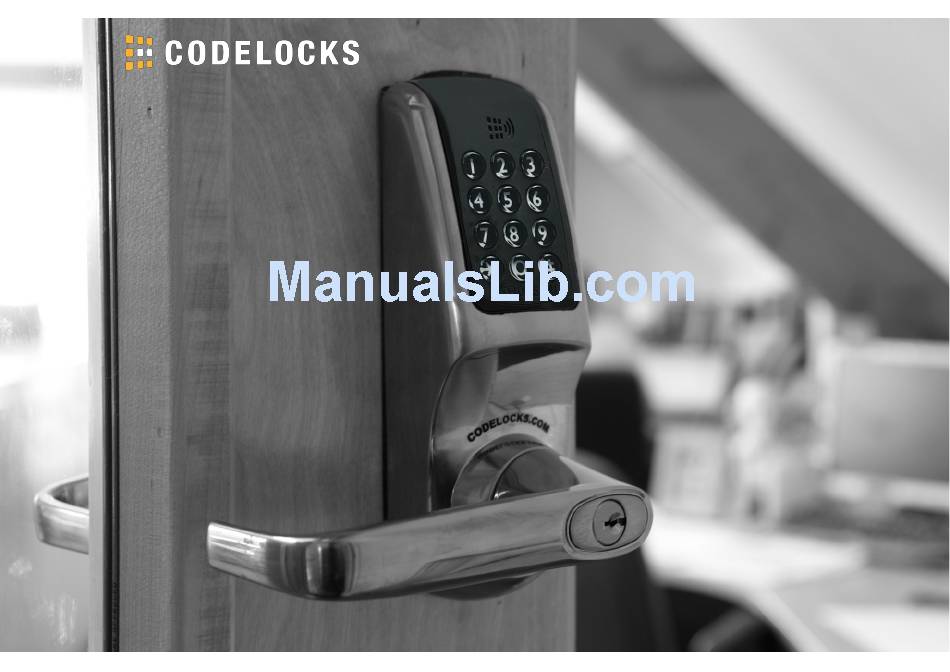

  • Page 1 K3 Connect User Guide CL4510 CL5510 CL6510 Document Version: Status: DRAFT Author: Martin Clayton Image for illustration only...
  • Page 2 REGULATORY COMPLIANCE The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 3: Download The App

    Download the App The K3 Connect App is available on Apple App Store and Google Play Store Search the App Store (Apple iOS) or Play Store (Android) for the K3 Con- nect App Install the App on your iOS or Android device After installation, open the App If asked, choose whether to allow notifications (unlocking notifications, etc)
  • Page 4 Register a Lock Open the K3 Connect App (if not already open) Touch the + button (top-right) of the screen Enter the lock DIN CL4510: cl4510 CL5510: cl5410 CL6510: cl6510 Enter a name for the lock (we recommend that you choose a meaningful name) Touch the ...

  • Page 5: Basic Functions

    Basic Functions From the lock list, you can unlock any lock within range , synchronise, view lock info and view logs. In the lock list, swipe the lock left You will see Info, Logs and Sync options Info: View or change lock settings Logs: View audit entries (synchronise to retrieve latest logs) Sync: Synchronise the settings between the lock and App and retrieve latest logs...
  • Page 6 Synchronising Once you have made changes to the lock settings, added new Clients or need to see the latest audit information, you need to synchronise the App with your lock. In the lock list, swipe the lock left You will see Info, Logs and Sync options Info: View or change lock settings Logs: View audit entries (synchronise to retrieve latest logs) Sync: Synchronise the settings between the lock and App and retrieve...
  • Page 7 Lock Settings & Parameters The lock settings can be opened by swiping left on the lock in the lock list and clicking on info (see page 3). The lock settings will now be available. Information displayed will include the lock name, battery status and date/time information Touch Parameters The parameters screen provides access to all settings that apply to the lock as a whole including feature selection, day lock-out, code free and...
  • Page 8 Code-Free Code-Free allows you to set the lock to automatically unlock at pre-determined times. Up to 10 different Code-Free Modes can be activated. From the Parameters screen (see page 5), touch Code-Free Modes To set a Code-Free Mode, touch the relevant mode (0-9) and select the days of operation and the start &...

  • Page 9: General Settings

    Day Lock-Out Lock out all clients on the specified days. From the Parameters screen (see page 5), touch Day Lock-Out Select/de-select days for access by touching the relevant days Touch the  to confirm (this will enable Day Lock-Out if not already ena- bled To disable Day Lock-Out, from the Parameters screen, swipe the switch adjacent to the Day Lock-Out pattern...
  • Page 10 NetCode NetCode allows you to create and share a 6 digit code that will give access to the lock for a specified period without needing a Bluetooth or WiFi connection to the lock. There are four modes available: Standard (Multiple Use), Standard (Single Use), URM (Long Term Rental) and ACC (Medium Term Rental) From the Parameters screen (see page 5), touch NetCode Mode Select the required mode...
  • Page 11 Clients A client is a Code, Card, Phone or NetCode that can be used to open the lock. From any screen, touch the Clients icon at the bottom of the screen Initially, you will see an empty client list (figure 1) but as locks are added, this list will populate (figure 2) To add a client, touch the + button (top-right of the screen) Touch Type to select a type of client...
  • Page 12 Phone Client A phone client is a client who had both the K3 Connect App and has registered for an account via the K3 Connect App. Follow the steps on page 9 Click the > (next) button (top-right of the screen) Touch the lock to add the client to Enter the email address of the client (must have the K3 App and a K3 ac- count)
  • Page 13 Card Client A card client is a registered MIFARE based smartcard. Follow the steps on page 9 Click the > (next) button (top-right of the screen) Touch the lock to add the client to Add any access periods Touch Setup lock Touch Sync client’s info Touch a smartcard to the lock - the lock will beep to confirm acceptance Touch OK to the onscreen success message...
  • Page 14 Code Client A card client is a registered MIFARE based smartcard. Follow the steps on page 9 Click the > (next) button (top-right of the screen) Touch the lock to add the client to Add any access periods, enter a client name and choose a code Touch Add A reminder to synchronise with the lock will appear—touch OK to dismiss Help:...
  • Page 15 NetCode Client A NetCode client is code that only works from a specific date & time and for a set duration. NetCode clients do not appear in the client list. Follow the steps on page 9 Click the > (next) button (top-right of the screen) Touch the lock to add the client to Choose a start date and hour Choose a duration (either days or hours).
  • Page 16 User Info You can change your password or configure cloud backup from the User Info screen. From any screen, touch the Settings icon at the bottom of the screen On the settings screen, touch User Info Touch Change Password to change your App password Backup can be enabled or disabled via the switch.
  • Page 17 Title Text Figure 1 Figure 2 Figure 3 Line 2 Line 2 Line 2 Figure 6 Figure 4 Figure 5 Line 2 Line 2 Line 2 Line 3 Page Spare...
  • Page 18 Document Version: 0.2 Status: Draft CLX500 Programming & Operating REGULATORY COMPLIANCE The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 19: Operation

    Document Version: 0.2 Status: Draft Operation The CLX500 family of locks support standalone and App augmented operation. When being operated independently of the App (i.e. standalone), some features are limited or not available. For the full feature set, please use the K3 App – available from the Apple App Store or Google Play Store. Features Audit Trail Records button sequence, user/smartcard information, date/time and action.
  • Page 20 Document Version: 0.2 Status: Draft Note: The Sub-Master Code is 8 digits in length #Master Code • • New Sub-Master Code • New Sub-Master Code •• #123456789 • • 44556677 • 44556677 •• Result: The Sub-Master Code has been updated to 44556677 Delete the Sub-Master Code Deletes the Sub-Master Code #Master Code...

  • Page 21: Keypad Illumination

    Document Version: 0.2 Status: Draft #Master Code • •• #12345678 • •• Result: The lock reverts to normal operation. Change the Locked/Unlocked Status By changing the locked/unlocked status, you can enable a visual locked status indicator. Disable locked status indicator (default) #Master Code •...
  • Page 22 Document Version: 0.2 Status: Draft Enable Keypad Illumination by Proximity #Master Code • • 1 Start Hour <00-23> • End Hour <00-23> •• #12345678 • • • • •• Result: Keypad illumination by proximity is enabled. Note: Battery life will be reduced by enabling keypad illumination. Enable Keypad Illumination by Button Press #Master Code •...

  • Page 23: Deleting Clients

    Document Version: 0.2 Status: Draft #12345678 • • 1199 •• Result: The Code 1199 has been suspended. Restore a Code Client #Master Code • • Code •• #12345678 • • 1199 •• Result: The Code 1199 has been restored. Help: All clients can be suspended and restored by using the lock-down programs. Deleting Clients Any Code Client can be deleted.
  • Page 24 NetCode provides a convenient way to provide date/time restricted Codes to people via the Codelocks Portal. Initialise NetCode Before NetCode can be used, the lock must be set-up first. The program below is provided for reference only. To initialise the lock correctly, follow the prompts on the Codelocks Portal. #Master Code • •...

  • Page 25: Firmware Update Process

    Document Version: 0.2 Status: Draft Enable GuestLock Enabling GuestLock sets the prefix for the specific lock. #Master Code • • • •• #12345678 • • • •• Result: The GuestLock feature is now enabled and the GuestCode prefix is set as 748. Clearing a GuestCode Before another guest can use the lock, the current GuestCode must be cleared.
  • Page 26 Document Version: 0.2 Status: Draft 1. Via the K3 App, open the Info screen of the lock to be updated 2. Select Firmware Version 3. The Firmware Upgrade page will open. To view the details about the upgrade, click Details. Select Download Firmware to start the download process 4.
