Model CL610/615 Installation Instructions
The model CL610/615 has a tubular, deadlocking, mort ice lat ch a
nd m ay be used as a new installation on a door, or where an
existing latch is to be replaced.
When installing on a fire door, fire kit is required. Please refer
to instructions on page 12 and 13.
N.B. Ensure enough room for the latch support post Please
align the template to suit the locks backset: 60mm (2 / ")
3
standard or 70mm (2 / ").
4
STEP 1

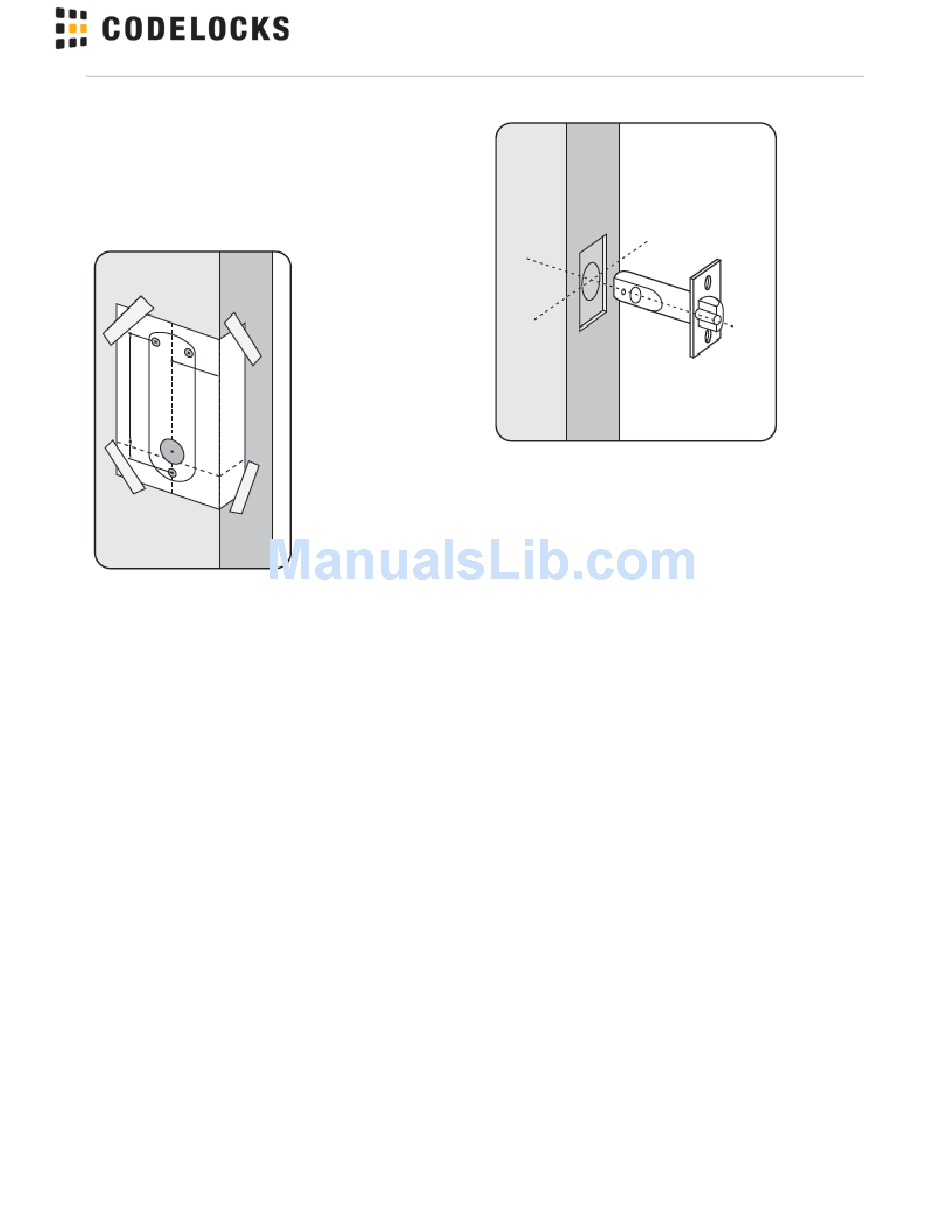

Lightly mark a height line on the edge and both faces of the door,
and on the door jamb, to indicate the top of the lock when fitted.
Crease the template (standard) along the dotted line, and tape it to
the door with the top in line with the height line. Mark the 3 x 10mm (
3 3
/ ") and the 1 x 30mm (1 / ") holes.
8 16
N.B. When fitting to a door with existing 54mm (2 / ") through
3
hole, only top two 10mm ( / ") holes need to be marked and
8
drilled.
Mark the centre of the door edge on the Centre Line of Latch.
Remove the template and apply it to the other side of the door,
aligning it accurately with the first Centre Line of Latch mark. Mark
the 4 holes again.
N.B. Space required above latch body for cam to rotate.
STEP 2
Keeping the drill level and square to the door, drill a 25mm (1") hole
in centre of door edge, deep enough to accept the latch.
STEP 3
Keeping the drill level and square to the door, drill the 10mm and
3
30mm ( / "-1 / ") holes from both sides of the door to increase
8
accuracy and to avoid splintering out the door face.
3
8
STEP 4
Put the latch into the hole and, holding it square to the door edge,
draw around the faceplate. Remove the latch and score the outline
with a Stanley knife to avoid splitting when chiselling. Chisel a
rebate to allow the latch to fit flush to the surface.
STEP 5
Fix the latch with the wood screws, with the bevel towards the door
frame.
1
STEP 6
8
Fitting the strike plate. N.B. The plunger beside the latchbolt
deadlocks it, to protect against manipulation or 'shimming'. The
strike plate must be accurately installed so that the plunger CANNO
T enter the aperture when the door is closed, even if it is slammed
shut. Position the strike plate on the door frame so that it lines up
with the flat of the latchbolt, and NOT the plunger. Mark the
positions of the fixing screws, and draw around the aperture of the
strike plate. Chisel out the aperture 15mm ( / ") deep to receive the
latchbolt. Fix the strike plate to the surface of the frame using only
the top fixing screw. Gently close the door and check that the
latchbolt enters the aperture easily, and is held without too much
'play'. When satisfied, draw around the outline of the strike plate,
remove it and cut a rebate to enable the faceplate to lie flush with
the surface. Re-fix the strike plate using both screws.
