STEP 7

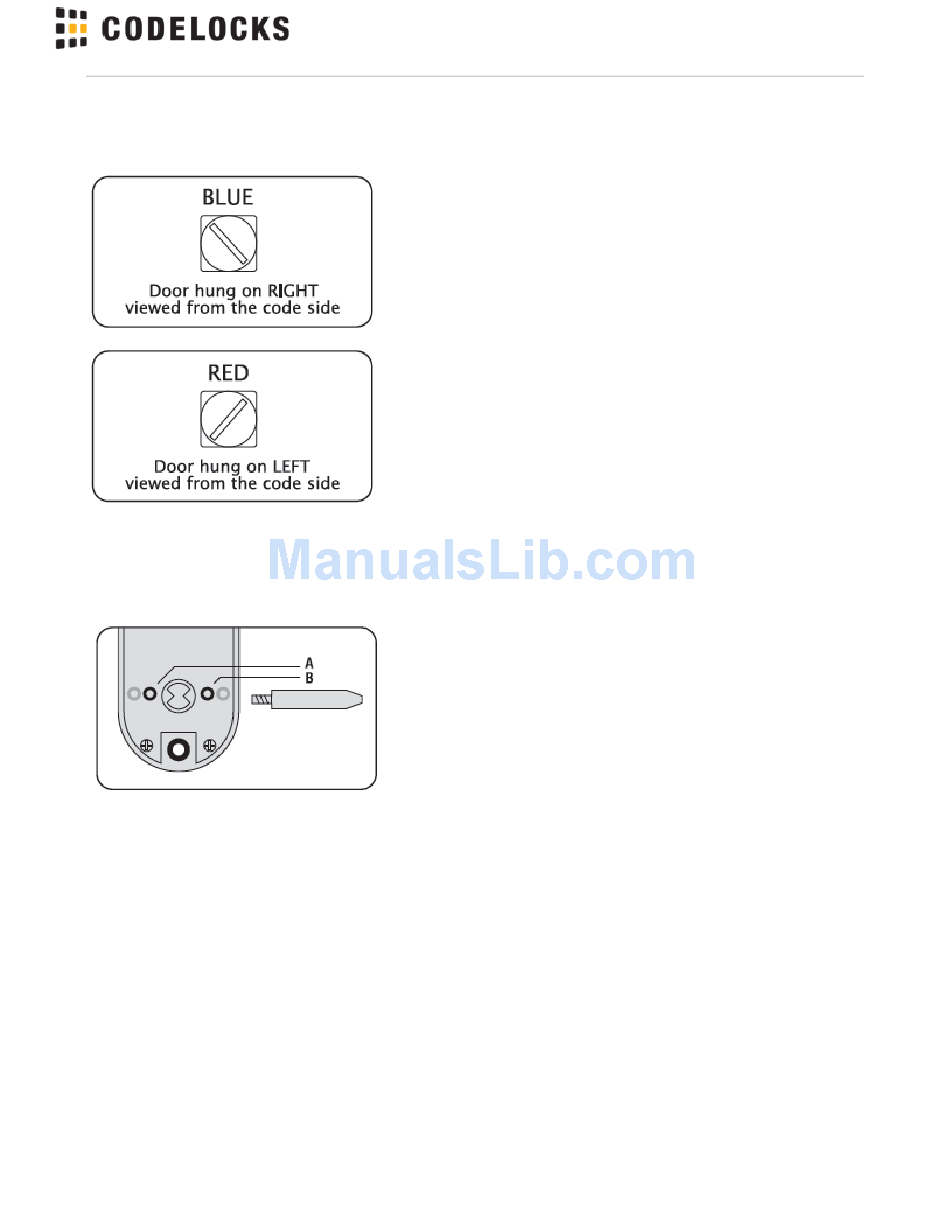

Take the BLUE or RED tipped spindle and fit to the code side
according to the hand of your door (see diagram).
Fit remaining spindle to inside - non code side.
STEP 8
Fit the latch support post into back of the code side front plate
according to the hand of your door, A for a right hand door, or B for
a left hand door (see diagram).
STEP 9
Cut three of the socket head bolts to the required length for your
door. Approximate overall length should be door thickness plus
25mm (1") to allow about 10mm ( / ") of threaded bolt to enter the
outside plate.
STEP 10
Apply the front and back plates, with the neoprene seals in position,
against the door, over the protruding ends of the spindle.
3
8
Page 6
Find more online at www.codelockssupport.com
STEP 11
Fix the two plates together using the socket head bolts, starting with
the top fixing. Ensure that the two plates are truly vertical and then
tighten the bolts using the 'T' shaped Allen key. Do not use
excessive force.
STEP 12
Check that the lever handles are correctly fitted for the hand of door.
To change the hand of a lever handle, loosen the grub screw with
the small Allen key, reverse the lever handle and fully tighten the
grub screw.
STEP 13
Before closing the door, enter the code and ensure that the latchbolt
will retract when the lever handle is depressed. Now check the
operation of the inside lever handle. If there is any binding of the
handles or latch then loosen the bolts and reposition the plates
slightly until the correct position is found, and then re-tighten the
bolts.
