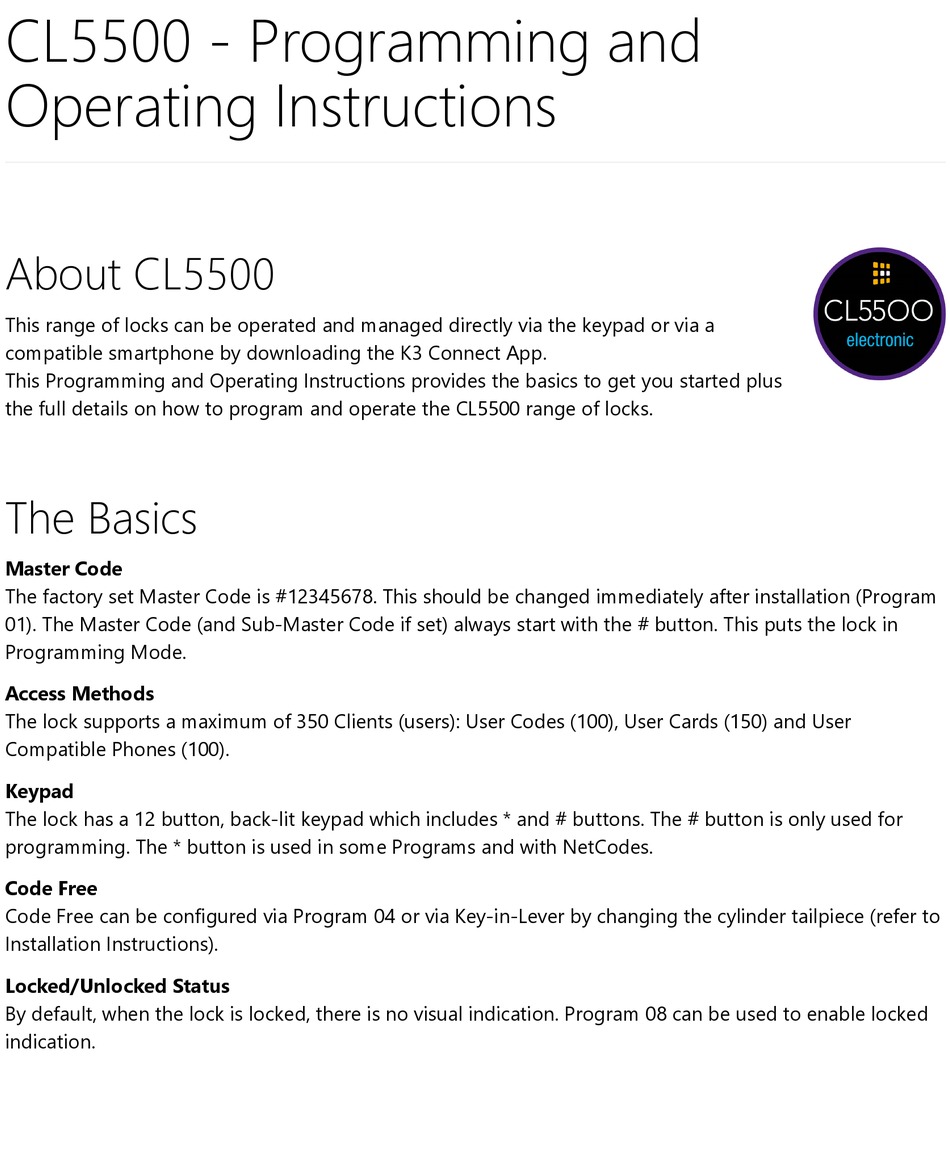

CL5500 - Programming and
Operating Instructions
Views: 866

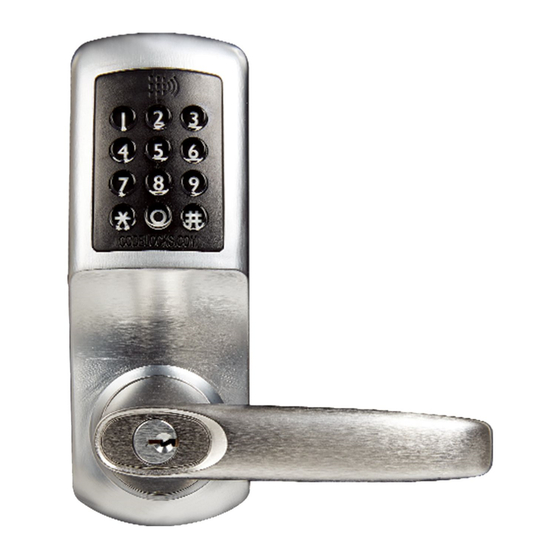

About CL5500
This range of locks can be operated and managed directly via the keypad or via a
compatible smartphone by downloading the K3 Connect App.
This Programming and Operating Instructions provides the basics to get you started plus
the full details on how to program and operate the CL5500 range of locks.
The Basics
Master Code
The factory set Master Code is #12345678. This should be changed immediately after installation (Program
01). The Master Code (and Sub-Master Code if set) always start with the # button. This puts the lock in
Programming Mode.
Access Methods
The lock supports a maximum of 350 Clients (users): User Codes (100), User Cards (150) and User
Compatible Phones (100).
Keypad
The lock has a 12 button, back-lit keypad which includes * and # buttons. The # button is only used for
programming. The * button is used in some Programs and with NetCodes.
Code Free
Code Free can be configured via Program 04 or via Key-in-Lever by changing the cylinder tailpiece (refer to
Installation Instructions).
Locked/Unlocked Status
By default, when the lock is locked, there is no visual indication. Program 08 can be used to enable locked
indication.
1/13
Advertisement
Table of Contents
Related Manuals for CODELOCKS CL5500 Series
Summary of Contents for CODELOCKS CL5500 Series
- Page 1 Code Free can be configured via Program 04 or via Key-in-Lever by changing the cylinder tailpiece (refer to Installation Instructions). Locked/Unlocked Status By default, when the lock is locked, there is no visual indication. Program 08 can be used to enable locked indication. https://support.codelocks.com/knowledgebase/article/KA-01040/en-us 1/13...
-
Page 2: Factory Reset
To reset the lock, you must have access to the battery compartment in the rear of the lock. 1. Remove a battery. 2. Press and hold the 0 button. https://support.codelocks.com/knowledgebase/article/KA-01040/en-us 2/13... -
Page 3: Regulatory Compliance
Android, Google Play and the Google Play logo are trademarks of Google Inc. Programs 01 Change the Master Code Note: The Master Code is 8 digits in length. #Master Code • 01 • New Master Code • New Master Code •• Example: #12345678 • 01 • 87654321 • 87654321 •• Result: The Master Code has been updated to 87654321 https://support.codelocks.com/knowledgebase/article/KA-01040/en-us 3/13... - Page 4 By closing the normally open REM 2 contact, the lock will open for 30 minutes. The Emergency Open Cancellation reverts the lock to normal operation after the REM 2 input has been triggered. Note: This Program is available to both the Master and Sub-Master Codes. #Master Code • 07 •• https://support.codelocks.com/knowledgebase/article/KA-01040/en-us 4/13...
- Page 5 Prevent the lock from being unlocked by any method except via Master Code and Sub-Master Code: Note: This Program is available to both the Master and Sub-Master codes. #Master Code • 15 • 1 •• Example: #12345678 • 15 • 1 •• Result: Lock-Down is enabled. Only the Master and Sub-Master Codes can be used to open the lock. https://support.codelocks.com/knowledgebase/article/KA-01040/en-us 5/13...
- Page 6 Note: This Program is available to both the Master and Sub-Master Codes. #Master Code • 05 • 2 • Code Free period <0-9> •• Example: #12345678 • 05 • 2 • 0 •• Result: Code Free period 0 restored 05.3 Suspend all Code Free periods Note: This Program is available to both the Master and Sub-Master Codes. #Master Code • 05 • 3 •• https://support.codelocks.com/knowledgebase/article/KA-01040/en-us 6/13...
-
Page 7: Date And Time
In the majority of countries where DST operates, DST is applied at 01:00. This is the default DST time on the lock but can be changed by using the program below. 12 Set new Daylight Saving Time #Master Code • 12 • Time <HH> •• Example: #12345678 • 12 • 02 •• Result: DST will now be applied at 02:00 Clients (Users) Add a New Client https://support.codelocks.com/knowledgebase/article/KA-01040/en-us 7/13... - Page 8 Note: This program does not affect Master Codes, Sub-Master Codes or NetCodes. This program will affect Code Clients, smart card Clients and GuestCode Clients. Note: This Program is available to both the Master and Sub-Master codes. #Master Code • 29 • Week Pattern •• Example: #12345678 • 29 • 1111100 •• Result: Entry only permitted on Mondays to Fridays. https://support.codelocks.com/knowledgebase/article/KA-01040/en-us 8/13...
-
Page 9: Deleting Clients
Any Code Client can be deleted. When the lock is being used in standalone operation, smart card clients can only be deleted by deleting all clients. 25 Delete a Single Code Client Note: This Program is available to both the Master and Sub-Master Codes. #Master Code • 25 • Code • Code •• Example: #12345678 • 25 • 1199 • 1199 •• Result: The Code 1199 has been deleted. https://support.codelocks.com/knowledgebase/article/KA-01040/en-us 9/13... - Page 10 Result: Restores the first Active Period for Client with Code 1199. 28.3 Suspend All Active Periods for Specific Code Client Note: This Program is available to both the Master and Sub-Master codes. #Master Code • 28 • 3 • Code •• Example: #12345678 • 28 • 3 • 1199 •• Result: Suspends all the Active Periods for Client with Code 1199. https://support.codelocks.com/knowledgebase/article/KA-01040/en-us 10/13...
- Page 11 The GuestLock feature allows a guest to choose their own 4 digit Code (GuestCode) by prefixing their chosen GuestCode with that particular locks GuestCode prefix. The GuestLock feature must be enabled before use. 60 Enable GuestLock Note: Enabling GuestLock sets the prefix for the specific lock. #Master Code • 60 • 748 • 748 •• https://support.codelocks.com/knowledgebase/article/KA-01040/en-us 11/13...
-
Page 12: Troubleshooting
If a programming mistake is made, the keypad will flash red and the lock will revert to normal operation. Factory Reset Restore the lock to factory default (when the Master Code is unknown). 1. Remove battery 2. Press and hold 0 3. Replace battery 4. Release 0 5. Press 0 three times https://support.codelocks.com/knowledgebase/article/KA-01040/en-us 12/13... - Page 13 © 2018 Codelocks Ltd. All rights reserved. Keywords: Lock Locks Code CodeLock CodeLocks Program Programming Instruction Instruct Help Support Troubleshoot Troubleshooting Sequence Sequences NetCode Net NetCodes Install Installation K3 Connect Application App Android iOS Permissions Update Firmware Lock Parameters...
