STEP 10
Fix the two plates together using the socket head bolts, starting with
the top fixings. Ensure that the two plates are truly vertical and then
tighten the bolts using the 'T' shaped Allen key. Do not use
excessive force.

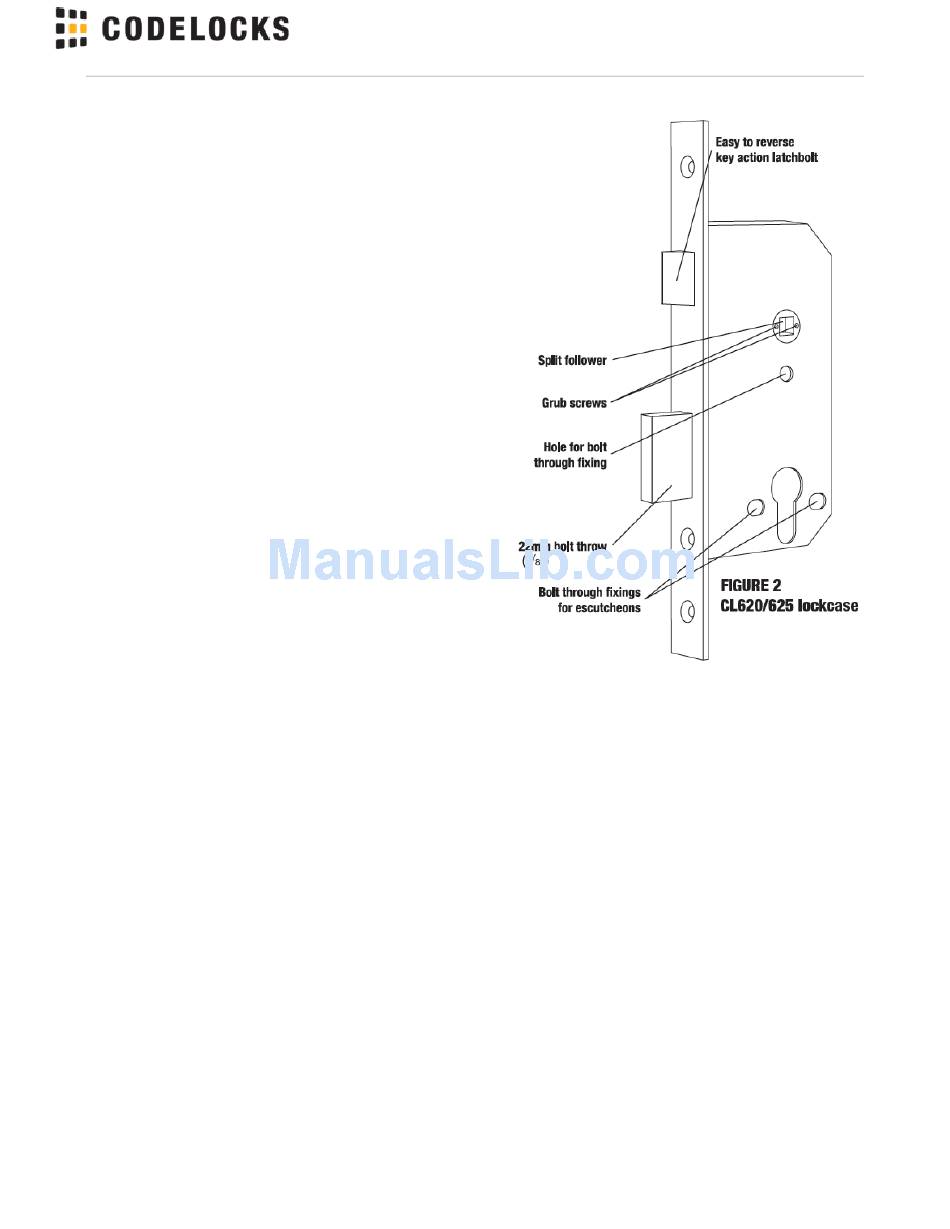

STEP 11
Check that the lever handles are correctly fitted for the hand of door.
To change the hand of a lever handle, loosen the grub screw with
the small Allen key, reverse the lever handle and fully tighten the
grub screw.
STEP 12
Before closing the door, enter the code and check that the latchbolt
will retract when the lever handle is depressed. Now check the
operation of the inside lever handle. If there is any binding of the
handles or the latch then loosen the bolts and reposition the plates
slightly until the correct position is found, and then re-tighten the
bolts.
STEP 13
Fit the double Euro-profile cylinder and secure it with the long screw
through the faceplate. Fit the cylinder escutcheons.
STEP 14
Check that the deadbolt will project and retract by key, and that the
key will also retract the latchbolt. Check that the inside lever handle
WILL retract the deadbolt simultaneously with the latchbolt. Check
that the outside lever handle WILL NOT retract the deadbolt.
STEP 15
Mark a vertical line on the door jamb half the door thickness away
from the door stop. This gives the centre line of the strike plate.
Align the Strike Plate Template with the height line, with the arrow
heads aligned with the centre line. Mark the fixing holes, and draw
around the apertures for the latchbolt and the deadbolt. Chisel out
1
the latch aperture to 12mm ( / ") deep, and the deadbolt aperture to
2
7
22mm ( / ") deep. Fix the strike plate with the top screw only and
8
gently close the door. Ensure that the latchbolt enters its aperture
easily and holds the door without too much 'play'. When satisfied,
draw around the final position of the strike plate, remove it, and cut a
rebate to allow it to fit flush to the surface. Re-fix the strike with both
screws.
