6.2

Using MER

Using Bridging
Always on and
credentials
MER end to end
architecture
3EC 17766 AAAA TCZZA Ed. 01
From this point on, using MER is rather straight forward. Turn on
both your STWireless and PCs, and your connected to the remote
access router.
As MER presents itself as a Bridge, the connection behaves as for
the Transparent Bridging packet service. No connection procedure
must be performed prior to connectivity.

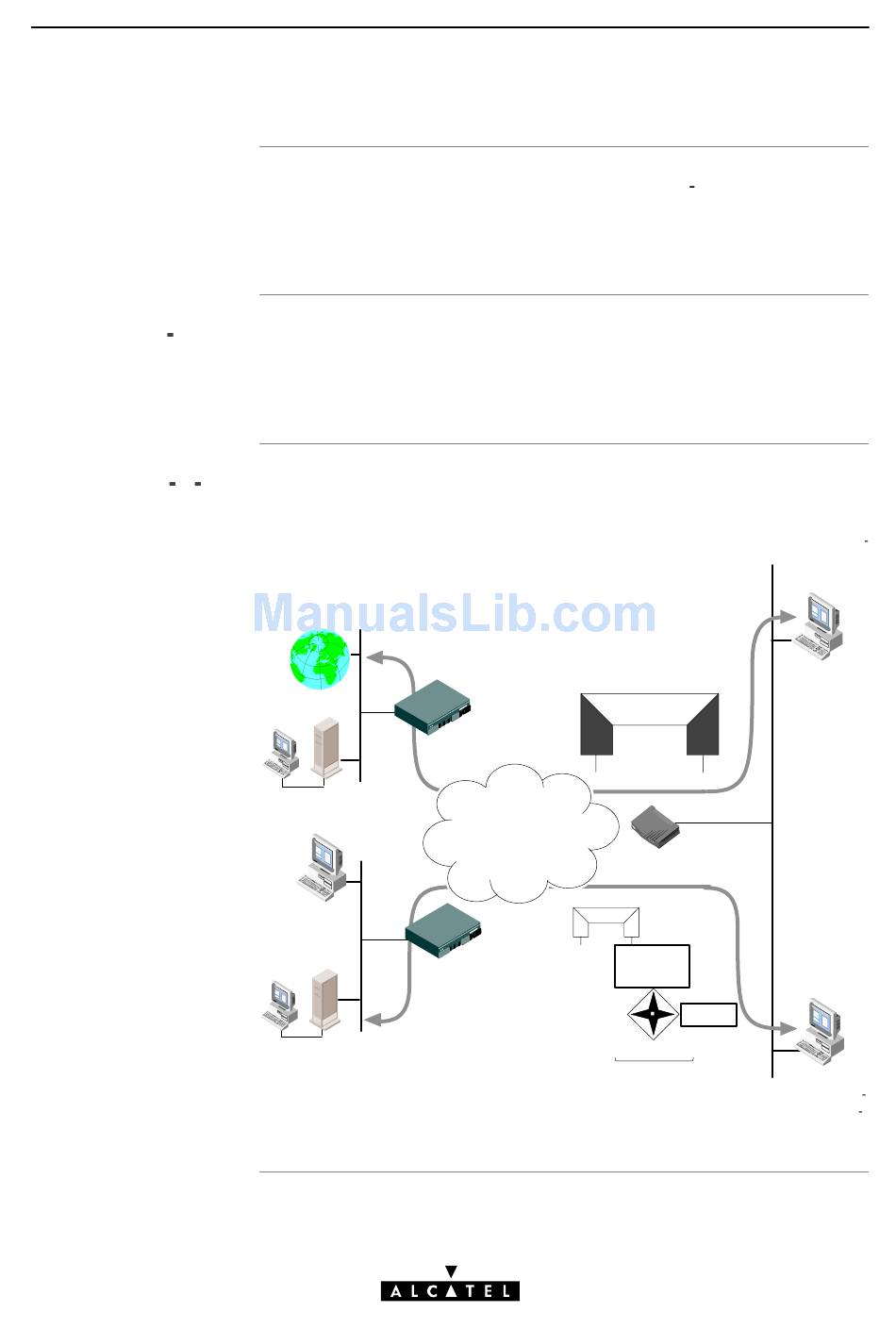

In the following figure an example configuration of a Transparent
Bridging connection, and a MER connection is given:
Internet
Access Point
Server
Remote LAN
Access Point
Server
6 Data Services - MAC Encapsulated Routing
MAC Frames
ISP
ATM
Network
Virtual Bridging
Interface
IP Routing
PC 1 connected via the STWire
less's Transparent Bridge
Bridge
MER
Ethernet
NAPT
PC 2 connected via the STWire
less's IP Router and MER Inter
face
77 / 362
