Page 1: User Manual

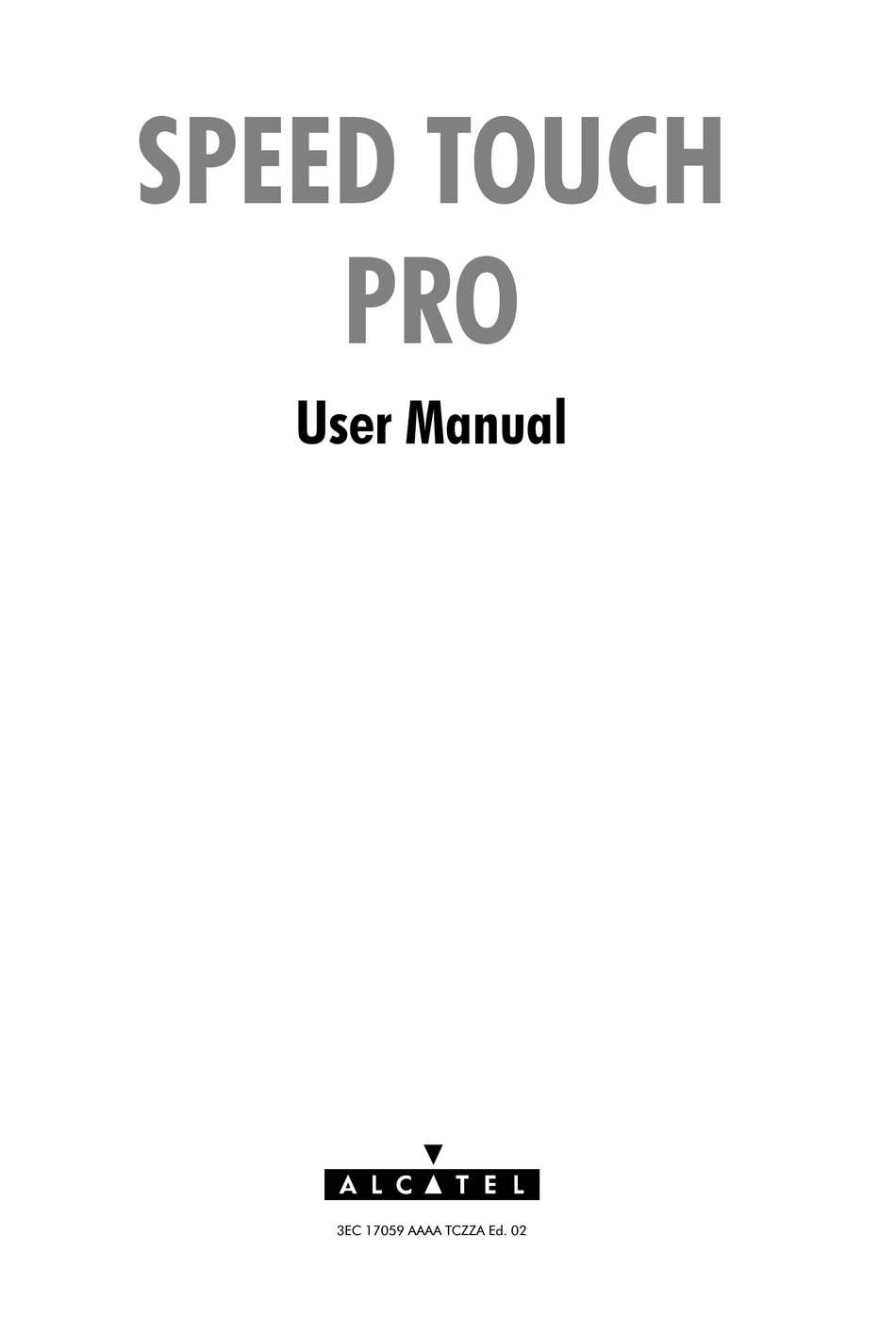

SPEED TOUCH User Manual 3EC 17059 AAAA TCZZA Ed. 02...
Page 2: Ec 17059 Aaaa Tczza Ed
BD F aa 29597 Short Title CD-UG STPro R3.2 All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization from Alcatel. 2 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 3: Table Of Contents
..........Speed Touch Pro at a Glance .
Page 4 Contents ADSL Modem Model vs. ADSL Gateway Model ..... 5.5.1 ADSL Modem Model ........5.5.2 ADSL Gateway Model .
Page 5 Contents 7.9.3 Multiple Destinations ........7.9.4 Restrictions on Using Specific Virtual Channels .
Page 6 ..... . 11.3 Speed Touch Pro and IP Addressing ......
Page 7 ....16.2 Browsing to the Speed Touch Pro Web Pages ..... . .
Page 8 Contents Figures Figure 1 Delivery check ..........Figure 2 Generic end to end network architecture .
Page 9: Figure 33 'Pptp' Web Page
Contents Figure 45 'Routing' box ........... Figure 46 'Options' input box .
Page 10 Contents 10 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 11: Welcome To The Speed Touch
From now on, your online experience will be greatly enhanced due to the high speed Internet access that the ADSL technology delivers. Over the past five years, Alcatel ADSL has evolved from the drawing boards to operational products. This technological breakthrough coincides with an ever increasing demand for better Internet access.
Page 12 CAUTION: indicates that failure to follow the directions could result in damage to equipment or loss of information. Trademarks The following trademarks are used in this document: Speed Touch is a trademark of the Alcatel Company " Windows and Internet Explorer are trademarks of "...
Page 13 1 Welcome to the Speed Touch User Manual updates Due to the continuous evolution of Alcatel ADSL technology, existing products are often upgraded. Alcatel documentation changes accordingly. For more information on the newest technological breakdowns and documents, please consult our Alcatel web site at: http://www.alcatel.com...
Page 14 1 Welcome to the Speed Touch 14 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 15: Speed Touch Pro Tour
2 Speed Touch Pro Tour 2 Speed Touch Pro Tour Introduction This chapter aims to familiarize you with the In this chapter This chapter covers the following topics: Topic Delivery Check at a Glance Requirements 15 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 16: Delivery Check
2 Speed Touch Pro Tour Delivery Check Introduction This section describes what to do before connecting, powering and configuring the Delivery check Prior to installation, inspect the package for damaged items. Also make sure the package contains all of the...
Page 17 2 Speed Touch Pro Tour Damaged or missing In the event of damaged or missing items, contact your local product dealer for further instructions. items Release notes Your shipping carton may also include release notes and other materials. 17 / 340...
Page 18: Speed Touch Pro At A Glance
2 Speed Touch Pro Tour Speed Touch Pro at a Glance ADSL router Your is an ADSL router providing Internet access, or remote Local Area Network (LAN) access at very high speed (up to 8 Mega bits per seconds (Mbps) downstream) via the ADSL line.
Page 19: Generic End To End Use Of The Stpro
2 Speed Touch Pro Tour 2.2.1 Generic End to End Use of the STPro Your STPro connects your Personal Computer (PC), workstation to the Internet and/or corporate Intranet. This can be accomplished by the ubiquitous available 10Base T Ethernet V2.0/IEEE802.3 port, or by the (optional) industry standard Asynchronous Transfer Mode (ATM) Forum 25.6 Mbps port.
Page 20: Stpro Models
2 Speed Touch Pro Tour 2.2.2 STPro Models STPro models Depending on the available hardware ports, three models can be identified: The single 10Base T Ethernet port model " The dual port model with both 10Base T Ethernet port "...
Page 21: Front Panel Layout And Led Description
2 Speed Touch Pro Tour 2.2.3 Front Panel Layout and LED Description Front panel layout models have a similar front panel: adsl 0632/ 02 Figure 3 STPro front panel Five front panel LEDs is equipped with 5 LEDs on its front panel, indicating the state of the device (See figure 3).
Page 22: Rear Panel Layout
2 Speed Touch Pro Tour 2.2.4 Rear Panel Layout Rear panel differences The rear panel differs depending on the model. Single port model Power Serial Line Switch Switches Port Port Ethernet Port Power adsl 0630/ 00 Socket Figure 4 Rear panel with one Ethernet port...
Page 23: Figure 7 Link Integrity(Activity) Led In Ethernet Port
2 Speed Touch Pro Tour Ethernet port(s) LED Each of the Ethernet ports on the rear panel has a LED: Link Integrity(Activity) Led 10Base T/MDI-X adsl 0800/ 01 Figure 7 Link integrity(activity) LED in Ethernet port Indication of link For all...
Page 24: Requirements
2 Speed Touch Pro Tour Requirements Introduction requires appropriate hardware and system configurations for proper performance. In this section This section covers the following topics: Topic Hardware Related Requirements 2.3.1 ATM Related Requirements 2.3.2 Software Related Requirements 2.3.3 24 / 340...
Page 25: Hardware Related Requirements
2 Speed Touch Pro Tour 2.3.1 Hardware Related Requirements In this subsection The covered topics concern: ADSL and telephone service " and telephone service " Ethernet " ATMF 25. " ADSL and telephone ADSL service must be enabled on your telephone line.
Page 26: Atm Related Requirements
2 Speed Touch Pro Tour 2.3.2 ATM Related Requirements ADSL router relies on ATM technology for its wide area communications. On top of ADSL, all packet services use ATM virtual channels. The Virtual Path Identifier (VPI)/Virtual Channel Identifier (VCI) are two labels that together uniquely identify an ATM Virtual Channel (VC).
Page 27: Software Related Requirements
2 Speed Touch Pro Tour 2.3.3 Software Related Requirements Two software related The topics concern: topics Operating System (OS) " Local Configuration of the " Operating system Depending on the used packet service(s), the requirements on the OS differ: If the STPro is used with... Then ...
Page 28 2 Speed Touch Pro Tour 28 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 29: Connecting The Speed Touch Pro
3 Connecting the Speed Touch Pro 3 Connecting the Speed Touch Pro Introduction This chapter describes how to connect your Prior to connecting Refer to figures 8 and 9 for locating the various connectors and ports in order to complete the connection procedure for the...
Page 30: Locating The Speed Touch Pro Connectors
3 Connecting the Speed Touch Pro Locating the Speed Touch Pro Connectors Locating ports Figure 8 Rear view of the single, or dual port STPro model Figure 9 Rear view of the hub STPro model Port description To connect the , following ports are used: 1 : 10Base T Ethernet port(s), marked 10BASE T/MDI X"...
Page 31: Connecting The Ethernet Port(S)
3 Connecting the Speed Touch Pro Connecting the Ethernet Port(s) Introduction This section provides information on the Ethernet V2.0/IEEE802.3 ports. It also deals with the network configuration capabilities of the In this section This section covers the following topics: Topic Ethernet Port(s) on your 3.2.1...
Page 32: Ethernet Port(S) On Your Stpro
3 Connecting the Speed Touch Pro 3.2.1 Ethernet Port(s) on your STPro Ethernet interfaces Each Ethernet port is a 10Base T Half Duplex Ethernet interface of type MDI X, connecting to either a single PC, or a workgroup hub. STPro model Ethernet...
Page 33: Lan Cables
3 Connecting the Speed Touch Pro 3.2.2 LAN Cables Included LAN cable In your package, a full wired straight through RJ45/RJ45 Ethernet cable, further referred to as LAN cable, is included. Using LAN cables You can use LAN cables other than the one provided in the box, e.g.
Page 34: Connecting Ethernet
3 Connecting the Speed Touch Pro 3.2.3 Connecting Ethernet Possibilities offers the following connection possibilities: Single PC Configuration " LAN Configuration. " Note: All connection figures refer to the hub model. Single PC configuration In this configuration the is connected to a single PC/ workstation.
Page 35: Figure 11 Lan Configuration
3 Connecting the Speed Touch Pro LAN configuration The most convenient way to create a LAN is via an Ethernet hub. Procedure Proceed as indicated in the following figure to make the connections ( hub specific connections are shaded gray):...
Page 36: Connecting The Atmf 25 Port (Optional)
3 Connecting the Speed Touch Pro Connecting the ATMF 25 Port (Optional) Check your STPro This connection procedure applies solely to the dual port model model. ATMF 25 port The ATMF 25 port on the single Ethernet port model is an ATM Forum 25.6 Mbit/s compliant interface of type ATM Network...
Page 37: Connecting The Adsl Port
3 Connecting the Speed Touch Pro Connecting the ADSL Port Important information Prior to connect the to the ADSL line, read chapter 4. on ADSL Preconditions prior to A central splitter, or distributed filters for decoupling ADSL and POTS, or ISDN signals must be installed.
Page 38: Connecting The Serial Port (Optional)
3 Connecting the Speed Touch Pro Connecting the Serial Port (Optional) Serial access Like most routers, the carries a serial port on its rear panel, featuring access from a remote host via a modem connection, or local access from a terminal.
Page 39: Connecting The Power Adapter
3 Connecting the Speed Touch Pro Connecting the Power Adapter Introduction is delivered with a modular external power adapter converting the AC mains to 9V /1A unregulated output voltage. Power adapter types Check if the power adapter included in the package is compatible with your local electrical power specifications.
Page 40: Connection Resumé
3 Connecting the Speed Touch Pro Connection Resumé After connecting After you finished connecting the , the result could resemble one of the following examples: Figure 15 Connecting results, examples Note The right below example shows a fully connected hub model, including the ADSL line and power adapter connection.
Page 41: Turning On/Off
3 Connecting the Speed Touch Pro Turning On/Off Turning on the STPro Turn on the with the power switch. POST phases As soon your is turned on, you can check the PWR/Alarm" LED (See section 2.2.3) to see how the POST progresses.
Page 42 3 Connecting the Speed Touch Pro 42 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 43: Adsl Connectivity
4 ADSL Connectivity 4 ADSL Connectivity Introduction ADSL is state of the art router technology, used for unlocking the potential bandwidth of the widely available public telephone network. In this chapter This chapter covers the following topics: Topic ADSL Exposed Preconditions Splitter and Filters ADSL Line Pinning...
Page 44: Adsl Exposed
4 ADSL Connectivity ADSL Exposed ADSL ADSL is short for Asymmetric Digital Subscriber Line. This somewhat cryptic name is best explained in straightforward terms: Line: ADSL uses the ordinary existing copper line, known as " local loop", running between your local premises and the telephone central office.
Page 45: Preconditions
4 ADSL Connectivity Preconditions Before you start using Prior to using the , you MUST contact your ADSL provider. ADSL service The provider will inform you whether the ADSL service is already enabled. If not, the provider will advice you on how to proceed. Requirements to use Your ADSL provider must provide you with: ADSL service...
Page 46: Splitter And Filters
4 ADSL Connectivity Splitter and Filters Mutual POTS/ADSL, or Next to existing POTS, or ISDN signals, ADSL signals are added to the wires in central telephony offices. ISDN/ADSL interference Although POTS, or ISDN and ADSL occupy distinct channels, they might influence one another. Consequences of In devices such as phones, modems, answering machines and fax machines (collectively referred to as telephony devices) ADSL...
Page 47: Central Splitter
4 ADSL Connectivity 4.3.1 Central Splitter Introduction In this subsection some configuration features of the central splitter are described. In all cases contact your ADSL service provider about splitter installation. Public telephone lines carry voltages that can cause electric WARNING shock.
Page 48 4 ADSL Connectivity Splitter installation The central splitter is installed as follows: and in house cabling The POTS/ADSL, or ISDN/ADSL line is connected to the " splitter input One output, containing POTS, or ISDN signals only, is " connected to the existing in house POTS, or ISDN network for your ordinary telephone service The other output, containing POTS/ADSL, or ISDN/ADSL, is "...
Page 49: Distributed Filters
4 ADSL Connectivity 4.3.2 Distributed Filters Introduction In this subsection some configuration features of distributed filters are described. In this subsection This subsection covers the following topics: General Configuration " In house ADSL Service " Filter Installation " General configuration In this configuration, the combined POTS/ADSL, or ISDN/ADSL signals are distributed over the complete in house wiring.
Page 50: Adsl Line Pinning
4 ADSL Connectivity ADSL Line Pinning Introduction This section provides information on the possible ADSL pinning terminations. STPro ADSL connector Depending on the model variant you purchased, ADSL is terminated on pins 2/5, or 3/4 of the ADSL port (See section A.2). pinning, and included ADSL cable To identify your model variant, see the marking label on your...
Page 51: Packet Services
5 Packet Services 5 Packet Services Introduction to packet This chapter is about selecting the appropriate packet service for your application. services In this chapter This chapter covers the following topics: Topic Supported Packet Services Packet Services at a Glance Internet &...
Page 52: Supported Packet Services
5 Packet Services Supported Packet Services What is a packet A packet service can be defined as: service ? The actions that need to be performed on every data packet in order to filter or forward packets to the next device in the communication chain."...
Page 53: Packet Services At A Glance
5 Packet Services Packet Services at a Glance Introduction In this section an introductory overview of all packet services is given together with some of their most important features. In this section This section covers the following topics IEEE 802.1D Transparent Bridging "...
Page 54 5 Packet Services IEEE 802.1D IEEE802.1D Transparent Bridging packet service offers Transparent Bridging complete protocol transparency and has inherent configuration simplicity. Yet it provides excellent forwarding performance. PPPoA to PPTP In contrast to Transparent Bridging, which provides an "Always On" type of connection, PPPoA to PPTP Relaying Relaying (PPPoA/PPTP), supports a session concept.
Page 55 5 Packet Services Selection criteria The criteria below can help you to select the most appropriate packet service for your application: The configuration required by your ISP , or corporate LAN " administrator The application protocol you wish to use (within the "...
Page 56: Internet & Corporate Intranet Access Vs. Lan To Lan Interconnection
5 Packet Services Internet & Corporate Intranet Access vs. LAN to LAN Interconnection Exemplary applications This manual highlights the two most prominent applications using ADSL: using ADSL High speed Internet access, or corporate Intranet access " Private Wide Area Network (WAN) / Local Area Network (LAN) "...
Page 57: Direct Networking Vs. Dial Up Networking
5 Packet Services Direct Networking vs. Dial up Networking Introduction offers two solutions to access remote information infrastructures: "Direct Networking" and "Dial Up Networking". In this section This section covers the following topics: What is Direct Networking " Comparison with LAN Networking "...
Page 58 5 Packet Services STPro vs. networking supports both direct networking, and dial up networking solutions, independently whether you are using the Ethernet, or the ATMF 25 port. ATMF 25 port & Due to the transparent character of the ATMF 25 port, it allows both networking modes to be used.
Page 59: Adsl Modem Model Vs. Adsl Gateway Model
5 Packet Services ADSL Modem Model vs. ADSL Gateway Model Introduction In the configuration where multiple PCs/workstations reside on a common LAN, they must share a gateway for specific services. The most important service is ADSL for accessing the outside world. can be used as a fast ADSL router, leaving the gateway tasks to another LAN member.
Page 60: Adsl Modem Model
5 Packet Services 5.5.1 ADSL Modem Model ADSL modem model in this role, provides connectivity to either a single PC, or to a dedicated home gateway. STPro connected to single PC ADSL Line Bit pipe Single PC STPro connected to Home gateway ADSL Line Bit pipe Home Gateway...
Page 61: Adsl Gateway Model
5 Packet Services 5.5.2 ADSL Gateway Model ADSL gateway model The gateway to access the outside world can be a dedicated PC as shown in subsection 5.5.1. However, the itself is designed to act as a cost effective ADSL gateway. ADSL Line ADSL "router"...
Page 62 5 Packet Services 62 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 63: Ieee 802.1D Transparent Bridging
6 IEEE 802.1D Transparent Bridging 6 IEEE 802.1D Transparent Bridging Introduction IEEE802.1D Transparent Bridging packet service offers complete protocol transparency and has inherent configuration simplicity. Yet it provides excellent forwarding performance. In this chapter This chapter covers the following topics: Topic Bridging Features Bridging Requirements...
Page 64: Bridging Features
" Is simple to configure and easy to use " Is a true multiprotocol device " In the Alcatel implementation, has no performance limitations " Has no theoretical constraints on the number of attached " users (There is a practical limit to achieve a reasonable performance, e.g.
Page 65: Bridging Requirements
6 IEEE 802.1D Transparent Bridging Bridging Requirements In this section This section covers the following topics: Remote Organization " " PC/Workstation(s) " TCP/IP . " Remote organization The remote organization must: Provide the VPI/VCI values of the VCs on which the Bridging "...
Page 66 6 IEEE 802.1D Transparent Bridging PC/Workstation(s) 's Transparent Bridging packet service does not impose specific requirements to your PC/workstation's networking protocol layers. However, ensure that the applied protocols are properly installed and configured on your PC/workstation. TCP/IP For TCP/IP , your ISP or corporate LAN administrator will assign you either static IP parameters (per PC/workstation): The IP address "...
Page 67: Using Bridging
6 IEEE 802.1D Transparent Bridging Using Bridging Using Bridging From this point on, using Transparent Bridging is rather straight forward. Turn on both your and PC, start your Web browser and you are on the Internet. Always on and This form of remote network access is sometimes referred to as Always on".
Page 68: Bridging Configuration
6 IEEE 802.1D Transparent Bridging Bridging Configuration Introduction allows local configurations via the web pages. This section describes the configuration of Bridging entries, and the use of the 'Bridging' web page. In this section This section covers the following topics: Topic Bridging Phonebook Entries 6.4.1...
Page 69: Bridging Phonebook Entries
6 IEEE 802.1D Transparent Bridging 6.4.1 Bridging Phonebook Entries In this subsection This subsection covers the following topics: Bridging phonebook entries " Adding Bridging Phonebook Entries " Deleting Bridging Phonebook Entries. " See subsection 10.3.2 for more information. Bridging phonebook Central to the VC pool management, is the 'Phonebook' entries...
Page 70: Bridging Entries
6 IEEE 802.1D Transparent Bridging 6.4.2 Bridging Entries In this subsection This subsection covers the following topics: 'Bridging' Web Page " The 'Bridging Ports' Table " 'Bridging Ports' Table Components " The 'Aging' Box " Adding Bridging Entries " Deleting Bridging Entries. "...
Page 71: Figure 24 'Bridging Ports' Table
6 IEEE 802.1D Transparent Bridging The 'Bridging Ports' The following figure shows the 'Bridging Ports' table: table Figure 24 'Bridging Ports' table 'Bridging Ports' table The following fields are shown in the 'Bridging Ports' table: components Field Description Bridge Port Indicates the name you have chosen for the Bridge phonebook entry.
Page 72: Figure 25 'Aging' Box
6 IEEE 802.1D Transparent Bridging Field Description Allows you to change the state of the individual LAN ports. It State can take following values: Value Description disabled The Bridge port participates in the relaying of frames. Source MAC addresses of frames, arriving in the Bridge via this port are also stored in the filtering database.
Page 73 6 IEEE 802.1D Transparent Bridging Adding Bridging Proceed as follows to add a Bridging entry to the 'Bridging Ports' table: entries Step Action and Description Browse to the 'Bridging' web page. The bottom row of the table allows addition of a new entry. In the 'Bridge Port' column of the bottom row, click and select the Bridging entry you want to add to the table.
Page 74 6 IEEE 802.1D Transparent Bridging Deleting Bridging Proceed as follows to delete a Bridging entry from the 'Bridging Ports' table: entries Step Action and Description Browse to the 'Bridging' web page. Select the Bridging entry you want to delete, and click to finish the procedure.
Page 75: Advanced Bridging Concepts
6 IEEE 802.1D Transparent Bridging Advanced Bridging Concepts Bridging Bridging is a LAN technology that transparently relays Ethernet frames between Bridging ports. Depending on the destination MAC addresses of Ethernet frames, the bridge makes decisions whether to forward or discard frames. Central to the operation of a databridge is its filtering database.
Page 76: Stpro Bridge Operation
6 IEEE 802.1D Transparent Bridging 6.5.1 STPro Bridge Operation Introduction to bridge This section describes how the bridge operates. All of these operation operations have an impact on the entries in the filtering database of the bridge. One of the characteristics of a databridge is the number of supported Bridge ports.
Page 77 6 IEEE 802.1D Transparent Bridging Learning If the bridge is turned on, the filtering database is empty. Over time it is filled with entries via the learning mechanism. Ethernet frames arriving on any port are inspected for their source MAC address and put into the filtering database together with the port ID the frames arrived on.
Page 78 Indeed, it makes little sense to forward the frame on this port as the destination is directly connected to the source. Isolation The Alcatel Multiport bridge in the provides isolation between remote ports. i.e. Frames (including broadcasts) arriving via ADSL/ATM ports will never be forwarded/flooded to another ADSL/ATM port.
Page 79: Stpro 'Bridge Data' Web Page
6 IEEE 802.1D Transparent Bridging 6.5.2 STPro 'Bridge Data' Web Page Introduction Transparent Bridging relies completely on its filtering database for managing the traffic, passing through the bridge. This filtering database is accessible via the 'Bridging' web page, and allows you to overview all MAC layer entries. The 'Bridge Data' web Clicking on the 'Bridging' web page pops up the...
Page 80 6 IEEE 802.1D Transparent Bridging Permanent MAC These are the MAC addresses that must always be resident inside the bridge, as stipulated in the IEEE802.1D standard: addresses 's own MAC address: " e.g. 00-80-9F-05-0B-A0 The Broadcast MAC address: " FF-FF-FF-FF-FF-FF The bridge group MAC address: "...
Page 81: Ppp To Pptp Relaying For Microsoft Windows
7 PPP to PPTP Relaying for Microsoft Windows 7 PPP to PPTP Relaying for Microsoft Windows Introduction PPPoA to PPTP Relaying packet service relays PPP frames, arriving via local IP tunnels to a previously selected VC, and vice versa. The PPP protocol that originates, or terminates in the locally attached PCs, offers a session concept, and provides security via identification, authentication and encryption.
Page 82: Pppoa/Pptp Features
7 PPP to PPTP Relaying for Microsoft Windows PPPoA/PPTP Features Features PPPoA to PPTP Relaying has the following features: Standard Dial up" PPP behavior " Security via identification, authentication and encryption " Multiprotocol support depending on PPTP implementation, " e.g. for MS Windows: TCP/IP , IPX/SPX and NETBEUI Complete TCP/IP protocol transparency;...
Page 83: Pppoa/Pptp Requirements
7 PPP to PPTP Relaying for Microsoft Windows PPPoA/PPTP Requirements In this section This section covers the following topics: Remote Organization " " PC/Workstation(s) " TCP/IP . " Remote organization The remote organization must: Provide the VPI/VCI values of the VCs on which the PPP service "...
Page 84 7 PPP to PPTP Relaying for Microsoft Windows TCP/IP PPP is carried in ATM cells over the ADSL line. However, on the Ethernet segments between the and your PC(s), PPTP tunnels are used instead. Therefore, before establishing PPTP tunnels, you must configure: An IP address in each PC which initiates a PPTP tunnel "...
Page 85: Configuring Windows 9X Dial Up Networking For Pppoa/Pptp
7 PPP to PPTP Relaying for Microsoft Windows Configuring Windows 9x Dial Up Networking for PPPoA/PPTP In this section The following overview summarizes the necessary steps to setup your Windows 9x PC for the use of PPPoA to PPTP Relaying: Step Action Configure a Private IP address on your PC...
Page 86: Creating A New Dial Up Icon
7 PPP to PPTP Relaying for Microsoft Windows 7.3.1 Creating a New Dial Up Icon Procedure Proceed as follows to create a new Dial Up connection: Step Action and Description Double click the 'My Computer' icon on your desktop. Double click the 'Dial Up Networking' icon. Double click the 'Make New Connection' icon to activate the 'Make New Connection' wizard.
Page 87 7 PPP to PPTP Relaying for Microsoft Windows Step Action and Description In the first input field of the 'Make New Connection' window, type a name, or alias of the organization you are connecting to. Note: This name will appear below the Dial Up icon at the end of this procedure.
Page 88: Figure 28 New Created Dial Up Icon
7 PPP to PPTP Relaying for Microsoft Windows Result A new icon with the name of the connection that you have just created, will be added to your 'Dial Up Networking' folder. Figure 28 New created Dial Up icon Creating multiple Per destination you can create a unique icon.
Page 89: Adapting The Dial Up Connection Properties
7 PPP to PPTP Relaying for Microsoft Windows 7.3.2 Adapting the Dial Up Connection Properties Dial Up connection Proceed as follows to adapt the Dial Up connection properties: properties procedure Step Action and Description Double click the 'My Computer' icon on your desktop. Double click the 'Dial Up Networking' icon.
Page 90 7 PPP to PPTP Relaying for Microsoft Windows Step Action and Description In the 'Corporate' window you select the 'Server Types' tab to pop up the following window: Ensure that 'Log on to the network' and 'Enable software compres sion' boxes are blank, i.e. not flagged: In the 'Allowed network protocols' ensure that only 'TCP/IP' is se lected, i.e.
Page 91: Creating A Shortcut On Your Desktop (Optional)
7 PPP to PPTP Relaying for Microsoft Windows 7.3.3 Creating a Shortcut on your Desktop (Optional) Introduction To work comfortably with the Dial Up connection(s) you created, Windows 9x offers you the possibility to place a shortcut of the connection icon on your desktop. Shortcut procedure Proceed as follows to create a shortcut: Step...
Page 92: Using Windows 9X Dial Up Networking For Pppoa/Pptp
7 PPP to PPTP Relaying for Microsoft Windows Using Windows 9x Dial Up Networking for PPPoA/PPTP Introduction This section describes the opening and closing of a Dial Up session for PPPoA/PPTP . Also a detailed description of the various Dial Up Networking windows is given.
Page 93: Opening A Pppoa/Pptp Dial Up Session
7 PPP to PPTP Relaying for Microsoft Windows 7.4.1 Opening a PPPoA/PPTP Dial Up Session Procedure Proceed as follows to open a PPPoA/PPTP session: Step Action and Description Double click the appropriate PPPoA/PPTP Dial Up icon in the 'Dial Up Networking' folder, or double click its shortcut on your desktop. The 'Connect To' window pops up Fill in your user name and password, according your user account at the ISP , or corporate.
Page 94: Dial Up Networking In Detail
7 PPP to PPTP Relaying for Microsoft Windows 7.4.2 Dial Up Networking in Detail Introduction This section gives some additional information on the Microsoft Dial Up Networking 'Connected To' status windows. These windows enable you to check the active PPPoA/PPTP Dial Up connection.
Page 95 7 PPP to PPTP Relaying for Microsoft Windows Informative data in the The 'Connected To' window (See figure 30) displays the following data: 'Connected To' window Connected at ... bps " Indicates the speed" of the connection. It is displayed as the number of bits per second (bps).
Page 96: Closing A Pppoa/Pptp Dial Up Session
7 PPP to PPTP Relaying for Microsoft Windows 7.4.3 Closing a PPPoA/PPTP Dial Up Session Procedure Proceed as follows to close a PPPoA/PPTP session: Step Action and Description If the Dial Up connection is minimized, click the MSDUN icon in the system tray: The 'Connected To' window pops up.
Page 97: Upgrade Procedures For Windows 95 Users
7 PPP to PPTP Relaying for Microsoft Windows Upgrade Procedures for Windows 95 Users Introduction This section explains how to download and install the Windows Dial Up Networking 1.3 Performance and Security Upgrade for Windows 95". Topics This section covers the following major steps to be performed: Step Procedure System Requirements...
Page 98: System Requirements
7 PPP to PPTP Relaying for Microsoft Windows 7.5.1 System Requirements PC/workstation The Windows 95 PC(s)/workstation(s) must meet the following minimum requirements : requirements Pentium class processor 90MHz or higher " 16MB of memory. " Download For downloading the Windows Dial Up Networking 1.3 Performance and Security Upgrade for Windows 95"...
Page 99: Downloading The Dial Up Upgrade For Windows 95
7 PPP to PPTP Relaying for Microsoft Windows 7.5.2 Downloading the Dial Up Upgrade for Windows 95 Procedure Proceed as follows to download the MSDUN upgrade: Step Action and Description Browse to the Microsoft website at l'http://www.microsoft.com' by entering this address in the Uniform Resource Locator (URL) field of your Web browser: Click the 'Downloads' button in the Microsoft homepage's taskbar.
Page 100 7 PPP to PPTP Relaying for Microsoft Windows Step Action and Description A 'Read me first' web page pops up, informing how the download will progress. to proceed, click In the following web page, select the Dial Up Networking Graphical User Interface (GUI) language. To proceed, click The next web page allows you to choose the nearest download site.
Page 101: Installing The Dial Up Upgrade For Windows 95
7 PPP to PPTP Relaying for Microsoft Windows 7.5.3 Installing the Dial Up Upgrade for Windows 95 Procedure Proceed as follows to install the MSDUN13.EXE file: Step Action and Description Click 'Start' from the system tray on your desktop: Note: All other applications must be closed. Select 'Run' from the menu list.
Page 102: Configuring Pptp Tunnelling For Windows Nt
7 PPP to PPTP Relaying for Microsoft Windows Configuring PPTP Tunnelling for Windows NT In this section The following overview summarizes the procedures to setup your Windows NT PC for the use of PPTP Dial Up connections over standard telephone lines and Virtual Private Network connections over IP networks such as the Internet: Step Action...
Page 103: Installing The Pptp Tunneling Network Protocol
7 PPP to PPTP Relaying for Microsoft Windows 7.6.1 Installing the PPTP Tunneling Network Protocol The PPTP network Before you can start creating PPTP tunnels, you must add the PPTP network protocol to your Windows NT platform. protocol Procedure Proceed as follows to install the PPTP networking protocol: Step Action and Description Double click the 'My Computer' icon on your desktop.
Page 104 7 PPP to PPTP Relaying for Microsoft Windows Step Action and Description Select the 'Protocol' tab and click to pop up the 'Select Network Protocol' window: Select the 'Point to Point Tunneling Protocol', and click Setup now needs to copy some Windows NT files and prompts you for the proper path to the installation files.
Page 105: Configuring Ras For Pptp Tunneling
7 PPP to PPTP Relaying for Microsoft Windows 7.6.2 Configuring RAS for PPTP Tunneling Procedure Proceed as follows to configure the RAS server: Step Action and Description After the 'Installing the PPTP Tunneling Network Protocol' procedure, the 'Remote Access Setup' window pops up. Click to add new created VPN ports to the RAS configuration.
Page 106 7 PPP to PPTP Relaying for Microsoft Windows Step Action and Description The 'Configure Port Usage' window pops up. Select the 'Dial out only' option and click The 'Remote Access Setup' window returns. Repeat steps 4 and 5 until all VPN ports are configured for dial out only.
Page 107: Creating Pptp Phonebook Entries
7 PPP to PPTP Relaying for Microsoft Windows 7.6.3 Creating PPTP Phonebook Entries Procedure Proceed as follows to create a PPTP phonebook entry: Step Action and Description Double click the 'My Computer' icon on your desktop. Double click the 'Dial Up Networking' icon. Note: If the Dial Up phonebook was empty, a window appears to inform you that no entries exist in the phonebook.
Page 108 7 PPP to PPTP Relaying for Microsoft Windows Step Action and Description The 'New Phonebook Entry Wizard' window pops up. Enter a name for the entry you are creating; the entry will be saved in the phonebook under this name. Click The 'Server' window pops up.
Page 109 7 PPP to PPTP Relaying for Microsoft Windows Step Action and Description The 'Phone Number' window pops up. Enter the 'Phone number', i.e. the IP address, or DNS hostname, of Click to proceed. A window pops up, announcing the successful creation of a new tunnel. Click to finish the procedure.
Page 110: Using Pptp Tunnelling For Windows Nt
7 PPP to PPTP Relaying for Microsoft Windows Using PPTP Tunnelling for Windows NT Introduction This section describes the opening and closing of a Dial Up PPTP Tunnelling session on Windows NT platforms. Topics This section covers the following topics: Topic Opening a PPTP Tunnel Session 7.7.1...
Page 111: Opening A Pptp Tunnel Session
7 PPP to PPTP Relaying for Microsoft Windows 7.7.1 Opening a PPTP Tunnel Session Procedure Proceed as follows to open a PPTP tunnel session: Step Action and Description Double click the 'My Computer' icon on your desktop. Double click the 'Dial Up Networking' icon. The 'Dial Up Networking' window pops up.
Page 112 7 PPP to PPTP Relaying for Microsoft Windows Step Action and Description The 'Connect To' window pops up. Enter your user name and password for the VPN server. Enter the optional information in the 'Domain' box. This is only required by some Microsoft NT VPN servers. Note: To save your password, tick 'Save password' (n).
Page 113: Dial Up Networking In Detail
7 PPP to PPTP Relaying for Microsoft Windows 7.7.2 Dial Up Networking in Detail During connection During your session, you can view the connection status by clicking the Dial Up icon in the system tray. The following window will pop Figure 31 'Dial Up Networking Monitor' window 113 / 340...
Page 114: Closing A Pptp Tunnel Session
7 PPP to PPTP Relaying for Microsoft Windows 7.7.3 Closing a PPTP Tunnel Session Procedure Proceed as follows to close a PPTP tunnel session: Step Action and Description Click the appropriate connection icon on your system tray to pop up the 'Dial Up Networking Monitor' window: Click Result...
Page 115: Pppoa/Pptp Configuration
7 PPP to PPTP Relaying for Microsoft Windows PPPoA/PPTP Configuration Introduction allows local configuration via the web pages. This section describes the configuration of PPPoA/PPTP entries, and how to use the 'PPTP' web page. In this section This section covers the following topics: Topic PPPoA/PPTP Phonebook Entries 7.8.1...
Page 116: Pppoa/Pptp Phonebook Entries
7 PPP to PPTP Relaying for Microsoft Windows 7.8.1 PPPoA/PPTP Phonebook Entries In this subsection This subsection covers the following topics: PPTP Phonebook Entries " Adding PPTP Phonebook Entries " Deleting PPTP Phonebook Entries. " See subsection 10.3.2 for more information. PPTP phonebook Basic to the VC pool management, is the 'Phonebook' web...
Page 117: Pppoa/Pptp Entries
7 PPP to PPTP Relaying for Microsoft Windows 7.8.2 PPPoA/PPTP Entries In this subsection This subsection covers the following topics: 'PPTP' Web Page " The 'PPTP Connections' Table " 'PPTP Connections' Table Components " Adding PPTP Entries " Deleting PPTP Entries "...
Page 118: Figure 34 'Pptp Connections' Table
7 PPP to PPTP Relaying for Microsoft Windows The 'PPTP Connections' The following figure shows the 'PPTP Connections' table: table Figure 34 'PPTP Connections' table 'PPTP Connections' The following fields are shown in the 'PPTP Connections' table: table components Field Description Name Indicates the name you have chosen for the PPTP phonebook...
Page 119 7 PPP to PPTP Relaying for Microsoft Windows Field Description HDLC In order to cope with these PPP frame differences, the adapts to the different formats on a 'per connection' base. Framing Additionally, the offers the following PPP/AAL5 format (continued) configuration options, if interoperability problems should arise: Value Description...
Page 120 7 PPP to PPTP Relaying for Microsoft Windows Adding PPTP entries Proceed as follows to add a PPTP entry to the 'PPTP Connections' table: Step Action and Description Browse to the 'PPTP' web page: The bottom row of the table allows addition of a new entry. In the 'Name' column of the bottom row, click and select the PPTP entry you want to add to the table.
Page 121: Customizing Pppoa/Pptp Connections
7 PPP to PPTP Relaying for Microsoft Windows Customizing PPPoA/PPTP Connections Introduction In this section the creation and use of multiple (specific) VCs for dialing up specific remote destinations is described. Firstly, this section deals with some concepts on the customization of PPPoA/PPTP connections.
Page 122: Pppoa/Pptp Entries
7 PPP to PPTP Relaying for Microsoft Windows 7.9.1 PPPoA/PPTP Entries Introduction To establish a PPPoA/PPTP session, all you need to do is clicking a Dial Up connection icon. However, this does only apply in the case only a single destination is reachable via one, or more VCs.
Page 123: Single Destination
7 PPP to PPTP Relaying for Microsoft Windows 7.9.2 Single Destination Single destination If the 'VPN Server' field of the Dial Up application is left unchanged, i.e. only the IP address of the (or its hostname) PPPoA/PPTP sessions is visible, the automatically establishes a"...
Page 124: Multiple Destinations
7 PPP to PPTP Relaying for Microsoft Windows 7.9.3 Multiple Destinations Multiple destination Multiple remote organizations might be connected to your PPPoA/PPTP sessions e.g., your private ISP and your corporate headquarters. In this case, the 's PPPoA/PPTP VCs will be split over both locations.
Page 125 PPPoA/PPTP VCs and the locations. Example Proceed as follows to create a Dial Up icon to the corporate 'Alcatel', which has to use the VC, named 'Alcatel_pptp': Step Action and Description Configure a PPTP phonebook entry, named 'Alcatel_pptp', in the Phonebook as described in subsection 7.8.1.
Page 126 VPN server ( ), but also the VC 'Alcatel_pptp' to be used: Double click the 'Alcatel' icon to open the PPPoA/PPTP session. The following Dial Up window pops up: As you can see in the 'VPN Server' field, the VC, i.e. alcatel_pptp, to be used is specified by its name.
Page 127: Figure 37 Specific Vc 'Alcatel_Pptp' And Other Vcs
PPPoA/PPTP connections established simultaneously. INTERNET ATM Channels My ISP PPP RELAY Other Virtual Channels Local PPTP Tunnels 'Alcatel_pptp' Alcatel Remote LAN adsl 0543/ 03 Figure 37 specific VC 'Alcatel_pptp' and other VCs 127 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 128: Restrictions On Using Specific Virtual Channels
7 PPP to PPTP Relaying for Microsoft Windows 7.9.4 Restrictions on Using Specific Virtual Channels Similar phonebook will look for a match between the string, specified next names to the VPN server's DNS hostname or IP address (in the previous example the string 'Alcatel_pptp').
Page 129: Advanced Pppoa/Pptp Concepts
7 PPP to PPTP Relaying for Microsoft Windows 7.10 Advanced PPPoA/PPTP Concepts Introduction This section describes some advanced concepts of the PPPoA to PPTP Relaying packet service. Topics This section covers the following topics: Topic Point to Point Tunneling 7.10.1 Local Tunneling 7.10.2 PPPoA to PPTP Relaying (PPPoA/PPTP)
Page 130: Point To Point Tunneling
7 PPP to PPTP Relaying for Microsoft Windows 7.10.1 Point to Point Tunneling What is Tunneling Tunneling is a that allows to transport certain protocols over a network, which is not designed for that purpose Example: IPX Packets can be wrapped in IP , ready to be routed over an IP network.
Page 131: Local Tunneling
7 PPP to PPTP Relaying for Microsoft Windows 7.10.2 Local Tunneling Tunneling from behind allows local tunneling from behind an IP router. This an IP router requires settings in both and PC/workstations. 172.16.0.2 IP Router Local PPTP tunnels Ethernet LAN 172.16.0.1 10.0.0.138 10.0.0.1...
Page 132: Pppoa To Pptp Relaying (Pppoa/Pptp)
7 PPP to PPTP Relaying for Microsoft Windows 7.10.3 PPPoA to PPTP Relaying (PPPoA/PPTP) What is PPPoA to PPTP By double clicking Dial Up icons, PPTP tunnels are established between the and the PCs on your LAN. Relaying Simultaneously, PPP sessions are opened with remote destinations via the ADSL line.
Page 133: Simultaneous Pppoa/Pptp Sessions
7 PPP to PPTP Relaying for Microsoft Windows 7.10.4 Simultaneous PPPoA/PPTP Sessions Upper limit of PPTP tunneling does not influence your local communication; you can add as many hosts as your local network supports. simultaneous PPPoA/PPTP sessions However, there is an upper limit to the number of simultaneous outbound connections.
Page 134: Platform Limitations For Pppoa/Pptp
7 PPP to PPTP Relaying for Microsoft Windows 7.10.5 Platform Limitations for PPPoA/PPTP In this subsection This subsection deals with some of the known limitations for the most popular platforms, i.e. the Microsoft Windows OSs. Windows 95/98 Three limitations exist when using the Windows 9x OS: One Tunnel "...
Page 135: Ppp & Ip Routing
8 PPP & IP Routing 8 PPP & IP Routing Introduction features the PPP & IP Routing packet service, which uses the well known PPP protocol to open a communication session with a remote location, over the ADSL line. IP Routing combined with Network Address&Port Translation (NAPT), allows you to isolate your local network from the Internet.
Page 136: Ppp & Ip Routing Features
8 PPP & IP Routing PPP & IP Routing Features PPP features Is the protocol of choice for ISP and corporate access. It has a session concept, supports identification, authentication and autoconfiguration. It is widely deployed for narrowband access. By implementing PPP on the , no session client is required on the PC(s), avoiding special installation procedures.
Page 137: Ppp & Ip Routing Requirements
8 PPP & IP Routing PPP & IP Routing Requirements In this section This section covers the following topics: Remote Organization " " PC/Workstation(s). " Remote organization The remote organization must:access server must support Additionally the remote organization must provide you with: Provide the VPI/VCI values of the VCs on which the PPP service "...
Page 138: Using Ppp & Ip Routing
8 PPP & IP Routing Using PPP & IP Routing Introduction This section explains how to use PPP sessions. Topics This section covers the following topics: Opening PPP Sessions " Saving your Credentials " Closing PPP Sessions " Procedure Proceed as follows to open a PPP session (See section 16.2 for more information): Step Action and Description...
Page 139 8 PPP & IP Routing Step Action and Description The 'Authentication' web page pops up. Enter user name and password in the appropriate fields. Click After identification and authentication, the 'PPP connections' web page reappears. While the tries to open the session, trying will appear in the 'State' field.
Page 140: Ppp Configuration
8 PPP & IP Routing PPP Configuration Introduction allows local configurations via its web pages. This section describes the enabling of PPP entries, and the use of the 'PPP' web page. Prior to be able to use the PPP entry, you must configure the PPP entry.
Page 141: Ppp Phonebook Entries
8 PPP & IP Routing 8.4.1 PPP Phonebook Entries In this subsection This subsection covers the following topics: PPP Phonebook Entries " Adding PPP Phonebook Entries " Deleting PPP Phonebook Entries. " See subsection 10.3.2 for more information. PPP Phonebook entries Central to the VC pool management, is the 'Phonebook' web page.
Page 142: Ppp Entries
8 PPP & IP Routing 8.4.2 PPP Entries In this subsection This subsection covers the following topics: The 'PPP' Web Page " The 'PPP Configuration' Table " 'PPP Configuration' Table Components " Adding PPP Entries " Deleting PPP Entries. " The 'PPP web page Clicking in the left pane of the...
Page 143 8 PPP & IP Routing The 'PPP configuration' The following figure shows the 'PPP Configuration' table of the 'PPP' web page: web page Figure 42 'PPP Configuration' table 'PPP Configuration' The following fields are shown in the 'PPP Configuration' table: table components Field Description...
Page 144 8 PPP & IP Routing Field Description Action This field contains one of the three following action buttons: Button Action Add a PPP entry to the list. Delete an existing entry from the list. Configure the PPP entry. See subsection 8.5 for more. Adding PPP entries Proceed as follows to add a PPP entry to the table: Step...
Page 145 8 PPP & IP Routing Result The PPP entry is added to the 'PPP Configuration' table. Prior to be able to open a PPP session on this PPP entry, you MUST configure the PPP entry. See section 8.5 for more information. Deleting PPP entries Proceed as follows to delete obsolete PPP entries from the table: Step...
Page 146: Ppp Entry Configuration
8 PPP & IP Routing PPP Entry Configuration After enabling the PPP entry in the 'PPP Configurations' table, you must configure the PPP connection. Configuration of PPP entries must be done per PPP entry. This section describes the various PPP entry configurations the offers for assuring end to end connectivity.
Page 147: The Ppp Configuration Web Page
8 PPP & IP Routing 8.5.1 The PPP Configuration Web Page PPP configuration web Clicking next to a PPP connection you want to configure, page pops up the particular 'PPP Configuration' web page: Figure 43 'PPP Session' web page 147 / 340 3EC 17059 AAAA TCZZA Ed.
Page 148: Security Related Configurations
8 PPP & IP Routing 8.5.2 Security Related Configurations Introduction In most cases you will have a user account, with user name and password, at the ISP , or corporate. Via the 'Authentication' box in the 'PPP Configuration' web page, you can fill out your credentials for permanent storage.
Page 149: Ip Routing Related Configurations
8 PPP & IP Routing 8.5.3 IP Routing Related Configurations Introduction If a PPP session is opened successfully (either manually by the user, triggered by LAN traffic, or automatic at boot time), routes are automatically added to the 's routing table. The settings in the PPP's 'IP Routing' input box, are reflected in the routing table.
Page 150 8 PPP & IP Routing Connection sharing The 'Connection Sharing' field allows you to configure which LAN members, besides the PC/workstation that opened the PPP session, can use the PPP connection. Three options are available: Only Me " Only frames of the PC/workstation that opened the PPP session will be routed via this PPP connection.
Page 151 8 PPP & IP Routing 'My net Only' In case you want to privilege access via a particular PPP connection for specific PC/workstations, proceed as follows:: configuration Step Action Configure the PCs, to which you want to privilege outbound access via this PPP connection, in a particular subnet of your local LAN.
Page 152 8 PPP & IP Routing Destination networks The following table lists the used netmasks, related to the four possible options: subnet values Connection Sharing value Related Source Subnet Mask Notation All Networks 0.0.0.0 Remote net only 255.255.255.0 Remote host only 255.255.255.255 Specific network 255.255.255.0.0 (default)
Page 153: Connection Related Configuration
8 PPP & IP Routing 8.5.4 Connection Related Configuration Introduction The following paragraphs explain which options that are used by a PPP entry when it opens a PPP session. In this subsection This subsection covers the following topics: 'Options' box "...
Page 154 8 PPP & IP Routing Local and/or remote During the opening of a PPP session, IP addresses are negotiated between the two PPP peers for the PPP connection. The Local IP', IP: STPro PPP and 'Remote IP' fields influence this negotiation. server/client behaviour Typically at the client side, the 'Local IP', and 'Remote IP' boxes are left empty.
Page 155 8 PPP & IP Routing Idle time limit In case you configured a PPP connection for 'Dial on demand', the 'Idle Time Limit' box allows you to specify the time after which an opened, but unused PPP session is closed. If left free, the idle limit time is infinite (i.e.
Page 156: Napt And Ppp & Ip Routing
8 PPP & IP Routing 8.5.5 NAPT and PPP & IP Routing NAPT Network Address Translation (NAT) is a technique that allows you to shield or decouple an internal (Private) IP address from the (negotiated) external (Public) IP address. In addition, via Port Translation (PT), this single external Public IP address is mapped onto multiple internal ports on the LAN, thus allowing multiple users to share this external IP address simultaneously.
Page 157: Napt And Stpro Transparency
8 PPP & IP Routing 8.5.6 NAPT and STPro Transparency NAPT and STPro As described in subsection 8.5.5, the can perform NAPT to transparency decouple your local IP addresses from the public IP address negotiated during a PPP session. However, this feature comes at the expense of the transparency.
Page 158 8 PPP & IP Routing STPro solutions offers some solutions to cope with this situation. Basically these solutions boil down in transporting Public IP addresses transparently through the towards a device where a more advanced NAT, and/or PAT can be performed. Some solutions are described in the following paragraphs: ATMF 25 (Not applicable for the four port hub version)
Page 159 8 PPP & IP Routing Via the PPP to PPTP A similar configuration as above can be used in combination with PPP to PPTP Relay. Relay Instead of installing an ATMF 25 PC NIC, you must install a second Ethernet PC NIC that connects to the By setting up a PPTP tunnel from the 'home gateway', again the Public IP address is transported transparently through the to end up in the 'home gateway'.
Page 160 8 PPP & IP Routing 160 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 161: Ip Routing & Classical Ip
9 IP Routing & Classical IP 9 IP Routing & Classical IP Introduction Classical IP is a popular term for RFC1577: Classical IP and ARP over ATM . This RFC describes how a classical IP network can be created with ATM technology. "Classical"...
Page 162: Cip & Ip Routing Features
9 IP Routing & Classical IP CIP & IP Routing Features CIP features Classical IP provides the following: Next to PPP over ATM, CIP is a second standardized method " for creating IP networks on top of ATM technology Traditionally CIP has been well supported by ATM access "...
Page 163: Cip & Ip Routing Requirements
9 IP Routing & Classical IP CIP & IP Routing Requirements In this section This section coves the following topics: Remote Organization " " PC/Workstation(s) " Remote organization The remote organization must: Provide the VPI/VCI values of the VCs on which the CIP service "...
Page 164: Cip Configuration For A Lis
9 IP Routing & Classical IP CIP Configuration for a LIS Introduction In this section the basic procedure to enable connectivity in a Logical IP Subnet (LIS) via the ADSL line is described. In this section This section covers the following topics: Topic General CIP Configuration Procedure 9.3.1...
Page 165: General Cip Configuration Procedure
9 IP Routing & Classical IP 9.3.1 General CIP Configuration Procedure Decision procedure Due to the many decisions that must be made in order to be able to configure the to be an active member of a LIS, the procedure to be followed is best retrieved from the following decision table: Step Decision and/or Action...
Page 166: Retrieving Lis Parameters
9 IP Routing & Classical IP 9.3.2 Retrieving LIS Parameters The LIS is an important CIP concept. It is a group of IP machines configured as members of the same IP subnet. In other words: they share the same IP network and subnetwork numbers. In most cases this LIS will be a corporate LAN/WAN environment, which is interconnected via the ADSL/ATM network.
Page 167: Implicit Assignment Mechanism
9 IP Routing & Classical IP 9.3.3 Implicit Assignment Mechanism Implicit assignment If the remote side is RFC1577 compliant, e.g. another your local is able to retrieve the remote IP address of the CIP PVC, by issuing an InATMARP request on that PVC. That way, you must not specify an IP address for the CIP PVCs you add to the 'CIP Connections' table, it will be implicitly assigned when connecting to the LIS.
Page 168: Explicit Assignment Mechanism
9 IP Routing & Classical IP 9.3.4 Explicit Assignment Mechanism Explicit assignment In the case of a remote access server which is not RFC1577 compliant, it will not respond to InATMARP requests. As a consequence, the can not retrieve the remote IP address to assign the CIP PVC to the CIP member.
Page 169: Configuring The Stpro For Cip
9 IP Routing & Classical IP 9.3.5 Configuring the STPro for CIP Introduction After retrieving the LIS parameters, you must configure the according to these parameters. This section describes in short the global procedure for configuring your 'Phonebook', and 'CIP' web page. Configuration of the By default the is configured for a CIP VC as used in the...
Page 170: Adding Appropriate Routes To The Routing Tables
9 IP Routing & Classical IP 9.3.6 Adding Appropriate Routes to the Routing Tables Introduction to routing IP routing is a very important aspect for a LIS configuration. This subsection describes how you can ensure end to end connectivity for a CIP environment. This subsection covers the following topics: Configuring the for LIS Connectivity, Basic...
Page 171 9 IP Routing & Classical IP Configuring the STPro The possibility exists to add routes yourself, e.g. to be more specific in the source IP address pool. for LIS connectivity, advanced The default added routes have any as source address, meaning that all local hosts can use this gateway to connect to the LIS via the CIP interface.
Page 172: Example Configuration
9 IP Routing & Classical IP 9.3.7 Example Configuration Configuration figure The configuration of a Classical IP LIS is illustrated with the following example: 192.168.0.2 10.0.0.1 255.255.255.0 255.0.0.0 0.0.0.0.->192.168.0.1 10.0.0.138<-0.0.0.0 8/80 8/80 LIS 172.16.1.x Subnet 10.1 10.0.0.138 172.16.1.1 192.168.0.1 172.16.1.2 255.0.0.0 255.255.255.0 255.0.0.0...
Page 173 9 IP Routing & Classical IP Remote premisses At the remote ADSL side, the CIP LIS is terminated by the remote access router (2) and IP packets are forwarded to local servers, or configuration the Internet and vice versa. Here, the CIP member is configured with IP address 172.16.1.2 and is part of the same LIS 172.16.1.x.
Page 174: Using Cip & Ip Routing
9 IP Routing & Classical IP Using CIP & IP Routing CIP Operation Similar to classical LAN networking, IP Routing and CIP adhere to the "always on" concept. That is, no special actions (e.g. dialing) must be undertaken prior to IP connectivity. IP packets sourced by local PCs, arrive via the Ethernet segment in .
Page 175: Cip Configuration
9 IP Routing & Classical IP CIP Configuration Introduction allows local configuration via the web pages. This section describes the configuration of CIP entries, and how to use the 'CIP' web page. In this section This section covers the following topics: Topic CIP Phonebook Entries 9.5.1...
Page 176: Cip Phonebook Entries
9 IP Routing & Classical IP 9.5.1 CIP Phonebook Entries In this subsection This subsection covers the following topics: CIP Phonebook Entries " Adding CIP Phonebook Entries " Deleting CIP Phonebook Entries. " See subsection 10.3.2 for more information. CIP phonebook entries Basic to the VC pool management, is the 'Phonebook' web page.
Page 177: Cip Entries
9 IP Routing & Classical IP 9.5.2 CIP Entries In this subsection This subsection covers the following topics: 'CIP' Web Page " The 'CIP Interfaces' Table " 'CIP Interfaces' Table Components " The 'CIP connections' Table " 'CIP Connections' Table Components "...
Page 178: Figure 53 'Cip Interfaces' Table
9 IP Routing & Classical IP The 'CIP Interfaces' The following figure shows the 'CIP Interfaces' table: table Figure 53 'CIP Interfaces' table 'CIP Interfaces' table The following fields are shown in the 'CIP Interfaces' table: components Field Description Name Indicates the CIP member name.
Page 179: Figure 54 'Cip Connections' Table
9 IP Routing & Classical IP The 'CIP Connections' The following figure shows the 'CIP Connections' table: table Figure 54 'CIP Connections' table 'CIP Connections' table The following fields are shown in the 'CIP Connections' table: components Field Description Dest Indicates the CIP VC phonebook name.
Page 180 9 IP Routing & Classical IP Adding CIP members Proceed as follows to add a CIP member to the 'CIP Interfaces' table: Step Action and Description Browse to the 'CIP' web page: The bottom row of the 'CIP Interfaces' table allows addition of a new CIP member.
Page 181 9 IP Routing & Classical IP Assigning CIP PVCs to Proceed as follows to assign a CIP PVC in the 'CIP Connections' table: CIP members Step Action and Description Browse to the 'CIP' web page: The bottom row of the 'CIP Connections' table allows addition of a new CIP connection.
Page 182 9 IP Routing & Classical IP Deleting CIP entries Proceed as follows to delete CIP entries from the 'CIP' web page: Step Action and Description Browse to the 'CIP' web page. Select the CIP connection, and/or CIP member you want to delete, and click Click to store the changes in permanent memory.
Page 183: Advanced Cip Configurations
9 IP Routing & Classical IP Advanced CIP Configurations Introduction The example of subsection 9.3.7 showed a configuration with a single VC, used for ADSL connectivity within one LIS. In this section the use of multiple VCs to connect to a LIS, and the connectivity to multiple LISs is described.
Page 184: Configuring Multiple Cip Pvcs
9 IP Routing & Classical IP 9.6.1 Configuring Multiple CIP PVCs Multiple VCs for one Multiple VCs can be assigned, either explicit or implicit, to CIP members in the 'CIP Connections' table. By doing so, local PCs can simultaneously access multiple ADSL nodes of one LIS.
Page 185 9 IP Routing & Classical IP Step Action and Description Depending the RFC1577 compliancy of the remote access router, the following must be filled in, in the 'Remote IP address' column of the CIP PVC: Compliancy Remote IP Address You don't have to fill in anything; the InATMARP reply will...
Page 186: Creating Multiple Cip Members
9 IP Routing & Classical IP 9.6.2 Creating Multiple CIP Members. Multiple VCs for You can create multiple CIP members, and consequently the can be part of multiple LISs. multiple LISs By doing so, your PC(s) can connect to multiple LISs. Example The following figure shows an example of such a configuration: 10.1.0.1...
Page 187 9 IP Routing & Classical IP Adding CIP members Proceed as follows to add multiple CIP members to the 'CIP Interfaces' table: Step Action and Description Browse to the 'CIP' web page. The bottom row of the 'CIP Interfaces' table allows addition of a new CIP member.
Page 188 9 IP Routing & Classical IP 188 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 189: Atm Connectivity
10 ATM Connectivity 10 ATM Connectivity Introduction All data arriving at and departing from your via the ADSL line is carried in ATM cells. In this way, ATM is the fundamental communication language" for the towards the remote devices. The dual port model, equipped with the additional ATMF 25 port, is even capable to extend ATM connectivity up to your local PC, or LAN (via ATM switches).
Page 190: The Atm Packet Switching Technology
10 ATM Connectivity 10.1 The ATM Packet Switching Technology ATM Switching ATM is a connection oriented packet switching technology using fixed size packets, called cells. These cells consist of a header and a payload and are switched through a public or private ATM network depending on the contents of the header.
Page 191: Atm Parameters
10 ATM Connectivity 10.1.1 ATM Parameters In this subsection This subsection covers the following topics: Virtual Channels " VCs and the " Channel Identifiers. " Virtual channels ATM uses VCs to create individual communication links between network nodes. ATM uses two types of VCs: Permanent Virtual Channels (PVCs) are static connections "...
Page 192: Atm And The Stpro
10 ATM Connectivity 10.1.2 ATM and the STPro End to end ATM The following figure provides an overview of the end to end architecture of the ATM connectivity; from your to the connectivity remote access devices. Internet ISP Access Point ATM Cross connect Multiple ATM virtual channels...
Page 193: Atm And Interfaces
10 ATM Connectivity 10.1.3 ATM and Interfaces ATM traffic handling ATM traffic arriving at the is switched to either the Ethernet port(s), or the (optional) ATMF 25 port depending on the VPI/VCI values in the individual cells. Inside ATM VCs any protocol can be transported. However, at both endpoints - that is where the ATM channels are terminated -, the same protocol must be supported.
Page 194 10 ATM Connectivity Ethernet port(s) This port terminates a number of ATM connections and extracts frames from arriving cells and encapsulates frames in departing cells. Only frames recognized/supported by the on a particular ATM connection are extracted, or encapsulated. Currently the supported encapsulations are: For Bridged connections: "...
Page 195: Atm F 25 Port Configuration
10 ATM Connectivity 10.2 ATM F 25 Port Configuration Disclaimer This section applies only to the dual model, equipped with both Ethernet and ATM Forum 25 port. ATM connectivity in If your PC/workstation (alternatively via an ATM switch) is connected to the ATMF interface, ATM service is delivered into the your LAN PC/workstation.
Page 196: The Speed Touch Pro Phonebook
10 ATM Connectivity 10.3 The Speed Touch Pro Phonebook Introduction phonebook is like any ordinary phonebook: A repository for names and numbers". However, in contrast to a standard phonebook, it contains additional connectivity information. Basic to the ADSL router operation are ATM VCs. The phonebook is the management tool for all possible ATM VC connections.
Page 197: The Stpro 'Phonebook' Web Page
10 ATM Connectivity 10.3.1 The STPro 'Phonebook' Web Page In this subsection This subsection covers the following topics: 'Phonebook' Web Page " The 'Phonebook' Table " 'Phonebook' Table Components " Phonebook Defaults " The 'AutoPVC' Table. " The STPro 'Phonebook' Clicking in the left pane of the web pages,...
Page 198: Figure 59 'Phonebook' Table
10 ATM Connectivity The 'Phonebook' table The following figure shows the 'Phonebook' table of the 'Phonebook' web page: Figure 59 'Phonebook' table 198 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 199 10 ATM Connectivity 'Phonebook' table The following fields are found in the 'Phonebook' table: components Field Description Name Indicates the name, or alias of the virtual connection phonebook entry. Any name can be given to an entry. VPI/VCI Indicates the VPI, and VCI value of the ATM VC, terminated on the ADSL port, for the phonebook entry.
Page 200: Figure 60 'Autopvc' Table
10 ATM Connectivity Phonebook Defaults Packet Service Usage IEEE802.1D Transparent Bridging configured IEEE802.1D Transparent Bridging free IEEE802.1D Transparent Bridging free IEEE802.1D Transparent Bridging free PPPoA to PPTP Relaying configured PPPoA to PPTP Relaying configured PPPoA to PPTP Relaying configured PPPoA to PPTP Relaying configured PPP (&...
Page 201: Using The Phonebook
10 ATM Connectivity 10.3.2 Using the Phonebook Introduction The main function of the phonebook is to present an instant overview of all possible entries and their status. Another important function is that it helps you to navigate through the various VC connection possibilities.
Page 202 10 ATM Connectivity Adding phonebook Proceed as follows to add entries to the 'Phonebook' table: entries Step Action and Description Browse to the 'Phonebook' web page: Scroll to the bottom row of the 'Phonebook' table: The bottom row of the table allows addition of a new entry. In the 'Name' column of the bottom row, enter a name of your choice for identifying the phonebook entry.
Page 203 10 ATM Connectivity Restrictions for You may delete any of the phonebook entries you want, as long as they are not configured in the web page, related with the type of deleting phonebook packet service. entries In effect, you can only delete phonebook entries, which 'Usage' field displays free as only these entries have a button in the...
Page 204: Autopvc And The Phonebook
The default VCs, can be remotely modified via the AutoPVC feature of the AutoPVC operates only in conjunction with the Alcatel DSLAM and , and offers the following functionality: User VCs that are to be terminated on the Ethernet port, can "...
Page 205: Figure 61 Vpi/Vci 8/35 In The 'Autopvc' List
10 ATM Connectivity Criterion 4 An Ethernet only version (single port, or hub version) reacts identical as for Criteria 3, however the VPI range is now from 0 up to 15. Example 1 If the ADSL provider configures Virtual Path (VP) 5 on the DSLAM, then the cross connects VPI 5 on the ADSL line to VPI 5 on the ATMF 25 port...
Page 206 10 ATM Connectivity 206 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 207: Configuring Ip
11 Configuring IP 11 Configuring IP Introduction For Internet access, and home networking, TCP/IP plays a crucial role. Due to the flexibility and the multitude of TCP/IP features, numerous configurations are possible. Aim of this chapter This chapter highlights some general IP parameters and to highlight a few possible IP configurations for the below purposes: Internet access via your ISP or corporate network "...
Page 208: General Ip Information
11 Configuring IP 11.1 General IP Information Introduction This section covers the following topics: Topic IP Addresses and Subnet Masks 11.1.1 Private vs. Public IP Addresses 11.1.2 Choosing an IP Address 11.1.3 Dynamic IP Address Configuration: DHCP 11.1.4 208 / 340 3EC 17059 AAAA TCZZA Ed.
Page 209: Ip Addresses And Subnet Masks
11 Configuring IP 11.1.1 IP Addresses and Subnet Masks In this subsection This subsection covers the following topics: What is an IP Address " Network Part, Subnet Part and Host Part " Example: Network and Subnetwork Parts " IP Address Network Classes "...
Page 210 11 Configuring IP Example: network and For example, an IP address is 172.16.0.2 and the subnet mask is 255.255.255.0. subnetwork parts The binary notation of the IP address equals: 10101100.00010000.00000000.00000010 The dotted quad notation of the subnet mask equals: 11111111.11111111.11111111.00000000 Since all the 1 bits of the subnet mask have network significance, the network part of the IP address would be: 10101100.00010000.00000000.00000010...
Page 211 11 Configuring IP Example: prefix For example: notation IP address 10.0.0.138 " netmask 255.255.255.0 " With the prefix method this will be written as : prefix IP address 10.0.0.138/24 " IP address notation In the routing table of the this notation will be used. and the STPro 211 / 340 3EC 17059 AAAA TCZZA Ed.
Page 212: Private Vs. Public Addresses
11 Configuring IP 11.1.2 Private vs. Public Addresses Introduction Private PC/workstation(s) do not require access to PC/workstation(s) in other enterprises, or to the Internet. Therefore it is sufficient for the PC/workstation to have an IP address that is unique within the enterprise but may be ambiguous between enterprises and on the Internet.
Page 213 11 Configuring IP Private PC(s) accessing Via mediating gateways (e.g. the ) private PC/workstation(s) public services can still have access to external services, e.g. the Internet. Private IP address IANA (the Internet Assigned Number Authority), defined blocks of IP addresses for private purposes: classes Class From...
Page 214: Choosing An Ip Address
11 Configuring IP 11.1.3 Choosing an IP Address Introduction Regardless of your application, IP addresses must always be configured at both ends of the connection. Prior to configuring an IP address, you must choose a suitable one. In this subsection a few criteria are listed that may influence your choice.
Page 215 11 Configuring IP Simultaneous use of In most networking scenario's, Private and Public IP addresses will be in use simultaneously, e.g.: public & private IP addresses PPPoA to PPTP Relaying " In this configuration, one IP layer is carried into another. Otherwise stated: on your local (home) LAN the Public IP layer is carried inside a Private IP layer (a so called IP Tunnel).
Page 216: Dynamic Ip Address Configuration: Dhcp
11 Configuring IP 11.1.4 Dynamic IP Address Configuration: DHCP DHCP DHCP is short for Dynamic Host Configuration Protocol and is part of the TCP/IP protocol suite. It provides a framework for passing configuration information to PC/workstation(s) on a TCP/IP network. The intention is for individual PC/workstation(s) to extract their IP parameters from a central server, rather then configuring them manually.
Page 217: Packet Services And Ip Addressing
11 Configuring IP 11.2 Packet Services and IP Addressing Introduction In this section the interaction between IP addresses and packet services is described. Apart from Bridging, all packet services require the TCP/IP suite, and even the Bridging packet service will in most cases be used in combination with IP addressing.
Page 218: Transparent Bridging And Ip Addresses
11 Configuring IP 11.2.1 Transparent Bridging and IP Addresses In this subsection This subsection covers the following topics: IP vs. Bridging " Typical Bridging Setup " Using TCP/IP and Bridging " Local IP Communication " Bridging and DHCP Service. " IP vs.
Page 219 11 Configuring IP Using TCP/IP and If your ISP or corporate administrator: Bridging Provides you with an IP address, see section 11.4.3 to " configure it on your PC Requires you to use DHCP , see section 11.4.4 to configure "...
Page 220: Pppoa To Pptp Relaying And Ip Addresses
11 Configuring IP 11.2.2 PPPoA to PPTP Relaying and IP Addresses In this subsection This subsection covers the following topics: IP vs. PPPoA/PPTP " Private IP Addresses " Public IP Addresses " Simultaneous Use of Public & Private IP " PPP IP Address Negotiation.
Page 221 11 Configuring IP PPP IP address By default the Microsoft Dial Up Networking application automatically negotiates the Public IP address. negotiation This can be checked with the following procedure: Step Action and Description Right click the appropriate PPPoA/PPTP Dial Up icon in the 'Dial Up Networking' folder, or right click its shortcut on your desktop.
Page 222: Figure 64 'Specify An Ip Address' Box
11 Configuring IP Step Action and Description The Corporate's 'TCP/IP Settings' window pops up: In this window you see that the PPPoA/PPTP application for the Dial Up connection 'Corporate' is set for using a Server assigned IP address: PPPoA/PPTP using a In case your ISP , or corporate LAN administrator instructs you to use a static IP address for PPPoA/PPTP , you tick 'Specify an IP static IP address...
Page 223: Ip Routing & Ppp And Ip Addresses
11 Configuring IP 11.2.3 IP Routing & PPP and IP Addresses IP routing and IP Similar to the previous section, local IP addresses must be configured prior to use IP routing. addresses STPro IP addresses As the has a preconfigured Net10" address (10.0.0.138), you can configure IP addresses like 10.0.0.1, 10.0.0.2, ...
Page 224 11 Configuring IP NAPT NAPT is enabled by default on PPP connections. In case your LAN uses Public IP addresses, NAPT is not required. You can disable NAPT via the 'PPP Configuration' web page. See subsection 8.5.5 for more information. 224 / 340 3EC 17059 AAAA TCZZA Ed.
Page 225: Speed Touch Pro And Ip Addressing
11 Configuring IP 11.3 Speed Touch Pro and IP Addressing Introduction Like any other member of a LAN, the must be locally identified by an IP address to be able to communicate with other local LAN devices. This section deals with the IP address configuration of the for local communication only.
Page 226: Stpro Ip Address Types
11 Configuring IP 11.3.1 STPro IP Address Types Assigning IP addresses IP addresses can be assigned to the in several ways. to the STPro Summarized, following IP address types exist: The default IP address: 10.0.0.138 " IP addresses assigned via the 'Initial Setup' web page "...
Page 227 11 Configuring IP 'IP address' table The following fields are shown in the 'IP address' table: components Field Description Intf Indicates the interface (Intf) to which the IP parameter set was assigned to. It can take several values depending on the packet services that are active.
Page 228: Static Ip Address Configuration
11 Configuring IP 11.3.2 Static IP Address Configuration Default STPro IP comes with a preconfigured Net10" IP address, address i.e. 10.0.0.138. In case you add the to an existing LAN, it could be that you must configure a User Defined" IP address, other than the Net 10"...
Page 229 11 Configuring IP Step Action and Description In the 'IP Address' field you can configure a user defined IP address for the This IP address will show up as User " in the 'IP address' table (See section 11.3.1). In the 'Subnetmask' field you must configure an appropriate netmask for applying subnetting in your LAN.
Page 230: Figure 66 A Single Pc Connected To Your Stpro
11 Configuring IP Sample configuration: In the below figure, a simple configuration is given: single PC One PC attached to the It is most applicable to PPPoA to PPTP Relaying. IP address : 10.0.0.1 IP address : 10.0.0.138 (Sub)netmask : 255.255.0.0 (Sub)netmask : 255.255.0.0 Default Gateway : none Default Gateway : none...
Page 231: Dynamic Ip Address Configuration: Dhcp
11 Configuring IP 11.3.3 Dynamic IP Address Configuration: DHCP STPro DHCP Depending on the size and complexity of your network, a few DHCP configurations can be envisaged: client/server setting LAN Type DHCP Argumentation Mode Simple All few members of the small LAN have static IP addresses, including the Medium Server...
Page 232: Figure 68 The Stpro 'Dhcp' Web
11 Configuring IP The STPro 'DHCP' web Clicking in the left pane of the web pages, pops page up the 'DHCP' web page: Figure 68 The STPro 'DHCP' web page Configuring the STPro To setup the without DHCP , tick on the for a LAN without 'DHCP' web page.
Page 233: Figure 69 The Stpro As Dhcp Server
11 Configuring IP Configuring the STPro To setup the as DHCP server, tick on the as DHCP server 'DHCP' web page. Via the 'DHCP Server Configuration' web page, you can configure DHCP server settings. See subsection 11.3.4 for more information. Internet IP Address Network...
Page 234 11 Configuring IP Configuring the STPro One of the features is that it can automatically revert from for Auto DHCP DHCP client to DHCP server. At boot time the probes the LAN for a specified time limit ('Client timeout') to check wether another DHCP server is available on the network.
Page 235: Configuring The Stpro Dhcp Server
11 Configuring IP 11.3.4 Configuring the STPro DHCP Server Introduction If the is configured for 'Auto DHCP' or 'DHCP server', additional configuration must be done. In this subsection This subsection covers the following topics: The 'DHCP server configuration' Web Page "...
Page 236: Figure 72 Dhcp Server Ip Addressing Box
11 Configuring IP DHCP server IP This box allows to specify the DHCP server features: addressing box Figure 72 DHCP server IP addressing box DHCP server IP You can configure following parameters: addressing box options Field This configures ... Default Addresses The range of addresses the DHCP server can Net10"...
Page 237: Figure 73 Dhcp Spoofing Field
11 Configuring IP DHCP spoofing box This box allows you to set the DHCP spoofing parameters for PPP to DHCP spoofing connections. See section 8.5.6 for more information on PPP to DHCP spoofing. Figure 73 DHCP spoofing field DHCP spoofing box You can configure following parameters: options Field...
Page 238: Figure 74 Dhcp Lease Table
11 Configuring IP DHCP lease table This table allows you to manually assign IP addresses to devices, identified by there MAC address, with the possibility to let this lease expire after some specified time. Figure 74 DHCP lease table DHCP lease table You can configure following parameters: options Field...
Page 239: Pc(S)/Lan And Ip Addressing
11 Configuring IP 11.4 PC(s)/LAN and IP Addressing Introduction As for the , each PC/workstation of a LAN must be equipped with appropriate IP parameters in order to be able to communicate with other LAN members. This section deals with the IP address configuration of PCs, used for local communication only.
Page 240: Checking And/Or Installing The Tcp/Ip Suite
11 Configuring IP 11.4.1 Checking and/or Installing the TCP/IP Suite Introduction In order to allow the PC to communicate with the remote access server via the and to surf the Internet, or connect to your corporate, the TCP/IP suite should be installed on your PC. In this subsection This subsection covers the following topics: Checking your PC's Networking Protocols...
Page 241 11 Configuring IP Checking your PC's Proceed as follows to check your PC's TCP/IP settings: networking protocols Step Action and Description Double click the 'My Computer' icon on your desktop. Double click the 'Control Panel' icon. In the 'Control Panel' folder, double click the 'Network' icon. As a result the 'Network' window will pop up.
Page 242 11 Configuring IP Adding the TCP/IP If no TCP/IP Stack is listed in your network components list, proceed as follows to install it: networking protocol suite Step Action and Description Browse to the 'Network' window as described in the previous procedure.
Page 243 11 Configuring IP Step Action and Description Click As a result, the 'Select Network Protocol' window pops up: Select in the 'Manufacturers' field. Your selection will be marked in a blue banner. Select in the 'Network Protocols' field. Your selection will be marked in a blue banner. Click Windows will add the TCP/IP suite to the network components list.
Page 244: Viewing Ip Settings Of Your Pc
11 Configuring IP 11.4.2 Viewing IP Settings of your PC Procedure Proceed as follows to check the IP settings of your PC(s): Step Action and Description Double click the 'My Computer' icon on your desktop. Double click the 'Control Panel' icon. In the 'Control Panel' folder, double click the 'Network' icon.
Page 245 11 Configuring IP Step Action and Description Select TCP/IP Protocol –> <network adapter> is a placeholder for the name of the type <network adapter> of physical network adapter installed in your PC. Click The 'TCP/IP Properties' window pops up, after selecting the 'IP Address' tab: In this 'TCP/IP Properties' window, you can view the PC's IP setting.
Page 246: Configuring A Static Ip Address On Your Pc
11 Configuring IP 11.4.3 Configuring a Static IP Address on your PC Introduction Corporate LANs mostly use static IP addresses, so consult your LAN administrator to obtain an IP address and a subnet mask. This subsection describes how you can configure the IP address of your PC.
Page 247: Configuring A Dynamic Ip Address On Your Pc
11 Configuring IP 11.4.4 Configuring a Dynamic IP Address on your PC Introduction If your local LAN, corporate network, or your ISP supports DHCP , this allows your PC to acquire initialization parameters (IP addresses, masks, etc.) automatically. These initialization parameters are valid for a limited period (usually a few hours).
Page 248: Ip Routing
11 Configuring IP 11.5 IP Routing Introduction Next to the ADSL router part, the supports IP routing via its IP router. This section aims to familiarize you with the IP router abilities. In this section This section covers the following topics: Topic IP router 11.5.1...
Page 249: The Stpro Ip Router
11 Configuring IP 11.5.1 The STPro IP Router Introduction Because the can act as an IP router, it has the ability to access machines in other networks than its own. This can be achieved by adding specific routes to its IP routing table. This subsection provides some general information on the IP router functionality.
Page 250 11 Configuring IP Simplified example of The following table is an example of an IP routing table: a traditional IP routing table Route Destination Subnet Mask Gateway 30.0.0.2 255.255.255.255 30.0.0.10 10.0.0.0 255.255.255.0 10.0.0.138 0.0.0.0 0.0.0.0 20.0.0.10 The STPro IP routing Depending on the configuration made, the may use an table...
Page 251: Configuring The Stpro Ip Routing Table
11 Configuring IP 11.5.2 Configuring the STPro IP Routing Table Introduction The main function of the IP router in the , is to route IP packets from the local network to the remote networks over the ATM/ADSL connections and vice versa. In this subsection, configuration of the STPro IP routing table is described.
Page 252 11 Configuring IP ATM/ADSL IP routing Routing to ATM/ADSL connections actually means: Routing between the local LAN and Classical Logical IP " subnets and vice/versa Routing between the local LAN and PPP connections and " vice/versa. Basically the IP router only cares about IP addresses, i.e. the 'Destination IP address' of any packet received on any of its interfaces (PPP , CIP or Ethernet) is looked up in the IP routing table.
Page 253: Figure 76 'Ip Route' Table On The 'Routing' Web
11 Configuring IP 'IP route' table If you browse to the 'Routing' web page (See section 16.2 for more information), you can find the 'IP route' table: Figure 76 'IP route' table on the 'Routing' web page Adding specific routes Proceed as follows to add manually an IP route to the table: to the 'IP route' table Step...
Page 254 11 Configuring IP Step Action and Description In the 'IP route' table, you can configure an IP route, using the table's bottom row. Fill in the following IP route parameters: Value Description Destination The IP prefix of the destination, or next hop"...
Page 255: Configuring The Pc's Ip Routing Table
11 Configuring IP 11.5.3 Configuring the PC's IP Routing Table Introduction For proper operation of CIP , for tunneling from behind a LAN IP router, and/or other advanced networking configurations reconfiguration of your PC's routing table might be necessary. By adding routes to the PC's routing table, you can compel the PC to send its packets via a specific route, or to a specific destination (e.g.
Page 256 11 Configuring IP Viewing the PC's Proceed as follows to check the PC's routing table entries: routing table Step Action and Description Click from the system tray on your desktop. Select 'Programs'. Select 'MS DOS' prompt. At the DOS prompt, enter following command: route print Result As a result the route table of your PC will appear in the DOS box.
Page 257 11 Configuring IP Adding gateways to the Proceed as follows to add default gateways to the routing table of PCs running Microsoft Windows 9x: PC's routing table Step Action and Description Double click the 'My Computer' icon on your desktop. Double click the 'Control Panel' icon.
Page 258 11 Configuring IP Step Action and Description Click The 'TCP/IP Properties' window pops up, after selecting the 'Gateway' tab: In this 'TCP/IP Properties' window, you can view the PC's gateway settings. Note: In this above example, no gateways are configured for the In the 'New Gateway' field, you can fill in a gateway IP address, e.g.
Page 259 11 Configuring IP Step Action and Description Click to save the changes and exit the window. The 'Network' window reappears. Click Some configuration files will be copied on your hard disk. Restart your PC to allow the changes take effect. Adding specific routes Proceed as follows to add specific routes to the routing table: to the PC's routing...
Page 260 11 Configuring IP 260 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 261: Dns
12 DNS 12 DNS Introduction IP addresses are fundamental to the operation of the Internet. They not only uniquely identify Internet nodes but also allow IP routers to forward datagrams to their destinations. IP addresses, being 32 bit numbers, are ideally suited for computers but are far from usable to humans.
Page 262: Speed Touch Pro And Dns
12 DNS 12.1 Speed Touch Pro and DNS Introduction features a DNS server for the locally attached PCs, and as DNS relay for non local DNS hostnames. In this section This section covers the following topics: Topic DNS Resolving 12.1.1...
Page 263: Stpro Dns Resolving
12 DNS 12.1.1 STPro DNS Resolving Local DNS resolving The same mechanism for resolving computer names to IP addresses when browsing the Internet, applies to your local network. Instead of using the IP addresses for a local IP node e.g. 10.0.0.138 for the , you can give your nodes names and let a local DNS server, e.g.
Page 264 (default setting) as described above. However, all other domain names, e.g. Alcatel.com, cannot be resolved by the , and are forwarded over the appropriate link on the ADSL line. 264 / 340...
Page 265: Configuring The Stpro Dns Server
12 DNS 12.1.2 Configuring the STPro DNS Server In this subsection The example of subsection 12.1.1, refers to a new LAN, using the default configuration, thus as well as Auto DHCP server, as DNS server. In case the is added to a existing LAN, configuration of DNS server might be necessary to meet the existing LAN conditions.
Page 266: Figure 78 Dns Server Configuration Field
12 DNS DNS server field This field allows configuration of the DNS server. Figure 78 DNS server configuration field DNS server field You can configure the following parameters: components Field Description Default Server This check box enables (n), or disables the active DNS server.
Page 267: Pc(S)/Lan And Dns
12 DNS 12.2 PC(s)/LAN and DNS In this section This section covers the following topics: Topic Checking DNS Settings of your PC 12.2.1 Configuring DNS on your PC 11.4.3 Note The examples throughout this section all refer to Windows OSs. All the concepts, however, remain equally valid for other OSs.
Page 268: Checking Dns Settings Of Your Pc
12 DNS 12.2.1 Checking DNS Settings of your PC Checking your PC's Proceed as follows to check your PC's DNS settings: DNS status Step Action and Description Double click the 'My Computer' icon on your desktop. Double click the 'Control Panel' icon. In the Control Panel folder, double click the 'Network' icon.
Page 269 12 DNS Step Action and Description In the 'Network' window, look for the following network component: TCP/IP –> <networking PC-NIC component> and select it. Your selection will be marked in a blue banner. is a placeholder for <networking PC-NIC component> the name of the PC NIC installed.
Page 270: Configuring Dns On Your Pc
12 DNS 12.2.2 Configuring DNS on your PC In this subsection This subsection covers the following topics: Disabling DNS " Enabling DNS " Example DNS Configuration. " Disabling DNS Proceed as follows to disable DNS on your PC: Step Action and Description Browse to the 'TCP/IP Properties' window (with the 'DNS Configuration' tab selected) as described in the procedure of subsection 12.2.1.
Page 271 12 DNS Enabling DNS Proceed as follows to enable, and configure DNS on your PC: Step Action and Description Browse to the 'TCP/IP Properties' window (with the 'DNS Configuration' tab selected) as described in the procedure of subsection 12.2.1. If needed, tick Now you can proceed with the configuration of DNS parameters.
Page 272 12 DNS Step Action and Description In the 'DNS Server Search Order' field, you fill in the IP address of the DNS server(s) present in your LAN. Fill in the IP address, and click For using DNS, at least one DNS server must be filled in. If there are more, you must fill the list in decreasing priority order, e.g.
Page 273: Figure 80 A Pc Dns Configuration Example
12 DNS Example configuration In case the is your LAN's sole DNS server, the following figure provides an example of how the 'DNS Configuration' field of the 'TCP/IP Properties' window should be filled in: Figure 80 A PC DNS configuration example 273 / 340 3EC 17059 AAAA TCZZA Ed.
Page 274 12 DNS 274 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 275: Speed Touch Pro Software Upgrade
13 Speed Touch Pro Software Upgrade 13 Speed Touch Pro Software Upgrade Software Upgrade supports two software upgrade possibilities: A new version of the software can be downloaded via " the ADSL line to your You can upload new software yourself from a PC on "...
Page 276: Upload Software From A Pc
13 Speed Touch Pro Software Upgrade 13.1 Upload Software from a PC Introduction Alcatel ADSL products continue to evolve. By upgrading software, the is able to follow this evolution. In this section This section covers the following topics: The 'Software Upgrade' Web Page "...
Page 277: Figure 81 'Upgrade' Web
13 Speed Touch Pro Software Upgrade The 'Software Clicking in the left pane of the web pages, Upgrade' web page pops up the 'Upgrade' web page (See section 16.2 for more information): Figure 81 'Upgrade' web page 'Upgrade' web page...
Page 278 A valid software package must reside either on your harddisk, on a floppy disk, or CD rom. For new software upgrade packages, please contact your ADSL provider, ISP , or check the Alcatel web sites at: http://www.alcatel.com http://www.alcateldsl.com 278 / 340...
Page 279 13 Speed Touch Pro Software Upgrade Uploading software Proceed as follows to upload software from your PC: Step Action and Description Browse to the 'Software Upgrade' web page In the 'Active software version' field the software package that is running is labeled.
Page 280 13 Speed Touch Pro Software Upgrade Step Action and Description Click on the appropriate upgrade software package name to select it, and click As a result, the upgrade software location will be inserted in the Software path field. Click to start the upload.
Page 281 13 Speed Touch Pro Software Upgrade Activating upgrade Proceed as follows to switch passive upgrade and active running software versions: software Step Action and Description If needed, browse to the 'Upgrade' web page. Note: Make sure a passive software version is labeled in the 'Passive software version' field.
Page 282: Software Download
13 Speed Touch Pro Software Upgrade 13.2 Software Download Introduction supports a second software upgrade possibility: a new version of the software can be downloaded from the ADSL network to your This can be done via the dedicated control VCs.
Page 283: Speed Touch Pro Security
14 Speed Touch Pro Security 14 Speed Touch Pro Security In this chapter Your is a highly advanced product, operating according the many configurations set via the Web interface, or via the CLI. In this way, operation is vulnerable to misconfiguration by other users.
Page 284 14 Speed Touch Pro Security Setting a system Proceed as follows to set a system password for your password via the web interface Step Action and Description Browse to the 'System' web page. In the 'Password' field, fill in a password.
Page 285 14 Speed Touch Pro Security Clearing a system Proceed as follows to set a system password for your password Step Action and Description Browse to the 'System' web page. In the 'Password' field, delete the asterisks Click in the header frame.
Page 286 14 Speed Touch Pro Security 286 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 287: Lost Speed Touch
15 Lost Speed Touch 15 Lost Speed Touch Introduction Non accessibility to your may occur if wrongly configured, simply by forgetting its IP address, or forgetting the system password. Due to the flexible nature of the , you may end up in a situation where restoring all of the original defaults is the only solution.
Page 288: Ping Of Life
15 Lost Speed Touch 15.1 Ping of Life Introduction offers a unique method to supply an IP address to the 's Ethernet port. This method, the Ping of Life , allows to provide the with an IP address, without affecting other configurational settings. In this section This section covers the following topics: General Procedure...
Page 289 15 Lost Speed Touch The Windows OS The procedure described below assumes a Windows OS environment. Therefore small differences may occur if performing Ping of Life a Ping of Life on other platforms. procedure Proceed as follows to perform a Ping of Life : Step Action and Description Turn off the...
Page 290: Figure 82 Example Of A Ping Of Life Procedure
15 Lost Speed Touch Step Action and Description You may clear the entry in the ARP cache by issuing the following command: arp –d <STPro IP address> Note: Leaving the entry in the ARP cache does not harm the general operation. Browse to the web pages, and click to make...
Page 291 15 Lost Speed Touch The 'Ping t' command You can avoid waiting 30 and then 60 seconds by proceeding as follows: Step Action and Description 1 .. 5 Follow the Ping of Life procedure as described, from step 1 up to step 5.
Page 292: Resetting The Speed Touch Pro
15 Lost Speed Touch 15.2 Resetting the Speed Touch Pro Return to original The procedures described in this section will reset most, if not all of the 's configurable values back to their original defaults. settings Restoring Original Settings Be careful when using the Browse to Defaults, Ping to Defaults ,...
Page 293: To Defaults Overview
15 Lost Speed Touch 15.2.1 To Defaults Overview Differences between To restore 's original settings, three methods are provided: the three methods Two local software methods: " Browse to Defaults Which sets all parameters to original defaults, but keeps the system password and IP address. Ping to Defaults Which sets all parameters to original defaults, including the system password and IP address.
Page 294: Browse To Defaults
15 Lost Speed Touch 15.2.2 Browse to Defaults Procedure Proceed as follows to reset the via the web pages: Step Action and Description Browse to the 'System' web page. If you are sure to reset the to its original defaults, click will ask to confirm the reset (See example figure in step 1).
Page 295: Ping To Defaults
15 Lost Speed Touch 15.2.3 Ping to Defaults Introduction A second software method to reset all settings to the original defaults is the Ping to Defaults . The technique is identical to that used for the Ping of Life , except that another MAC address is used, i.e.
Page 296: Switch To Defaults
15 Lost Speed Touch 15.2.4 Switch to Defaults Introduction At the back of the there is a a set of DIP switches labeled "Config". Via these switches a hardware reset of the , the Switch to Defaults, is possible. Procedure Proceed as follows to restore all of the original settings Step...
Page 297: Speed Touch Pro Web Interface
16 Speed Touch Pro Web Interface 16 Speed Touch Pro Web Interface Introduction comes with integrated local configuration capabilities. There exist two methods: Configuration via a Web Browser " Configuration through a Command Line Interface (CLI). " The STPro web...
Page 298: Speed Touch Pro Web Interface Preconditions
16 Speed Touch Pro Web Interface 16.1 Speed Touch Pro Web Interface Preconditions Preconditions When your PC/workstation is connected to a Proxy server for accessing the Internet, you must change your Web browser preferences, because the is a local device and its IP address cannot be resolved by the Proxy server.
Page 299: Disabling Proxy Servers
16 Speed Touch Pro Web Interface 16.1.1 Disabling Proxy Servers Introduction This subsection describes how to disable Proxy servers for your Web browser. As a consequence of this action, connectivity through the Proxy server to the Internet is lost. Therefore, after configuring your...
Page 300: Disabling Proxying For Local Ip Addresses
16 Speed Touch Pro Web Interface 16.1.2 Disabling Proxying for Local IP Addresses Introduction This subsection describes how to avoid that IP addresses, you can connect to directly, as for the , are passed over to the Proxy server. However, this option can only be used if the Proxy servers are manually configured, i.e.
Page 301: Browsing To The Speed Touch Pro Web
16 Speed Touch Pro Web Interface 16.2 Browsing to the Speed Touch Pro Web Pages Procedure Proceed as follows to browse to the Step Action and Description Start the Web browser on your PC or workstation. Contact the by entering either: "...
Page 302: Figure 83 'Welcome To The World Of Adsl' Web
16 Speed Touch Pro Web Interface Result As a result the 'Welcome to the World of ADSL' web page pops up: Figure 83 'Welcome to the world of ADSL' web page From now on the acts as a Web server sending HTML pages/forms at your request.
Page 303: Stpro Web Pages Structure
16 Speed Touch Pro Web Interface 16.3 STPro Web Pages Structure In this section This section covers the following topics: Web Page Frames " Header Frame Components " Menu Frame Components " Body Frame Components. " STPro web page frames...
Page 304 16 Speed Touch Pro Web Interface Header frame The header frame is present in all of the web pages. components Under the generic ADSL banner it contains on most pages also subject related command buttons. Two command buttons are always found:...
Page 305 16 Speed Touch Pro Web Interface Click this To ... button ... Configure the PPTP packet service. Configure the Bridging packet service. View Bridging MAC layer data. Configure the DHCP server/client. 11.3.3 Configure the DNS server/client. 12.1.2 Upgrade software. Save all changes made to persistent memory.
Page 306 16 Speed Touch Pro Web Interface 306 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 307: Speed Touch Pro Command Line Interface
17 Speed Touch Pro Command Line Interface 17 Speed Touch Pro Command Line Interface Introduction For advanced configurations, with full control over all the functions, the exhibits a character based interface, i.e. the Command Line Interface (CLI). As the CLI has far more configurational possibilities than the web interface, it is intended for experienced users only.
Page 308: Cli Through A Telnet Session
17 Speed Touch Pro Command Line Interface 17.1 CLI through a Telnet Session Introduction Via a PC connected to the Ethernet interface of the you can execute CLI commands. However, you must gain access to the first, by opening a TCP/IP Telnet session.
Page 309 17 Speed Touch Pro Command Line Interface Opening a Telnet Proceed as follows to open the CLI Telnet session: session to your STPro Step Action and Description Click from the system tray on your desktop. Select 'Programs' and click to open a DOS window.
Page 310 17 Speed Touch Pro Command Line Interface Step Action and Description Click will prompt you with User: Press 'Enter'. The following step depends on the following: If ... Then ... A system password was set must supply before password, prior to gaining CLI access.
Page 311 17 Speed Touch Pro Command Line Interface Closing a Telnet CLI access to your is released, either via timeout, or by Session holding down the 'Ctrl' tab and pressing ']'. To quit the Telnet application, enter quit, or hold down the 'Ctrl' tab and press 'C'.
Page 312: Cli Via Serial Access
17 Speed Touch Pro Command Line Interface 17.2 CLI via Serial Access Advantages of the CLI The CLI via serial access: via serial access Provides CLI command connectivity to the , without the " need of a TCP/IP configuration Allows remote configuration via an intermediate POTS, "...
Page 313: Cli Command Basics
17 Speed Touch Pro Command Line Interface 17.3 CLI Command Basics Introduction Although it is not the aim of this chapter to give a complete overview of all possible configurational items, this section will describe some of the most important CLI commands.
Page 314 17 Speed Touch Pro Command Line Interface 314 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 315: Troubleshooting
18 Troubleshooting 18 Troubleshooting Introduction This chapter provides information on how to identify and correct some common problems you may encounter when using, and configuring the If the following troubleshooting tips have not resolved the problem, contact the company from which you purchased the assistance.
Page 316 18 Troubleshooting Trouble solving table The following table provides possible solutions to some problems: Problem Solution does not work. Make sure the plugged into an electrical (none off the LEDs lights up) outlet. Make sure the power switch on modem is turned ATMF connection does not Make sure the cable is securely work.
Page 317: Abbreviations
Abbreviations Abbreviations ACCOMP Address and Control field COMPression ADSL Asymmetric Digital Subscriber Line ARIN American Registry for Internet Numbers Asynchronous Transfer Mode ATMF 25 ATM Forum 25.6 Mbps bits per second CHAP Challenge Handshake Authentication Protocol Classical IP Command Line Interface Data Terminal Equipment Forwarding Information Base File Transfer Protocol...
Page 318 Abbreviations Password Authentication Protocol Personal Computer POST Power On Self Test POTS Plain Old Telephone Service Point to Point Protocol PPPoA PPP over ATM PPTP Point-to-Point Tunnelling Protocol Port Translation Permanent VC Remote Access Services Ringer Equivalence Number Rest Of the World RTSP Real Time Stream Protocol SOHO...
Page 319: Appendixa Hardware Reference
AppendixA Hardware Reference AppendixA Hardware Reference Introduction This appendix provides physical specifications and connector pin assignments for the In this appendix This appendix covers the following topics: Topic Specifications Connector Pin Assignments Power Supply Adapter LAN Cables Layout 319 / 340 3EC 17059 AAAA TCZZA Ed.
Page 320 AppendixA Hardware Reference Specifications Physical specifications 210mm W x 185mm D x 35mm H Operating environment Temperature: 5ºC to 40ºC (40F to 105F) Humidity: 20% to 80% Power requirements AC voltage: 100 to 120 V , 220 to 240 V Frequency: 50/60 Hz Power consumption: 7W Hardware platform...
Page 321 AppendixA Hardware Reference Connector Pin Assignments STPro port description Signal Function Model Port Name Reference Wire A Subscriber line 2/5 model wire A 123456 123456 Wire A Subscriber line 3/4 model wire A RJ 11/RJ 14 Front view Wire B Subscriber line wire B Wire B...
Page 322 AppendixA Hardware Reference Power Supply Adapter Power adapter use is equipped with one of the following pluggable power supply adapters listed in the table. Due to the special characteristics of the output class II AC adaptor, use only the AULT Incorporated types, or equivalents, listed in the table. Power adapter models Model AC/DC...
Page 323: Figure 85 Straight Through Lan Cable
AppendixA Hardware Reference LAN Cables Layout Straight through LAN Straight through LAN cables with the following layout are applicable for interconnecting Ethernet ports, and ATMF 25 ports: cable 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Figure 85 Straight through LAN cable 323 / 340...
Page 324: Figure 86 Crossover Lan Cable
AppendixA Hardware Reference Crossover LAN cable Crossover LAN cables with the following layout are applicable for interconnecting Ethernet ports: 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Figure 86 Crossover LAN cable 324 / 340 3EC 17059 AAAA TCZZA Ed.
Page 325: Appendixb Speed Touch Pro Original Settings
AppendixB Speed Touch Pro Original Settings AppendixB Speed Touch Pro Original Settings Introduction This chapter lists all of the original settings. These settings apply at the time the leaves the factory and after a reset to original defaults. In this chapter...
Page 326 AppendixB Speed Touch Pro Original Settings General settings STPro IP address 10.0.0.138 STPro DNS name SpeedTouch STPro domain name STPro DNS server Active STPro DHCP server AutoDHCP 326 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 327 AppendixB Speed Touch Pro Original Settings IEEE802.1D Transparent Bridging Defaults Phonebook entries Name State Configured Free Free Free ATM encapsulation RFC1483 LLC/SNAP for Bridged PDUs (FCS not preserved) Bridge ports Name State configuration Disabled Aging Time 5 minutes (300 seconds) 327 / 340 3EC 17059 AAAA TCZZA Ed.
Page 328 AppendixB Speed Touch Pro Original Settings PPPoA To PPTP Relaying Defaults Phonebook entries Name State RELAY_PPP1 Configured RELAY_PPP2 Configured RELAY_PPP3 Configured RELAY_PPP4 Configured ATM encapsulation RFC2364 VC MUX for PPP PDUs PPTP connection Name HDLC framing configuration RELAY_PPP1 Never RELAY_PPP2...
Page 329 AppendixB Speed Touch Pro Original Settings PPP Defaults Phonebook entries Name State PPP1 Configured PPP2 Configured PPP3 Free DHCP_SPOOF 8 Configured ATM encapsulation RFC2364 VC MUX of PPP PDUs PPP configuration, Name User Password authentication PPP1 guest guest PPP2 guest...
Page 330 AppendixB Speed Touch Pro Original Settings CIP Defaults Phonebook entries Name State CIPPVC1 Configured CIPPVC2 Free CIPPVC3 Free CIPPVC4 Free ATM encapsulation RFC1577-RFC1483 LLC/SNAP for Routed non ISO PDUs CIP configuration Enabled CIP member cip0 CIP member IP address 172.16.1.1 (255.255.255.0)
Page 331 AppendixB Speed Touch Pro Original Settings Global Default VPI/VCI Values ATMF 25 port Service channel (optional) 0 ... 5 0 ... 511 End User Ethernet port(s) Service channel ADSL/ATM Loopback Channel IEEE802.1D Transparent Bridging PPPoA to PPTP Relaying SNMP agent communication channel...
Page 332 AppendixB Speed Touch Pro Original Settings 332 / 340 3EC 17059 AAAA TCZZA Ed. 02...
Page 333: Appendixc Safety And Agency Regulatory Notices
Safety and Agency Regulatory Notices AppendixC Safety and Agency Regulatory Notices Aim of this appendix This appendix provides basic Safety Information on Alcatel's Speed Touch product. Prior to using the Speed Touch product, read this appendix carefully. Reading all instructions Follow all warnings and instructions marked on the product.
Page 334 AppendixC Safety and Agency Regulatory Notices Safety Instructions Climatic conditions The Speed Touch product equipment is intended for: In house stationary desktop use; the maximum ambient " temperature may not exceed 40ºC (104ºF). It must not be mounted in a location exposed to direct or "...
Page 335 AppendixC Safety and Agency Regulatory Notices Power cord protection Do not allow anything to rest on the power cord. Do not locate this product where the cord will be subject to persons walking on Overloading Do not overload wall (mains) outlets and extension cords as this increases the risk of fire or electric shock.
Page 336 Consult your telephone service company or ADSL service provider for instructions. Modifications Changes or modifications not expressly approved by Alcatel could invalidate the users authority to operate this equipment. STORE THESE INSTRUCTIONS CAREFULLY 336 / 340...
Page 337 AppendixC Safety and Agency Regulatory Notices European Community Declaration of Conformity Products with the marking comply with both EMC and Low Voltage Directives issued by the Commission of the European Community. EC Declaration of A copy of the European Community Declaration of Conformity is provided in your Speed Touch product shipping box.
Page 338 AppendixC Safety and Agency Regulatory Notices Radio Frequency Interference Statement This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against such interferenve in a residential installation.
Page 339 AppendixC Safety and Agency Regulatory Notices Canadian DOC Class B Notice Notification of Canadian RF Interference Statements This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of the Canadian Department of Communication.
Page 340 AppendixC Safety and Agency Regulatory Notices 340 / 340 3EC 17059 AAAA TCZZA Ed. 02...

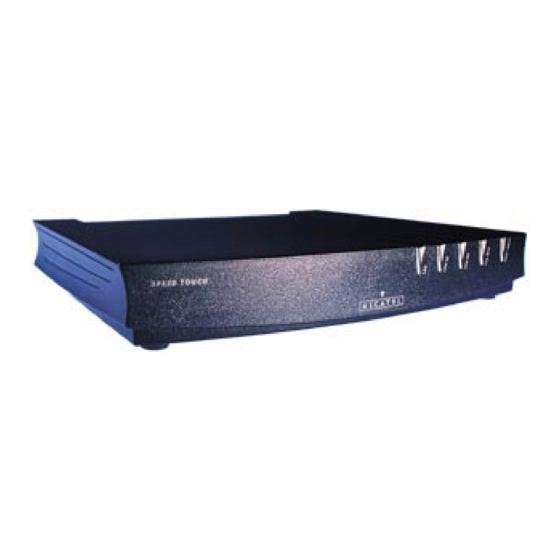

Alcatel Speed Touch Pro User Manual

1 Welcome to the Speed Touch

2 Speed Touch Pro Tour

3 Connecting the Speed Touch Pro

4 ADSL Connectivity

5 Packet Services

6 IEEE 802.1D Transparent Bridging

7 PPP to PPTP Relaying for Microsoft Windows

8 PPP& Iprouting

9 IP Routing & Classical IP

10 ATM Connectivity

11 Configuring IP

12 Dns

13 Speed Touch Pro Software Upgrade

14 Speed Touch Pro Security

15 Lost Speed Touch

16 Speed Touch Pro Web Interface

17 Speed Touch Pro Command Line Interface

18 Troubleshooting

Quick Links

User Manual

Related Manuals for Alcatel Speed Touch Pro

Summary of Contents for Alcatel Speed Touch Pro
